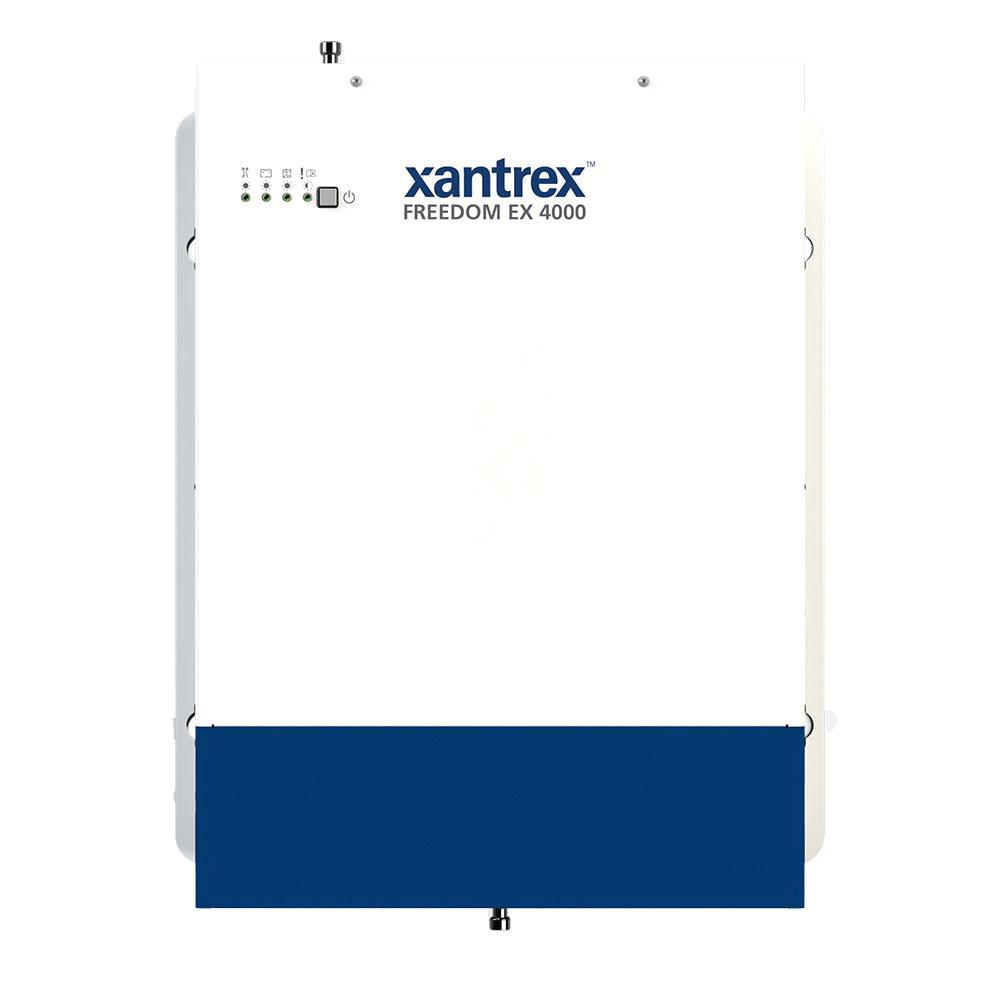

Xantrex FREEDOM EX 4000 - 4000W Inverter/Charger 80A 120V/48VDC [820-4080-41]

Xantrex FREEDOM EX 4000 - 4000W Inverter/Charger 80A 120V/48VDC [820-4080-41]

$2,805.99 USD
$3,443.90 USD $2,805.99 USD
Sale Sold out
Shipping calculated at checkout.

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

Packing Details

Package contents: Teison Portable Pro charger, TPU cable, user manual
Package weight: Please confirm with Ampere Authority


View full details

FREEDOM EX 4000 - 4000W Inverter/Charger 80A 120V/48VDC

The FREEDOM EX 4000 is a truly unique, true sine wave power solution packing a powerful 48VDC, 4000W (8000W [5s]) inverter, 80A 48VDC battery charger, 50A transfer relay, and a 48VDC to 12VDC, 45A converter inside one box. Designed for mobile applications that utilize 48VDC battery systems, the FREEDOM EX 4000 is designed to work as a standalone AC and DC power solution or supplement an existing generator to create a hybrid system. The FREEDOM EX 4000 features the most widely used communication protocols – RV-C (RV), enabling it to be used in virtually any application that requires integration with 3rd party MFPs and software.

Features:

  • Stack up to 3 units in parallel; up to 2 units in series
  • 48VDC to 12VDC converter output
  • Highly configurable charger specifically designed for lithium-ion batteries
  • Built-in 50A Transfer Relay
  • Extended Surge Rating to 2X continuous power for 5 seconds
  • True Sine Wave AC Power
  • Ignition Control Feature to turn the inverter on/off via a 12VDC signal
  • Easily configurable settings to charge any lithium-ion battery
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Quick Guide (pdf)
Owner's Manual (pdf)
