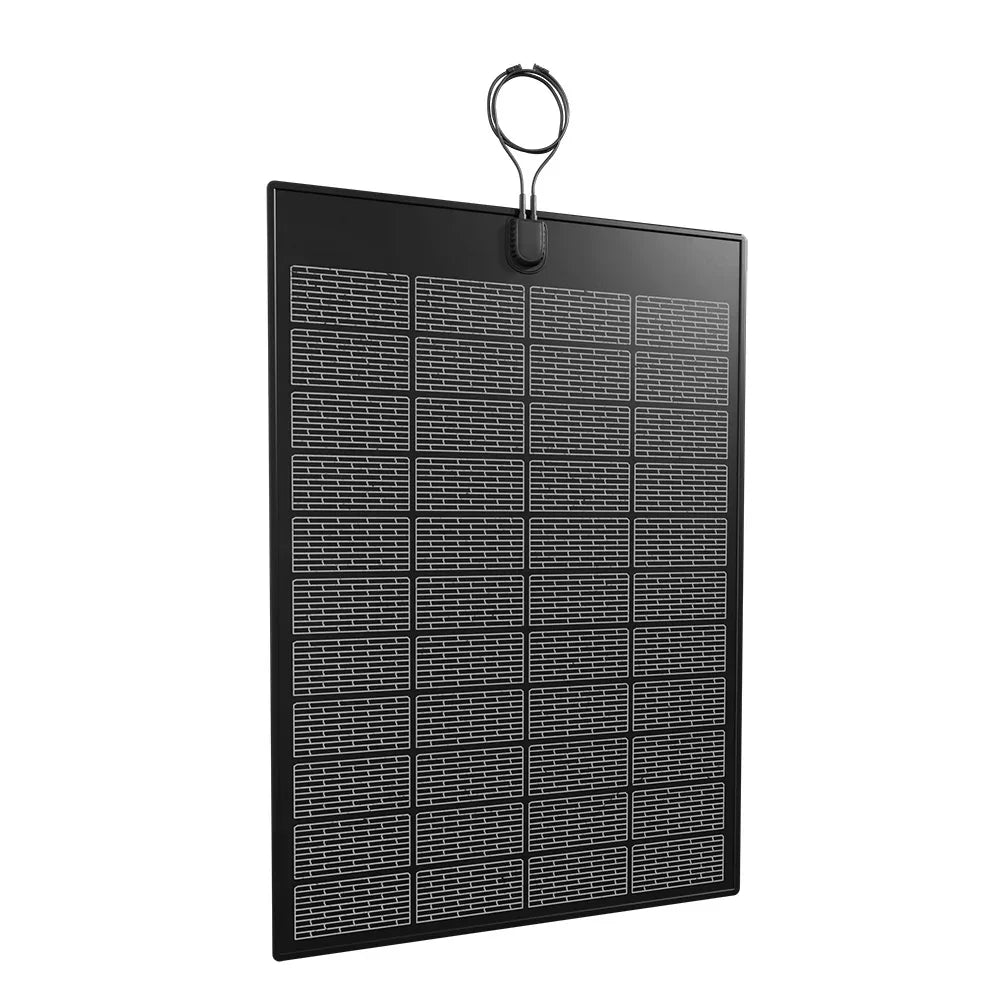

Xantrex 115W Solar Max Flex Panel

The Xantrex 115W Solar Max Flex Panel is a lightweight, ultra-durable flexible solar solution engineered for recreational vehicles, marine vessels, heavy-duty trucks, work trucks, and specialty vehicles. Its matrix and mesh grid technology deliver robust durability and improved daytime energy capture on partially shaded or low-light conditions, enabling up to 20% more energy under challenging conditions compared to standard panels.

Performance and construction: Mesh grid technology provides approximately 2000 contact points per cell, allowing the panel to flex up to 180 degrees without impacting power output. The top layer is ETFE (Ethylene-Tetra-Fluoro-Ethylene), offering enhanced light transmittance, corrosion resistance, stain resistance, weather resistance, and durability across a wide temperature range.

Electrical specifications (STC): Pmax 115 W; Vmp 22.1 V; Imp 5.2 A; Voc 27.4 V; Isc 5.6 A; max system voltage 600 V. Mechanical: Mono-Crystalline PERC cells, 42 cells (6x7); weight 6.0 lb (2.7 kg); dimensions 37.5 x 28.4 x 0.08 in (953 x 722 x 2 mm). Top-layer ETFE; Junction Box IP67 rated; Connector MC4-type.

Durability and safety: Rigorously tested with extreme environmental and accelerated lifecycle tests, the Max panel is 50x more durable than a standard flexible panel. The IP67 junction box and MC4 connectors provide reliable weather sealing and electrical safety in mobile installations.

Installation and maintenance: Peel-and-stick flexible panel design supports rapid installation on curved surfaces common to vehicles and vessels. Surface cleanliness and proper bonding per installation guidelines are recommended to maximize adhesion and longevity.

Temperature characteristics: Operating range -40 to 85 degrees C. Temperature coefficients: Pmax -0.39%/°C; Voc -0.30%/°C; Isc +0.06%/°C.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

115W Solar Max Flex Panel

This Xantrex Solar Max panel features solar panels with mesh grid technology that provides superior durability and performance benefits. With approximately 2000 contact points per cell, this mesh grid technology allows the panel to flex up to 180 degrees without impacting power output. Subject to extreme environmental and accelerated lifecycle testing beyond regulatory standards, the Max panel was tested 50 times more durable than a standard flexible panel.

It is also designed with a highly protective top layer called ETFE (Ethylene-Tetra-Fluoro-Ethylene), which allows for better light transmittance, corrosion resistance, stain resistance, weather resistance, and overall superior durability over a wide temperature range compared to non-ETFE semi-flexible-panels.

Features:

• Premium peel-and-stick flexible solar panel
• Harvest up to 20% more energy during the day in low-light or shaded conditions compared to a standard solar panel

Applications:

• Recreational vehicles
• Heavy-duty trucks
• Marine
• Work trucks
• Specialty vehicles

Specifications

Electrical Specifications:

• Maximum Power-Pmax (W) at STC*: 115
• Maximum Power Voltage-Vmp (V): 22.1
• Maximum Power Current-Imp (A): 5.2
• Open Circuit Voltage-Voc (V): 27.4
• Short-Circuit Current-Isc (A): 5.6
• Maximum System Voltage (V): 600

Mechanical Specifications:

• Cell Type: Mono-Crystalline PERC
• Top-Layer: ETFE
• Junction Box: IP67 Rated
• Connector: MC4 – type
• Number of Cells: 42 (6 x 7)
• Weight: 6.0 lb (2.7 kg)
• Dimensions (L x W x D): 37.5 x 28.4 x 0.08 in (953 x 722 x 2 mm)

Temperature Specifications:

• Operating Temperature: -40–85 degrees C
• Temperature Coefficients of Pmax: -0.39%/ degrees C
• Temperature Coefficients of Voc: -0.30%/ degrees C
• Temperature Coefficients of Isc: +0.06%/ degrees C
