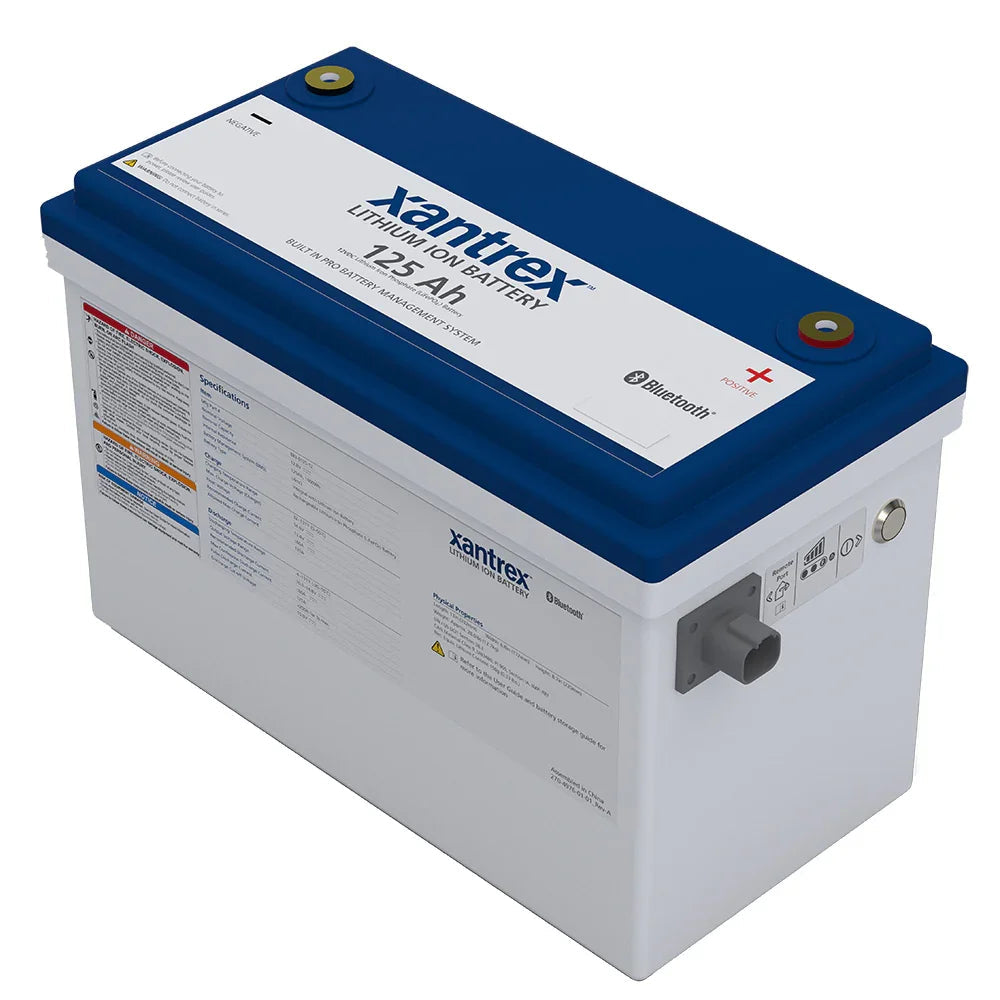

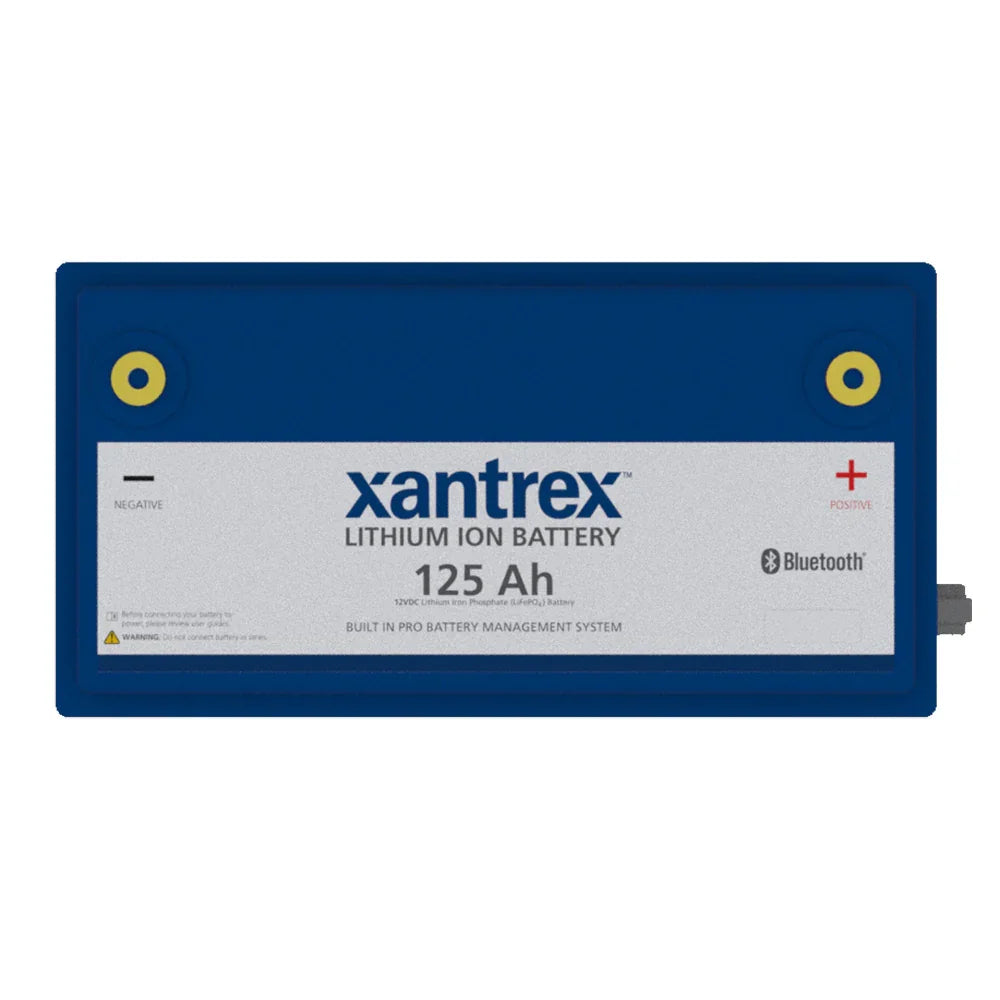

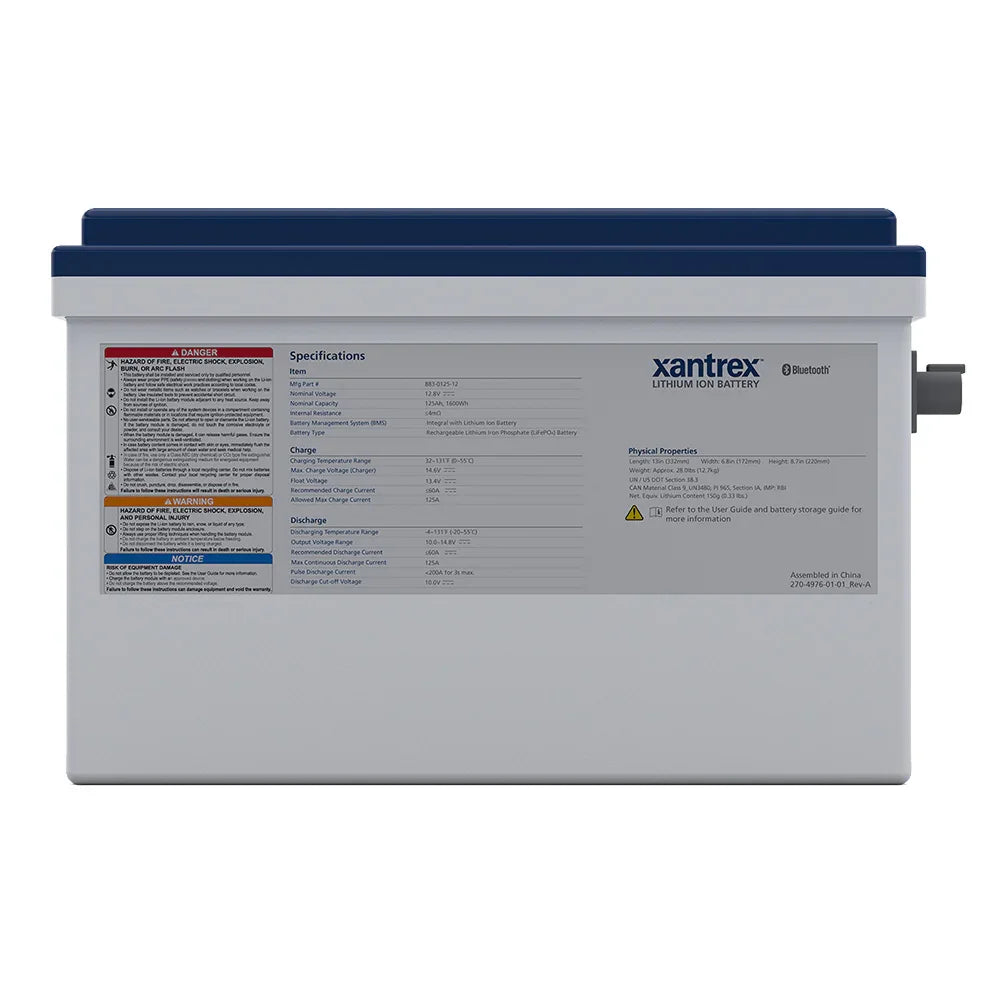

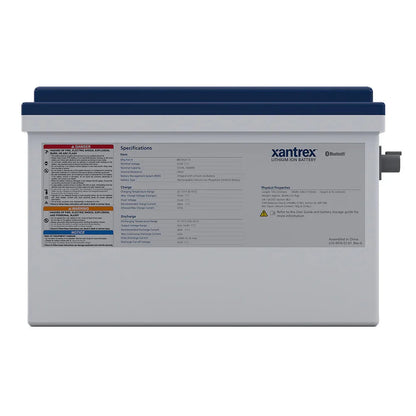

Xantex Lithium Ion Phosphate (LiFePO4) Battery - 125AH - 12VDC [883-0125-12]

Performance Specifications

• Chemistry: LiFePO4 (Lithium Iron Phosphate)
• Capacity: 125 Ah
• Nominal voltage: 12 V DC
• Enclosure: heavy-duty metal enclosure for extreme environments
• Battery Management System: built-in BMS
• Cell balancing: active balancing to extend life

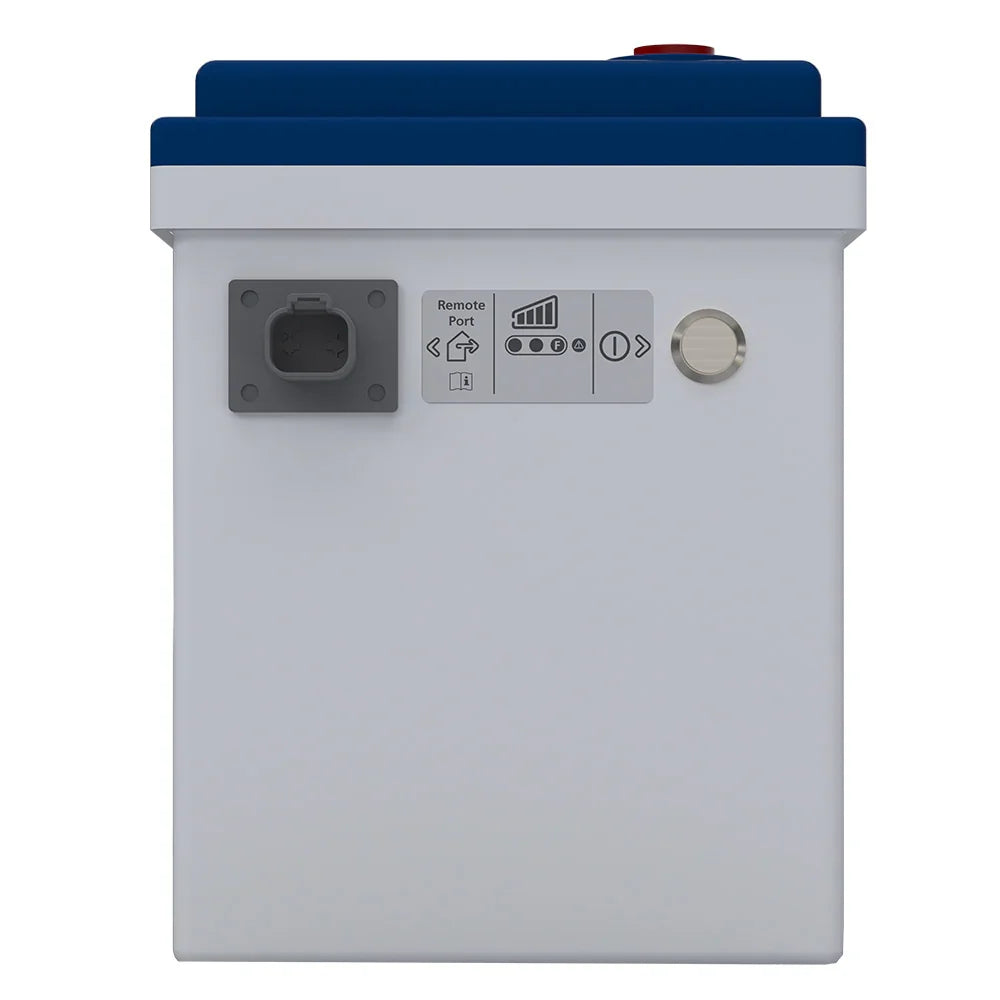

• Monitoring: LEDs for state of charge; Bluetooth connectivity for remote monitoring via app
• Expansion capability: Parallel Stack support for up to 2 batteries
• Cycle life: up to 6,000 cycles under suitable operating conditions
• Safety: UL1973-certified cells; redundant safety features incorporated
• Applications: designed for mobile and marine environments; suitable for RVs, heavy-duty trucks, work trucks, and specialty vehicles
• Heating option: available heating blanket for installations outside the main cabin

Safety Features and Certifications

• Internal BMS provides protection against overvoltage, undervoltage, overcurrent, and temperature faults
• Cell balancing helps maintain capacity and prolongs lifecycle
• UL1973-certified cells
• Redundant safety features intended to improve fail-safety in demanding environments

Installation and Maintenance Requirements

• Utilities: operates as a 12 V DC battery; heating blanket option may require additional power supply
• Required space: allocate secure mounting space compatible with the heavy-duty enclosure
• Commissioning steps:
  • Connect to 12 V system and verify nominal voltage
  • Confirm BMS status and LED indicators
  • Pair with remote panel and verify Bluetooth app connectivity
• Preventive maintenance:
  • Periodically verify SOC readings and overall health via remote panel/app
  • Inspect enclosure, terminals, and connectors for signs of corrosion or wear

Warranty and Service Information

• Warranty details are not provided in the supplied product information
• For service terms, eligibility, and response times, contact the manufacturer directly

Branding/References

• Manufacturer: Xantex
• Model: 883-0125-12
• Related PDFs (references): Quick Guide (pdf); Owner's Manual (pdf); Brochure (pdf)
• Shipping note: Drop shipped directly from Xantex to the lower 48 states only

Differentiators

• High-cycle LiFePO4 chemistry delivering up to 6,000 cycles, significantly longer than typical lead-acid solutions
• Integrated BMS with cell balancing and remote monitoring via Bluetooth app
• Robust heavy-duty enclosure engineered for harsh mobile and marine environments, with parallel-stack scalability
