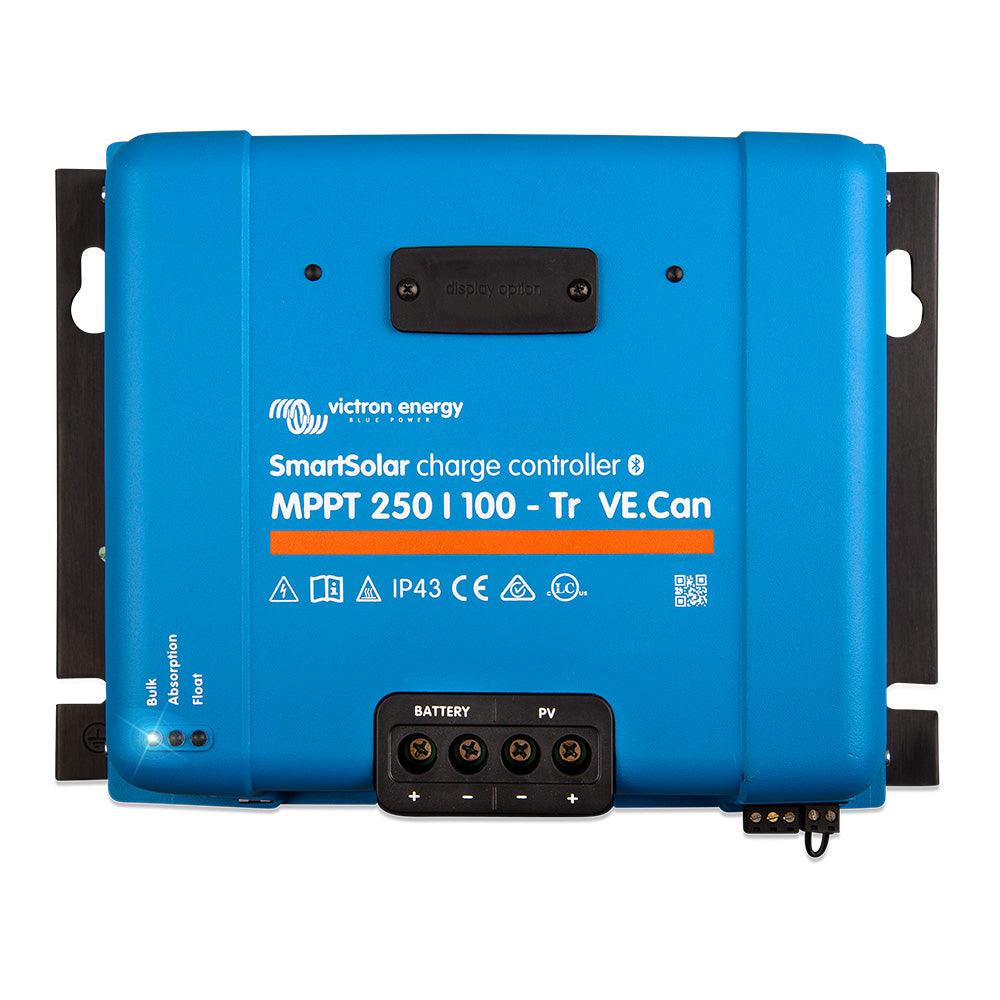

Victron SmartSolar MPPT VE CAN 250V-100A Solar Charge Controller

The SmartSolar MPPT VE CAN 250V-100A is an industrial-grade solar charge controller engineered for robust, high-efficiency battery charging in off-grid, marine, RV, and commercial installations. It optimizes energy from PV arrays to battery banks and supports scalable configurations through VE.Can networking, making it ideal for multi-unit systems that require synchronized charging and centralized monitoring.

• PV array compatibility: accepts 150 or 250 V Voc; ultra-fast MPPT tracking maximizes power under changing irradiance and temperature conditions.
• Battery voltage and chemistry: automatically detects 12, 24, or 48 V battery banks; charging current ranges from 70 to 100 A depending on model; supports diverse chemistries including lead-acid and lithium.
• Remote control and data: Bluetooth-enabled configuration and real-time metrics via the VictronConnect app; VE.Direct port for single-unit monitoring and control integrations.
• VE.Can daisy chaining: multiple units synchronize charge stages through RJ45 connections; data can be routed to a GX monitoring device for VRM access.
• Remote management: with GX connected to the internet, VRM provides full remote access and analytics; GlobalLink 520 enables remote monitoring in offline installations.
• Display and configurability: optional plug-in LCD display offers live data, setup, and management directly on the unit.

Designed for reliability in demanding environments, the VE CAN architecture reduces wiring complexity in multi-controller installations while delivering consistent charging profiles across all connected units. Quick Guide (pdf) is available to facilitate setup and operation.

SmartSolar MPPT VE CAN 250V-100A with VE.CAN Port

The MPPT VE.Can SmartSolar charger uses the latest and fastest technology to convert energy from a solar array into energy that optimally charges battery banks?

The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulfated or otherwise damaged.

MPPT: Ultra Fast Maximum Power Point Tracking

The MPPT VE.Can SmartSolar charger connect to a PV array of 150 or 250 Volt Voc and will automatically detect and charge your 12, 24, or 48V battery bank with current ranging from 70 to 100A depending on the model.

The charge settings are fully programmable and can even be set up for different battery chemistries, like lead-acid, lithium, and others.

Control Your Charger Remotely

The MPPT VE.Can SmartSolar charger be remotely controlled and configured over Bluetooth via the VictronConnect App. This allows device set-up, management, and at-a-glance information, such as battery voltage and current, PV voltage and current, and historical data.

Daisy Chain Additional Units

The VE.Can SmartSolar charger isequipped with CAN bus ports. This allows for communication with additional VE.Can SmartSolar chargers. The additional units are simply "daisy-chained" to each other with a single RJ45 cable between the individual units.

When connected to each other, all individual VE.Can SmartSolar chargers, synchronize their charge stages. They can also send their data, via a single cable, to a GX monitoring device.

Remote Monitoring and Control

If the GX device is connected to the internet, the Victron Remote Management Portal (VRM) provides access to the full power of your solar charger(s). For remote installations - even when there is no internet connection nearby - you may be able to monitor your MPPT by connecting the GlobalLink 520.

SmartSolar Control Display

The VE.Can SmartSolar charger is also equipped with a VE.Direct port like our other MPPT solar chargers. This port can be for single-unit monitoring or for streetlight control. The remote on/off connector can be externally controlled by a third-party device like a lithium battery. An optional plug-in LCD display/control provides live data, set-up, and management, straight from the face of the device.
