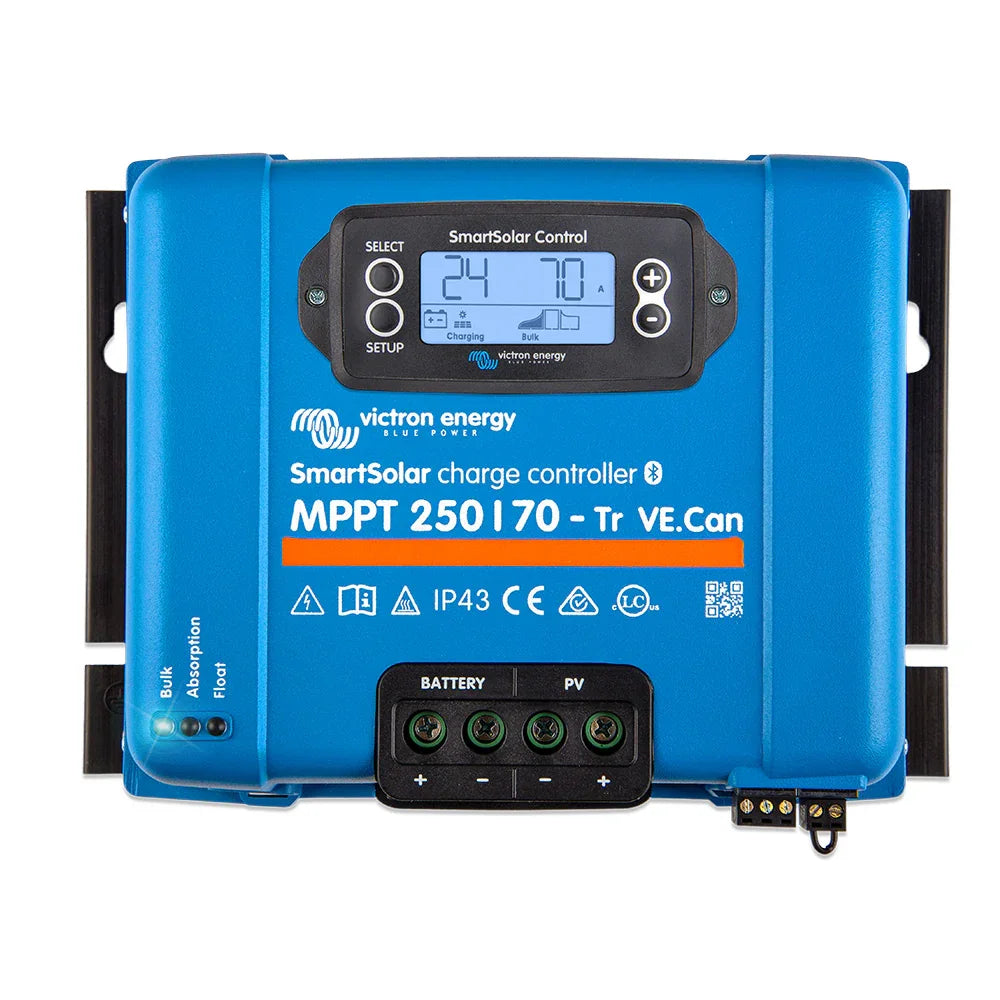

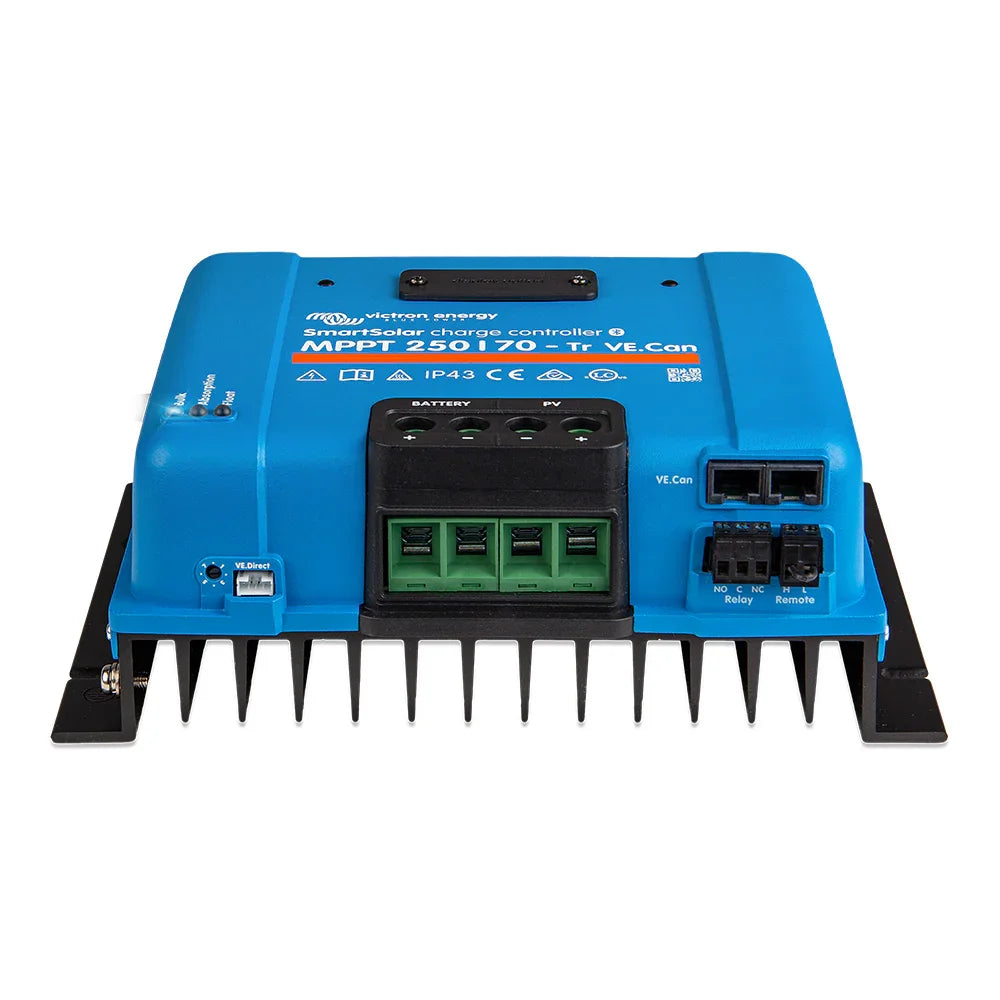

Victron SmartSolar MPPT 250/70-TR VE.Can [SCC125070421]

The SmartSolar MPPT 250/70-TR VE.Can is an industrial-grade solar charge controller engineered to maximize PV energy harvest while safeguarding a single battery bank. Its robust design and advanced charge management make it suitable for commercial, marine, and off-grid installations where stable battery health and reliable power delivery are required.

Key performance and operating highlights:

• Efficiency: up to 98% with natural cooling, optimizing energy conversion under diverse irradiance conditions
• Maximum Power Point Tracking: lightning-fast MPPT to rapidly extract available sunlight
• Charge algorithms: intelligent strategies that optimize charging cycles to extend battery life
• Remote management: optional VictronConnect App integration for monitoring and control
• Wireless charging synchronisation for coordinated multi-system charging
• Protection: SafetyShield+ with over-temperature, short-circuit, and reverse polarity safeguards

Electrical specifications and physical details:

• Charger Input Voltage: 250 V
• Charger Output Current: 70 A
• Charger Output Voltage: 12 V, 24 V, 36 V, 48 V
• Charging Banks: 1
• Continuous Amperage: 35 A
• Connectors: MC4-compatible interface
• Box Dimensions: 6"H x 10"W x 11"L
• Weight: 8.3 lb
• UPC: 8719076051213

Documentation and support materials are available with product literature: Quick Guide (pdf), Owner's Manual (pdf), and Brochure (pdf).

Installation and maintenance requirements are not detailed in the product data provided; users should consult the Quick Guide and Owner's Manual (pdf) for wiring, mounting, ventilation, and service recommendations. For returns, repairs, or support issues, please contact your dealer.

Warranty and service information are not specified in the provided details; contact your dealer to obtain the applicable terms and coverage for this model.

SmartSolar MPPT 250/70-TR VE.Can

The SmartSolar MPPT is packed with advanced technology to get the most out of your solar panels whilst protecting your batteries. It operates at 98% efficiency with natural cooling and is engineered to withstand the toughest conditions.

The lightning-fast maximum power point tracking converts all available sunlight into useful energy. Its charge algorithms enhance power output and extend battery life by intelligently managing charging cycles. Built-in SafetyShield+ features such as over-temperature, short-circuit, and reverse polarity protection safeguard your batteries from potential issues.

Simply put: the SmartSolar MPPT is the smartest solar charge controller under the sun.

Features:

• Lightning-fast maximum power point tracking
• Remote Management optional
• Intelligent charge algorithm
• VictronConnect App
• Wireless charging synchronisation
• SafetyShield+

Specifications:

• Charger Input - Voltage: 250V
• Charger Output - Amps: 70A
• Charger Output Voltage: 12V, 24V 36V, 48V
• Charging Banks: 1
• Continuous Amperage: 35A/MC 4 conn
• Box Dimensions: 6"H x 10"W x 11"L WT: 8.3 lbs
• UPC: 8719076051213
