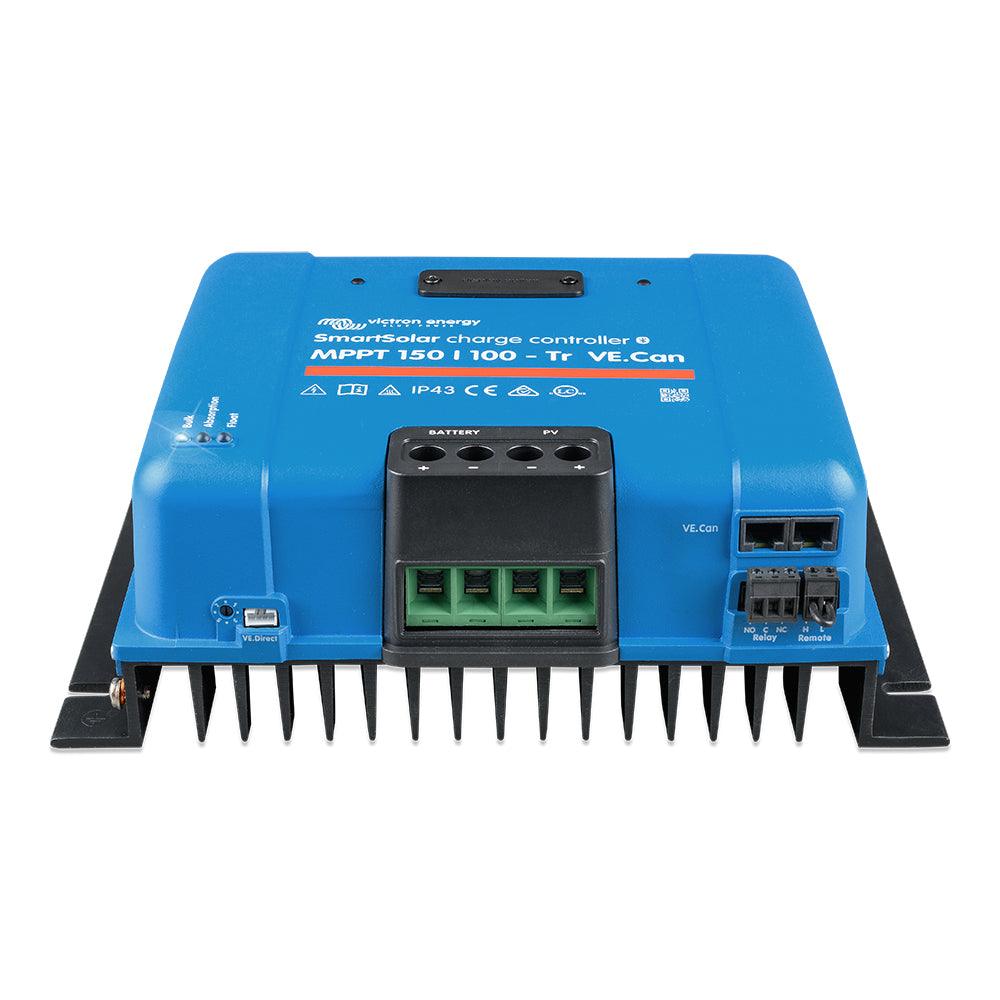

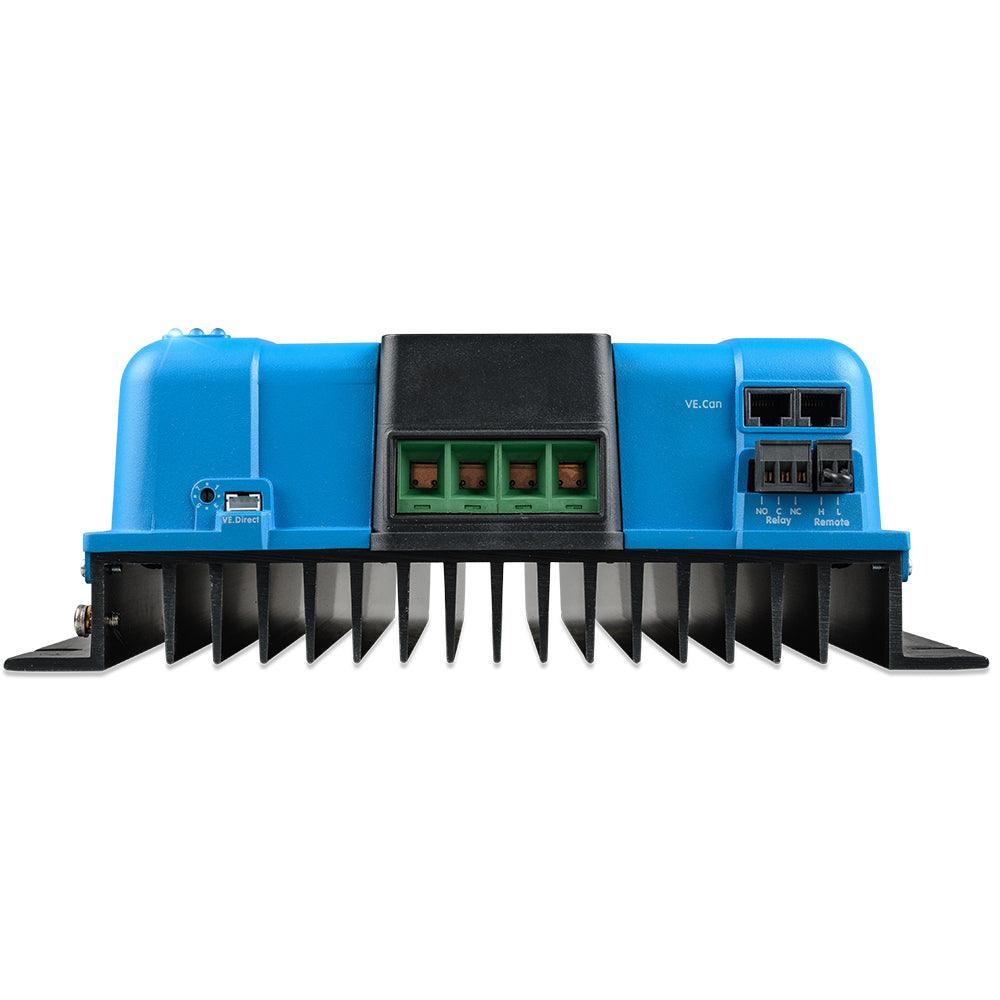

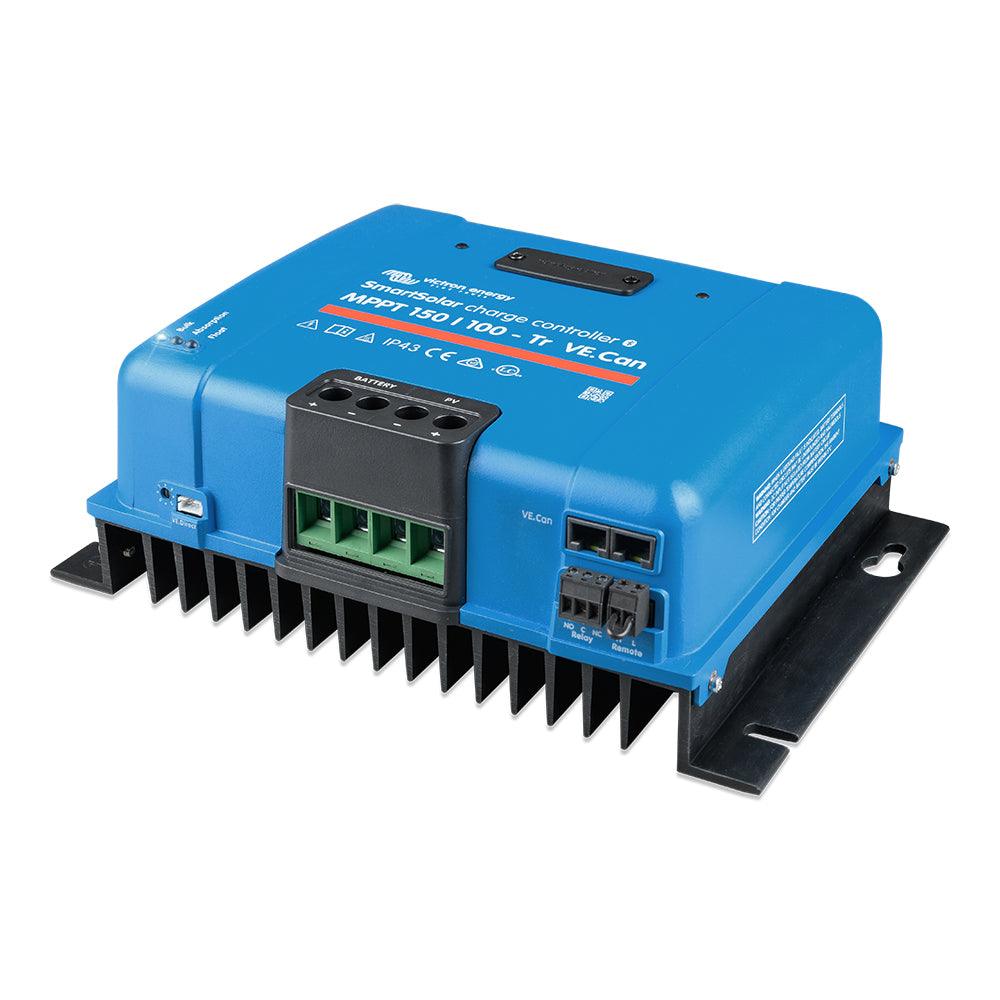

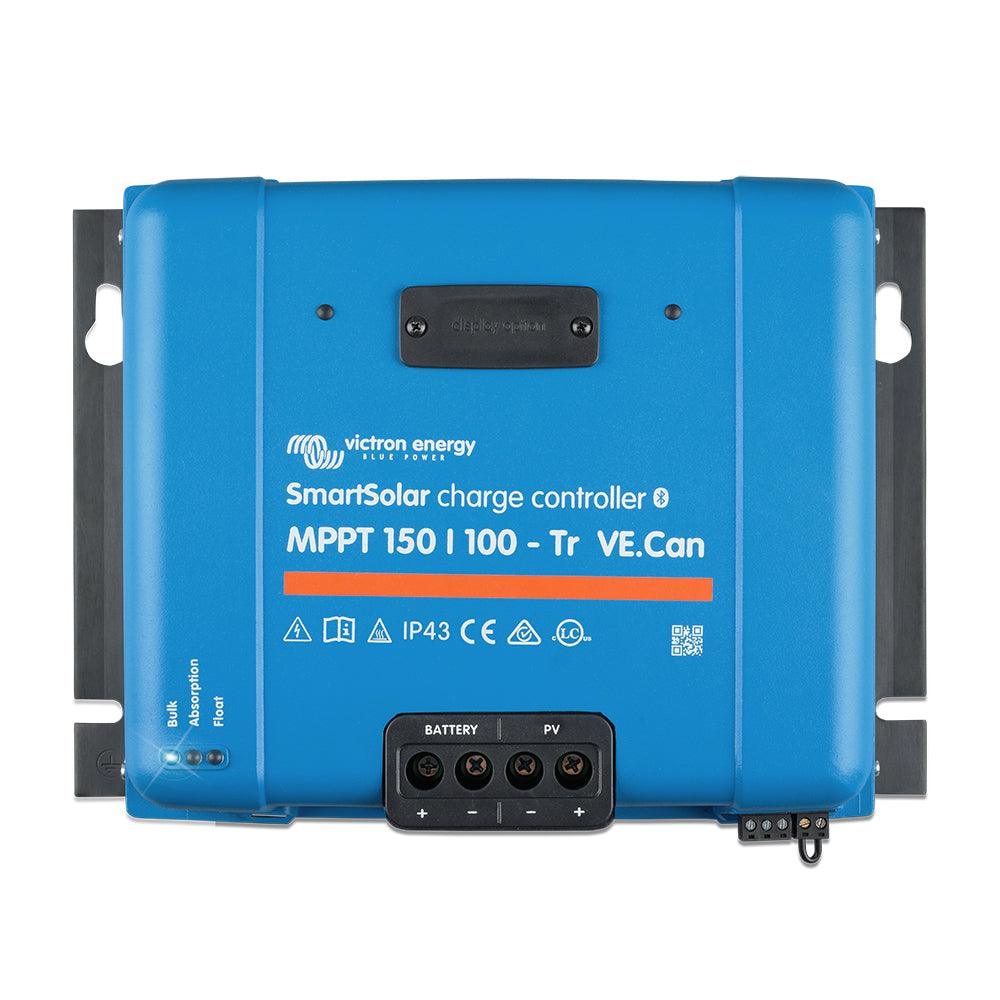

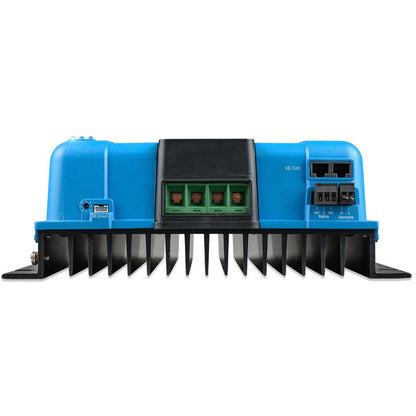

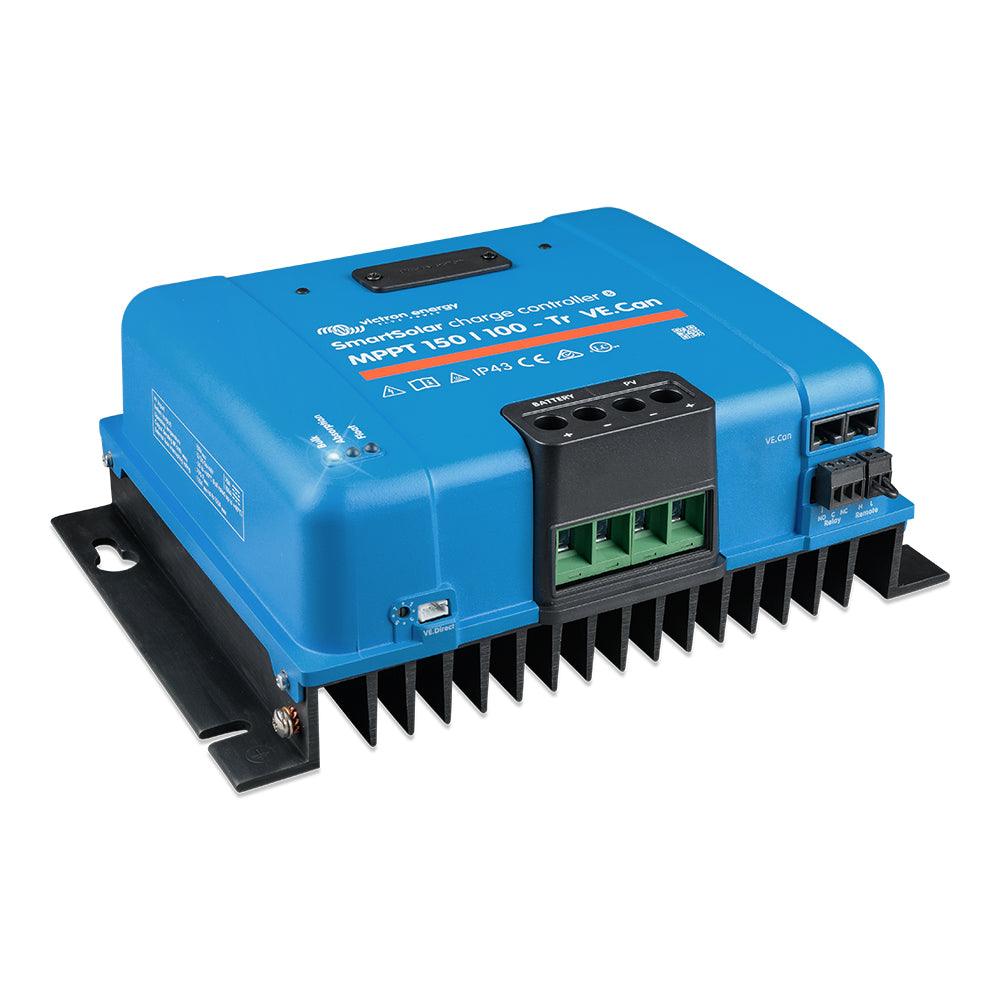

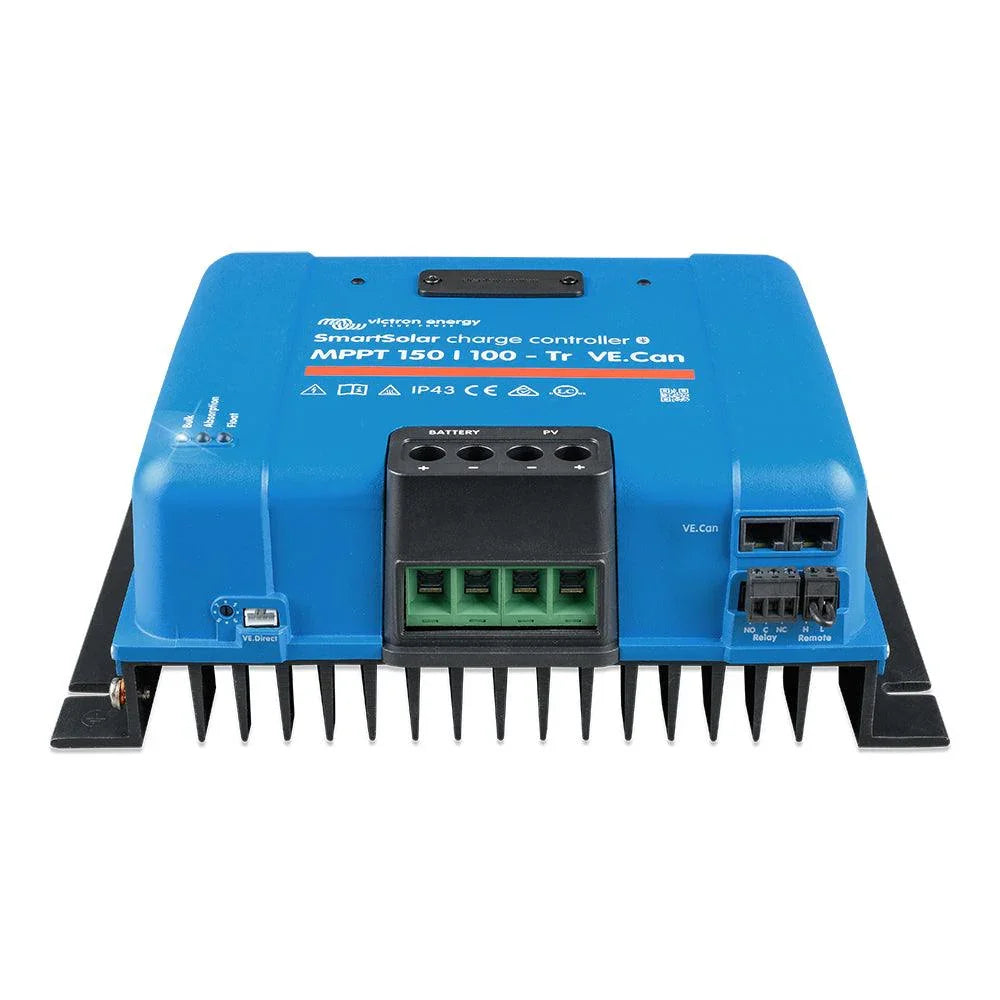

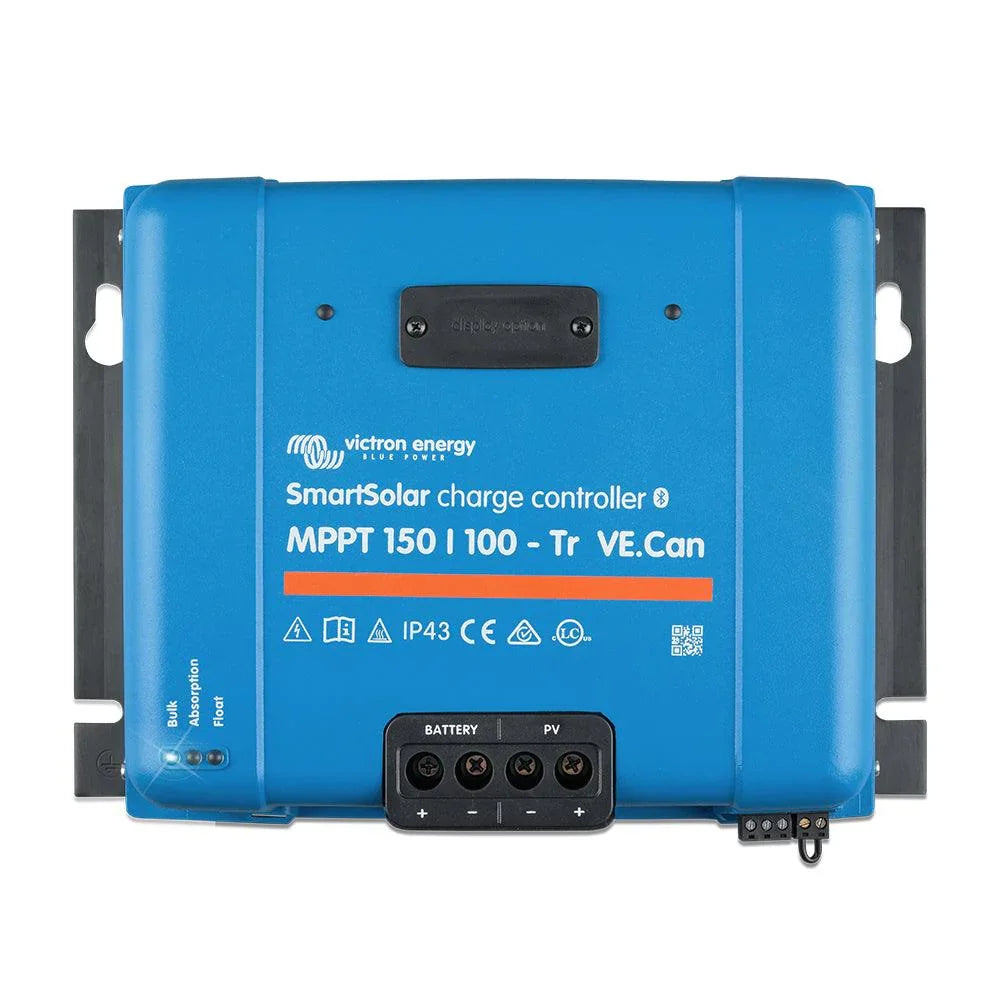

Victron SmartSolar MPPT 150/100-TR VE.Can

Industrial-grade solar charge controller for off-grid, marine, and commercial power systems. The SmartSolar MPPT 150/100-TR VE.Can converts energy from a PV array into optimal charging current for 12, 24, or 48 V battery banks, delivering rapid recovery for deeply discharged batteries. It supports PV arrays with Voc of 150 or 250 V and provides a charging current range of 70–100 A, depending on the model. The MPPT algorithm is described as Ultra Fast, maximizing energy harvest across varying irradiance and temperatures. Charge settings are fully programmable and configurable for different chemistries, including lead-acid and lithium technologies.

Connectivity, control, and networking

• Remote control and configuration via Bluetooth using the VictronConnect app, with live readings of battery voltage/current, PV voltage/current, and historical data.
• VE.Can networking enables daisy-chaining of additional VE.Can SmartSolar chargers; synchronized charge stages across units.
• Data export to a GX monitoring device for remote monitoring via the Victron VRM portal when the GX has internet access.
• VE.Direct port supports single-unit monitoring or streetlight control; optional plug-in LCD display for local live data and setup.

Installation, integration, and maintenance

Designed for modular installations, the VE.Can unit communicates over RJ45 for daisy chaining to other chargers. A single cable connects all units, with a shared data stream to the GX/VRM system. The remote on/off connector can be driven by a third-party device, enabling integration with alternative energy storage solutions. Ongoing configuration is managed via VictronConnect, and firmware updates are supported through this interface.

Safety, certifications, and service

Safety features and certifications are not specified in the supplied data. For returns, repairs, or support, please contact your dealer directly.

Documentation

• Quick Guide (pdf)
• Owner's Manual (pdf)
• Brochure (pdf)

SmartSolar MPPT 150/100-TR VE.Can

The MPPT VE.Can SmartSolar charger uses the latest and fastest technology to convert energy from a solar array into energy that optimally charges battery banks.

The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulfated or otherwise damaged.

MPPT: Ultra Fast Maximum Power Point Tracking

The MPPT VE.Can SmartSolar charger connects to a PV array of 150 or 250 Volt Voc and will automatically detect and charge your 12, 24, or 48V battery bank with current ranging from 70 to 100A depending on the model.

The charge settings are fully programmable and can even be set up for different battery chemistries, like lead-acid, lithium, and others.

Control Your Charger Remotely

The MPPT VE.Can SmartSolar charger can be remotely controlled and configured over Bluetooth via the VictronConnect App. This allows device set-up, management, and at-a-glance information, such as battery voltage and current, PV voltage and current, and historical data.

Daisy Chain Additional Units

The VE.Can SmartSolar charger is equipped with CAN bus ports. This allows for communication with additional VE.Can SmartSolar chargers. The additional units are simply "daisy-chained" to each other with a single RJ45 cable between the individual units.

When connected to each other, all individual VE.Can SmartSolar chargers, will synchronize their charge stages. They can also send their data, via a single cable, to a GX monitoring device.

Remote Monitoring and Control

If the GX device is connected to the internet, the Victron Remote Management Portal (VRM) provides access to the full power of your solar charger(s).

SmartSolar Control Display

The VE.Can SmartSolar charger is also equipped with a VE.Direct port like our other MPPT solar chargers. This port can be for single-unit monitoring or for streetlight control. The remote on/off connector can be externally controlled by a third-party device like a lithium battery. An optional plug-in LCD display/control provides live data, setup, and management, straight from the face of the device.
