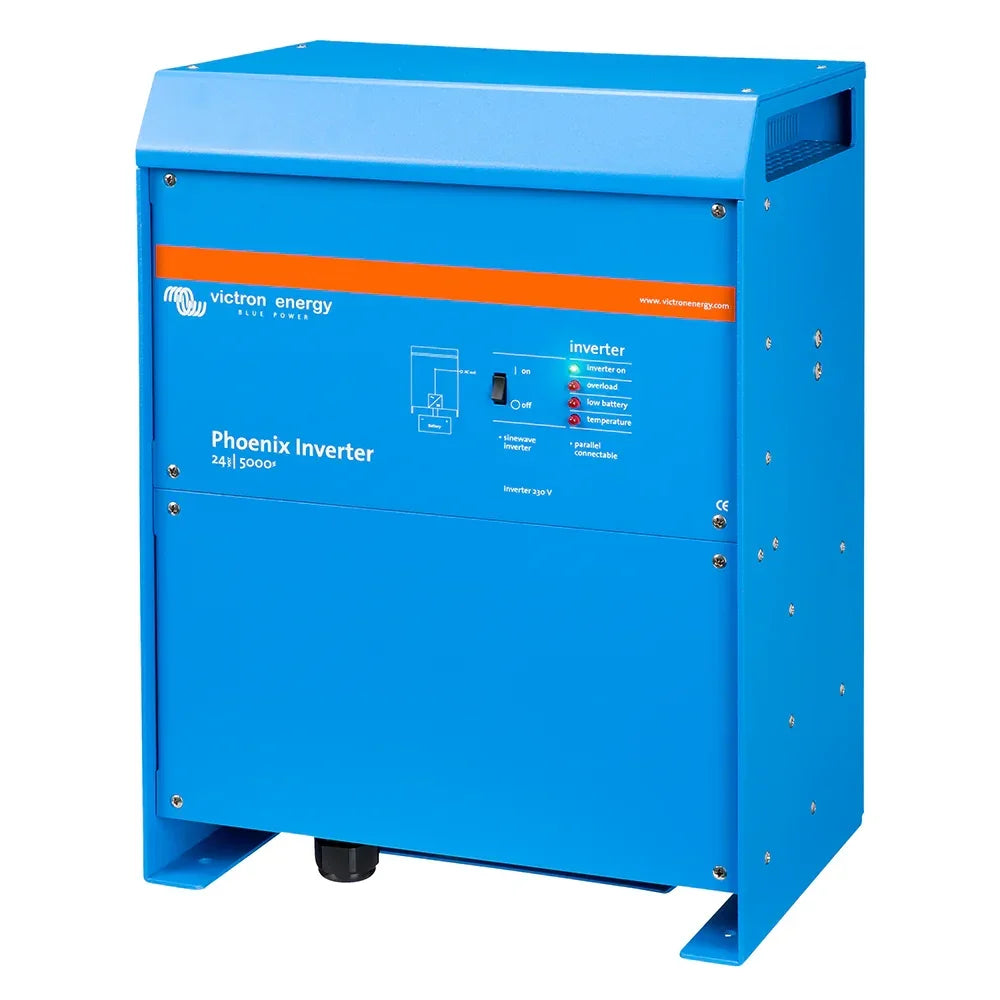

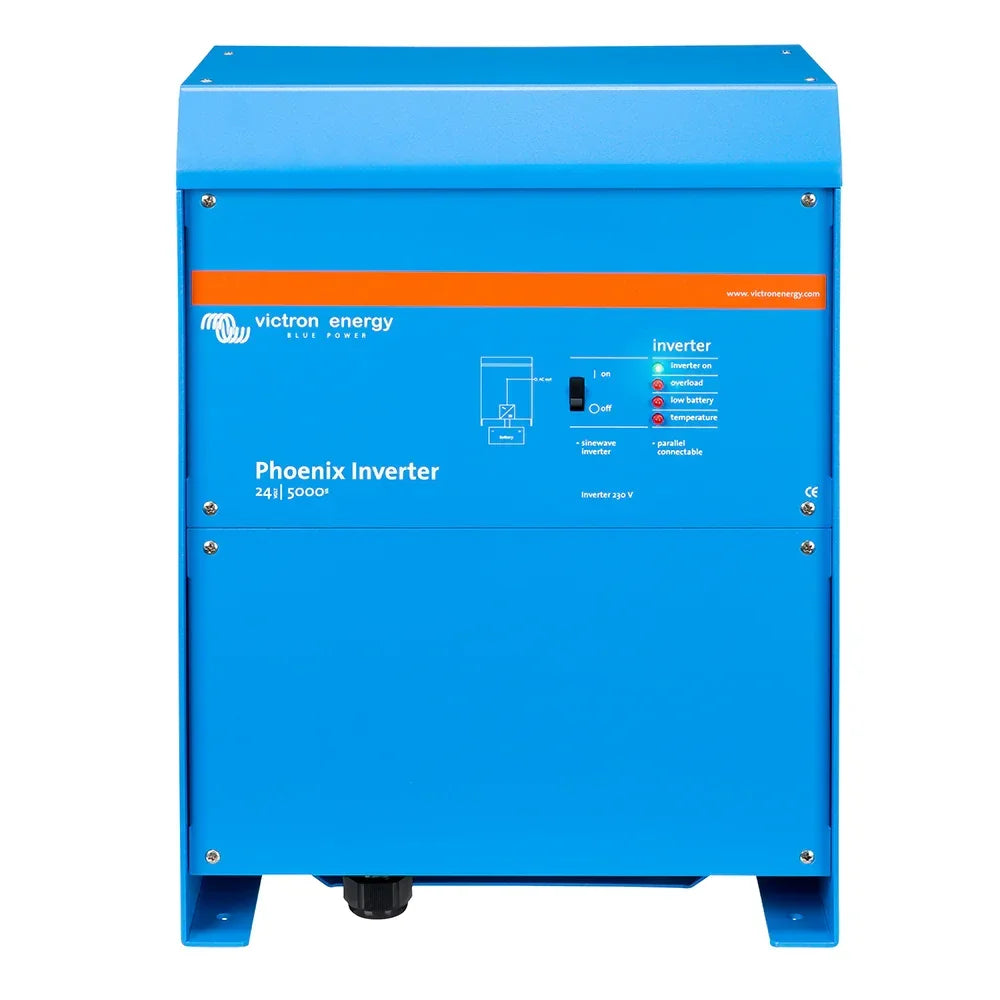

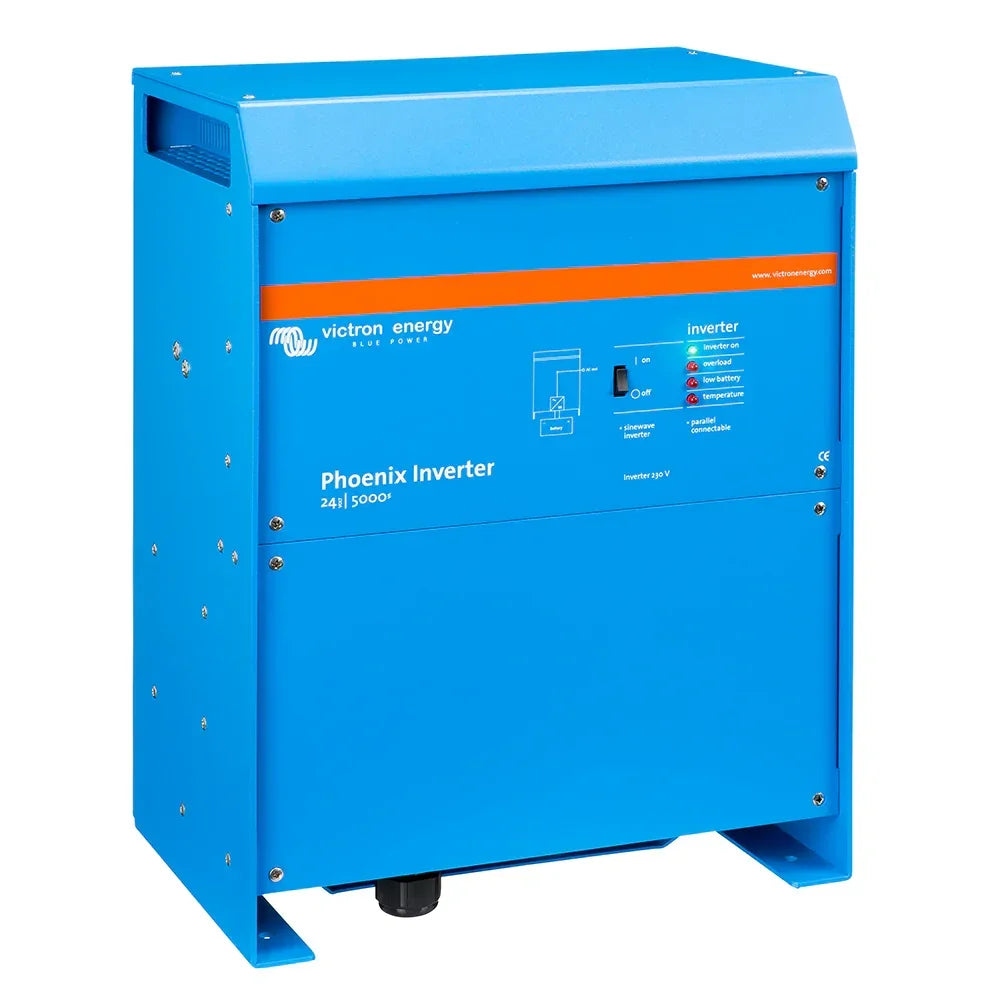

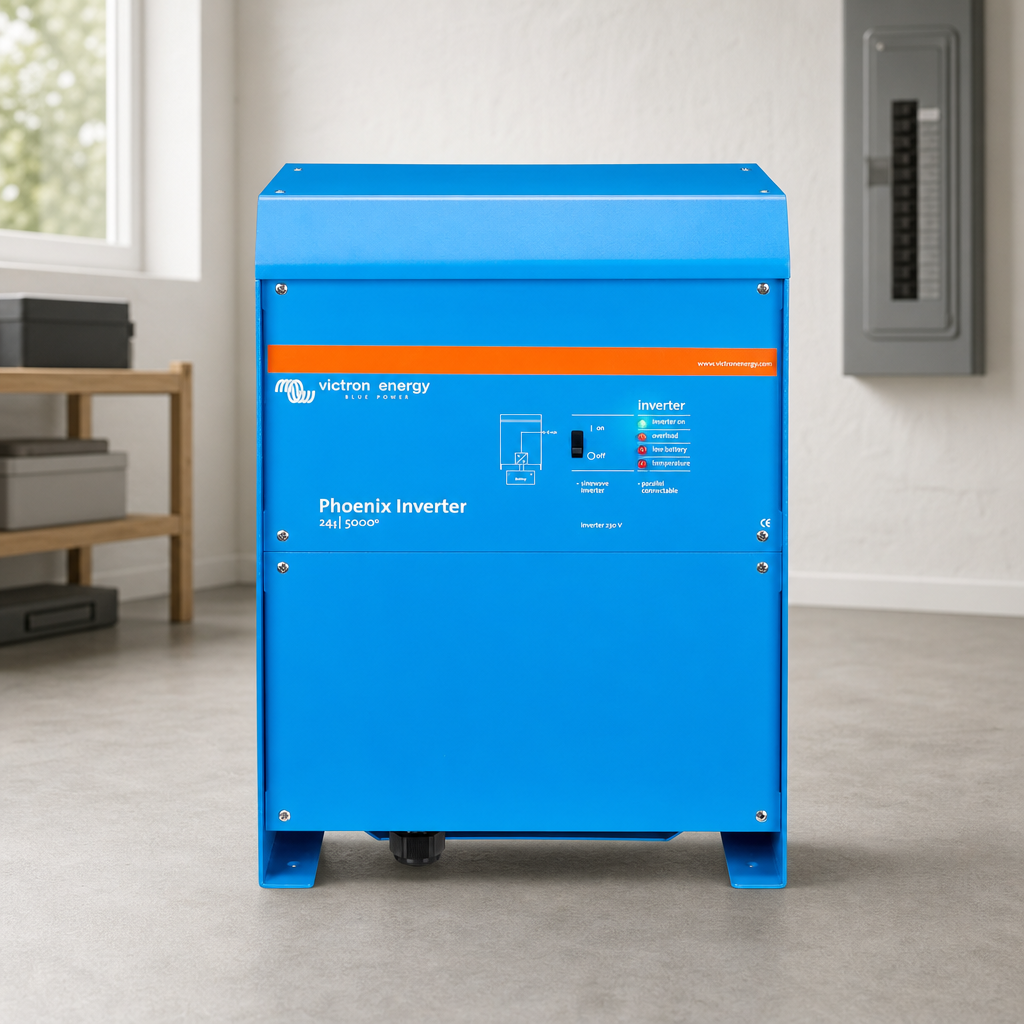

Victron Phoenix Inverter 24V DC - 5000W - 230 VAC - 50Hz [PIN245020000]

Victron Phoenix Inverter 24V DC - 5000W - 230 VAC - 50Hz [PIN245020000]

$1,666.00 USD
$1,960.00 USD $1,666.00 USD
Sale Sold out
Shipping calculated at checkout.

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

Packing Details

Package contents: Teison Portable Pro charger, TPU cable, user manual
Package weight: Please confirm with Ampere Authority


View full details

Phoenix Inverter 24 VDC - 5000W - 230 VAC - 50Hz

Pure sine wave output, high peak power and high efficiency. Combined high frequency and line frequency technologies ensure the best of both worlds.

SinusMax - Superior Engineering

Developed for professional duty, the Phoenix range of inverters is suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimised efficiency but without compromise in performance. Employing hybrid HF technology, the result is a top quality product with compact dimensions, light in weight and capable of supplying power, problem free, to any load.

Parallel and 3-phase operation capability

Up to 6 Phoenix Inverters can operate in parallel to achieve higher power output. Six 24V 5000VA units, for example, will provide 24kW / 30kVA output power. Operation in 3-phase configuration is also possible.

Warranty Info

WarningWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Please contact your dealer for any returns, repairs or support issues related to this product.

Specifications:

  • AC Connection Type: Hardwire
  • Inverter Output Voltage: 230v
  • Waveform: Pure Sine Wave
  • Inverter Surge Rating: 10000w
  • Inverter Input Voltage: 19-33v
  • Inverter Cont. Output Wattage: 5000w
  • DC Connection Type: Hardwire
  • Outlet Qty: None
  • GFCI: No
  • Box Dimensions: 13"H x 17"W x 21"L WT: 73 lbs
  • UPC: 8719076023760

Quick Guide (pdf)
Brochure (pdf)
