SunStar 10CU Solar DC/AC Refrigerator - Black ST-10RF-B
Designed for off-grid and grid-connected operation, the SunStar 10CU is a 9.8 cu ft upright refrigerator with dual independent compressors and dual thermostats. Built in the USA, it emphasizes energy efficiency and flexible power options for demanding environments.
Performance and specifications
- Capacity: Top 6.6 cu ft; Bottom 3.2 cu ft (Total 9.8 cu ft); Dimensions 23.5" W x 60" H x 26.25" D; Weight 148 lb.
- Power and efficiency: Typical 55 W draw (12 VDC 4.3 A; 24 VDC 2.2 A); Top 188Wh/24 hr; Bottom 314Wh/24 hr; Refrigerant R600A.
- Cooling system: Exclusive Keota dual compressor with independent temperature control; Bottom compartment can serve as refrigerator or freezer; Automatic defrost in the top compartment; Interior LED lighting; Adjustable shelving; Reversible door; Front leveling legs; Wheel casters; Fault LED.

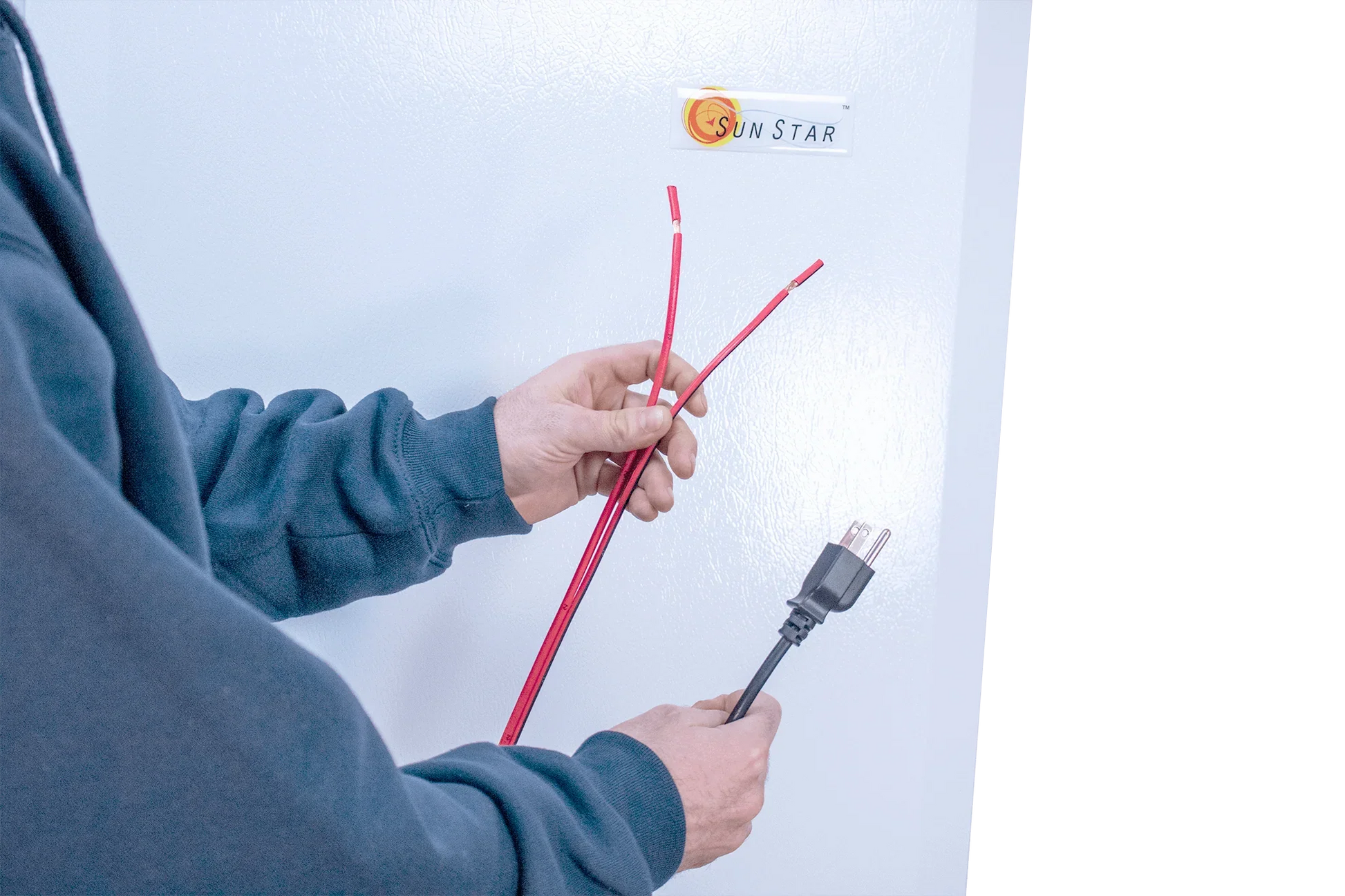

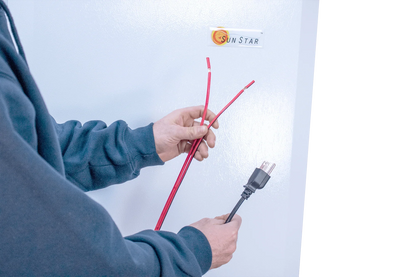

- Power options: Dual voltage 12/24 VDC or 115 VAC; Can operate from both sources simultaneously for versatile installations.
Installation, maintenance and safety
- Installation: Auto-switching between 12/24 VDC and 115 VAC; ensure adequate ventilation; use leveling legs for secure setup; wheels enable easy repositioning.
- Maintenance: Regular cleaning of interiors and door seals; rely on automatic defrost for top compartment to minimize frost buildup.
- Safety: Fault LED supports quick troubleshooting; energy-efficient insulation reduces heat ingress with 4" polyurethane walls.
Warranty and service
Includes a 2 Year Performance Warranty. For detailed service terms and support, refer to the SunStar manuals below.
Resources: SunStar 10CU Manual • SunStar 10CU Specification Sheet
Shipping and availability
Ships via LTL Truck. Remote location surcharges may apply; we will contact you before shipping if additional charges are necessary. This appliance ships standard to residential or business addresses; installation and delivery arrangements are the customer's responsibility after delivery.
SunStar 10CU Solar/DC/AC Refrigerator (Black)
Designed specifically for off-the-grid or grid connected use, the SunStar 10CU Solar/DC/AC refrigerator is an industry leader in this mid-size model category, and 100% Made in the USA. Featuring dual voltage options + dual independent compressors + dual thermostat cooling system (one for the freezer, one for the refrigerator compartment) this upright refrigerator can be used for many applications and built with energy efficiency in mind! Featuring an industry leading 4" thick polyurethane wall insulation, this SunStar refrigerator is built to last.
Highlights
- 100% Made in the USA
- Designed specifically for off-the-grid or grid connected use
- Dual voltage 12/24vDC or 115vAC
- Connect both power sources simultaneously
- Only multi-voltage dual compressor upright solar / DC model in North America
- Super-efficient: 55-watt typical power draw
- Thick 2.75" polyurethane wall insulation
- Exclusive Keota dual compressor system
- Independent compartment temperature control
- Bottom unit can be used for refrigeration or freezer
Features
- Available in White, Black, or Black + Stainless Door
- Automatic 12v or 24v DC operation + 115vAC option
- Automatic defrost (top compartment only)
- Interior LED lights in both compartments
- Adjustable shelving
- Reversible door

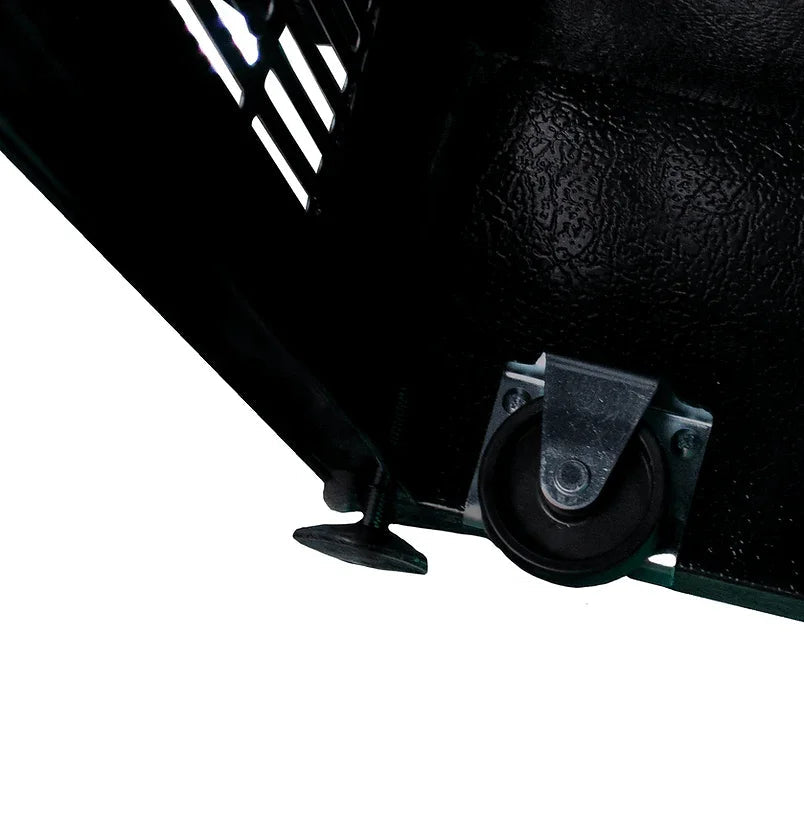

- Wheel casters for easy moving
- Front adjustable levelling legs
- Fault LED for easy troubleshooting
- 2 Year Performance Warranty
Energy Consumption - Ambient Temperature 77F (25C)
- Top compartment 188Wh/24hr
- Bottom compartment 314Wh/24hr
- Typical power draw: 55-watt (12vDC 4.3A / 24vDC 2.2A)
Specifications
- Dimensions (WxHxD): 23.5 x 60 x 26.25
- Top Compartment: 6.6CU
- Bottom Compartment: 3.2CU
- Weight: 148lbs
- Refrigerant: R600A
Download: SunStar 10CU Manual
Download: SunStar 10CU Specification Sheet
