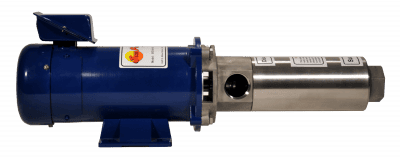

Sunpumps SCB 24-50P-48 BT Surface Pump Multi-Stage Booster Pumps

SunPumps SCB series pressure pumps are multi-stage centrifugals designed primarily for boosting pressure from surface water as long as the water supply is above or no more than 3' below the level of the pump. They are ideal pumps for Home Pressure Systems, Sprinkler Systems or In-line Booster Pumps.

SunPumps SCB series pressure pumps are very high quality, maintenance free, DC pumps specifically designed for stand-alone water delivery in remote locations. The SCB 20-25P operates on 700 to 800 watts of DC power and is designed to be powered from batteries.

Model number codes are as follows:

Battery Systems

S --> Solar
C --> Centrifugal
B --> Booster
20 --> GPM
25P --> Head(PSI)
24V --> Battery Voltage
BT --> Brush Type (BL --> Brushless)

For battery systems the head is rated in PSI followed by a battery system voltage.

PERFORMANCE MEASUREMENTS

Choose values for
Y (vertical) axis:

Choose values for
X (horizontal) axis:

LEGEND

PSI = Pounds (of pressure) per Square Inch
TDH = Total Dynamic Head (also called 'lift' this is a measurement of the vertical distance water can be raised.
GPM = Gallons Per Minute
LPM = Liters Per Minute
