Sunpumps SCB 22-110-120BL Surface Pump Solar Panel Direct

Sunpumps SCB 22-110-120BL Surface Pump Solar Panel Direct

$1,676.32 USD
$1,676.32 USD
Sale Sold out
Shipping calculated at checkout.

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

Packing Details

View full details

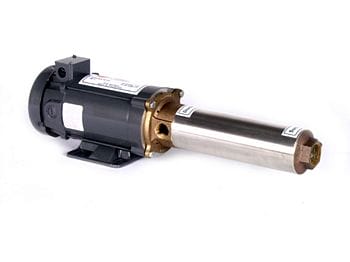

Sunpumps SCB 22-110-120BL Surface Pump Solar Panel Direct

This pump can achieve 30 gpm delivering 30PSI using 6x 250W solar panels wired in series.

SunPumps SCB series pressure pumps are multi-stage centrifugals designed primarily for boosting pressure from surface water as long as the water supply is above or no more than 3' below the level of the pump. They are ideal pumps for Booster Pump Systems, Sprinkler Systems or In-line Pressure Pumps.

SunPumps SCB series pressure pumps are very high quality, maintenance free, DC pumps specifically designed for stand-alone water delivery in remote locations. The SCB 10-185 operates on 350 to 1000 watts of DC power and is designed to be powered directly from solar modules.
