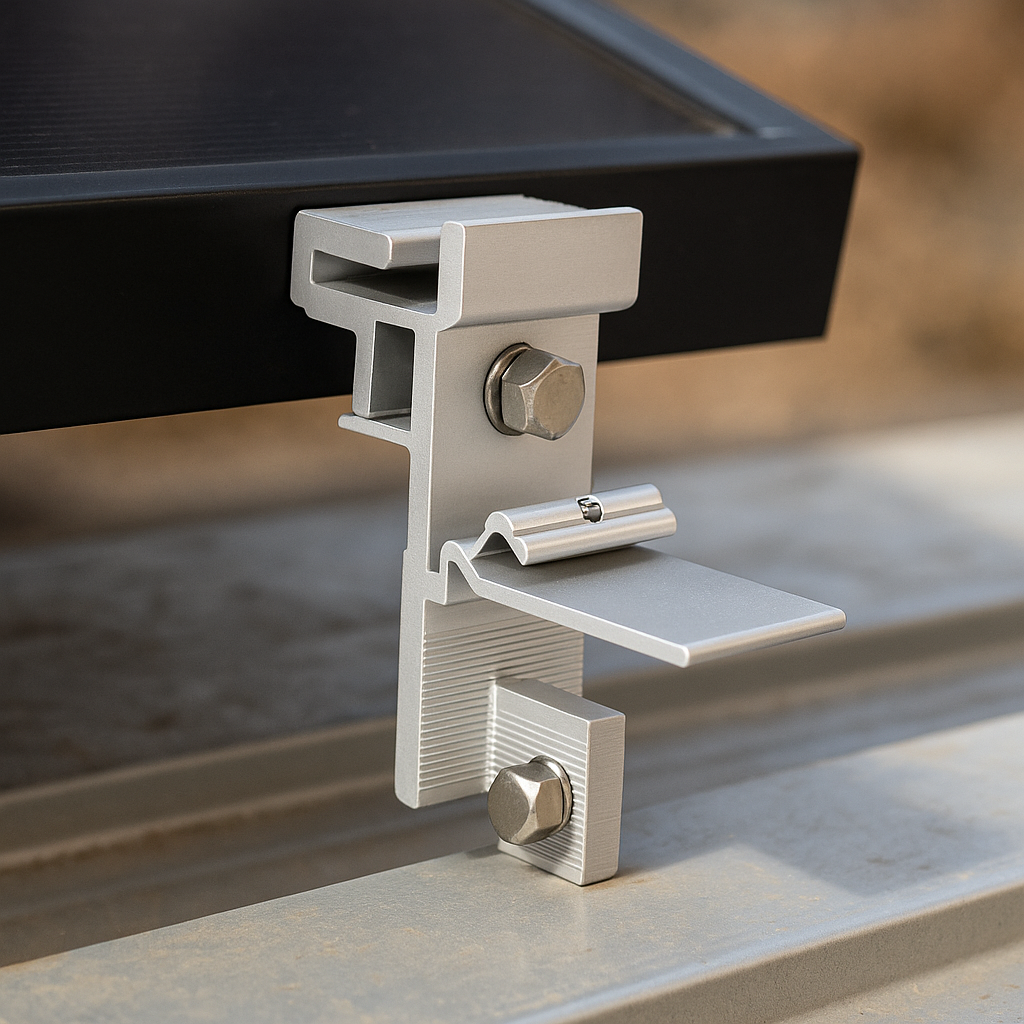

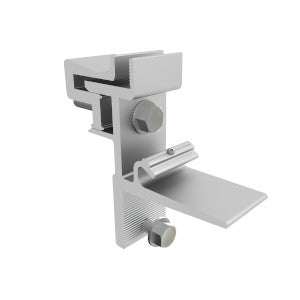

NanoRack™ Universal Bracket — Self‑Bonding, Hook‑and‑Loop Clamp for Rail‑Less PV Arrays
Snap SunModo’s Universal Bracket (part # NANORACK‑UNI) onto the trailing edge of each module and lock it to the adjacent Module Hook in one quick “heel‑toe” motion. The patent‑pending hook‑and‑loop design automatically aligns panels and creates a continuous, low‑resistance bond across every east‑west column—no rails, splice bars, or extra grounding jumpers required.
Fast, Code‑Compliant Roof Work
-
Single‑tool installation – pre‑installed stainless hardware tightens with a 13 mm hex for rapid rooftop assembly.
-
UL 2703 & 3741 listed and HVHZ / TAS 100(a) wind‑driven‑rain approved, delivering leak‑free performance and electrical safety even in hurricane zones.
-
6065‑T5 aluminum body with stainless fasteners resists corrosion for 25‑year design life.
-
Works with NanoPlus™ rafter or deck mounts and all other NanoRack™ components for a fully rail‑less, ground‑assembled array.
Choose the NanoRack™ Universal Bracket to cut install times by up to 40 %, simplify grounding, and give every rooftop a sleek, rail‑free finish that stands up to code, weather, and time.
Part Number: NANORACK-UNI
Part of the NanoRack Rail-less system.
Contact us to help build your racking system.
https://configurator.sunmodo.com/racking/nanorack/10
