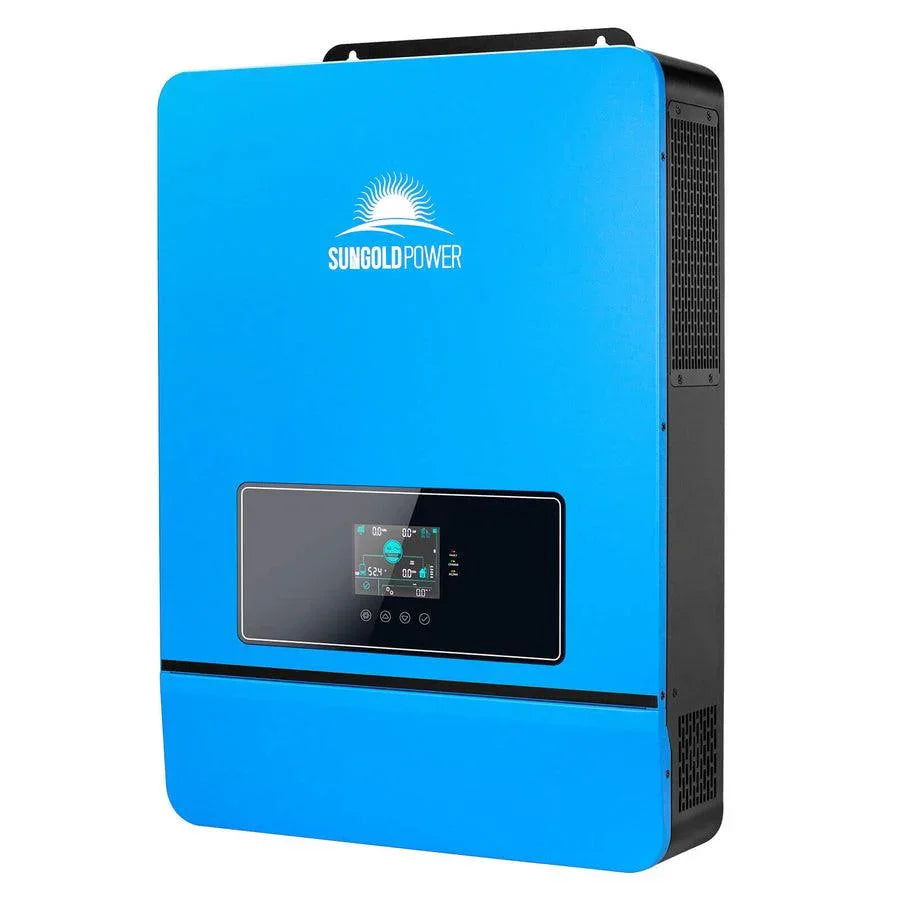

Sungold Power 8KW 48V Split Phase Solar Inverter
All-in-one solar energy conversion and storage interface designed for residential and light commercial applications. This 8 kW pure sine wave inverter integrates automatic bidirectional charging up to 200 A, two MPPT solar controllers, and flexible output configurations to support grid-tied or off-grid operation with storage. It is ideal for hybrid solar systems seeking high-efficiency AC power with tariff-aware charging and versatile battery compatibility.
Key specifications

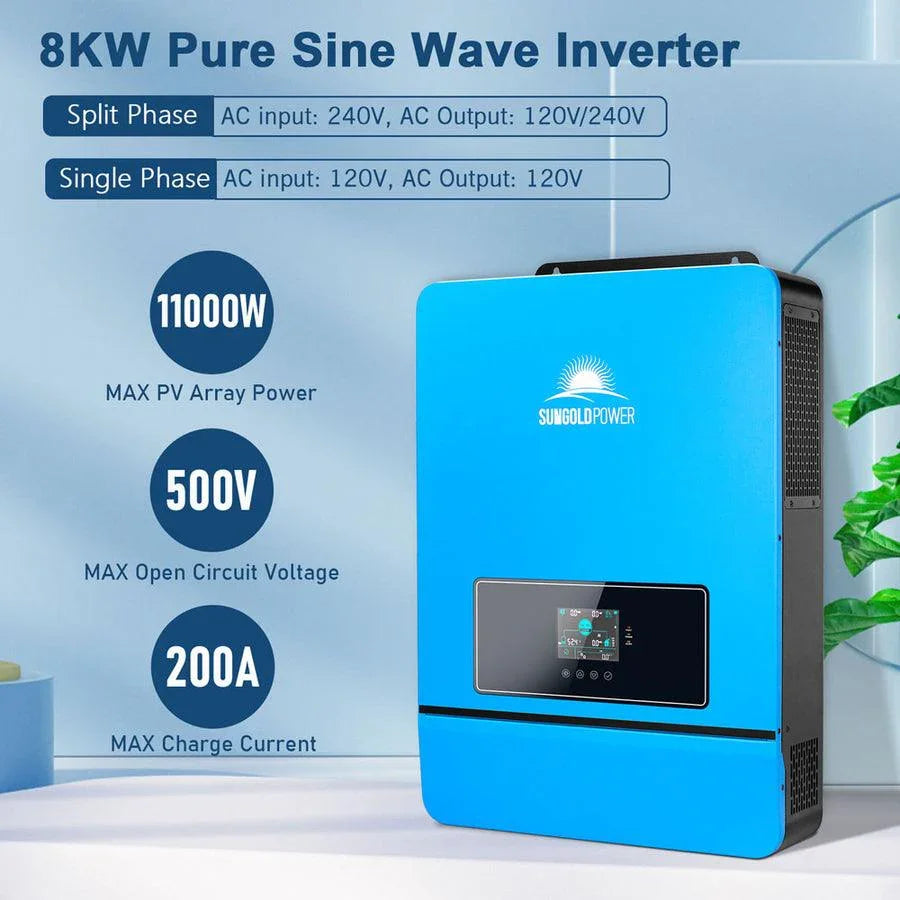

- Rated Output Power: 8000 W
- Max Peak Power: 16000 W
- Output configurations: Split phase (120V/240V) or Single phase (120V)
- Inbuilt MPPT: 2 tracking MPPTs
- Max PV Open-Circuit Voltage: 500 V DC
- Maximum Battery Charging Current: 200 A
- Wi-Fi module included for mobile app monitoring
- UL1741 Listed by ETL
Battery and charging flexibility

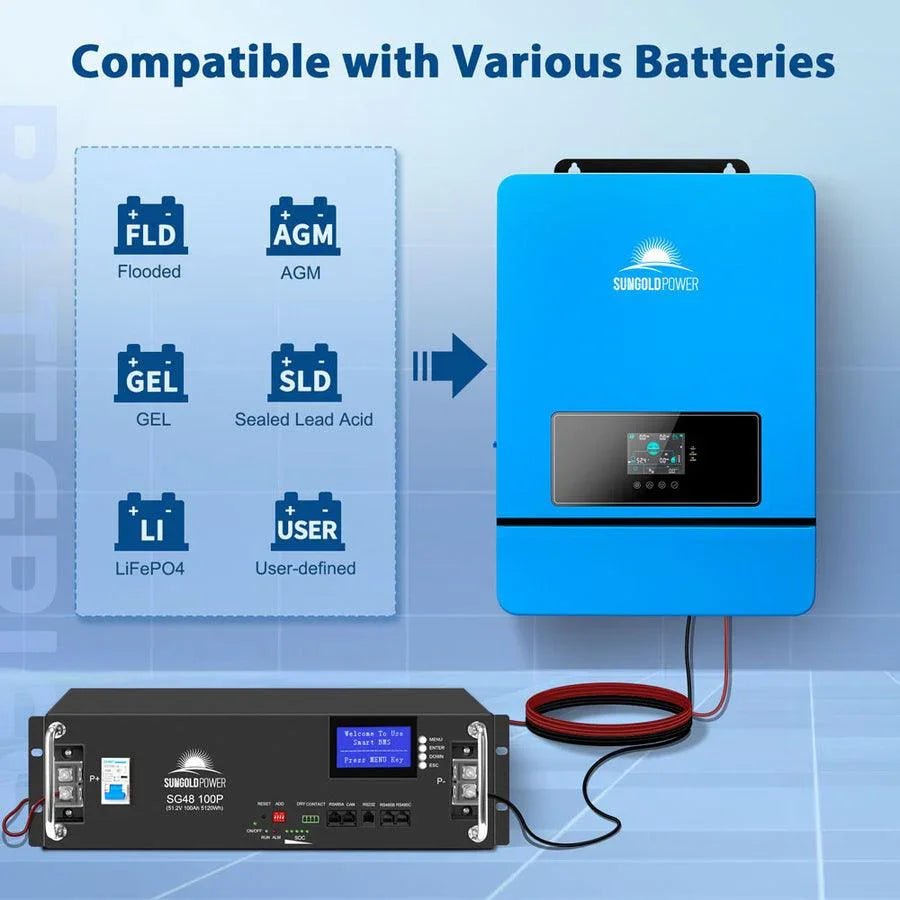

- Battery types supported: 48V AGM/Sealed, Gel, Flooded, Lithium, plus a User Mode to work with all battery chemistries; supports battery-free operation with mains and PV activation

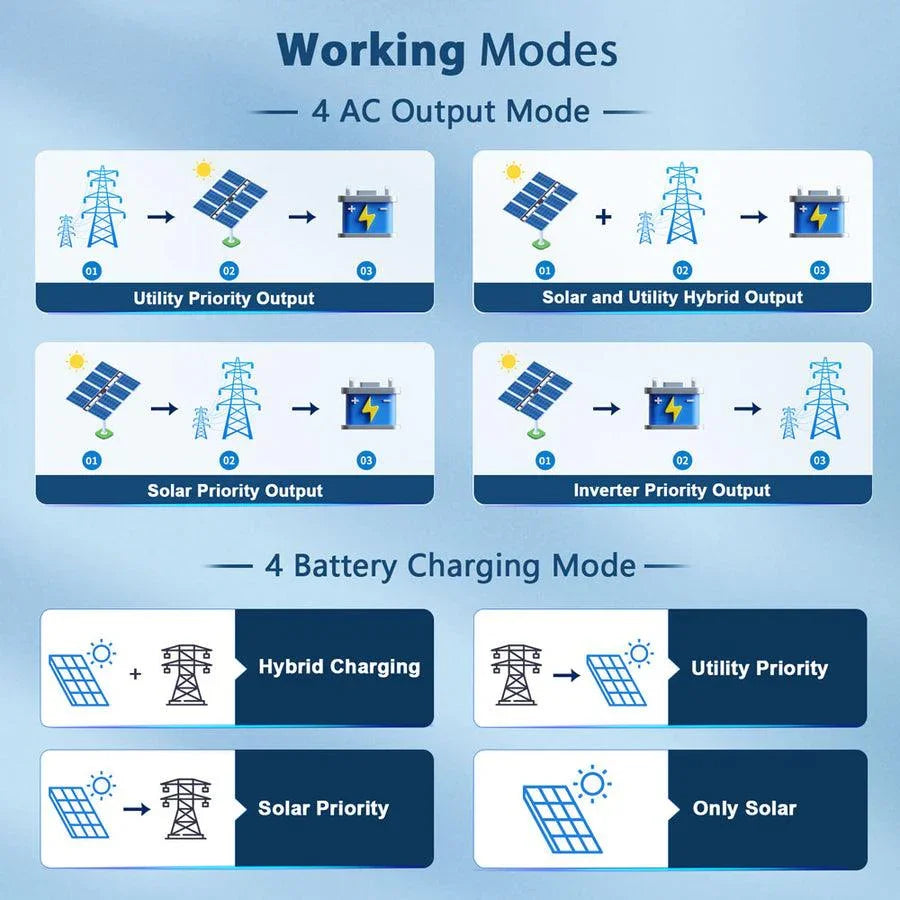

- Four charging/output modes: Hybrid Charging; Utility Priority Charging; Solar Priority Charging; Only Solar Charging
- Four output modes: Utility Priority; Solar and Utility Hybrid; Solar Priority; Inverter Priority

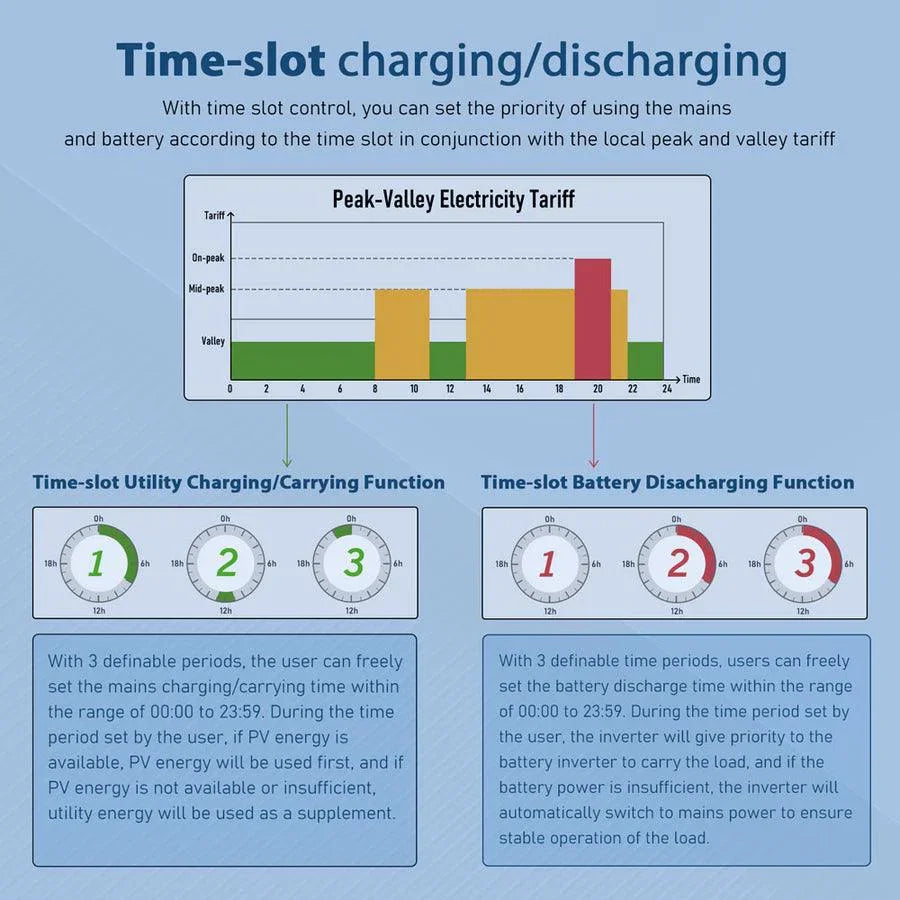

- Time-slot charging/discharging to optimize tariff-based peak shaving
Safety, protection, and certifications
- Comprehensive protection: PV input over-voltage/current, AC input over-voltage, Battery over-voltage, Over-load, and more
- Certifications: UL1741 Listed by ETL
Monitoring, installation, and maintenance

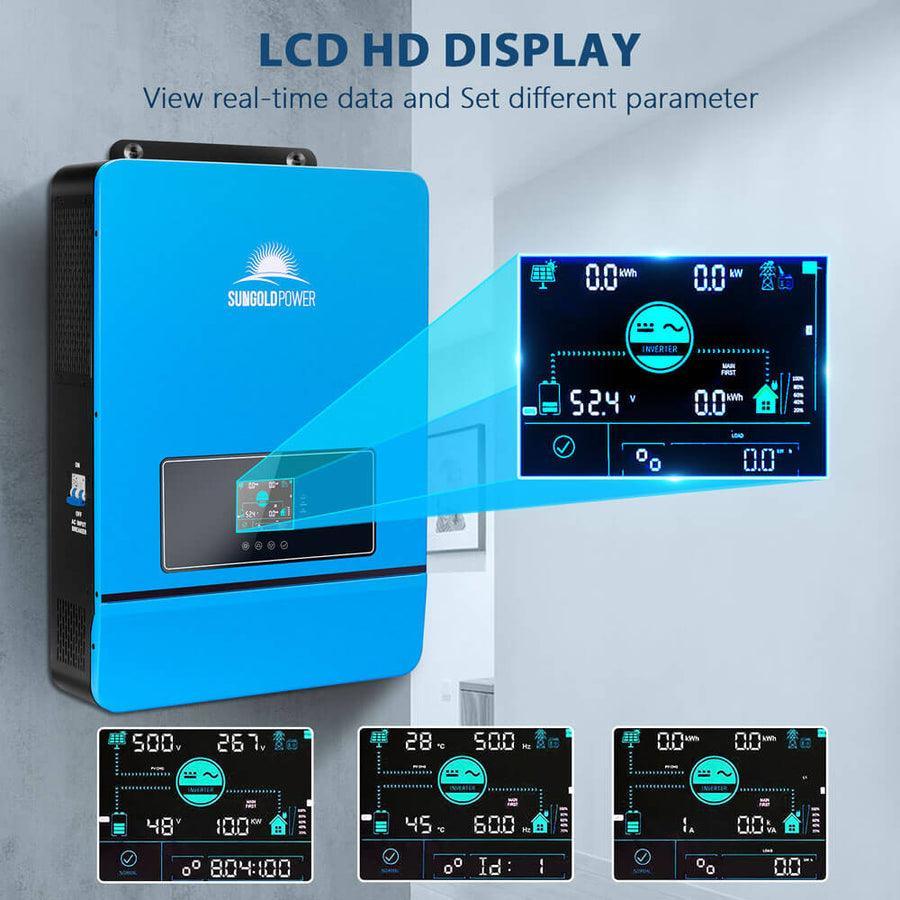

The unit supports remote monitoring via the built-in Wi-Fi module and mobile app. It includes USB and RS485 communication with SunGoldPower batteries to ensure cohesive system integration. The output is designed for reliable operation in split-phase or single-phase configurations to suit a range of installation environments. For installation and maintenance, refer to standard electrical practices and ensure compatibility with local codes and safety standards while coordinating with your preferred installer.
HIGHLIGHT:
- '˜…' All in one unit:' 8KW Pure Sine Wave Solar Inverter Combined with Max 200A battery charging, 2 MPPT Solar controller inbuilt, Max.Voltage of Open Circuit: 500VDC, Split phase (120V/240V) or Single phase (120v) output. Wifi module is included, which allows the user to view the operating status and parameters of the inverter via the mobile phone APP,UL1741' Listed' by' ETL.
- '˜…' Stable AC output and Smart Protection:' Rated Output Power:8000W, Max Peak Power:16,000W, loaded motor capacity 6HP, PV input over-voltage/current protection, AC input over-voltage protection, Battery over-voltage protection,Over-load protection and so on.
- '˜…' Four charging / Output modes:' Hybrid Charging / Utility Priority Charging / Solar Priority Charging / Only Solar Charging, 4 output modes:' Utility Priority / Solar and Utility Hybrid / Solar Priority / Inverter Priority to meet your different requirements.

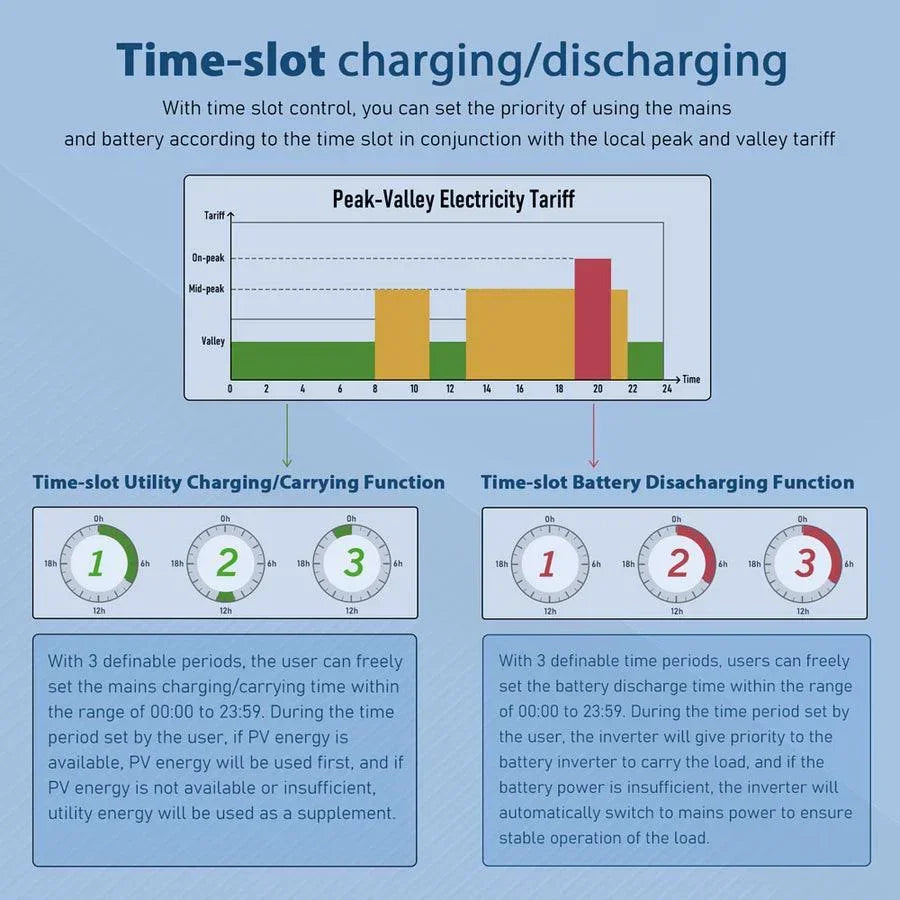

- '˜…' Time-slot charging/discharging function:' The SPH series is equipped with a time-slot charging and discharging function, which allows users to set different charging and discharging periods according to the local peak and valley tariffs, so that the utility power and PV energy can be used rationally.
- '˜…' Battery type:' 48V AGM/Sealed, Gel, Flooded, Lithium batteries and a User Mode to work with all battery types. and supports battery-free. When the lithium battery is dormant, the mains power and photovoltaics can activate the lithium battery. Support Can, USB and RS485 communication with SunGoldPower batteries.
