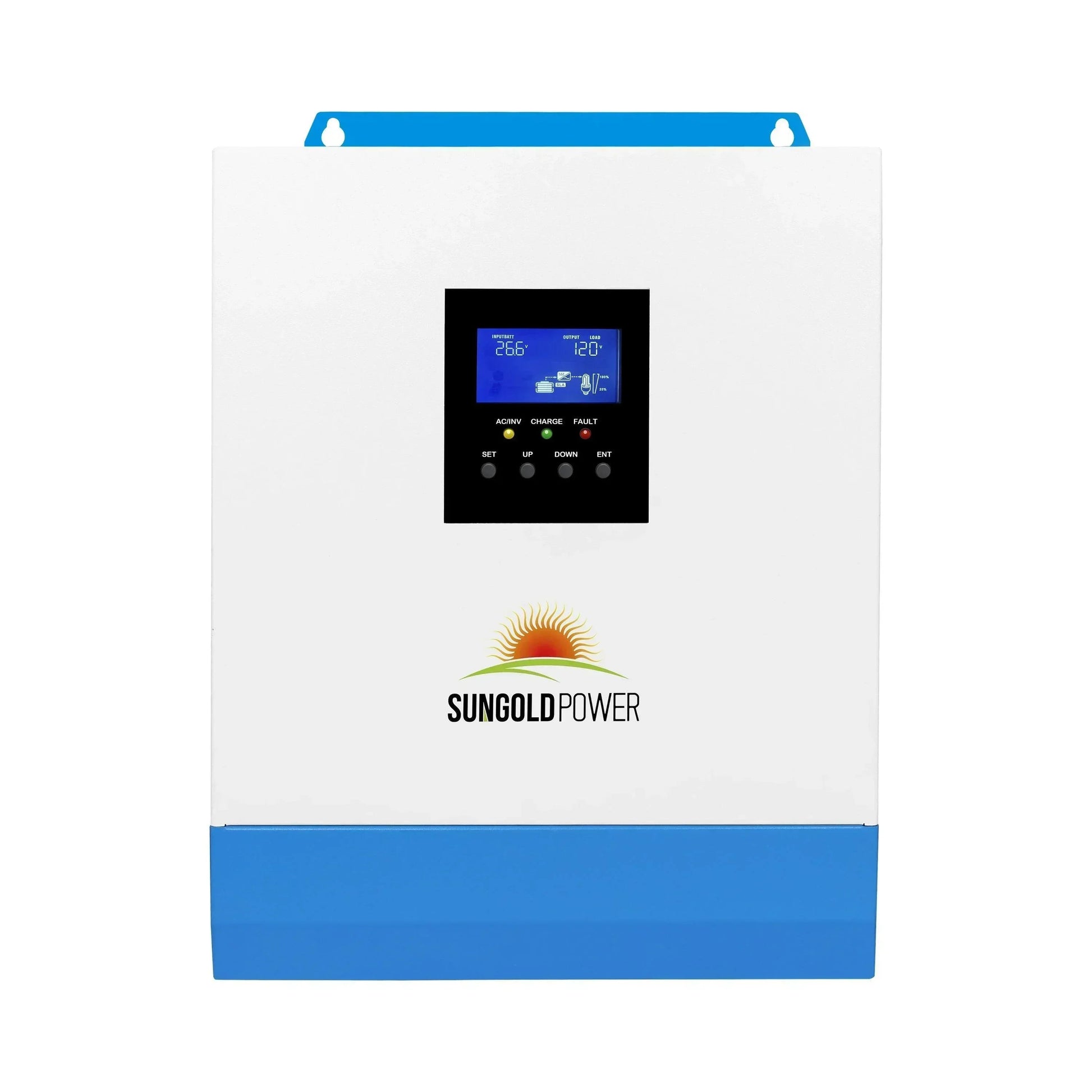

Sungold Power 3000W 24V Solar Inverter Charger

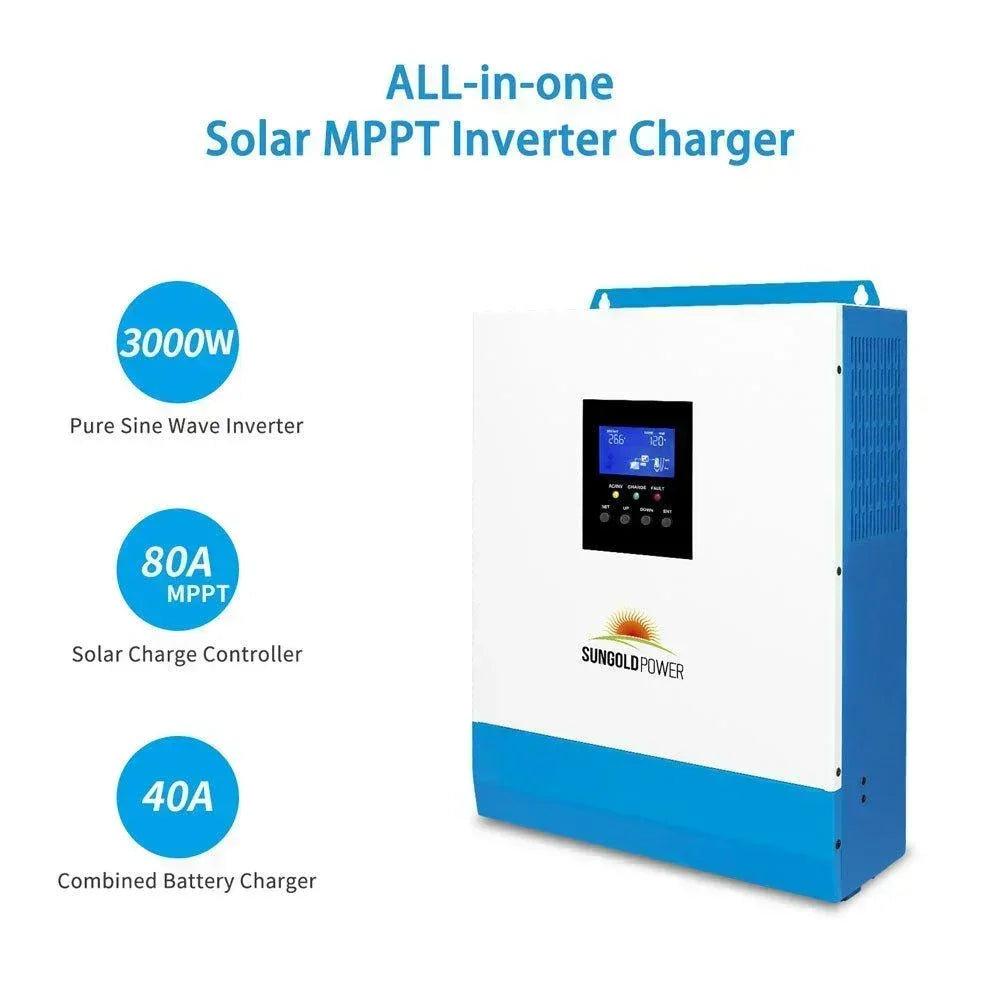

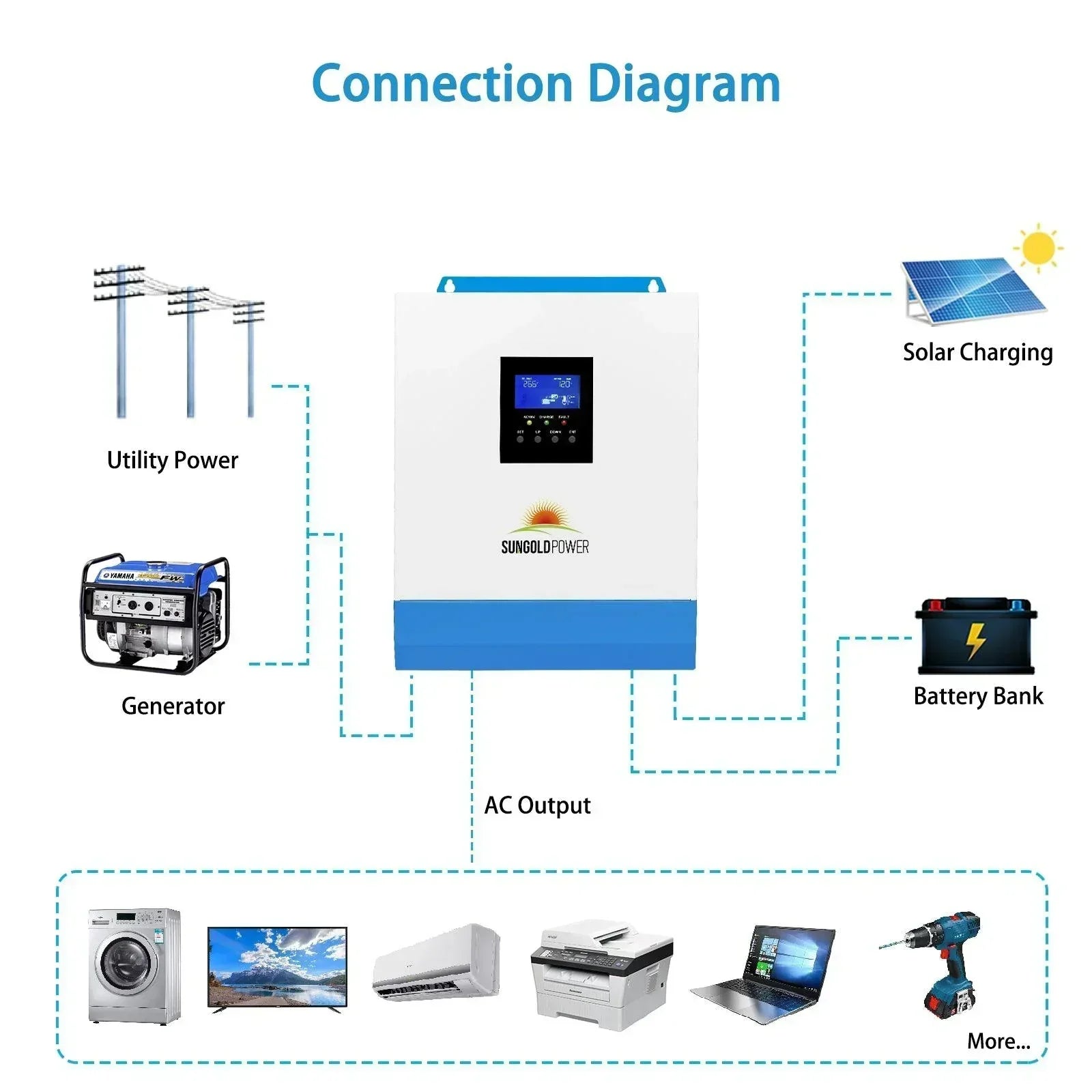

The Sungold Power 3000W 24V Solar Inverter Charger is an all-in-one energy solution designed for off-grid living, emergency backup, and hybrid solar installations. It integrates a 3000W pure sine wave inverter, an 80A MPPT solar charger, and a 40A AC battery charger to deliver reliable power from solar arrays or the utility grid.
Performance specifications
- Output: Pure sine wave at 120VAC, 50/60Hz selectable
- Surge: 9000W (20 seconds); peak power 4500VA
- Battery input: 24VDC (minimum start-up 22V)
- Bypass: 40A
- Idle power: 50W
- MPPT solar charger: 80A (main description); MPPT max input power 1400W
- PV charging current: 0–60A; PV open-circuit voltage 100V
- PV operation voltage 30–100V; MPPT voltage range 30–85V
- Charging current/voltage: 40A, 20–33V
- Remote monitoring: Optional WiFi/GPRS
- Noise level: ≤60dB
- Operating temperature: 5°F–131°F / -15°C–55°C
- Dimensions/weight: 378mm × 280mm × 103mm; 6.8 kg
Safety features
- Overload, short circuit, and over-discharge protection
- Auto-start generator capability via dry contacts
Installation and maintenance
Designed for compact installation in hybrid systems. Use 8 AWG conductors for PV and battery connections. Ensure adequate ventilation and placement within the operating temperature range. Regularly inspect connections and battery health; consult the included manual for wiring diagrams, commissioning steps, and safety instructions.
For setup details, Download User's Manual and FAQ.
3000W 24V Solar Inverter Charger
Unlock the power of the sun with the 3000W 24V Solar Inverter Charger—a revolutionary all-in-one solution designed to meet your energy needs with unmatched efficiency and reliability. This advanced inverter combines a 3000 Watts pure sine wave inverter, an 80A MPPT solar charger, and a 40A AC battery charger into one compact unit, ensuring you have a continuous power supply from both solar energy and the utility grid. Whether it's a sunny day or an overcast one, you can rest assured knowing your devices will remain powered.
Main Advantages:

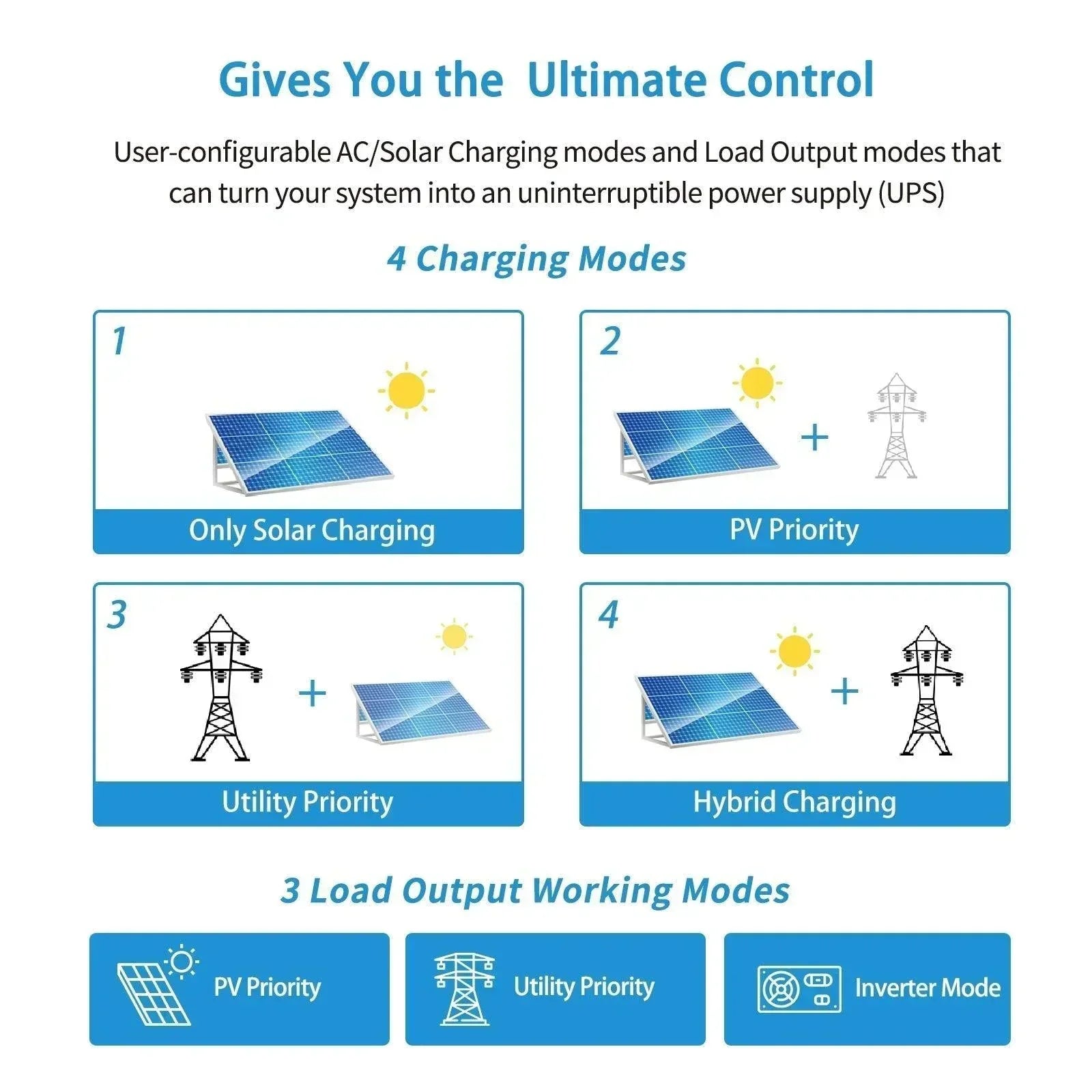

- Versatile Charging Modes: Choose from four different charging modes—AC Priority, Solar Priority, Only Solar, and Mains & Solar hybrid charging—tailored to your specific energy needs.
- Uninterrupted Power Supply: Experience seamless power with a quick 10ms switch to battery supply in case of main or generator disconnection, ensuring your electronics won’t shut down unexpectedly.

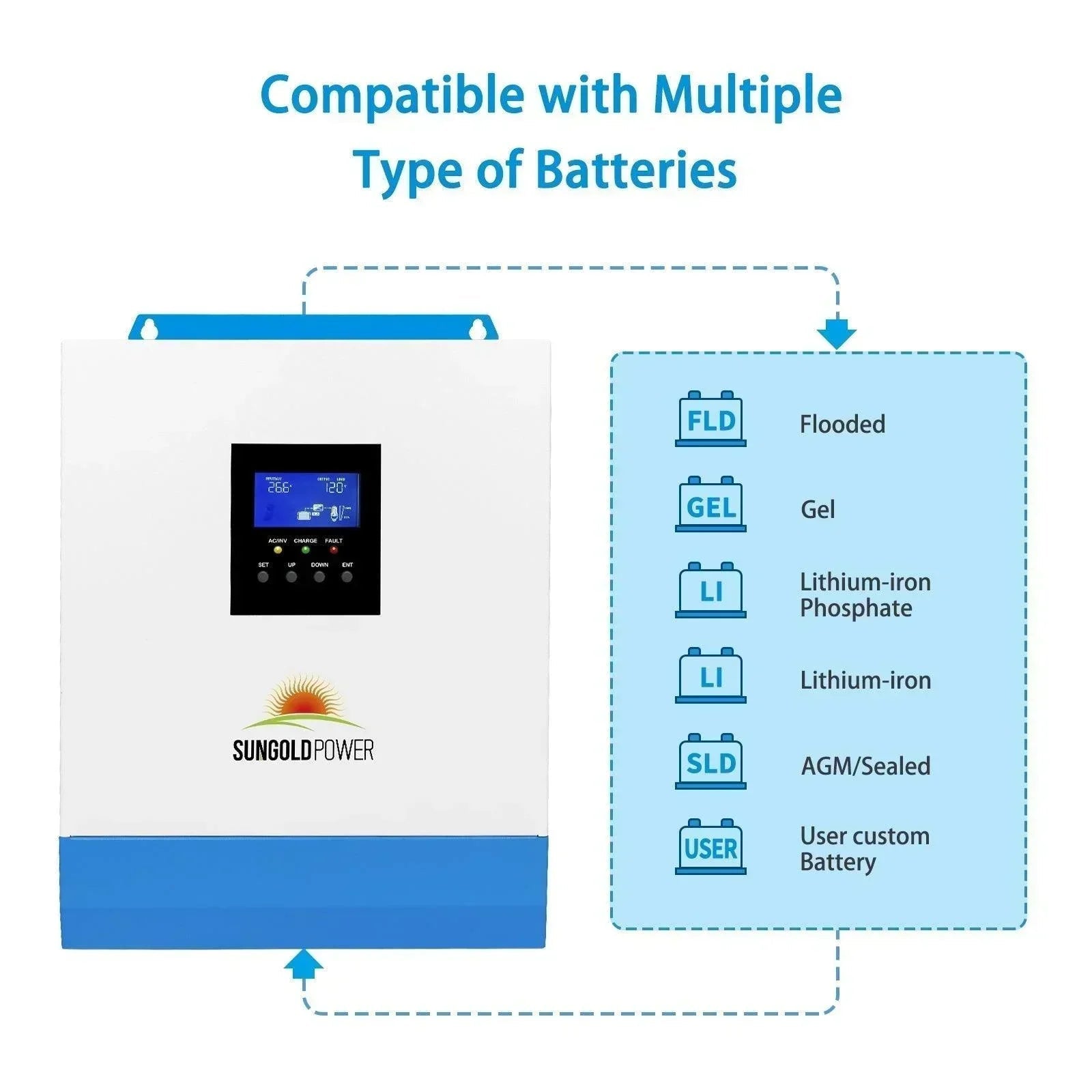

- Universal Battery Compatibility: This inverter charger supports various battery types, including 24V AGM/Sealed, Gel, Flooded, and Lithium batteries, with a user mode for custom inputs, giving you flexibility and choice.
Why This Product is Essential:
In the age of renewable energy, the 3000W 24V Solar Inverter Charger is not just an option; it’s a necessity. It empowers you to harness solar energy efficiently while also providing reliable backup power, making it perfect for off-grid living, emergency situations, or simply reducing your carbon footprint. Don’t wait for the next power outage—ensure you are always connected and powered!
Specifications and Guides:
- Features:
- Built-in 60A MPPT solar charge controller
- Maximum PV input: 1400W
- 40A Smart AC charger
- High-frequency transformer-less compact design
- Pure sine wave AC output (120V) with 50Hz/60Hz switch
- Optional WiFi/GPRS remote monitoring (extra cost)
- Overload, short circuit, and over-discharge protection
- Auto-start generator capabilities (Dry Contacts for signal delivery)
- Manuals: Download User's Manual
- Guides: FAQ
- Specifications:
- Output: Pure Sine Wave
- Surge Rating: 9000W (for 20 seconds)
- Peak Power: 4500VA
- Output Voltage: 120VAC, 50HZ/60HZ
- Input Voltage / Rated Battery: 24VDC (minimum start-up voltage: 22V)
- Bypass Breaker Current: 40A
- Idle Power: 50W
- MPPT Maximum Input Power: 1400W
- PV Charging Current: 0-60A
- PV Open Circuit Voltage: 100V
- Pv operation voltage range: 30-100VDC
- MPPT Voltage Range: 30-85VDC
- Recommended wire: 8 AWG
- Charging Current: 40A
- Charging Voltage Range: 20-33VDC
- Noise Level: ≤60dB
- Operating Temperature Range: 5°F ~ 131°F / -15°C ~ 55°C

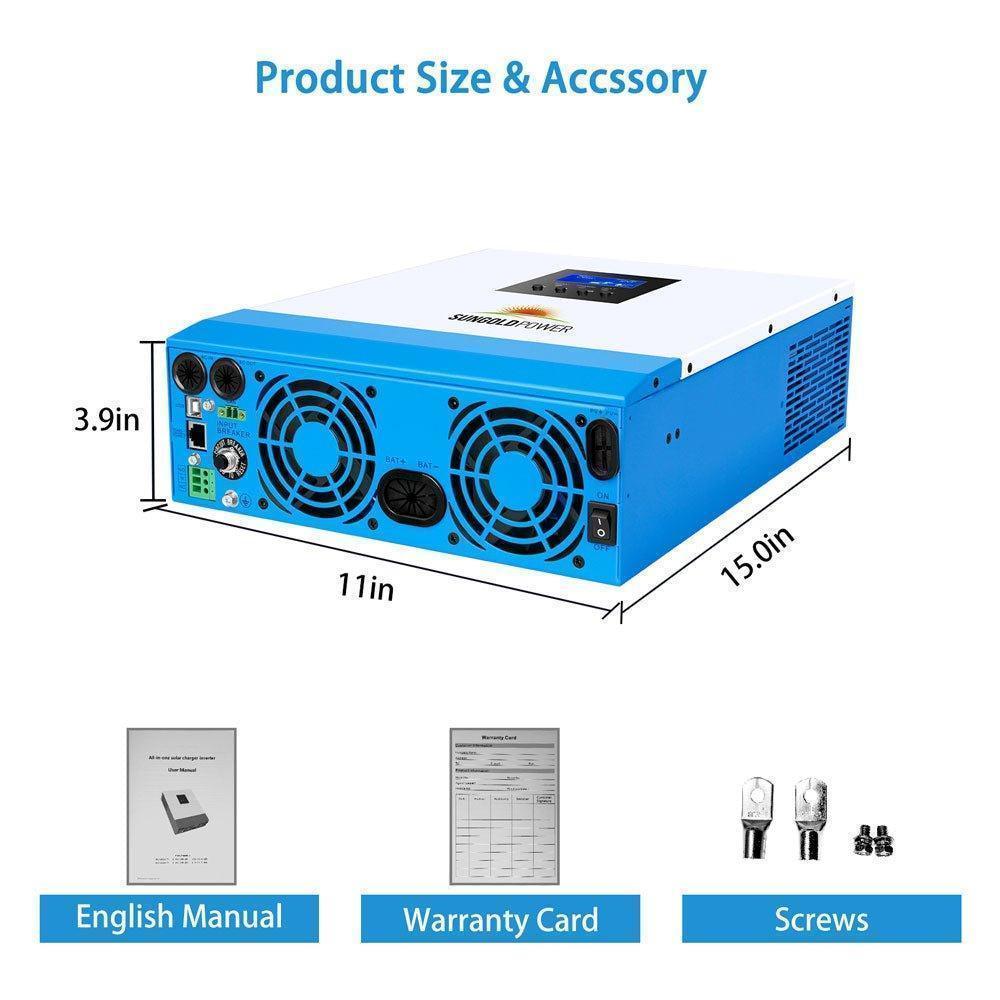

- Size: 378mm x 280mm x 103mm
- Net Weight: 6.8kg
