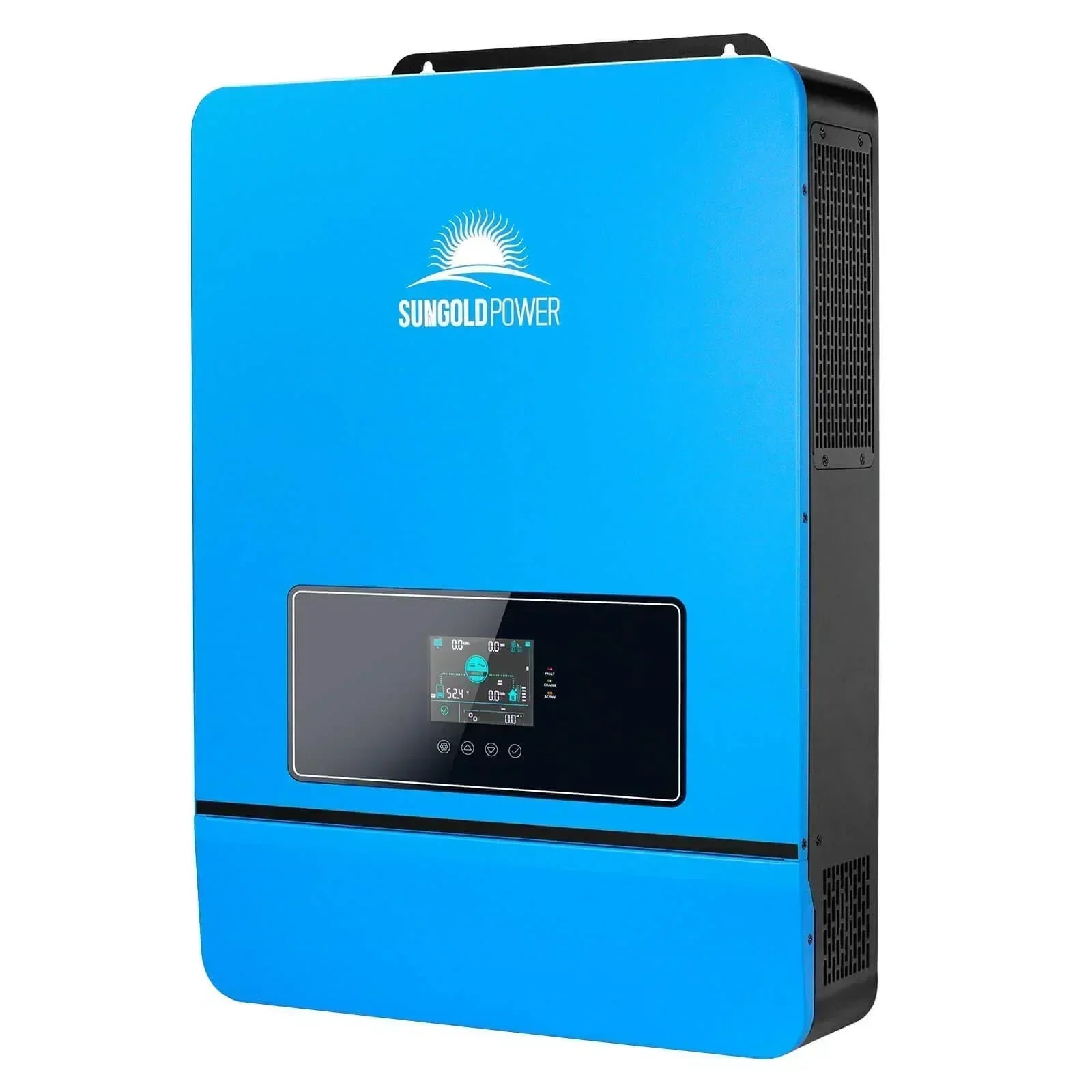

Sungold Power 10KW 48V Split Phase Solar Inverter
The Sungold Power 10KW 48V Split Phase Solar Inverter is an all‑in‑one energy conversion solution for residential, commercial, and off‑grid solar systems. It seamlessly integrates solar harvesting, battery charging, and AC power delivery, offering flexible output configurations (split phase 120V/240V or single phase 120V) to suit a wide range of electrical installations while maximizing solar asset utilization.
- Pure sine wave output for sensitive loads and motor applications
- Maximum battery charging capacity of 200A
- Integrated 2 MPPT solar controller for efficient panel string management

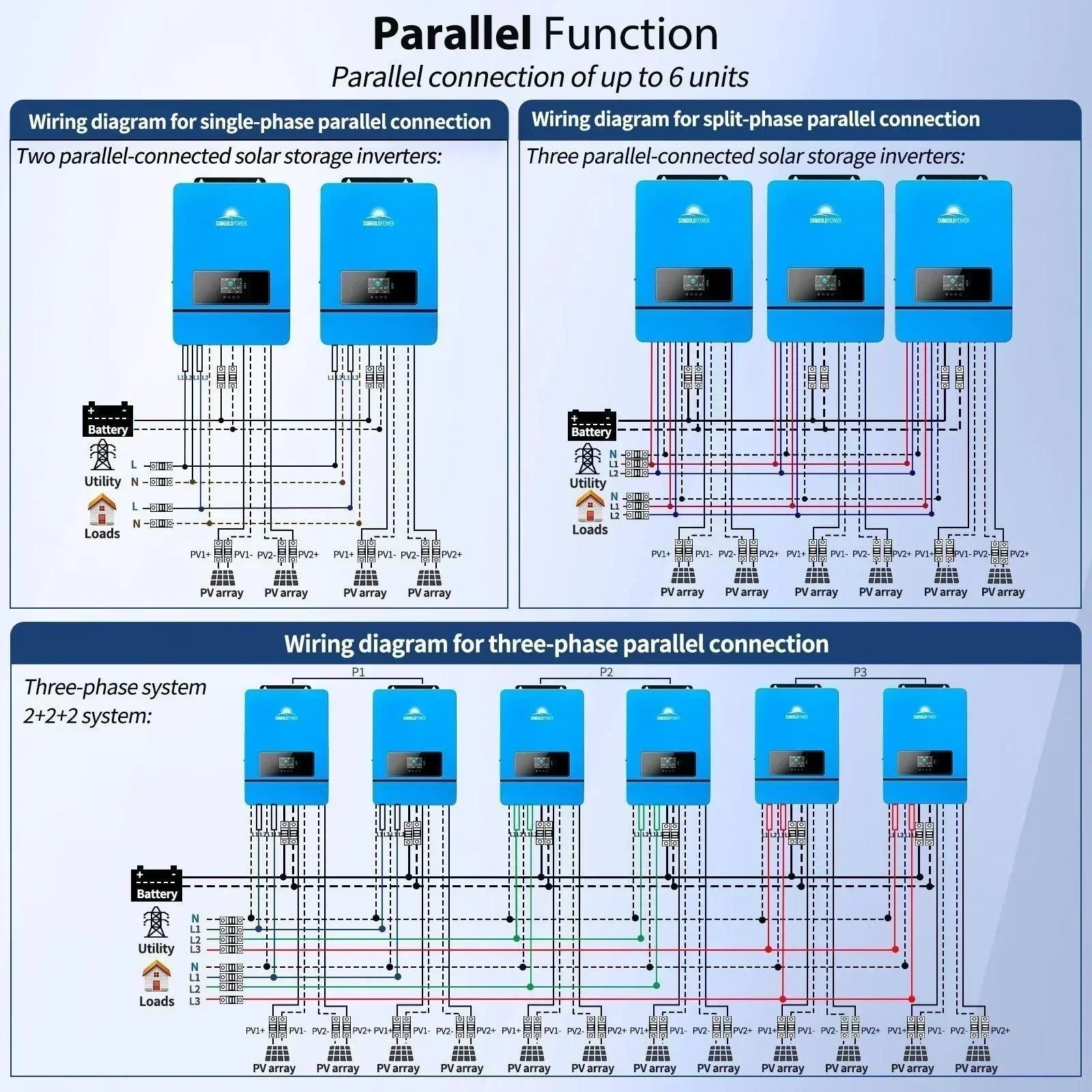

- Expandable paralleling: up to six inverters for a combined 60KW, supporting single‑ and three‑phase configurations

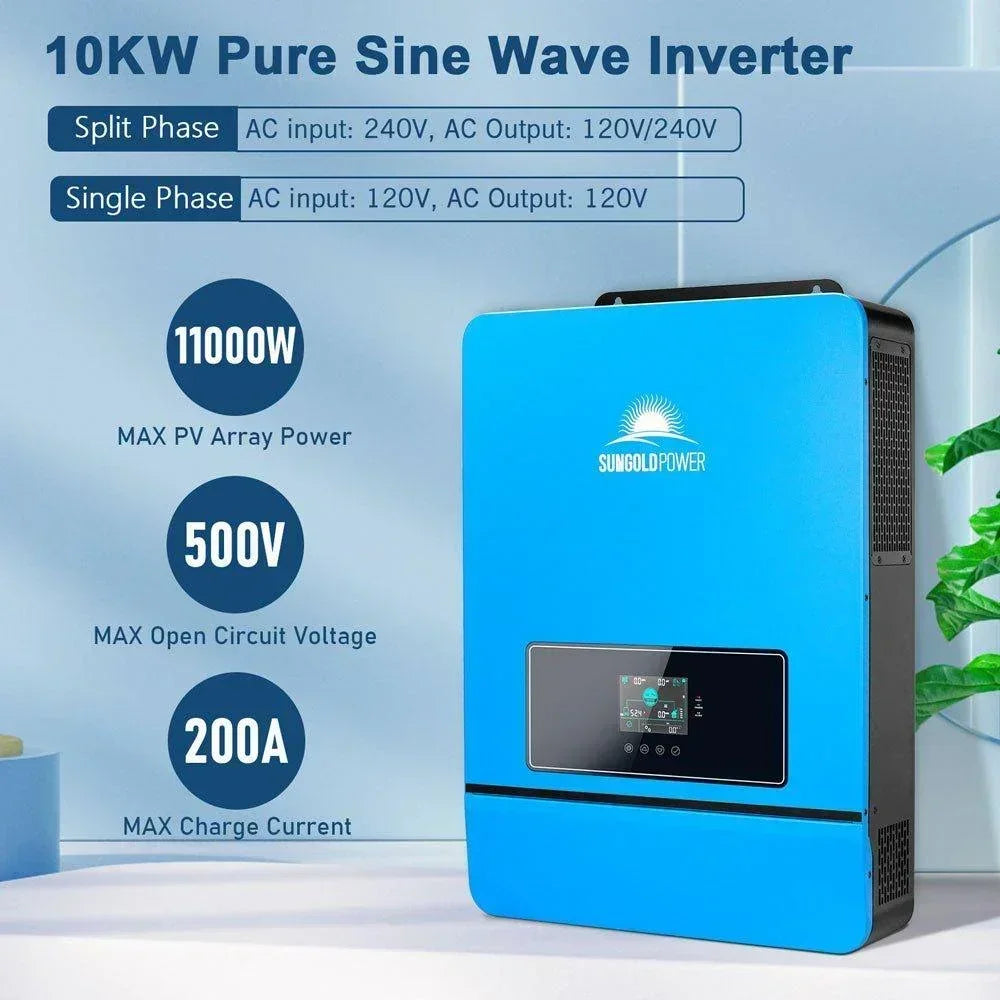

- Rated output power: 10,000W; Max peak power: 20,000W; supports up to 6HP motor loads
- PV input protections: over‑voltage and over‑current safeguards
- AC input over‑voltage protection and battery over‑voltage protection
- Open circuit voltage up to 500VDC; 48V battery support with user‑selectable modes

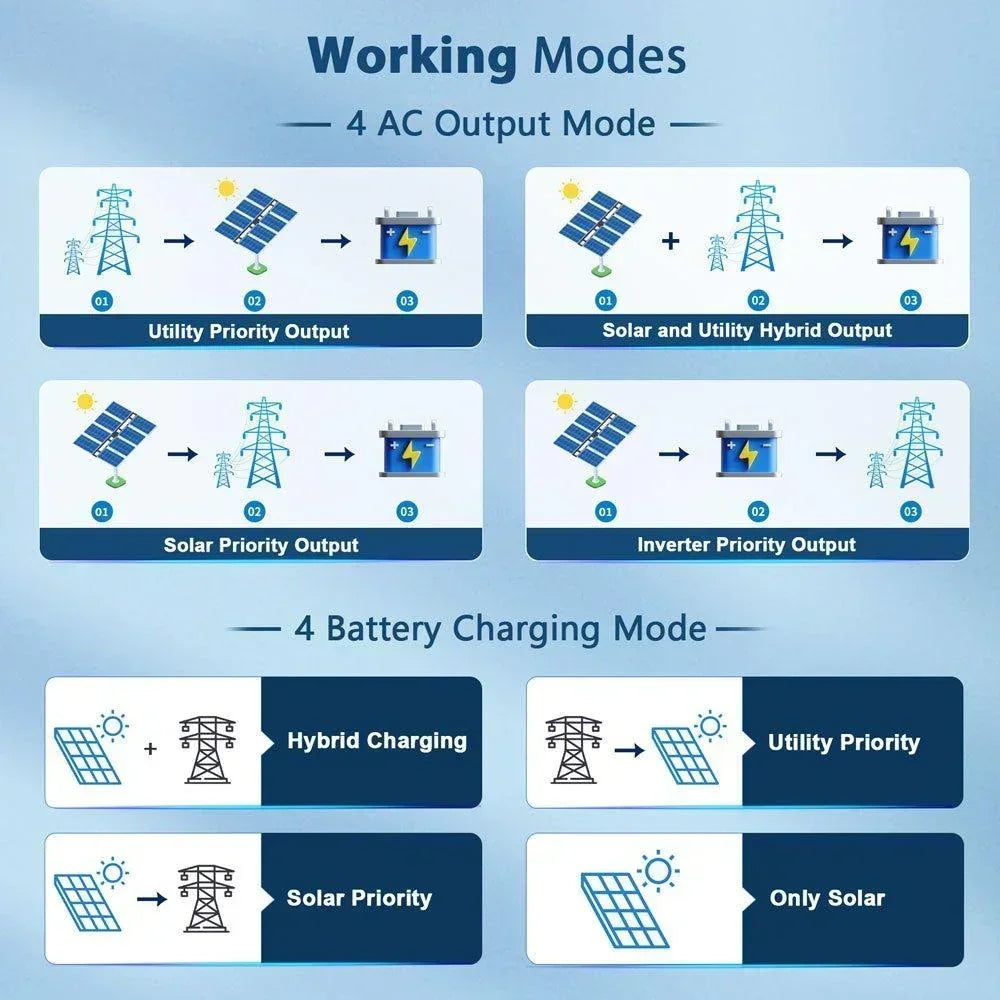

- Four charging/output modes including utility‑priority and solar‑priority operation

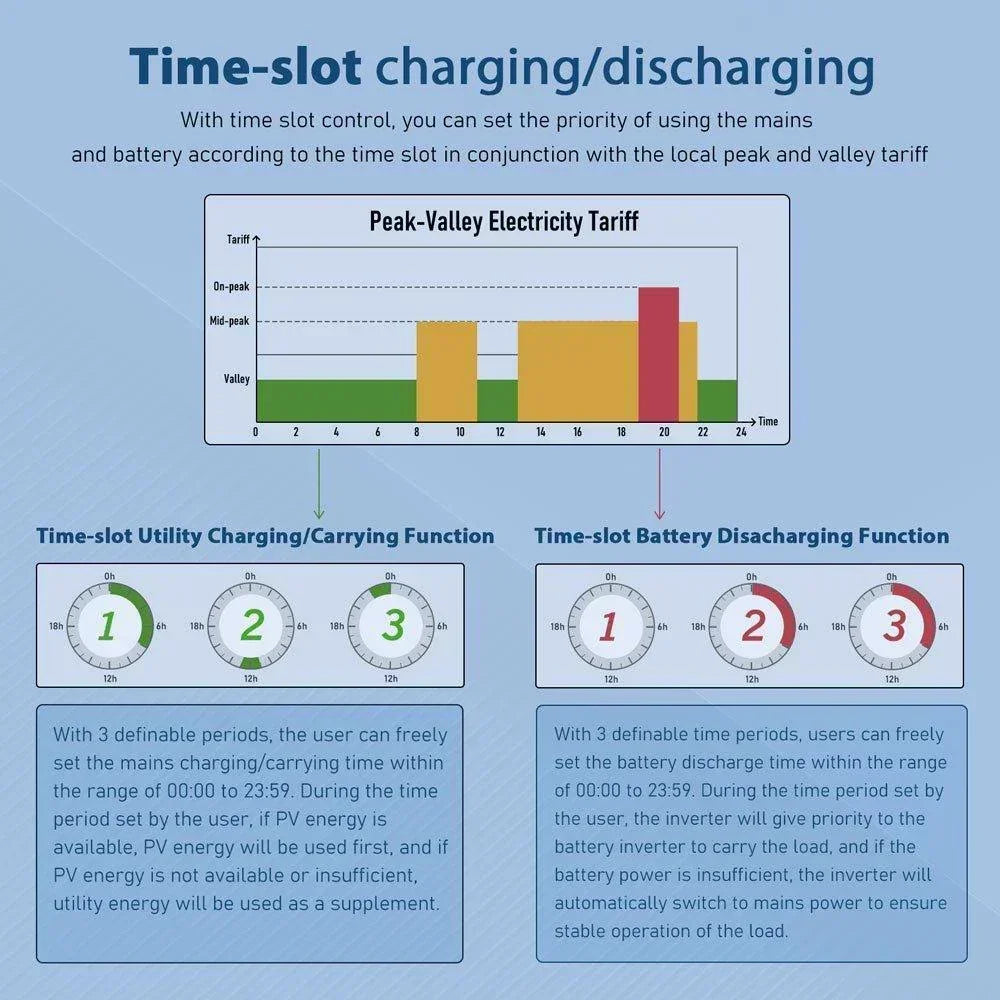

- Time‑slot charging/discharging function for optimized energy use

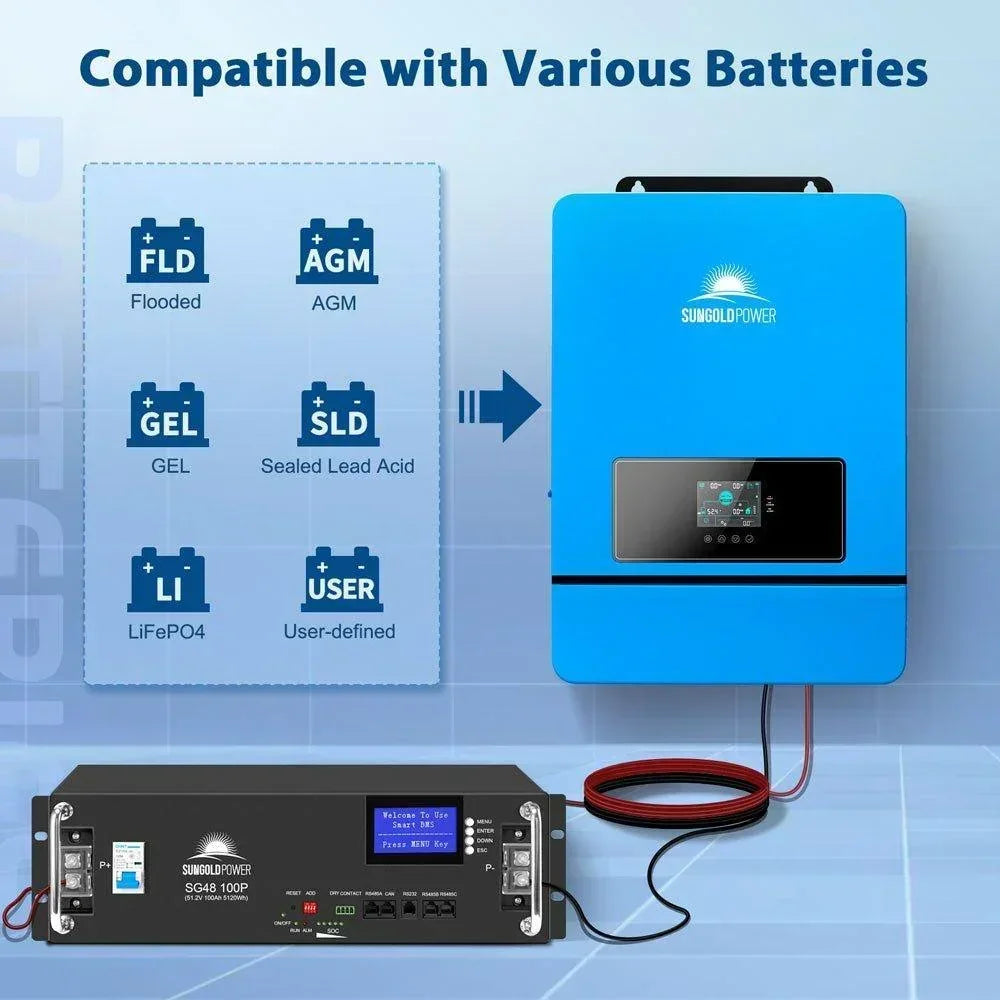

- Battery compatibility: AGM, Gel, Flooded, and Lithium types
- Communications: CAN and RS485 for SunGoldPower battery ecosystems; Wi‑Fi monitoring module
Specifications
- Rated Output Power: 10,000W
- Max Peak Power: 20,000W
- Battery Support: 48V (user mode) compatibility
- Open Circuit Voltage: 500VDC
- Output Configurations: Split phase (120V/240V) or single phase (120V)
- MPPT: 2 integrated trackers
- Communication: CAN and RS485; Wi‑Fi monitoring module
Installation, maintenance, and support
Refer to the included user manual for detailed installation steps and safety precautions. Setup and installation guides are available on the manufacturer’s website to assist commissioning, wiring, and commissioning checks. The unit ships with comprehensive documentation to support routine maintenance and troubleshooting. For ongoing performance and system health, leverage the built‑in Wi‑Fi module for mobile monitoring and remote diagnostics via CAN/RS485 interfaces.
10KW 48V Split Phase Solar Inverter
Unlock the power of the sun with our 10KW 48V Split Phase Solar Inverter, the all-in-one energy solution perfect for optimizing your solar power system. This advanced inverter combines cutting-edge technology with user-friendly features, enabling you to harness renewable energy efficiently while ensuring reliability and performance.
Main Advantages:
- All-in-One Convenience: With a pure sine wave output, a maximum battery charging capacity of 200A, and an integrated 2 MPPT solar controller, you have everything you need for seamless energy conversion in one compact unit. The inverter supports split phase (120V/240V) or single phase (120V) output, making it versatile for various applications.
- Expandable Power Capability: Enhance your energy output by paralleling up to six inverters for a total of 60KW power, accommodating both single-phase and three-phase configurations. This scalability ensures your system can grow with your energy demands.
- Robust Protection Features: Enjoy peace of mind with multiple safeguards including PV input over-voltage/current protection, AC input over-voltage protection, and battery over-voltage protection. The inverter is designed for stability, handling a rated output of 10,000W and peak power of 20,000W while supporting up to 6HP motor loads.
Why This Product is Essential:
Investing in our 10KW 48V Split Phase Solar Inverter is not just a choice; it’s a commitment to sustainable energy use. With its ability to efficiently manage energy from solar and utility sources, this inverter enables you to reduce electricity costs and lower your carbon footprint. It’s designed to meet your diverse energy needs while maximizing the effectiveness of your solar system, making it a must-have for eco-conscious consumers.
Specifications and Guides:
-
Features:
- Max. Voltage of Open Circuit: 500VDC
- Wi-Fi module for mobile monitoring

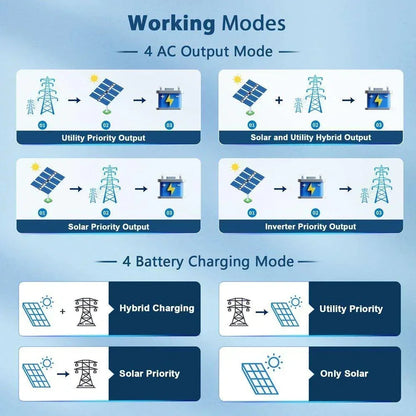

- Four charging/output modes including utility and solar priority
- Time-slot charging/discharging function for optimal energy use
- Compatible with various battery types including AGM, Gel, Flooded, and Lithium
- Manuals: For detailed instructions, refer to the user manual provided.
- Guides: Explore our setup and installation guides available on our website.
-
Specifications:
- Rated Output Power: 10,000W
- Max Peak Power: 20,000W
- Battery Support: 48V with user mode for compatibility
- Communication: Supports CAN and RS485 communication with SunGoldPower batteries
