Sundanzer DC160 Solar Chest Refrigerator – 160 Liter (5.7 Cu. Ft.) | 12V/24V DC
The Sundanzer DC160, known as the "King of Efficiency," is one of the most energy-efficient solar-powered refrigerators available today. As a recipient of the 2017 Global LEAP Award, the DC160 combines exceptional storage capacity, ultra-low energy consumption, and dependable off-grid performance, making it an ideal choice for solar homes, remote cabins, RVs, marine applications, and emergency preparedness.
Featuring class-leading efficiency, ultra-thick insulation, a premium DC compressor, and dual thermostat controls, the DC160 delivers reliable cooling and freezing while minimizing power consumption. Its spacious interior includes three storage baskets for easy organization and an integrated LED light for enhanced visibility.
Features
- 2017 Global LEAP Award Winner
- Generous 160-liter (5.7 cu. ft.) storage capacity
- Class-leading energy efficiency
- Operates directly from 12V, 24V, or high-voltage DC solar systems
- Dual thermostat design for precise temperature management
- Premium high-efficiency DC compressor
- Ultra-thick 110mm (4.33") insulation for superior energy savings

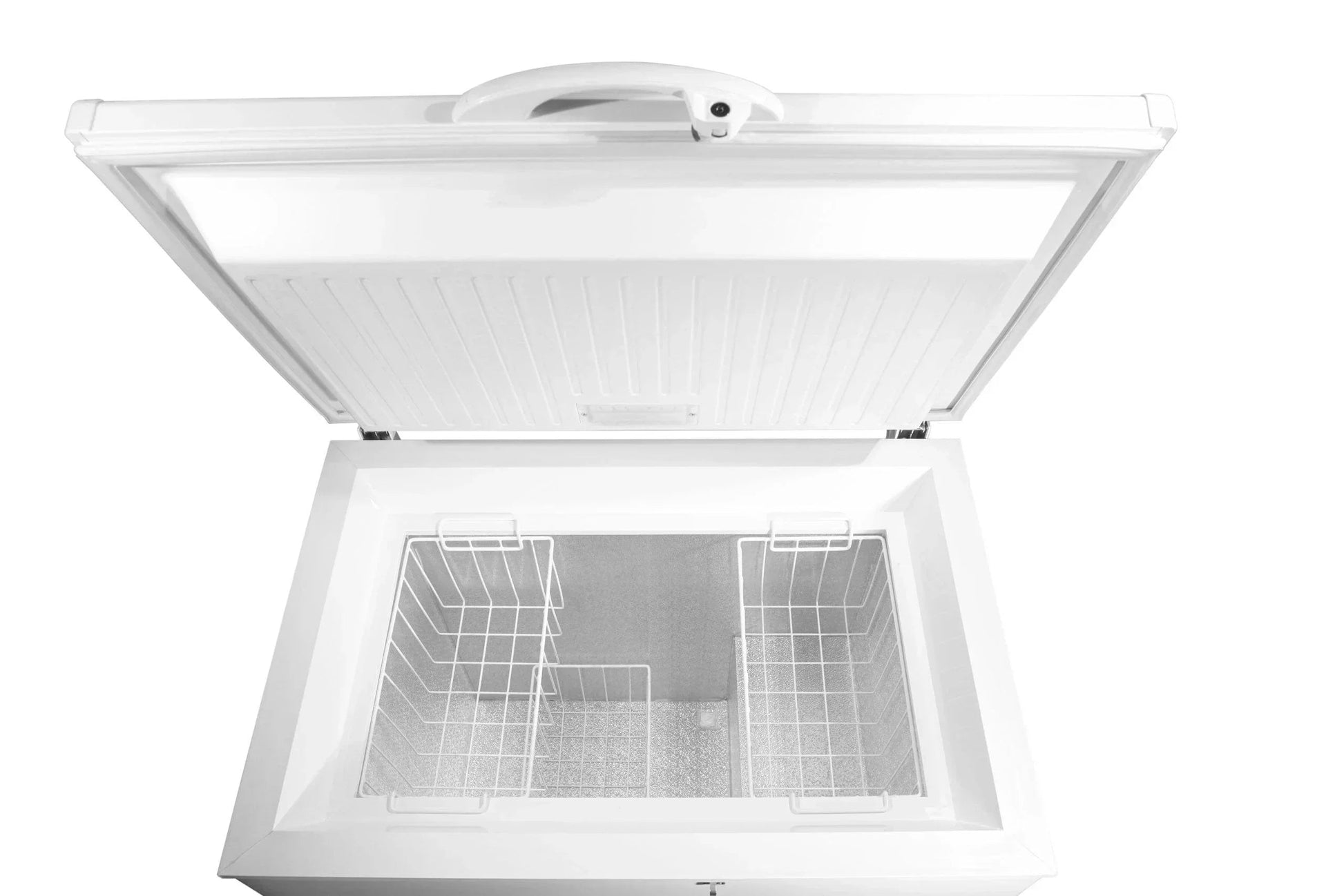

- Three removable baskets for organized storage
- Interior LED refrigerator light
- Integrated side handles for easy transportation
- Secure locking lid handle
- Environmentally friendly R-600a refrigerant
- Ideal for solar, off-grid, RV, marine, and backup power applications
Performance
Refrigerator Mode
Temperature Range: 48°F to 30°F (9°C to -1°C)
Freezer Mode
Temperature Range: 29°F to -6°F (-2°C to -21°C)
Power Consumption
- Refrigerator Operation: 0.150 kWh/day
- Freezer Operation: 0.430 kWh/day
Electrical Requirements
- Voltage Input:
- 10–31V DC
- 40–75V DC
- Power Draw: 35–65 Watts
- Fuse Size:
- 12V: 15A
- 24V: 7.5A
Recommended Solar System Sizing
Refrigerator Operation
- 100W Solar Panel
- 26Ah Battery Capacity
Freezer Operation
- 220W Solar Panel
- 70Ah Battery Capacity
Note
Minimum system recommendations are based on 100% battery depth of discharge (DOD). Actual solar and battery requirements will vary depending on climate, usage patterns, and installation conditions.
Product Specifications
| Feature | Details |
|---|---|
| Model | DC160 |
| Capacity | 160 Liters (5.7 Cu. Ft.) |
| Type | Solar DC Chest Refrigerator / Freezer |
| Voltage | 12V / 24V DC and 40–75V DC |
| Input Range | 10–31V DC or 40–75V DC |
| Power Consumption | 35–65 Watts |
| Refrigerant | R-600a |
| Insulation Thickness | 110mm (4.33") |
| Refrigerator Temperature Range | 48°F to 30°F (9°C to -1°C) |
| Freezer Temperature Range | 29°F to -6°F (-2°C to -21°C) |
| Daily Energy Use (Refrigerator) | 0.150 kWh/day |
| Daily Energy Use (Freezer) | 0.430 kWh/day |
| Exterior Dimensions (W x D x H) | 37" x 26.25" x 34.25" |
| Fuse Size | 12V: 15A / 24V: 7.5A |
| Interior Lighting | LED Refrigerator Light |
| Storage Organization | 3 Removable Baskets |
| Handles | Integrated Side Handles |
| Locking Lid | Yes |
| Defrost | Manual |
| Warranty | 2-Year Limited Warranty |
Ideal Applications
- Off-grid homes and cabins
- Solar-powered refrigeration systems
- RVs and camper vans
- Marine and boating applications
- Remote worksites
- Emergency preparedness and disaster recovery
- Sustainable living and renewable energy systems
Award-Winning Efficiency for Off-Grid Living
The Sundanzer DC160 delivers the perfect combination of storage capacity, reliability, and industry-leading efficiency. With award-winning performance, flexible DC power compatibility, and ultra-low energy consumption, it is an excellent solution for anyone seeking dependable refrigeration in off-grid and solar-powered environments.
