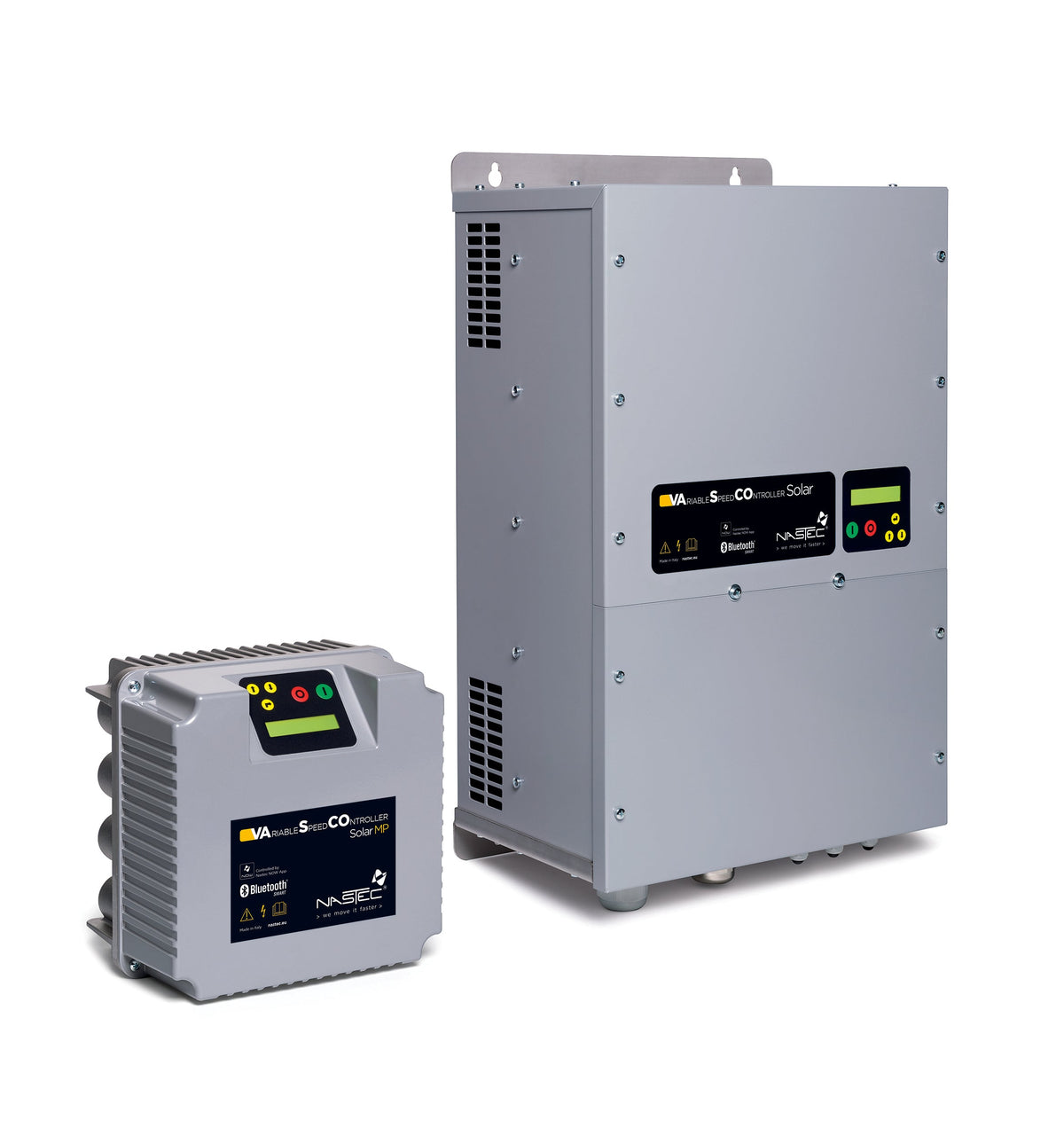

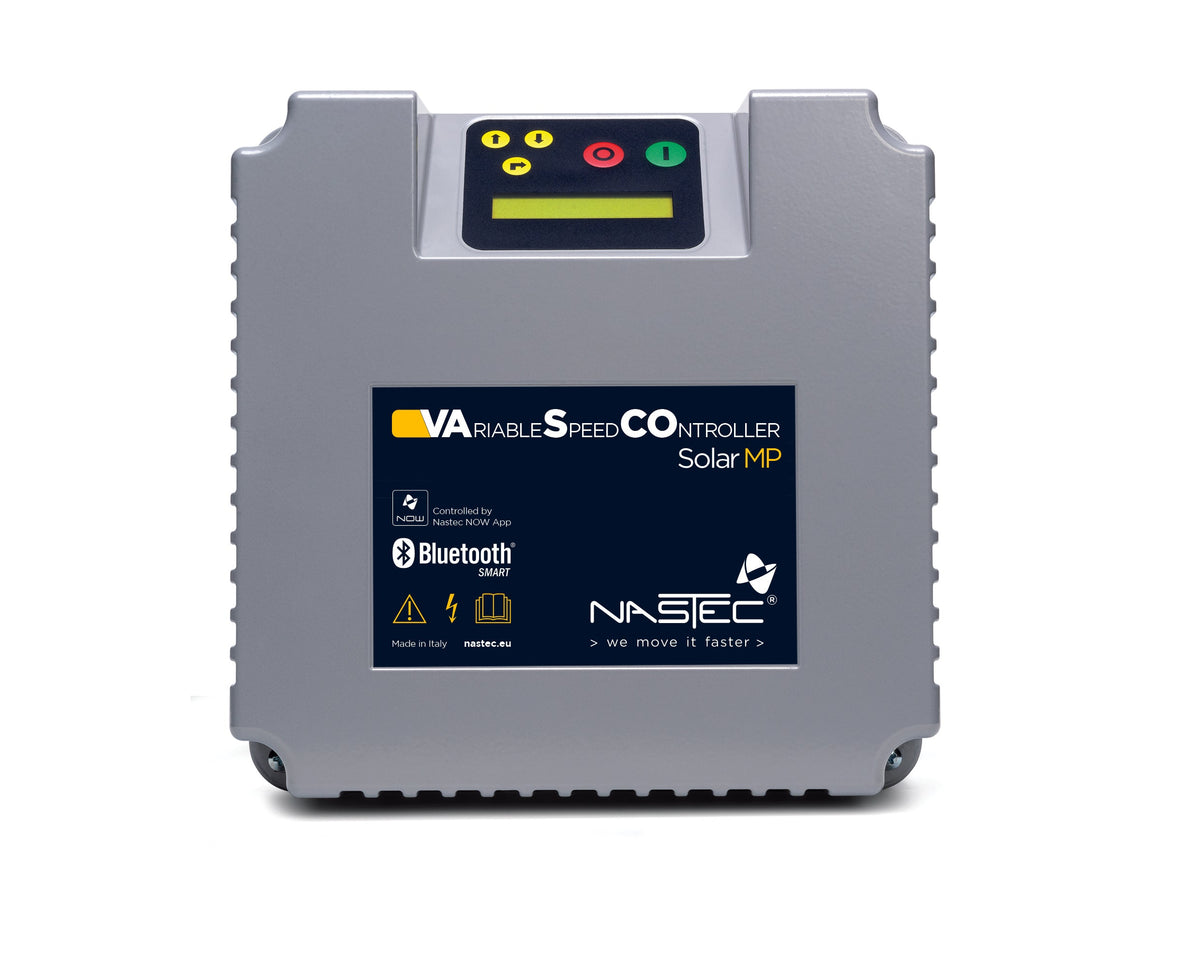

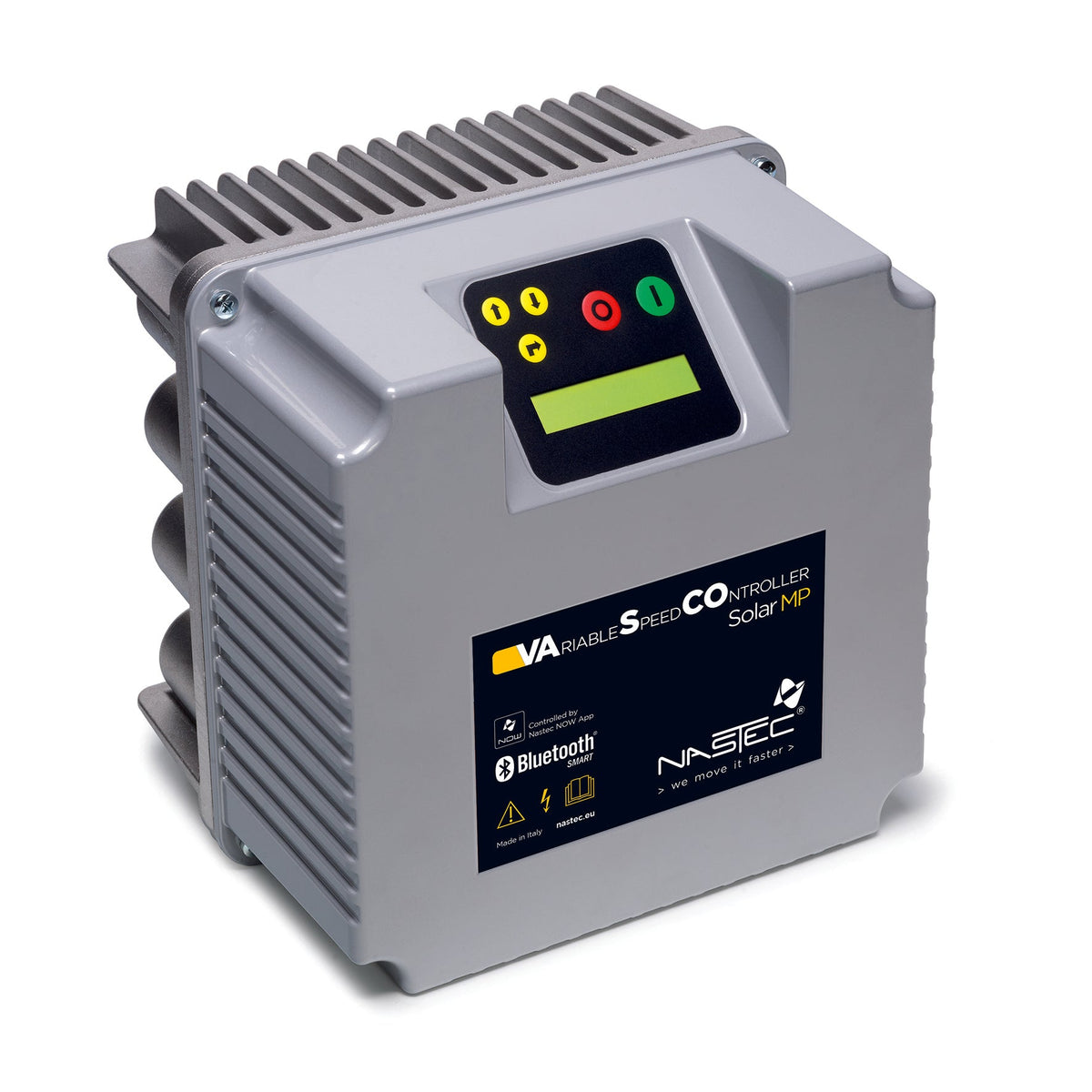

Sun Pumps VS-212-MP-120 Solar Pump Controller

Sun Pumps VS-212-MP-120 Solar Pump Controller

$2,509.40 USD
$2,509.40 USD
Sale Sold out
Shipping calculated at checkout.

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

Packing Details

View full details

Sun Pumps VS-212-MP-120 Solar Pump Controller

The Sun Pumps VS-212-MP-120 is a variable speed solar pump controller and inverter that converts photovoltaic panel power into an AC output to run standard three-phase AC pumps directly off solar energy.

Key Features

MPPT Technology: Uses Maximum Power Point Tracking to optimize energy harvest and maximize daily water production.
Hybrid Operation: Supports optional hybrid solar and standard AC power operation.
Built-in Protections: Protects the system automatically against dry running, system overload, and overheating.
Weather-Resistant Build: Features a durable enclosure designed to handle harsh outdoor environments.

Applications

Deep wells and boreholes
Agricultural irrigation systems
Livestock watering setups and ranches
Remote, off-grid locations without reliable grid access
