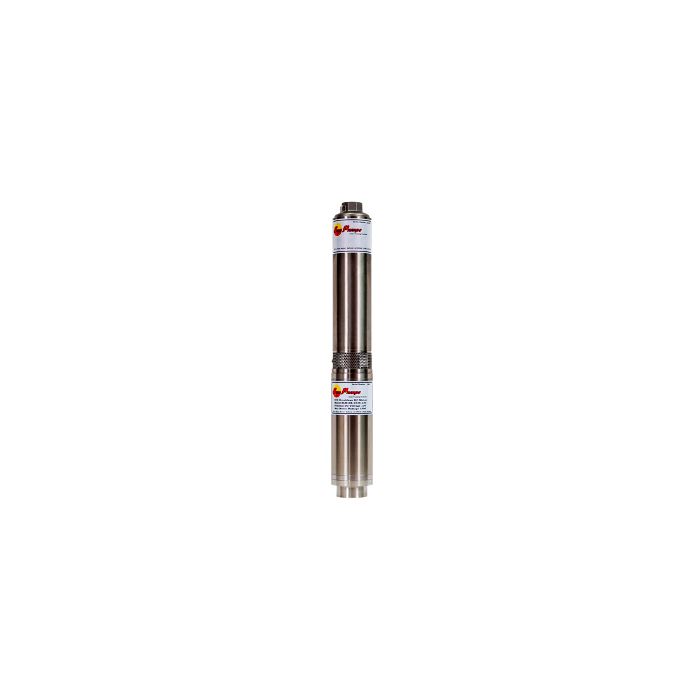

Sun Pumps SCS 44-80-120 BL Solar Submersible Pump

Sun Pumps SCS 44-80-120 BL Solar Submersible Pump

$1,993.40 USD
$1,993.40 USD
Sale Sold out
Shipping calculated at checkout.

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

Packing Details

View full details

Sun Pumps SCS 44-80-120 BL Solar Submersible Pump



Specifications

Solar Submersible Pump, 44GPM, 80FT Head, 120VDC, Brushless Motor
Flow Range: 30-65 GPM (114-212 LPM)
Depth Range: 35-100 Ft. (10-30 Mt.)
DC Voltage Range: 60-120
Controller: PCA 120-BLS-M2S or PCC-120-BLS-M2S
Minimum Well Diameter: 4' (100mm)
Discharge Size: 1 1/4" NPT

Sun Pumps SCS series submersibles are high quality, maintenance-free, DC powered pumps specifically made for water delivery in remote locations. The 120 volt SCS pump systems operate between 250 to 1500 watts of DC power with voltage choices ranging from 60 to 120.

The submersible motors incorporate the latest in high efficiency, permanent magnet, sensorless brushless DC technology and there are no electronics inside the motor. They are constructed of corrosion resistant, stainless steel.

The pump ends are multi-stage centrifugals constructed of stainless steel. The impellers are wear resistant glass filled, engineered composite and are resistant to mineral and algae deposits. The bowls are constructed of stainless steel for strength and abrasive resistance.

Sun Pumps SCS series pumps can be installed below the water level in a water well, lake, river, or cistern. They can be used to fill an open tank or used to pressurize water systems.

Sun Pumps PCA Sensorless Brushless DC Controllers incorporate the latest state of art technology. The controllers are micro-processor based and have MPPT, Maximum Power Point Tracking to keep the solar array operating at peak efficiency at all times. The control box is powder coated, die-cast aluminum with an extra large heat sink and rated for outdoor use.
