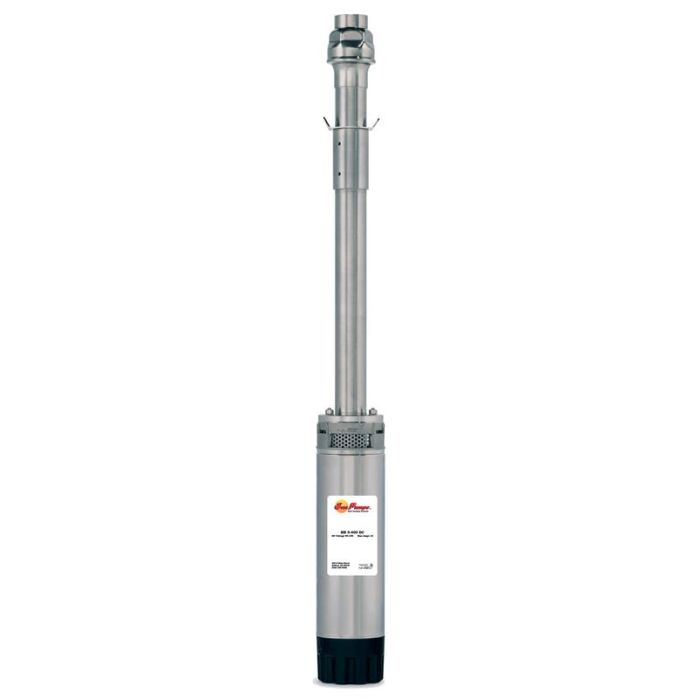

Sun Pumps HR 5-400 DC 70-190 VDC Helical Solar Submersible Pump
HR DC pumps (Helical Rotor) have been developed to meet the low cost pumping system needs without sacrificing quality, reliability or performance. Operational voltages ranging from 70-190 VDC. The HR pumps are constructed out of durable 304 stainless steel providing a long life pump. They are perfect for remote locations or domestic installations. With built-in Maximum Power Point Tracking (MPP), the flow of water will be maximized to the available solar power through your solar day. Protections against overloads, surges and dry running are all integrated into the onboard inverter.
Another great advantage of the HR series pump is the ability to repair them. They are not a disposable pump. Sun Pumps can evaluate and repair your HR series pumps with the modular parts we have on hand. This allows you to return to pumping water in a timely manner and without you having to purchase a new pump.
Installation is quick and easy. The Stop Module controller includes MC4 connectors for fast panel connection and allows for a float switch circuit if needed.
Specifications
Flow Range: 1-6 GPM (4-22 LPM)
Depth Range: 100-400 ft (30-121 m)
DC Voltage Range: 70-190
Minimum Well Diameter: 4" (100mm)
Discharge Size: 1 1/4" NPT
Controller: HR Stop Module
Max Load Current: 10 amps
