Sun Pumps HomeSolar Water PumpingSun Pumps SCP 70-32-90 LC Solar Pool Pump

Sun Pumps HomeSolar Water PumpingSun Pumps SCP 70-32-90 LC Solar Pool Pump

Regular price $1,501.00 USD
Regular price $1,999.00 USD Sale price $1,501.00 USD
Sale Sold out
Shipping calculated at checkout.
Quantity

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

Packing Details

View full details

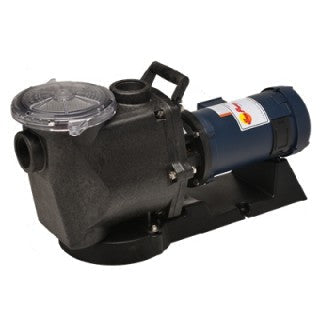

Sun Pumps SCP 70-32-90 LC Solar Pool Pump, 70GPM, 32FT Head, 90VDC, Brush Type Motor

Sun Pumps SCP series solar powered centrifugal pool pumps with brush type DC motors are the ultimate in performance and reliability. There are two types to choose from, the LC series with a 2" outlet and the LV series with a 2 1/2" outlet. SCP series pool pumps will replace almost any AC powered pool pump up to 1.5 HP and because they get their power from the sun, you will never have an electric bill.

The SCP series pump are single stage centrifugals constructed from high performance thermoplastic. They are extremely resistant to mineral and algae deposits while providing outstanding strength and durability. For added protection there is a basket strainer incorporated into the suction side of the pump. Simplicity is a key feature of the SCP series pumps. They are simple to install and field servicing is easily accomplished without the use of specialized tools.

Sun Pumps SCP series pumps can not only be used for pool water filtration, but for fountains, water features, pond aeration, circulating water for aqua culture or to irrigate small farms. They were designed for use as a stand-alone water delivery system. There is no better way to provide water for remote homes, villages, small farms as well as many other needs beyond commercial grid power. Sun Pumps high-quality manufacturing make the SCP series pumps the ultimate in solar powered pool pumps.

NOTE: The SCP pool pumps with brush type motors do not require a controller if sized properly. If you size the solar array with the Imp at or higher than the full load pump current the controller is not necessary. However if you want features that come with the controller like speed control, remote switch circuit or would like a digital meter then order the PCC-BT-M2 pump controller.
