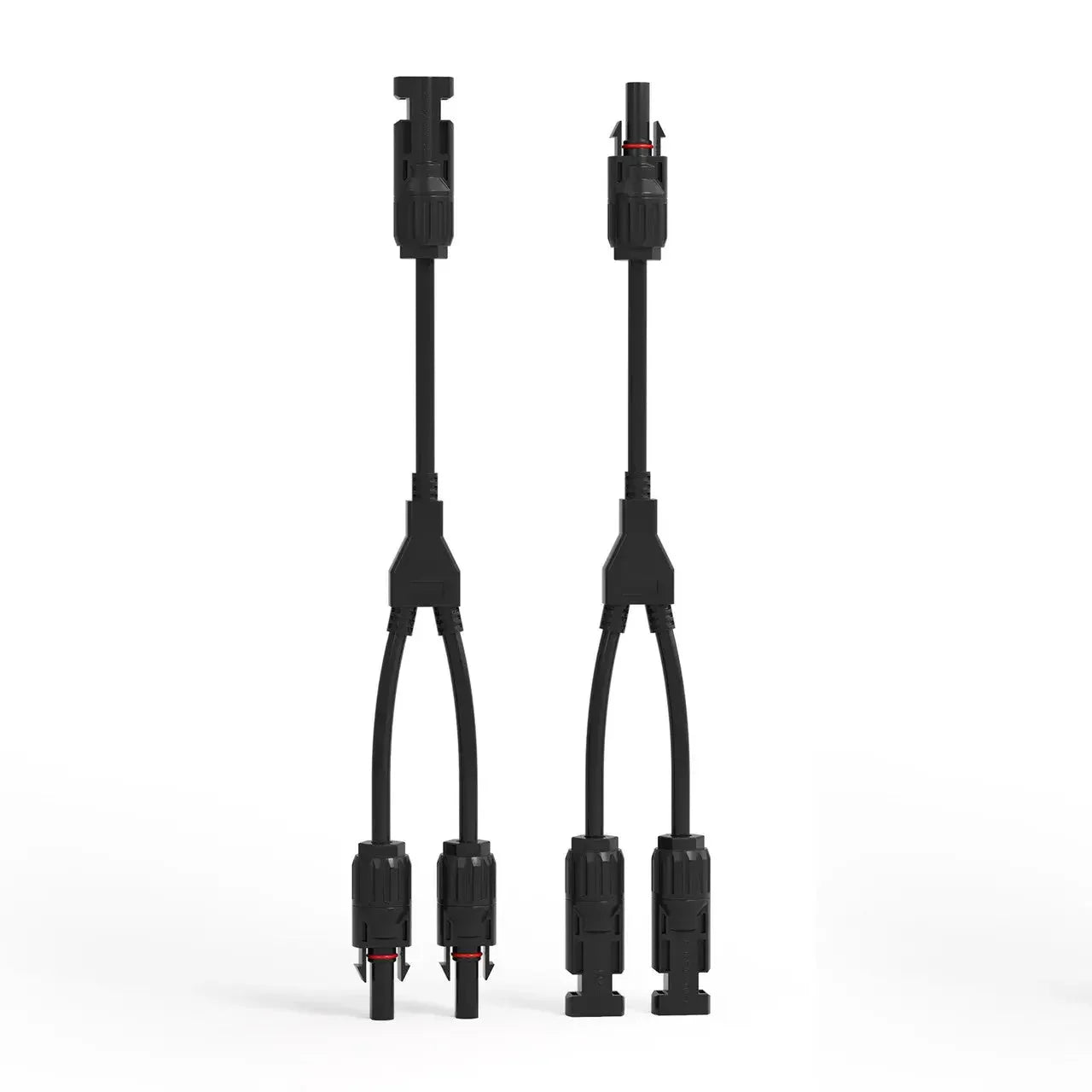

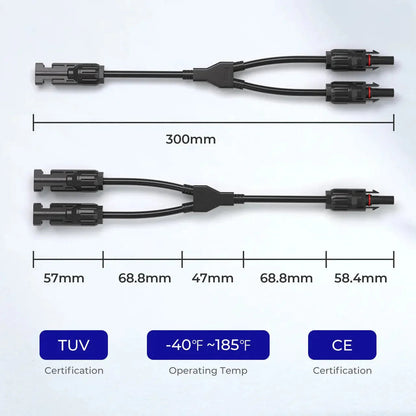

Solar Connectors Y Branch Parallel Adapter Cable MMF+FFM Pair
The Solar Connectors Y Branch Parallel Adapter Cable MMF+FFM Pair is a high-current, high-voltage branching solution for PV installations. It enables safe parallel connections within solar arrays, allowing expansion or reconfiguration without compromising voltage levels or cable integrity.
Key specifications

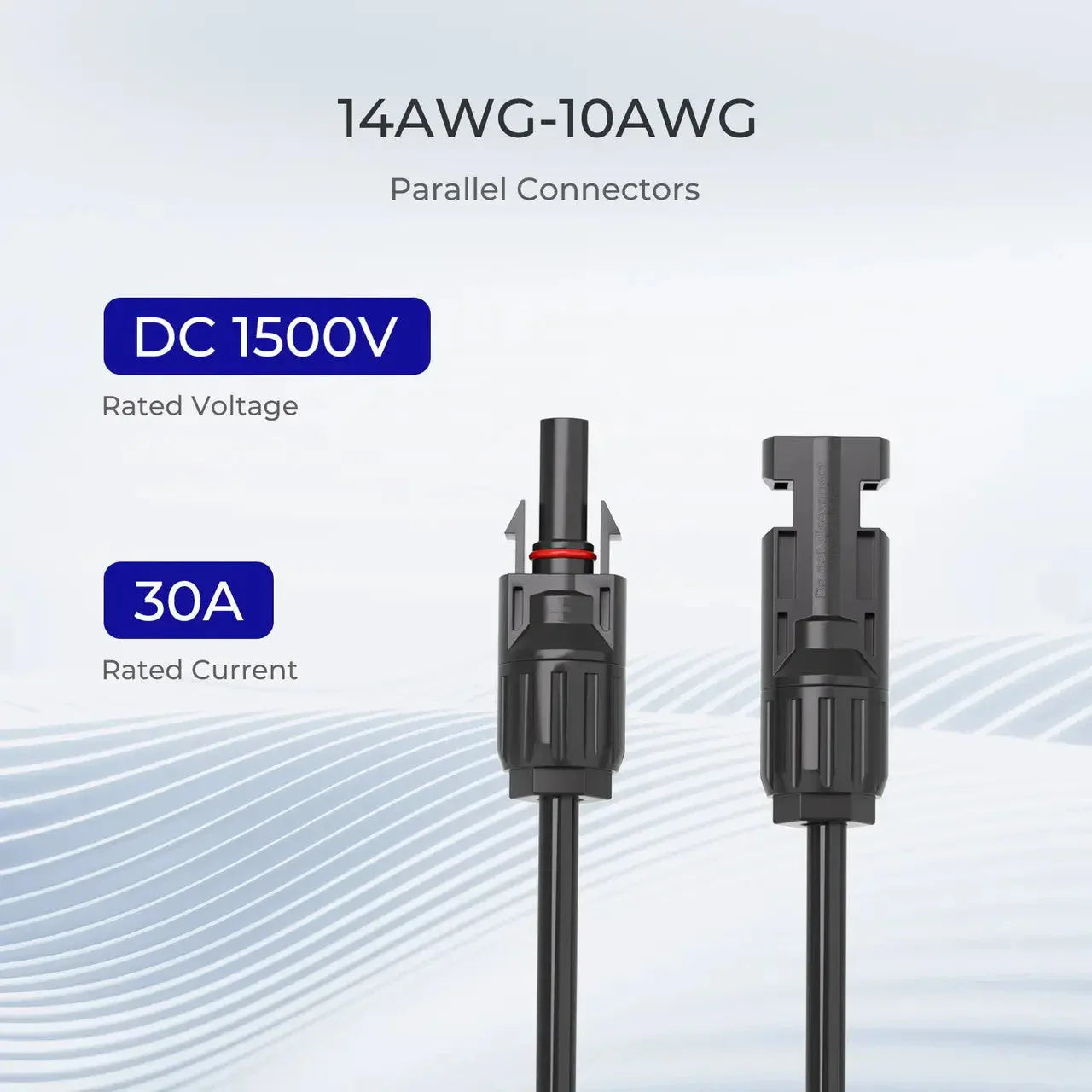

- Rated Voltage: 1500V DC (IEC)
- Rated Current: 30A
- Contact Resistance: 0.5 mΩ
- Insulation Material: PC
- Contact Material: Copper, tin-plated
- Temperature Range: -40°C to 90°C (-40°F to 194°F)
- Protection Degree: IP67 (mated), IP2X unmated
- Flame Class: UL94-HB/UL94-V0
- Suitable Cable Cross-Sections: 2.5 mm², 4 mm², 6 mm² (14 AWG–10 AWG)
- Certifications: TUV & CE
Installation and handling

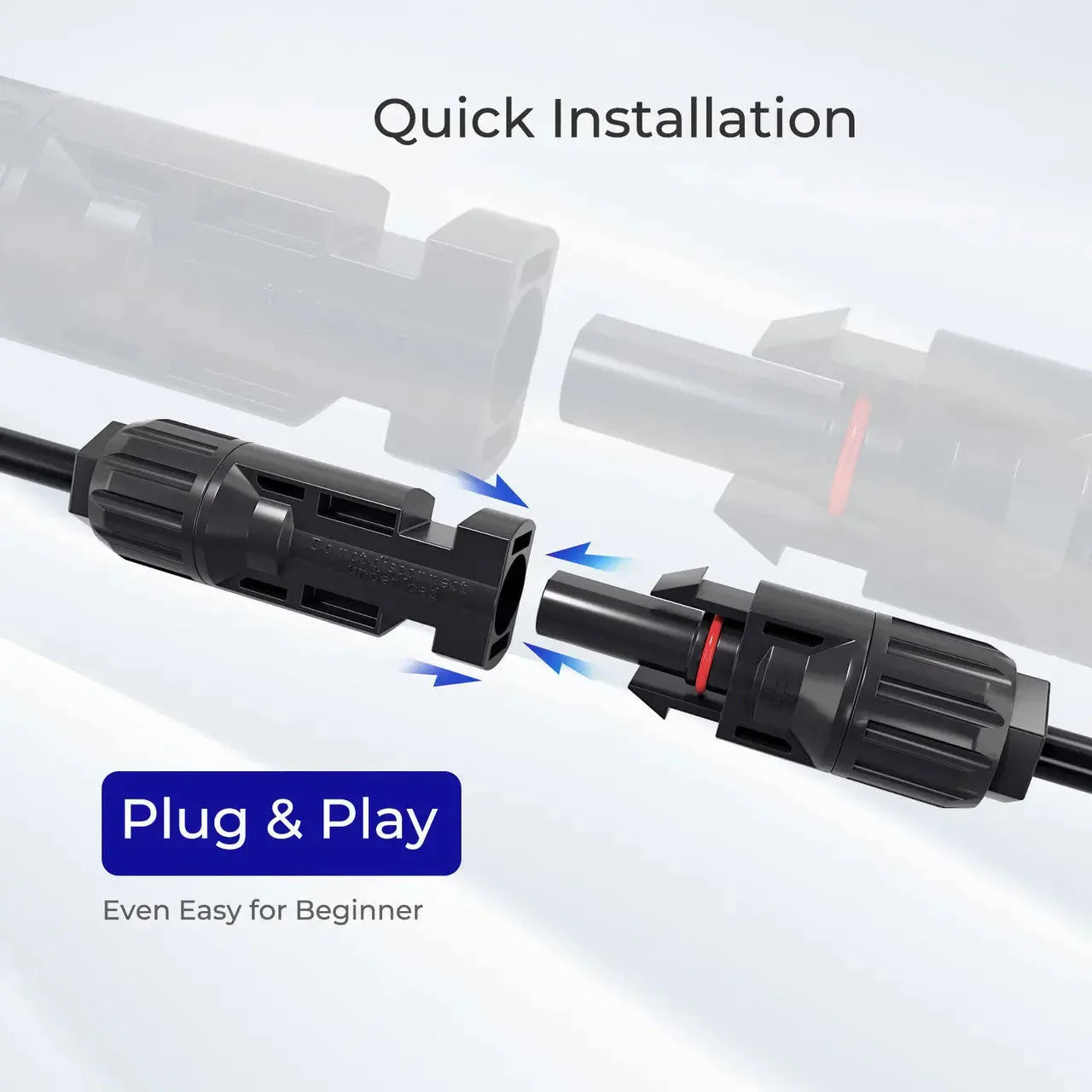

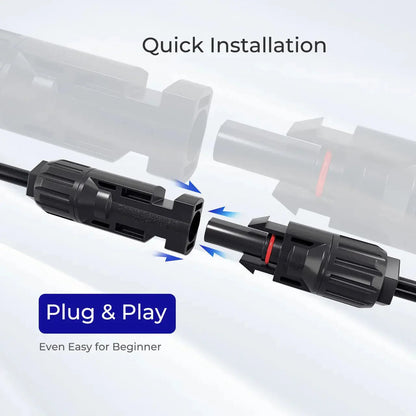

- Effortless setup by pressing the built-in lock on the male connector.
- Compatible with standard solar cables in the 14–10 AWG range; ensure matching connectors on each branch.
- For removal from panels, Renogy recommends the use of Renogy solar spanners to minimize damage to seals.
Safety, reliability, and use cases

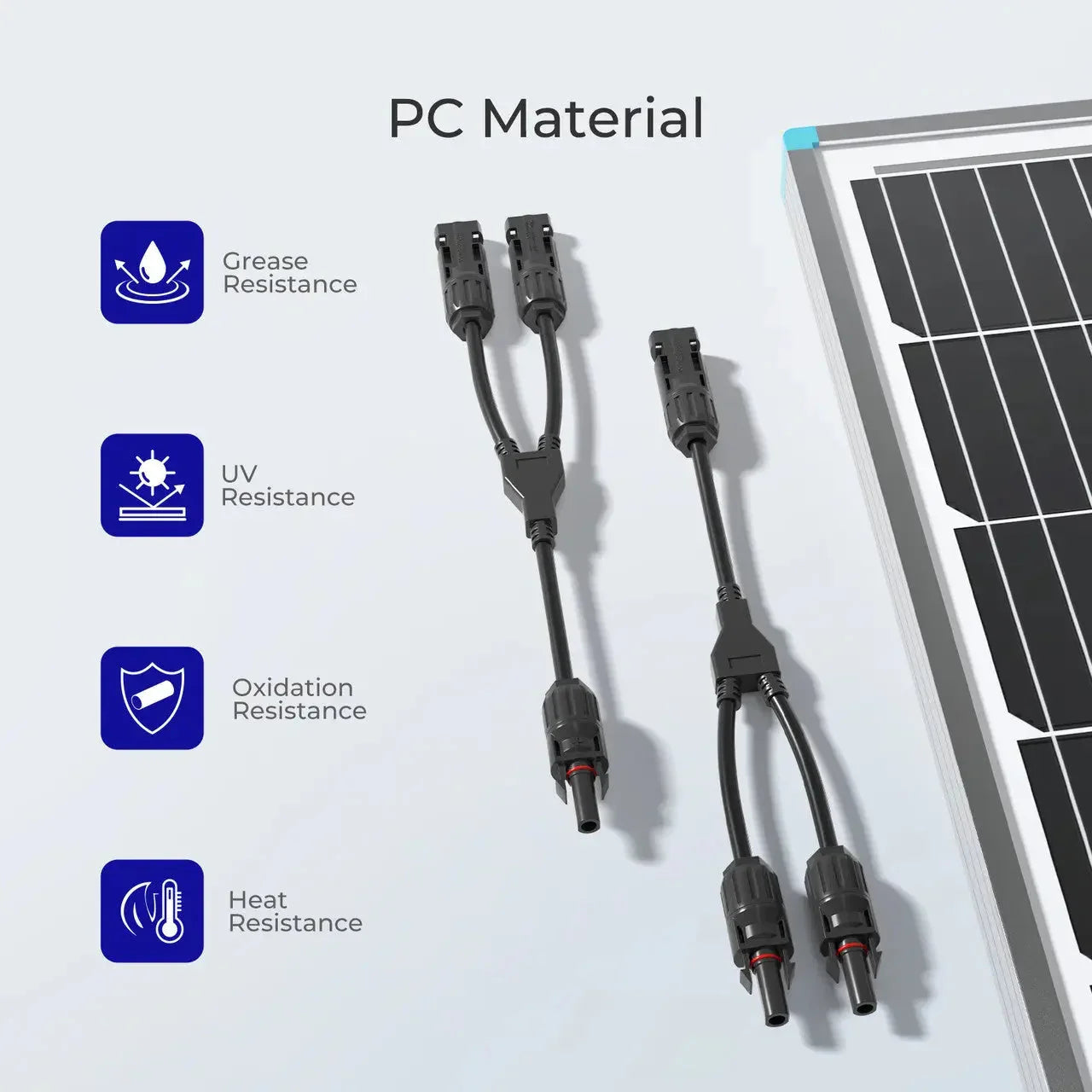

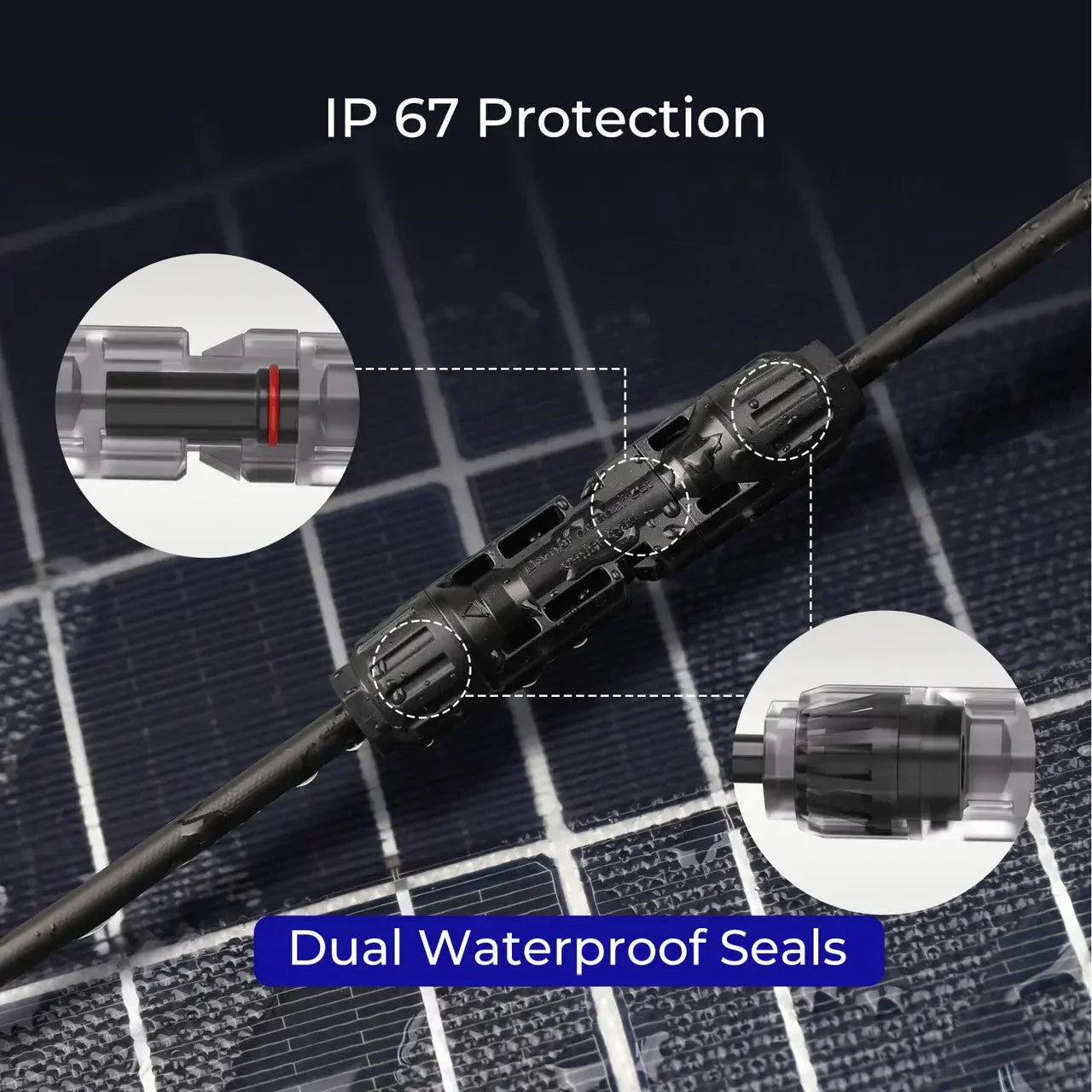

IP67 sealing in mated configurations minimizes water ingress in outdoor environments, while the PC insulation resists oils and high temperatures. The combination of 30A capacity and 1500V DC rating makes this adapter ideal for adding a fifth panel to a 4-panel string, subject to controller input capacity and wire sizing.
Warranty, service, and packaging
Renogy provides a 1-year material and workmanship warranty. Package includes 1 x Solar Connectors Y Branch. For questions, call 1 (909) 287-7111 or submit a ticket; explore the Renogy Learning Center for additional guidance.
Package Includes
- If you have any questions regarding this product, please call us at 1 (909) 287-7111 or submit a ticket for troubleshooting assistance.
- More questions about your off-grid power system? Learn more from Renogy Learning Center!
|
Solar Connectors Y Branch Parallel Adapter Cable MMF+FFM Pair
1 x
|
|
Solar Connectors Y Branch |
|
|---|---|
| Rated Voltage: 1500V DC(IEC) | Rated Current: 30A |
| Contact Resistance: 0.5mΩ | Insulation Material: PC |
| Contact Material: Copper,tin plated | Temperature: -40℃-90℃/-40°F-194°F |
| Protection Degree: IP67 mated/IP2X unmated | Safety Degree: Ⅱ |
| Flame Class: UL94-HB/UL94-V0 | Suitable Single Core Cable Section: 2.5mm²,4mm²,6mm² |
Depending on the input capacity of your controller and the amperage capacity of the wire you use, this product might help.
Normally for 14-10 awg solar wire.
The tight design can prevent solar connectors from leaking by water. If you need to remove them from solar panels, you can use Renogy solar spanners.
|
