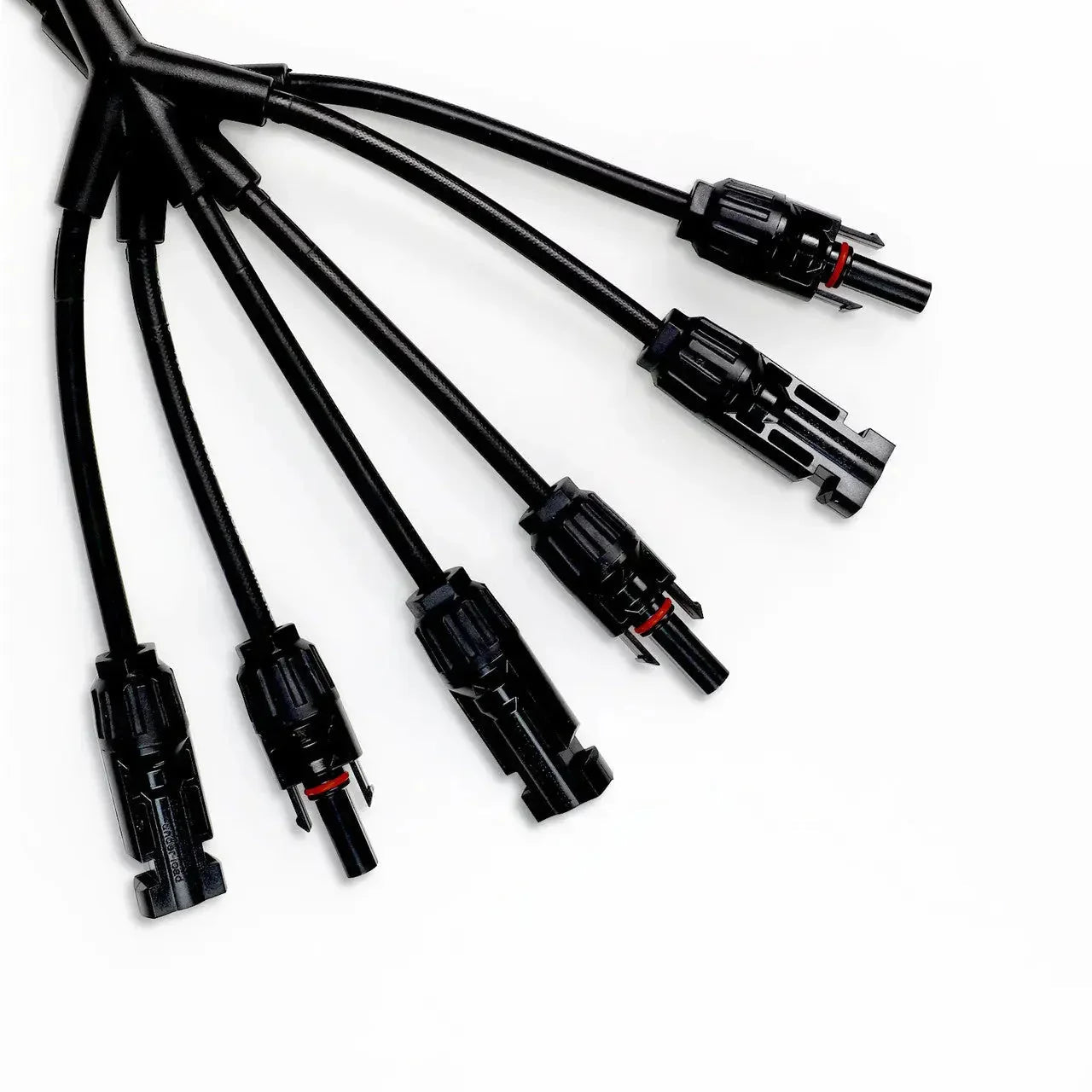

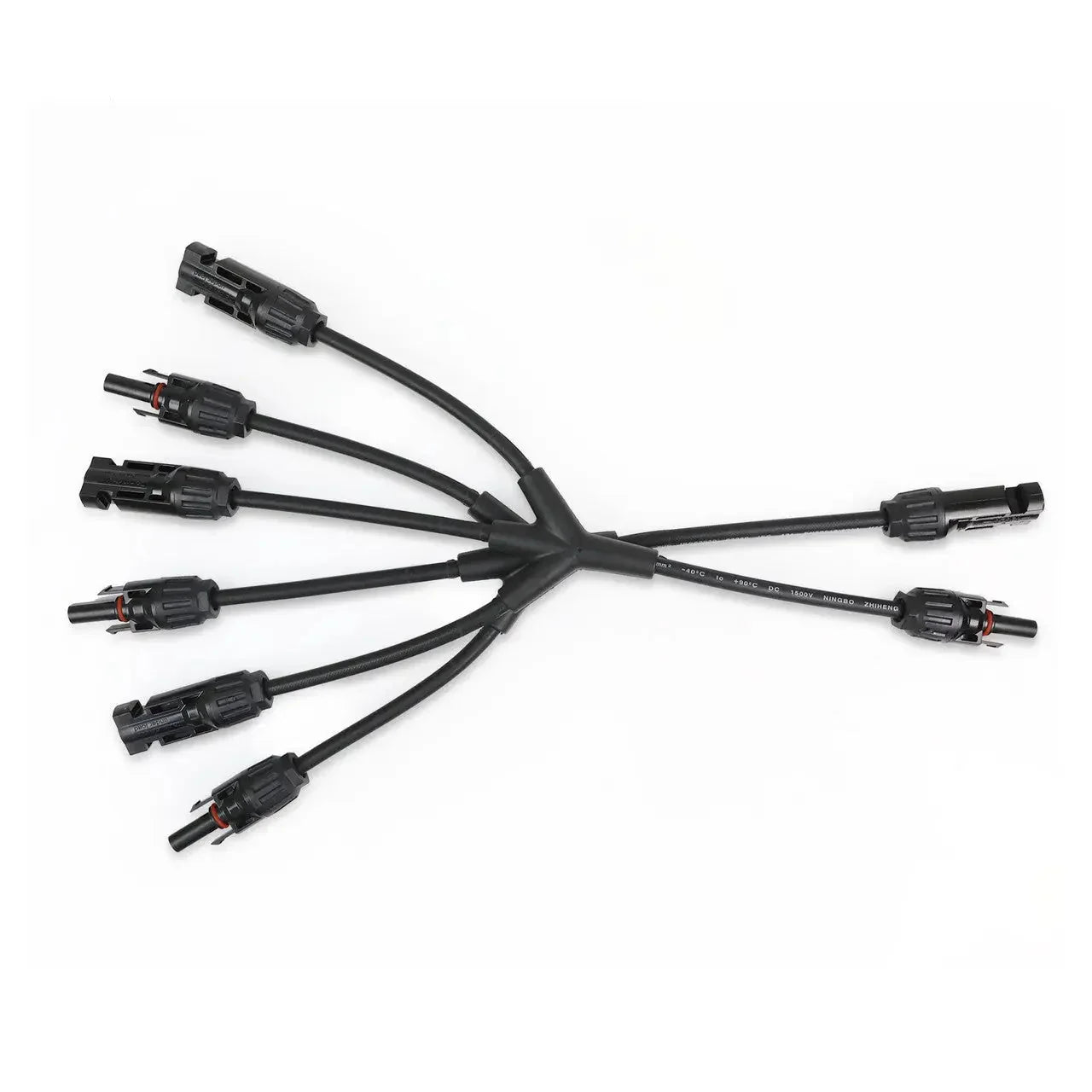

Solar Connectors M Branch Parallel Adapter Cable MMMF+FFFM Pair
For photovoltaic installations, this CE-certified M Branch parallel adapter enables safe, high-current wiring of up to three solar modules in parallel. It accepts standard solar connectors and 14-10 AWG cables, with a rugged, anti-oxidation, anti-UV, anti-high-temperature profile and IP67 sealing when mated. The built-in locking mechanism ensures a secure, leak-free connection in outdoor environments.
Key specifications
- Rated Voltage: 1500V DC (IEC)
- Rated Current: 30A
- Contact Resistance: 0.5 mΩ
- Insulation Material: PC
- Contact Material: Copper, tin-plated
- Temperature Range: -40°C to 90°C
- Protection Degree: IP67 (mated) / IP2X (unmated)
- Safety Degree: II
- Flame Class: UL94-HB / UL94-V0
- Suitable Cable Cross-Section: 2.5 mm², 4 mm², 6 mm²
Safety and compatibility
CE certification confirms compliance with international safety standards. The high-integrity seal and locking mechanism help prevent water ingress and accidental disconnection, delivering reliable performance in outdoor PV arrays.
Installation and maintenance
Simple assembly with the built-in lock; ensure a full mated connection for IP67 protection. For panel removal, Renogy solar spanners are recommended. Regularly inspect contacts for corrosion and clean as needed; keep connectors dry when not under load.
Warranty and service
1-year warranty with dedicated customer support. For assistance, call 1-909-287-7111 or submit a ticket. Package includes 1 x Solar Connectors M Branch Parallel Adapter Cable MMMF+FFFM Pair.
Package Includes
- If you have any questions regarding this product, please call us at 1 (909) 287-7111 or submit a ticket for troubleshooting assistance.
- More questions about your off-grid power system? Learn more from Renogy Learning Center!
|
Solar Connectors M Branch Parallel Adapter Cable MMMF+FFFM Pair
1 x
|
| Solar Connectors M Branch | |
|---|---|
| Rated Voltage: 1500V DC(IEC) | Rated Current: 30A |
| Contact Resistance: 0.5mΩ | Insulation Material: PC |
| Contact Material: Copper,tin plated | Temperature: -40℃-90℃/-40°F-194°F |
| Protection Degree: IP67 mated/IP2X unmated | Safety Degree: Ⅱ |
| Flame Class: UL94-HB/UL94-V0 | Suitable Single Core Cable Section: 2.5mm²,4mm²,6mm² |

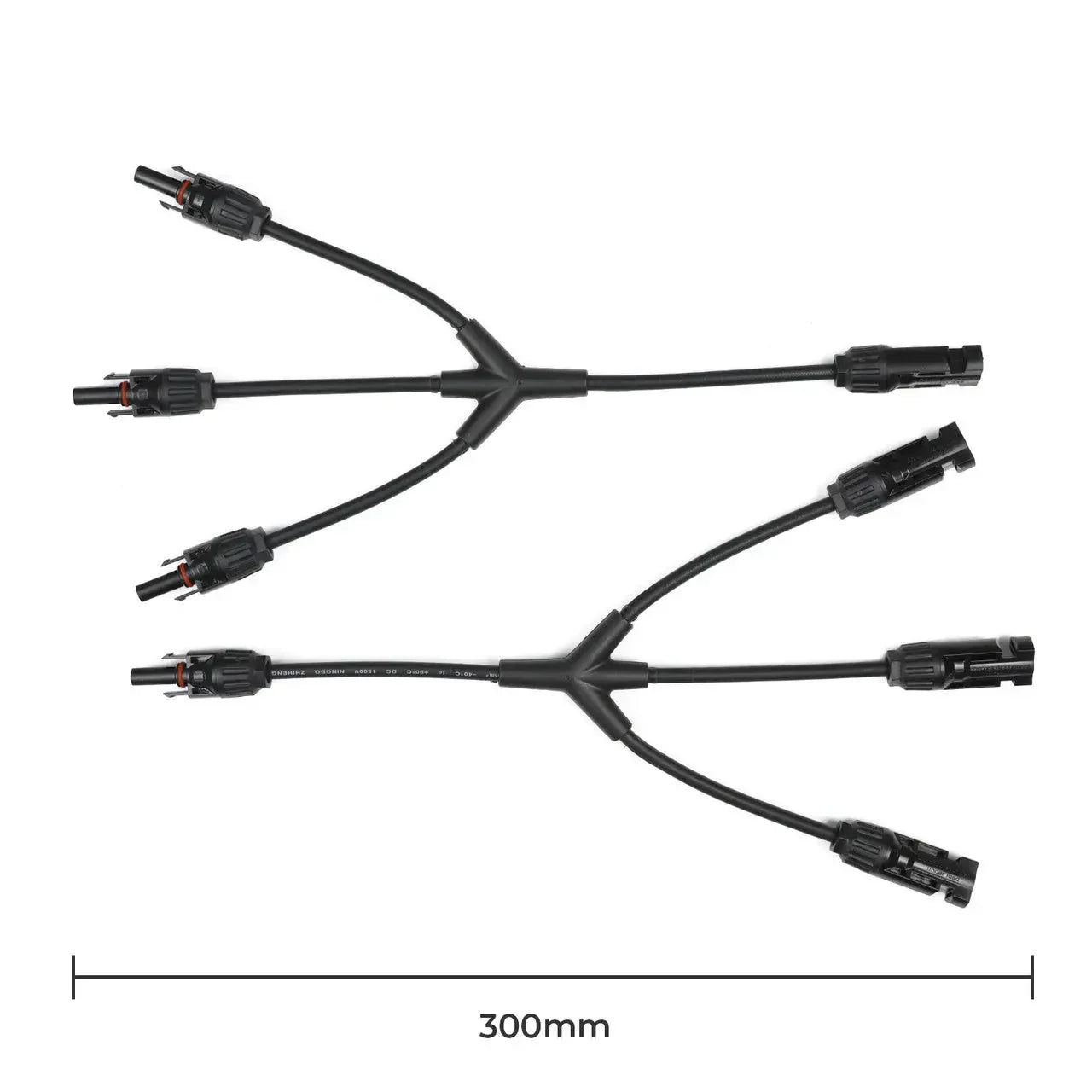

You can use it to connect 3 solar panels in parallel.
Normally for 14-10 awg solar wire.
The tight design can prevent solar connectors from leaking by water. If you need to remove them from solar panels, you can use Renogy solar spanners.
|
