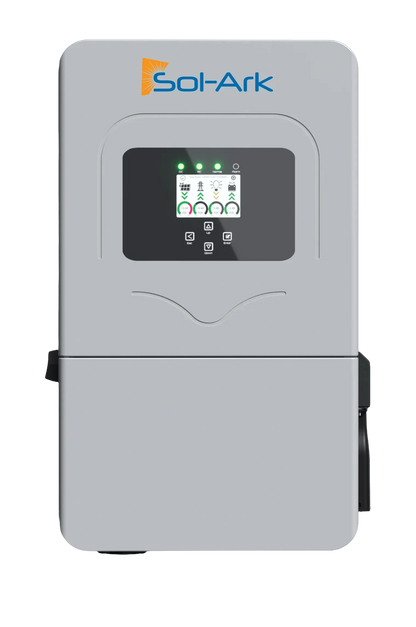

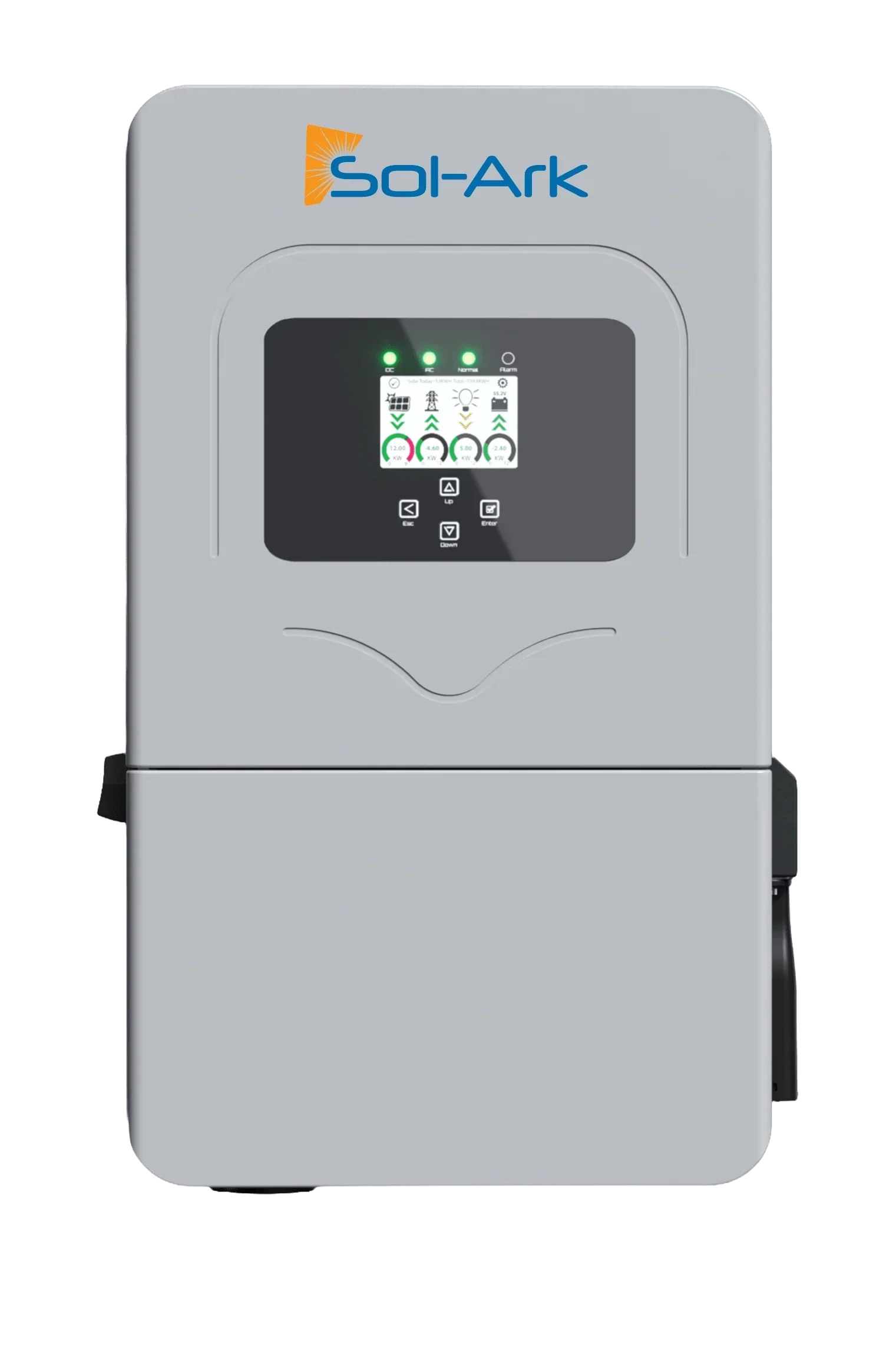

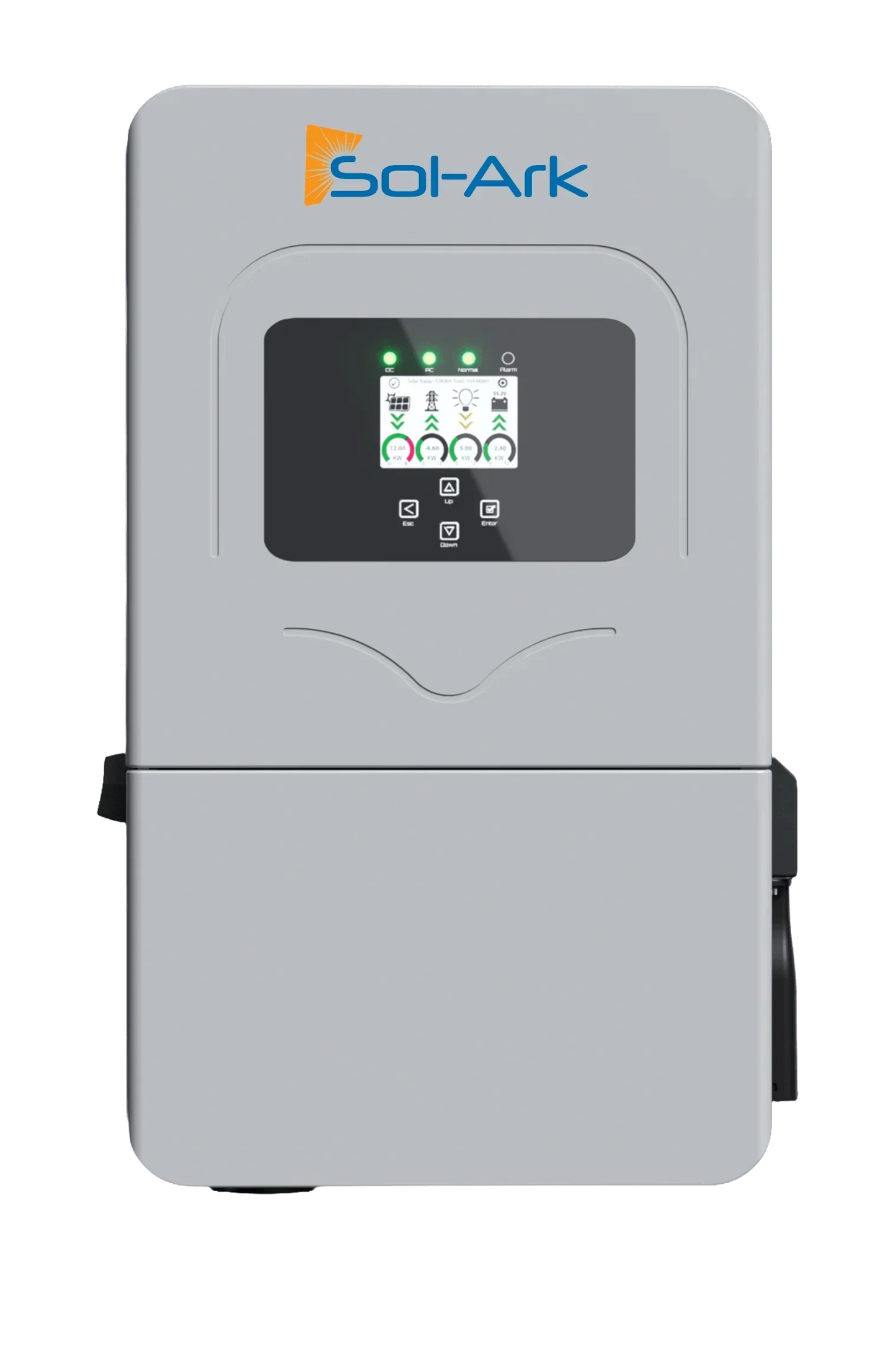

Sol-Ark Limitless 12K-2P-LL Hybrid Inverter - 12kW Output / 19.2kW Input Outdoor Rated

Sol-Ark Limitless 12K-2P-LL Hybrid Inverter - 12kW Output / 19.2kW Input Outdoor Rated

$3,900.00 USD
$4,999.00 USD $3,900.00 USD
Sale Sold out
Shipping calculated at checkout.

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

Packing Details

Package contents: Teison Portable Pro charger, TPU cable, user manual
Package weight: Please confirm with Ampere Authority


View full details

Sol-Ark Limitless 12K-2P-LL Hybrid Inverter - 12kW Output / 19.2kW Input Outdoor Rated

The Sol-Ark Limitless 12K-2P-LL Hybrid Inverter combines whole-home backup power, advanced energy management, and solar flexibility into one compact, value-focused platform. Designed for homeowners who want reliable backup power without the cost and complexity of larger systems, the Limitless 12K can deliver up to 12,000 watts of grid-tied power and 10,000 watts of continuous battery-backed power for critical loads during outages.

Whether you're building a new solar energy system or upgrading an existing installation, the Limitless 12K supports both DC-coupled and AC-coupled solar, making it one of the most versatile hybrid inverters in its class. With support for generators, smart load management, peak shaving, time-of-use optimization, and virtual power plant programs, it gives homeowners greater control over their energy production, storage, and consumption.

Key Benefits

  • Delivers up to 12kW of grid-tied power output

  • Provides 10kW of continuous backup power from batteries

  • Supports both DC-coupled and AC-coupled solar systems

  • Ideal for home backup, energy savings, and energy independence

  • Integrated Smart Load controls help prioritize critical circuits

  • Generator-ready with multifunction GEN port

  • Supports peak shaving and time-of-use energy management

  • Virtual Power Plant (VPP) capable

  • Compact design saves valuable wall space

  • Suitable for both new installations and retrofit projects

Solar & Battery Features

  • Three MPPT charge controllers

  • Supports up to 19.2kW of solar PV input

  • Dual PV string inputs per MPPT

  • Up to 14kW of AC-coupled solar

  • Rapid Shutdown control compatibility

  • 48V battery architecture

  • 220A integrated battery charger

  • Compatible with a wide range of 48V battery systems

Specifications

  • Inverter Output Power: 12,000W (12kW)

  • Continuous Battery Backup Output: 10,000W (10kW)

  • Grid Passthrough: 100A

  • Battery Voltage: 48V

  • Battery Charger: 220A

  • Solar Input Capacity: 19.2kW

  • AC Coupling Capacity: 14kW

  • Number of MPPTs: 3

  • PV Strings per MPPT: 2

  • Transfer Time: 5ms

  • Output Voltage: 120/240V Split Phase

View PDFSA-12K-2P-LL_Datasheet_Rev1.1_PS-00045.pdf
