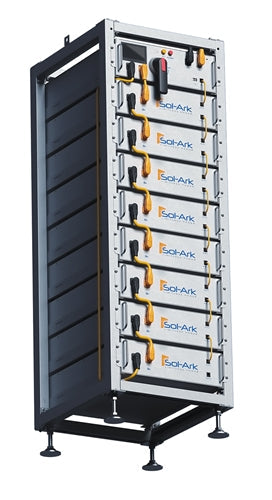

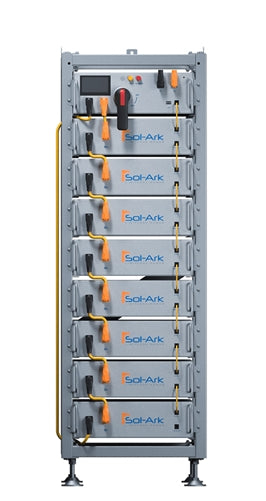

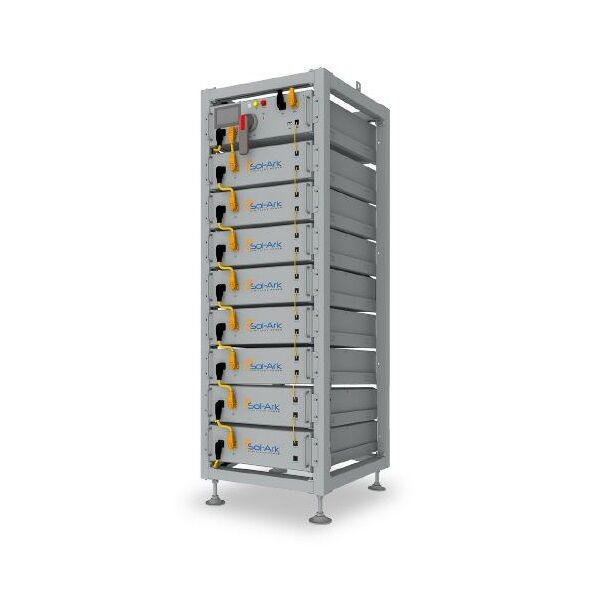

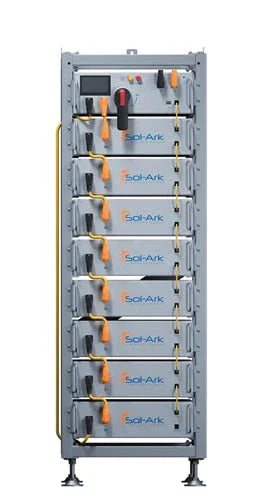

Sol-Ark L3-HV-40-KWH High Voltage Battery
The Sol-Ark L3-HV-40-KWH is a high-voltage modular solar battery system that can store energy from solar panels and convert it into AC electricity. The L3-HV-40-KWH battery is made up of several (8) 51.2 kWh batteries to make 40kWh. The BOS-G(HV) is easily scalable, and you can expand your power setup with the attachment of additional battery modules.
The Sol-Ark L3-HV-40-KWH is designed for various energy storage needs and offers flexibility and scalability to cater to different applications. It has a wide temperature range of -20°C to 55°C, with excellent discharge performance and cycle life. The system is non-toxic, non-polluting, and environmentally friendly.
Features / Innovations:

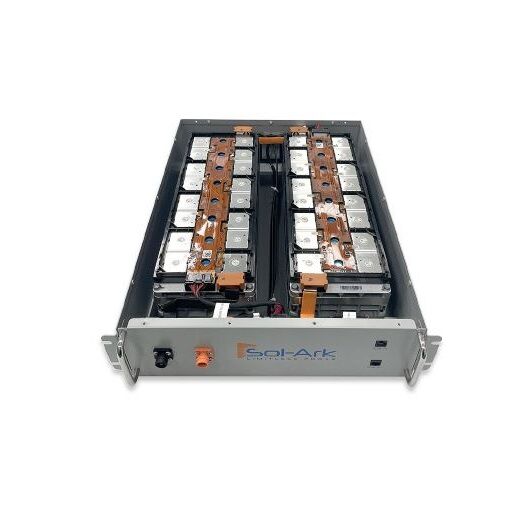

- Prismatic cells offer maximum reliability, efficiency, and safety
- Automatic configuration of batteries and BMS
- 5kW packs include built-in fire suppression
- Supports USB and wifi upgrade (optional), remote upgrade
- Modular batteries can easily be connected in parallel or series to increase capacity or voltage
- 10-Year Warranty
Technical Specifications:
- Cell Chemistry: LiFePO4
- Module Energy: 5.12kWh
- Module Nominal Voltage: 51.2V
- Module Capacity: 100Ah
- Battery Module Qty In Series (Optional): 8
- System Nominal Voltage: 409.6V
- System Operating Voltage: 332.8 ~ 467.2V
- System Energy: 40.96kWh
- System Usable Energy: 36.86kWh
- Charge/Discharge Current: Recommend: 50A, Nominal: 100A, Peak Discharge: 125A
- Communication Port: CAN2.0/RS485
- IP Rating of Enclosure: IP20
- Dimension (Inches): 23.19W x 23.2D x 62.52H
- Weight Approximate: 994.28
- Certification: CE, IEC62619, VDE2510-50, UL1973, UL9540A, UN38.3, UL9540
- Warranty: 10 Years
