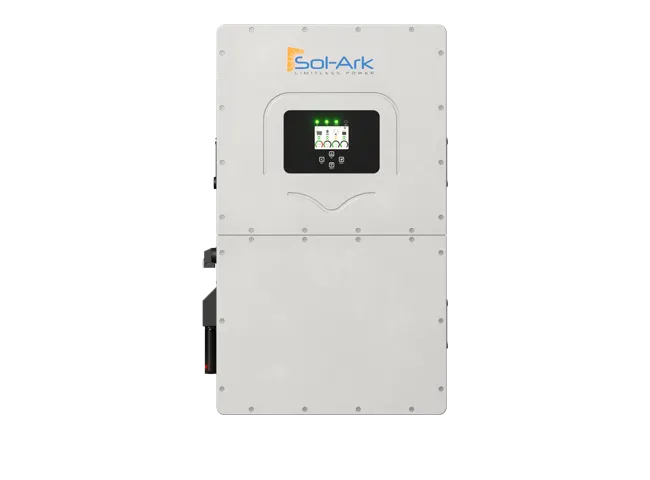

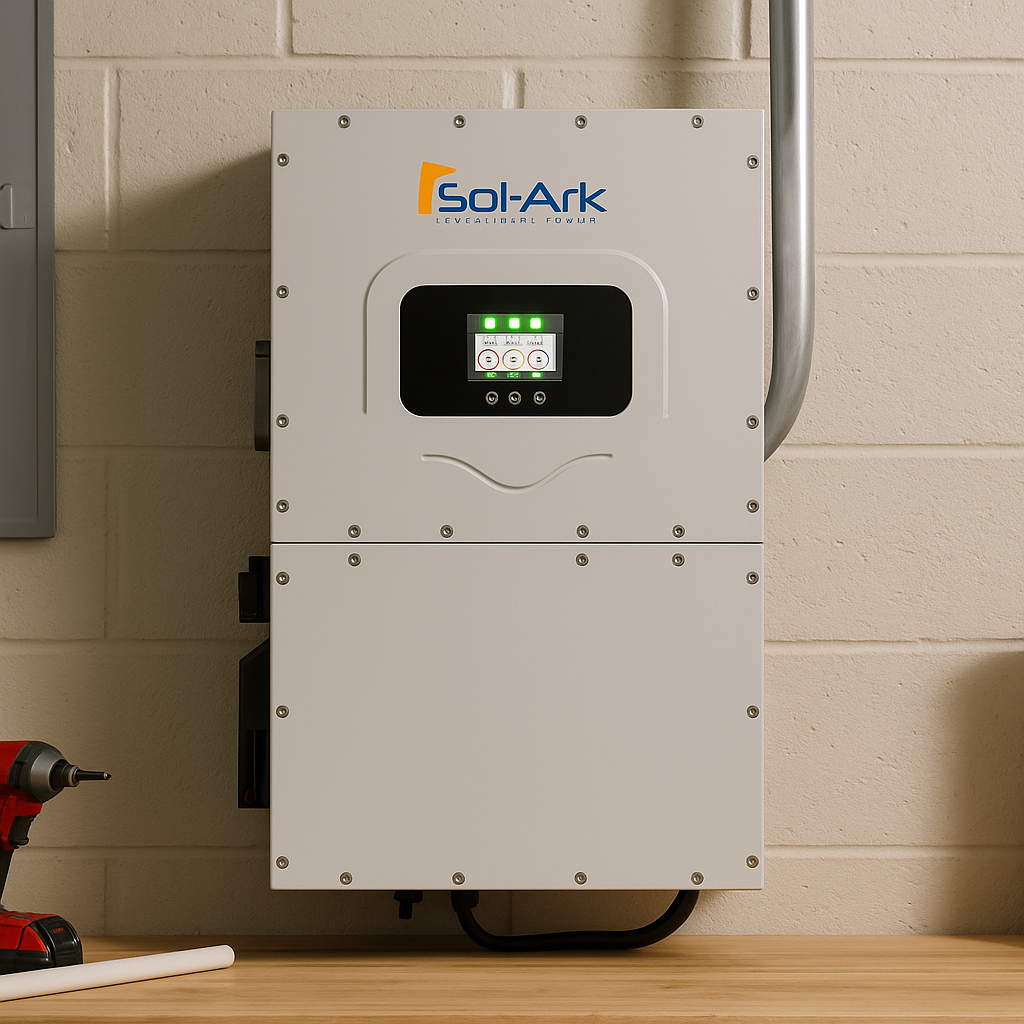

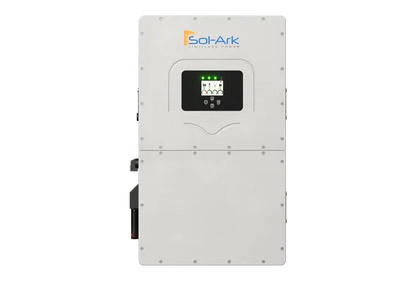

Sol-Ark 30K-3P-208V Commercial Hybrid Inverter

Performance Specifications

• Type: Hybrid
• AC Output: 30 kW continuous; 45 kVA peak (10 s)
• Phases/Voltage: 3-phase 120/208 V
• Efficiency: 97.5% max; 96.5% CEC weighted
• DC Input: 150–500 V MPPT; 180 V startup; 550 V max
• MPPT Trackers: 4 independent (2 strings each)
• Solar Input Capacity: up to 39 kW
• Battery Support: Lithium‑ion, 160–500 V; 50–9,900 Ah; 2 inputs
• Interconnect/Transfer: 200 A grid pass-through; 20 ms transfer (adjustable)
• Coupling Architecture: DC- and AC-coupled dual architecture
• Communications/Monitoring: Wi‑Fi and Ethernet; MySolArk platform
• Expansion/Scalability: Up to 300 kW with 10-inverter parallel stacking

Safety Features and Certifications

• Certifications/Protection: UL 1741SB listed; AFCI; rapid shutdown; ground fault; Type II/III surge protection
• Enclosure/Environment: IP65; NEMA 3R outdoor readiness

Installation and Maintenance Requirements

• Utilities: 3‑phase 120/208 V AC; DC input and battery connections per spec
• Space/Mounting: French cleat mounting system; ensure service clearance per enclosure guidelines
• Commissioning: connect AC/DC, configure MPPT, connect battery, verify 20 ms transfer, perform interlock checks
• Preventive Maintenance: inspect terminations, clean vents, verify monitoring connectivity annually

Warranty and Service Information

• Warranty: 10 years (manufacturer standard)
• Service Terms/Response: governed by Sol-Ark warranty policy; consult for terms and response times

Branding/References

• Manufacturer: Sol-Ark
• Model: 30K-3P-208V
• References/Datasheet: Sol-Ark 30K-3P-208V datasheet available from the manufacturer; MySolArk monitoring platform

Differentiators

• Dual coupling architecture enables both DC‑coupled new installations and AC‑coupled retrofits without equipment replacement
• Transformerless design eliminates costly step‑down transformers while delivering professional‑grade performance
