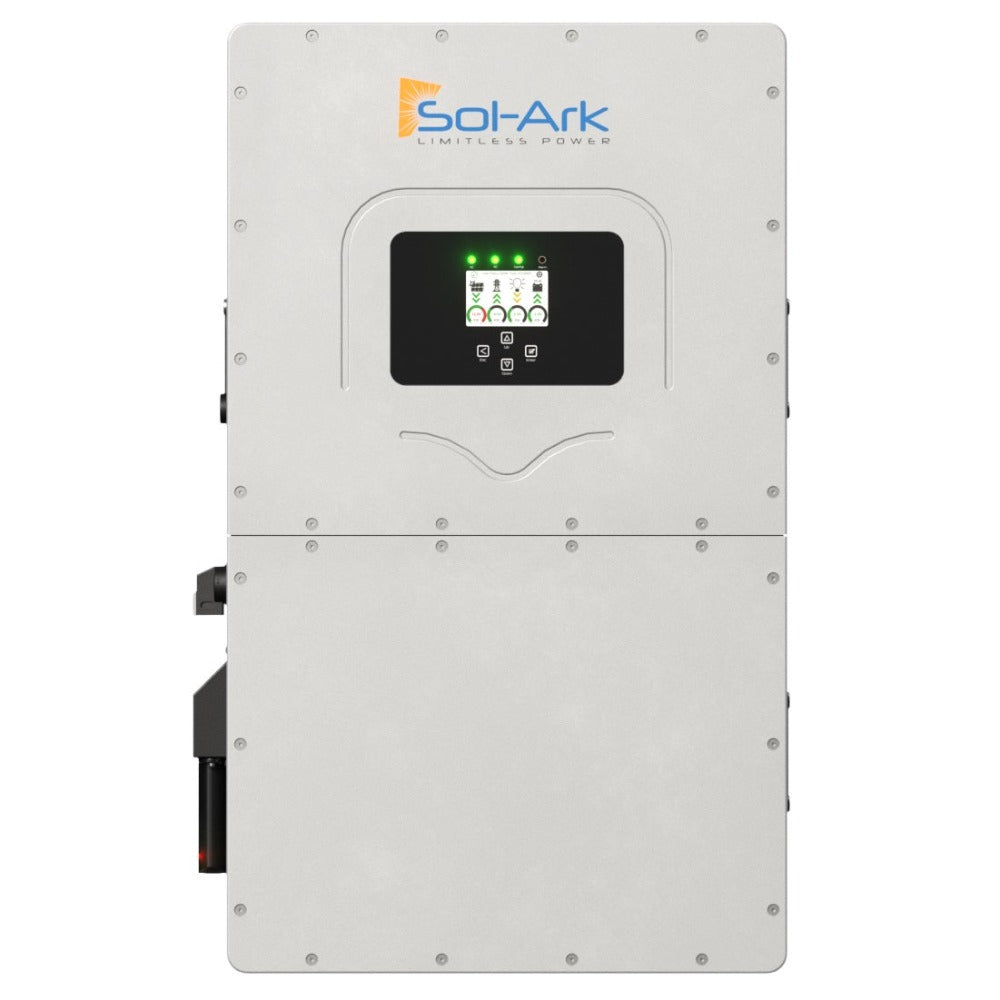

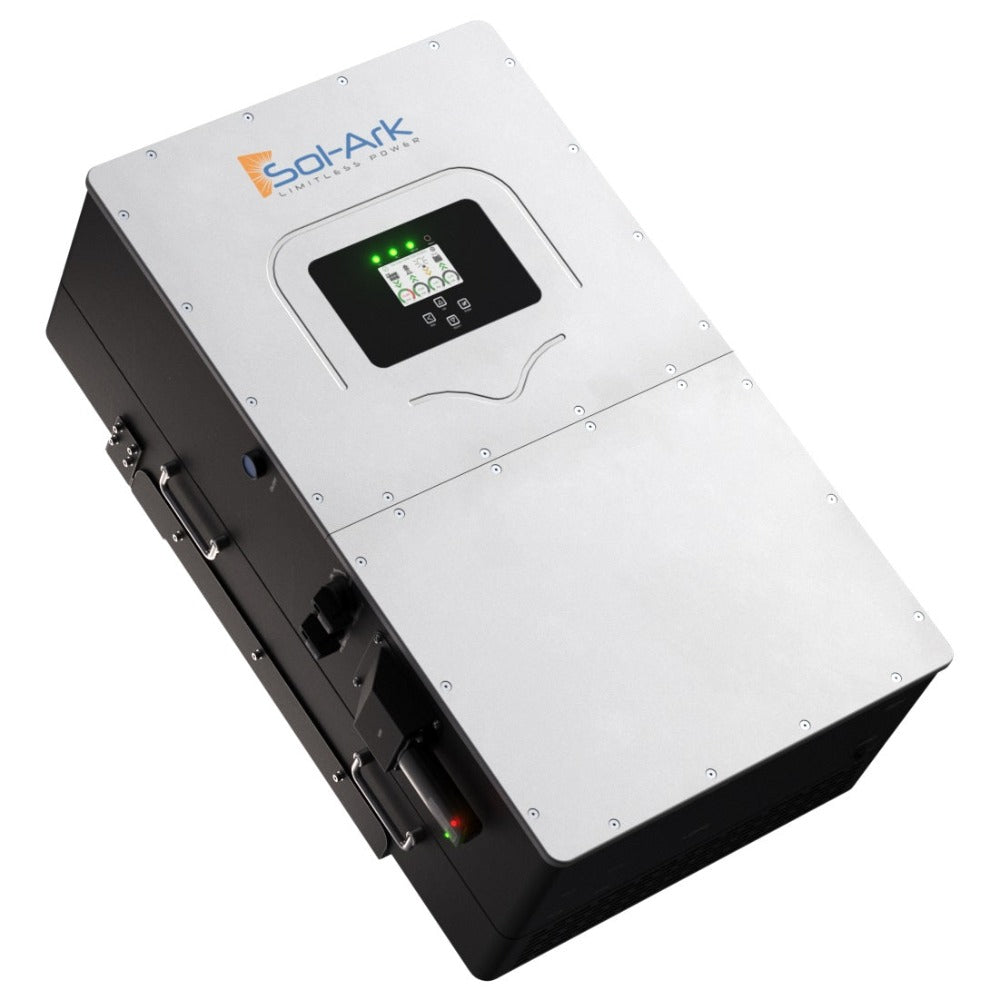

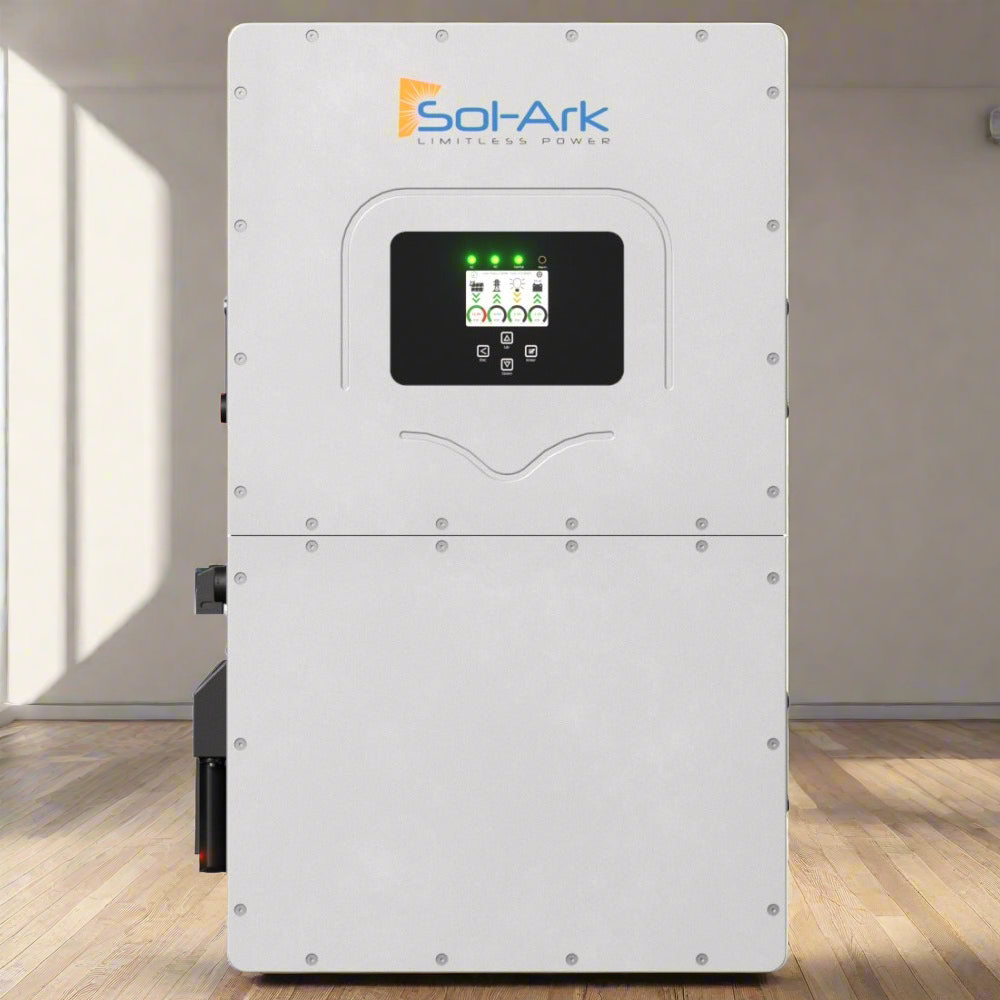

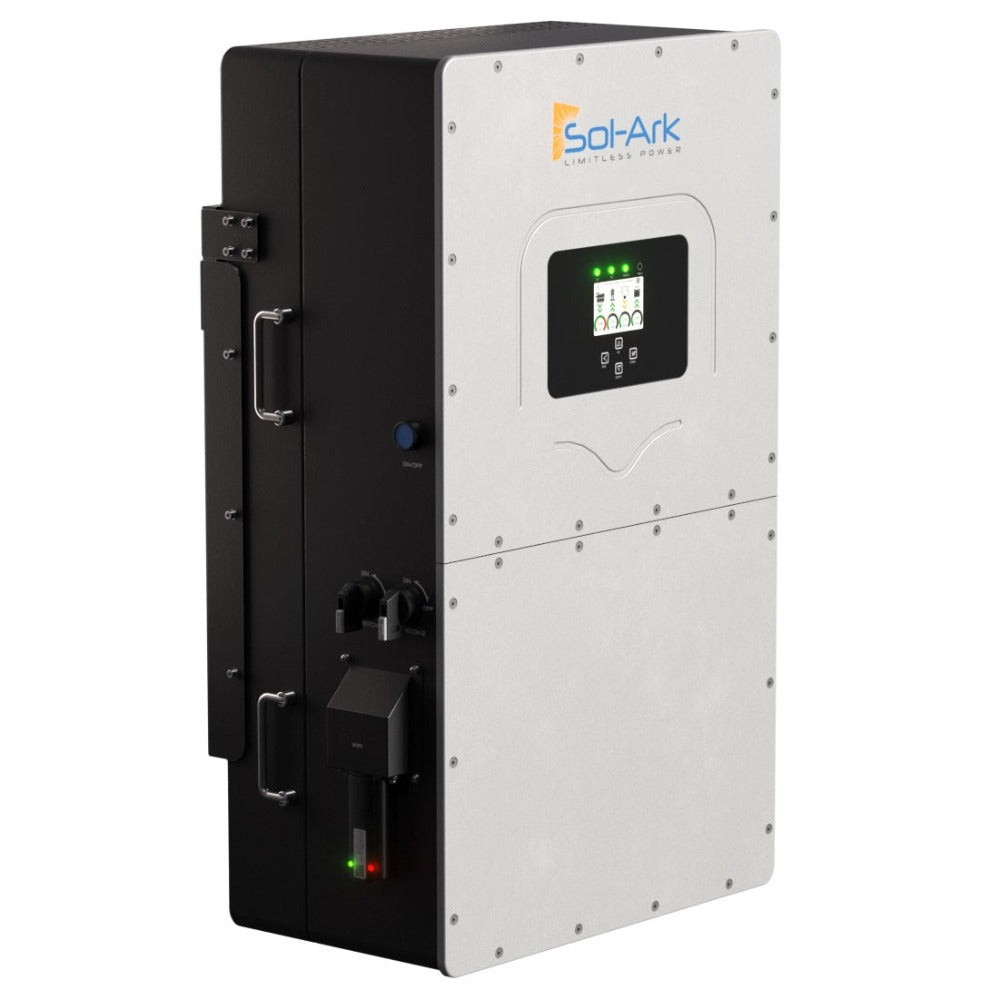

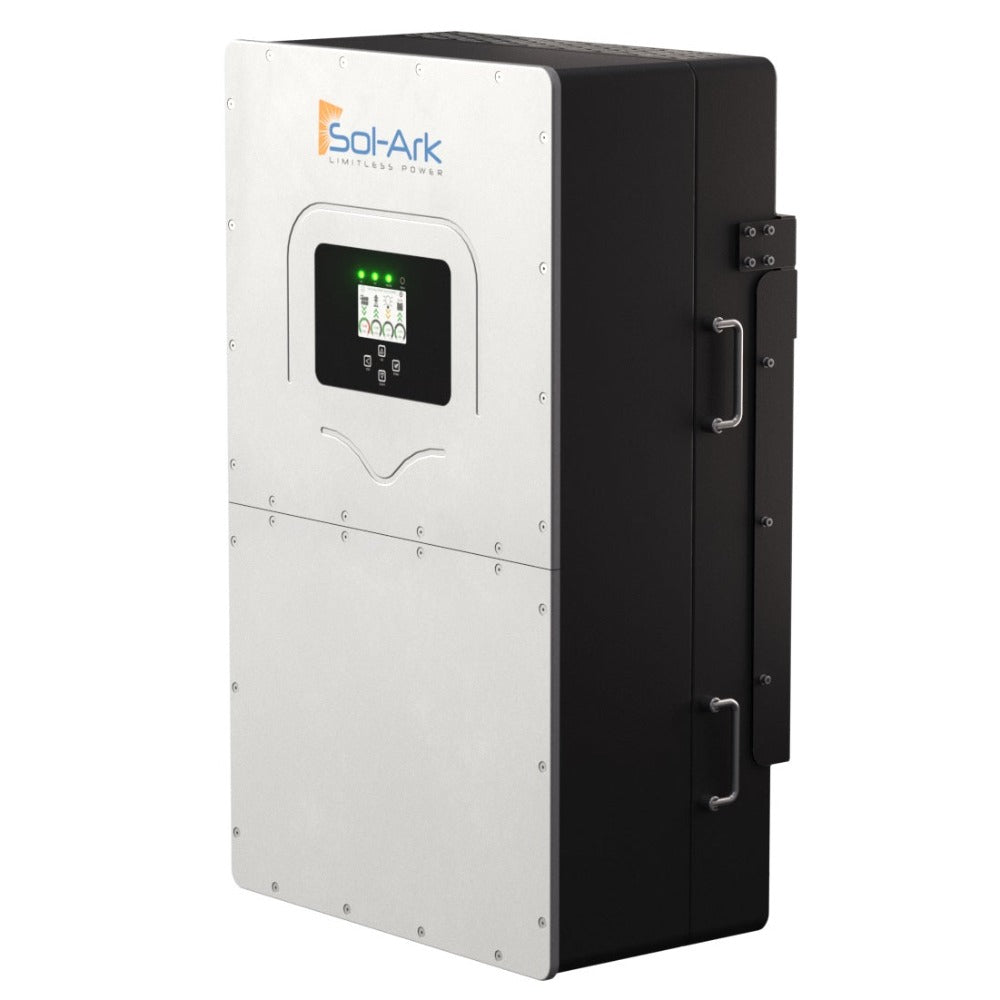

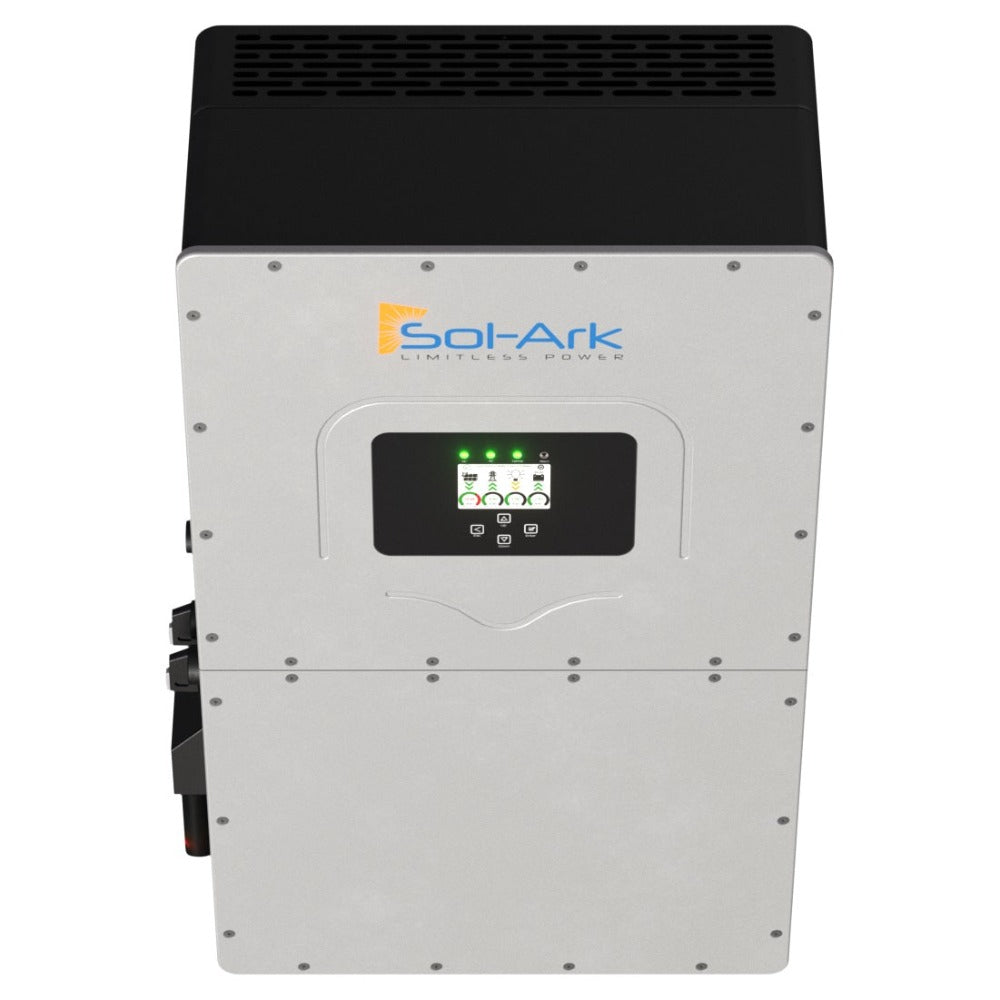

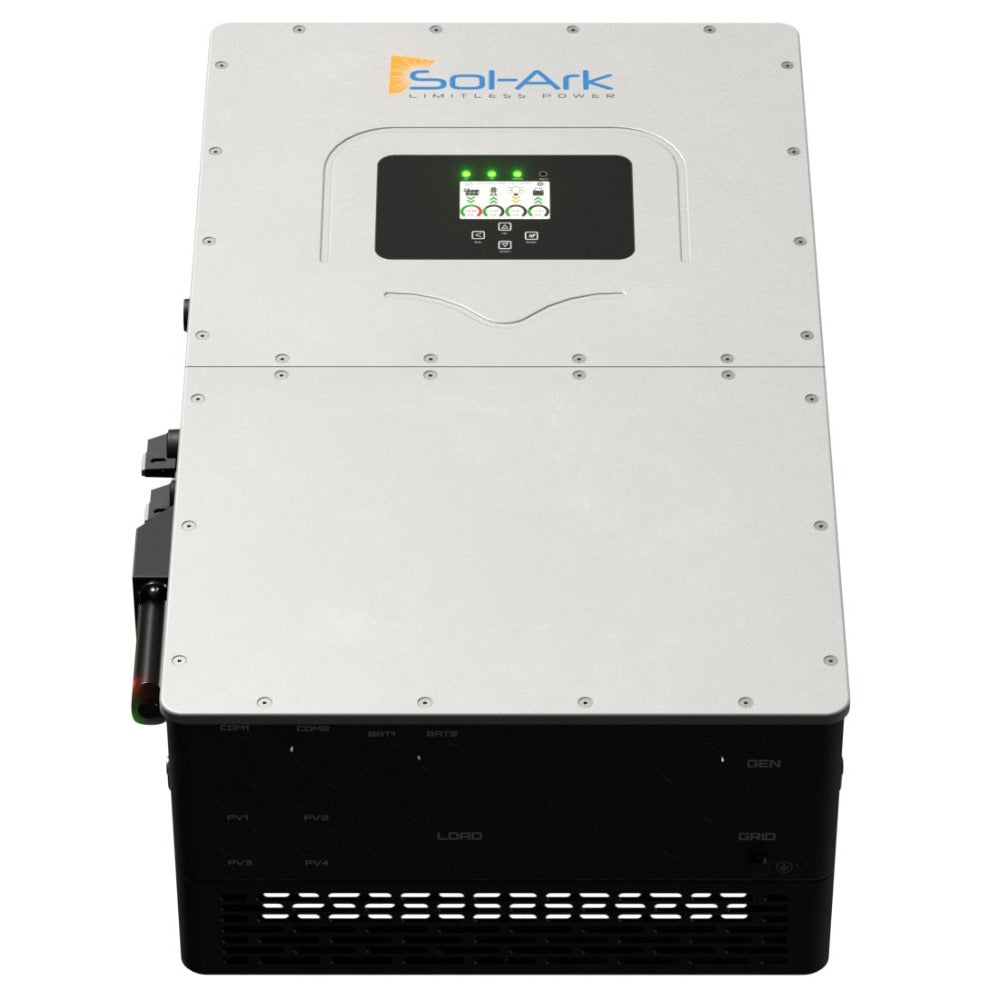

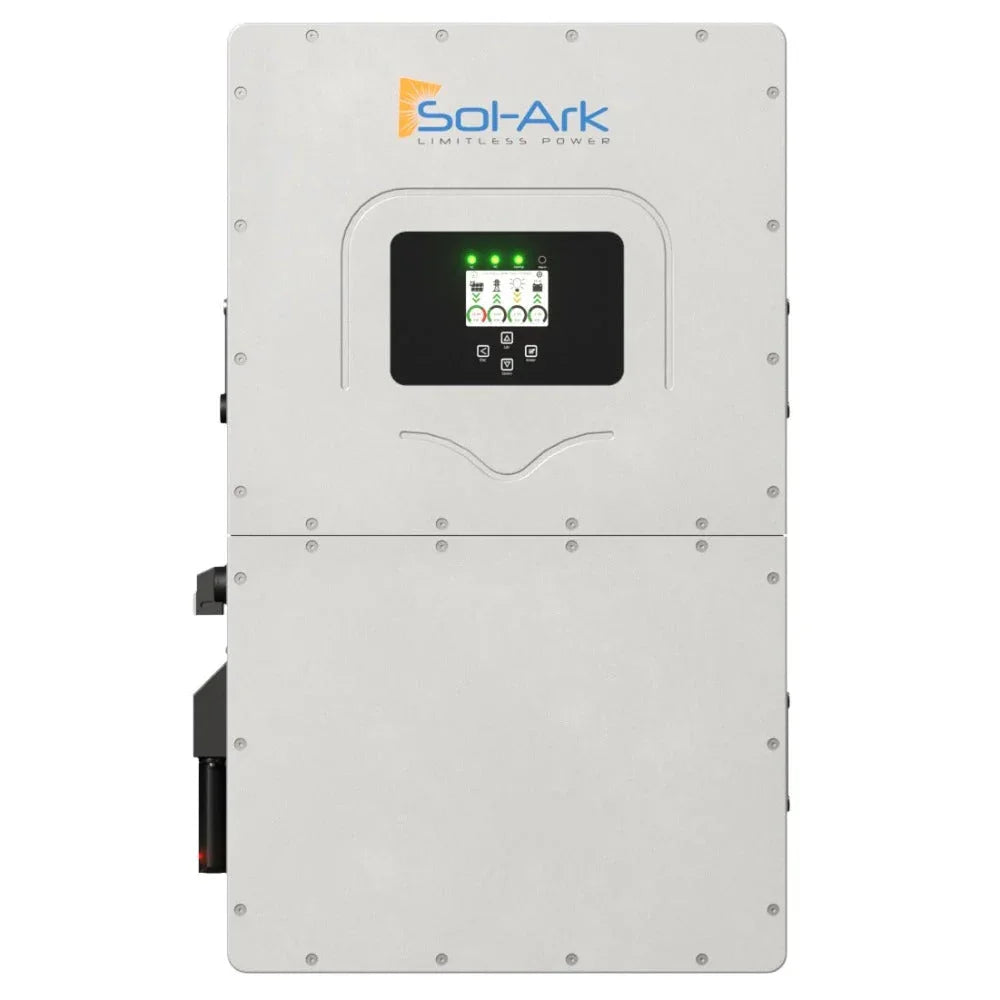

Sol-Ark 30K 3-Phase Hybrid Solar Inverter
The Sol-Ark 30K 3-Phase Hybrid All-In-One Inverter is a robust, high-efficiency solution that seamlessly integrates solar power, energy storage, and generator power for residential, commercial, and industrial installations. Designed for multi-source backup and peak shaving, it delivers reliable multi‑phase operation on 120/208V systems with active remote management to optimize uptime and performance across diverse use cases.
Performance specifications
- Nominal AC voltage (3Φ): 120/208V; Grid frequency: 50/60Hz
- Real power, max continuous (3Φ): 30,000W; Max output current: 83.4A
- Peak apparent power (10s, off-grid, 3Φ): 45,000VA
- Max grid passthrough current (10min): 200A; Continuous grid passthrough current: 180A
- Power factor output range: ±0.8 (adjustable)
- Backup transfer time: 5 ms (adjustable)
- CEC efficiency: 96.5%; Max efficiency: 97.5%
- DC to AC: Transformerless; DC stackable: Up to 10 in parallel
- Battery input: 2 inputs, 50A per input; Nominal DC voltage: ≥300V; Operating range: 160–500V
- Capacity: 50–9900Ah; Max charge/discharge current: 100A (50A per input)
- Charging controller: 3‑stage with equalization; Grid to battery charging efficiency: 96.0%
- Battery technologies: Lithium iron phosphate (LiFePO4)
Safety, certifications & compliance
- Integrated PV DC disconnect switch per NEC 240.15
- Integrated ground fault detection (NEC 690.5)
- Integrated rapid shutdown control (NEC 690.12)
- Integrated arc fault detection (NEC 690.11)
- Integrated PV input lightning protection and PV string input protection
- Certifications & listings: UL 1741-2021 (UL1741SB), CSA C22.2 No 107.1-16, IEEE 1547-2018 & 1547a-2020 & 1547.1-2020 (SRD V2.0), UL 1741 CRD-PCS, UL1699B, CEC, SGIP 4
Installation, integration & maintenance
- Easy install with everything included in packaging; compact 35.2 x 20.8 x 11.6 in, 80 kg enclosure
- IP65 / NEMA 3R rated enclosure for challenging environments; operating temperature -25°C to 55°C with derating
- Automatic generator start (AGS): 2‑wire start; BMS communications via CANBus & RS485 MODBUS
- Wi‑Fi and LAN connectivity for remote monitoring; fleet management app enables on‑demand repairs or adjustments without on‑site visits
- Battery flexibility: Battery agnostic with no expensive battery-restriction constraints typical of other inverters
Warranty & service information
Standard warranty is 10 years, with an extended option to 15 years. Remote monitoring and fleet management capabilities support proactive service and diagnostics, helping minimize downtime and optimize performance over the system lifetime.
Sol-Ark 30K-3P Hybrid Inverter Overview
Introducing the Sol-Ark 30K All-In-One Hybrid, a highly robust and efficient solar inverter that seamlessly integrates solar power, storage, and generator power for residential, commercial, and industrial applications. Equipped with cutting-edge technology, the Sol-Ark 30K is a reliable solution that offers a range of features.
SOL-ARK 30K-3P Hybrid Inverter Features & Benefits
Easy Install
The Sol-Ark INVERTER comes with everything you need to install it. Nicely packaged for added efficiency.
Fleet Management
With Sol-Ark’s remote access features and app you are never out of touch to quickly repair or adjust any system without being on site.
Battery Agnostic
Sol-Ark inverters also do not have expensive battery restrictions like other solar inverters do. With our 30k and 60k high voltage systems, closed-loop communications with the batteries are required.
SOL-ARK 30K-3P Hybrid Inverter Specifications
Input Data (PV)
- Max. Allowed PV Power (STC): 39,000W
- MPPT Voltage Range: 150 - 500V
- Startup Voltage: 180V
- Max. Input Voltage: 550V
- Max. Operating Input Current per MPPT: 36A
- Max. Short Circuit Current per MPPT: 55A
- No. of MPP Trackers: 4
- No. of PV Strings per MPPT: 2
- Max. AC Coupled Input: 30,000W
Output Data (AC)
- Nominal AC Voltage (3Φ): 120/208V
- Grid Frequency: 50 / 60Hz
- Real Power, max continuous (3Φ): 30,000W
- Max. Output Current: 83.4A
- Peak Apparent Power (10s, off-grid, 3Φ): 45,000VA
- Max. Grid Passthrough Current (10min): 200A
- Continuous Grid Passthrough Current: 180A
- Power Factor Output Range: +/- 0.8 adjustable
- Backup Transfer Time: 5ms (adjustable)
- CEC Efficiency: 96.5%
- Max Efficiency: 97.5%
- Design (DC to AC): Transformerless DC
- Stackable: Up to 10 in parallel
Battery Input Data (DC)
- Battery Technologies: Lithium iron phosphate
- No. of Battery Inputs: 2
- Battery Input Terminal Rating: 50A
- Nominal DC Voltage: ≥300V
- Operating Voltage Range: 160 - 500V
- Capacity: 50 — 9900Ah
- Max. Battery Charge / Discharge Current: 100A (50A per input)
- Charging Controller Type: 3-Stage with Equalization
- Grid to Battery Charging Efficiency: 96.0%
- Automatic Generator Start (AGS): 2 Wire Start - Integrated
-
BMS Communication: CANBus & RS485 MODBUS
General Data
- Dimensions (H x W x D): 894 x 528 x 295 mm (35.2 x 20.8 x 11.6 in)
- Weight: 80 Kg / 176 lb.
- Enclosure: IP65 / NEMA 3R
- Ambient Temperature: -25~55°C, > 45°C Derating
- Noise: < 30 dB @ 25°C (77°F)
- Idle consumption: - No Load 60W
- Communication and Monitoring: Wi-Fi & LAN Hardware Included
-
Standard Warranty: 10 Years (15 Years)
Protection and Certifications
-
Certifications and Listings: UL 1741-2021 (UL1741SB), CSA C22.2 No 107.1-16,
IEEE 1547-2018 & 1547a-2020 & 1547.1-2020 (SRD V2.0), UL 1741 CRD-PCS, UL1699B, CEC, SGIP 4 - PV DC Disconnect Switch — NEC 240.15: Integrated
- Ground Fault Detection — NEC 690.5: Integrated
- PV Rapid Shutdown Control — NEC 690.12: Integrated
- PV Arc Fault Detection — NEC 690.11: Integrated
- PV Input Lightning Protection: Integrated
- PV String Input Reverse Polarity Protection: Integrated
- Surge Protection: DC Type II / AC Type II
Warranty and Reliability
Comes with our award winning iron clad warranty and our 7 day a week live Engineering Support to assist you in all your needs.
What's in The Box
- 1 x SOL-ARK 30K-3P Hybrid Inverter
User Manual
- SOL-ARK 30K-3P Hybrid Inverter User Manual
- SOL-ARK 30K-3P Hybrid Inverter Certification
- SOL-ARK 30K-3P Hybrid Inverter Spec Sheet
- SOL-ARK 30K-3P Hybrid Inverter Brochure
