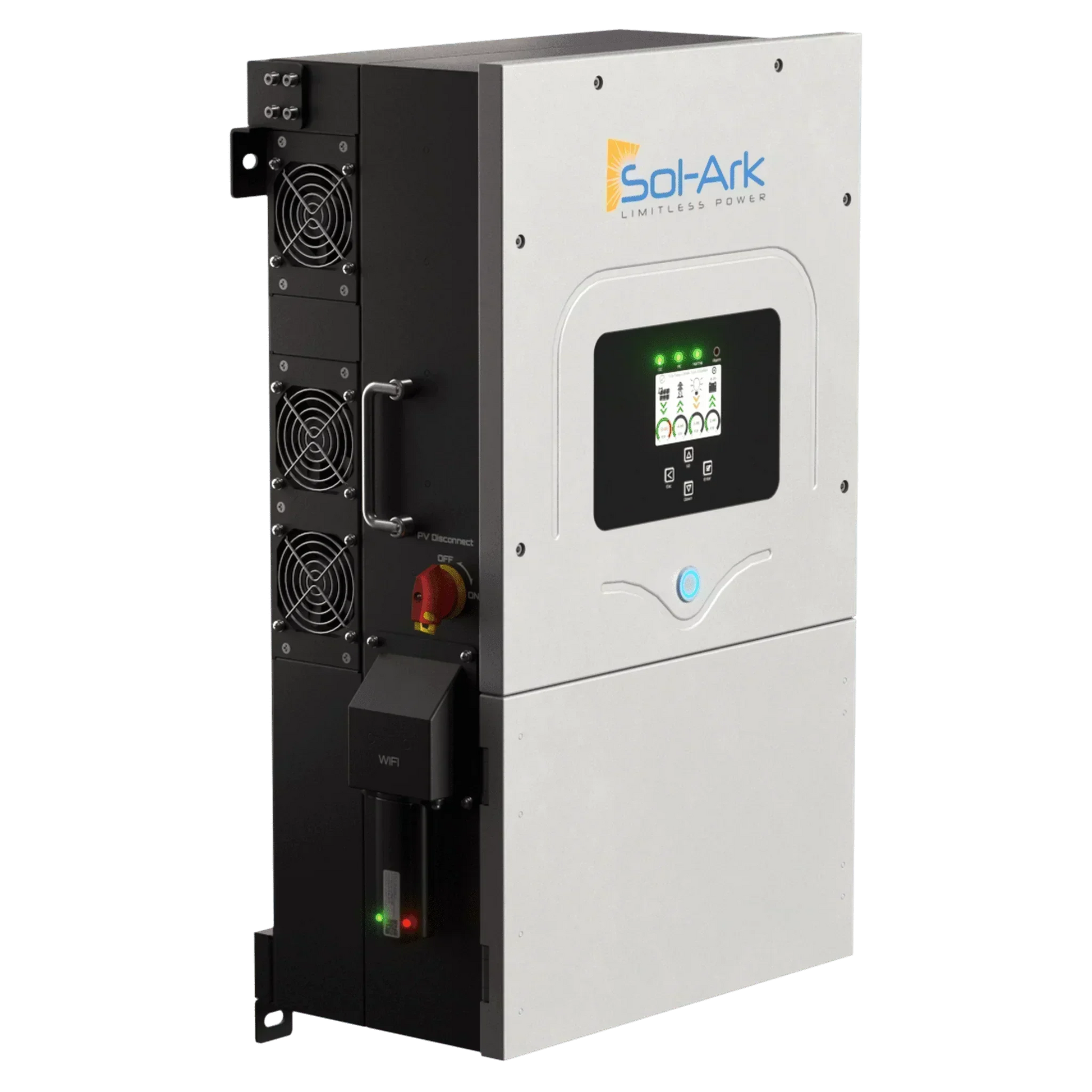

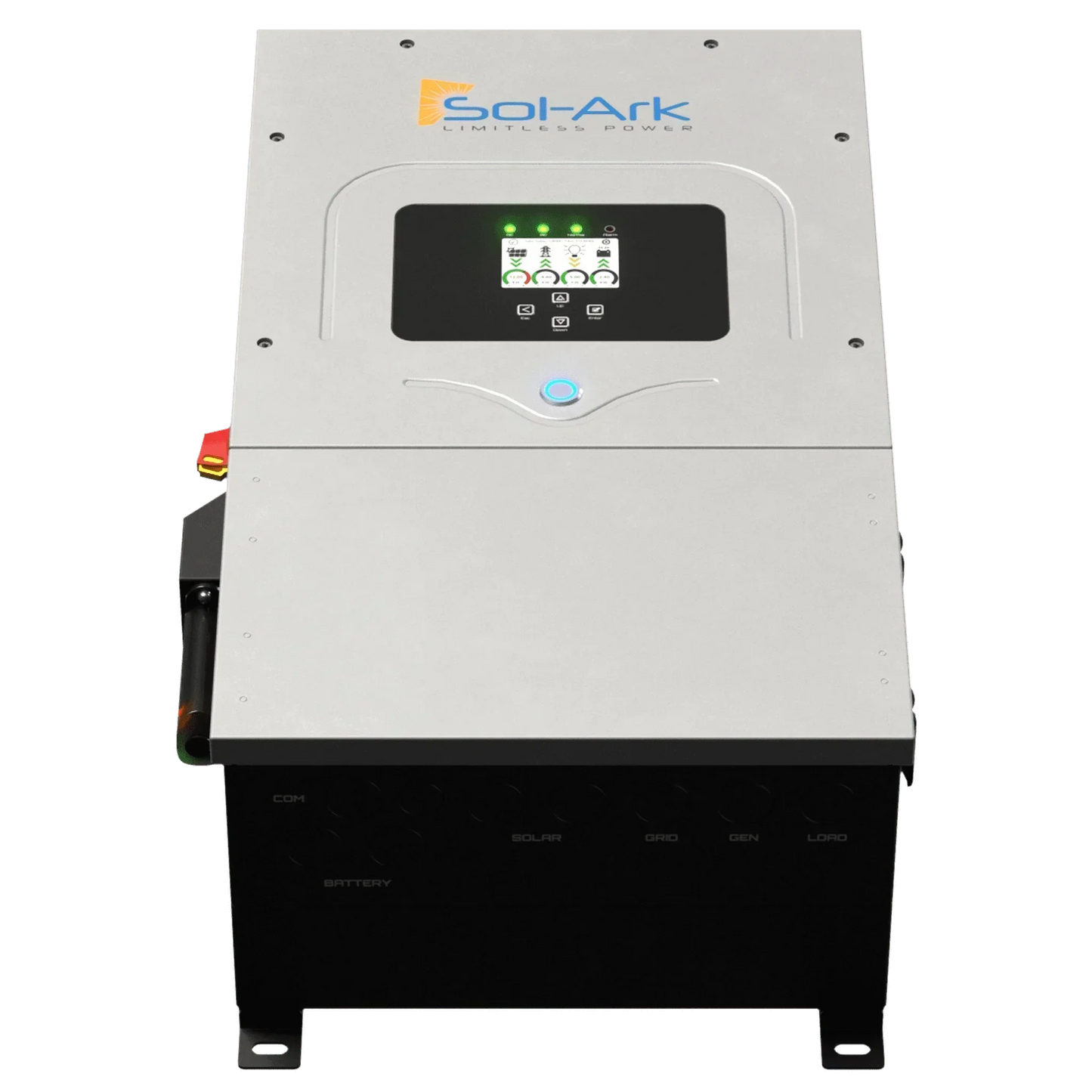

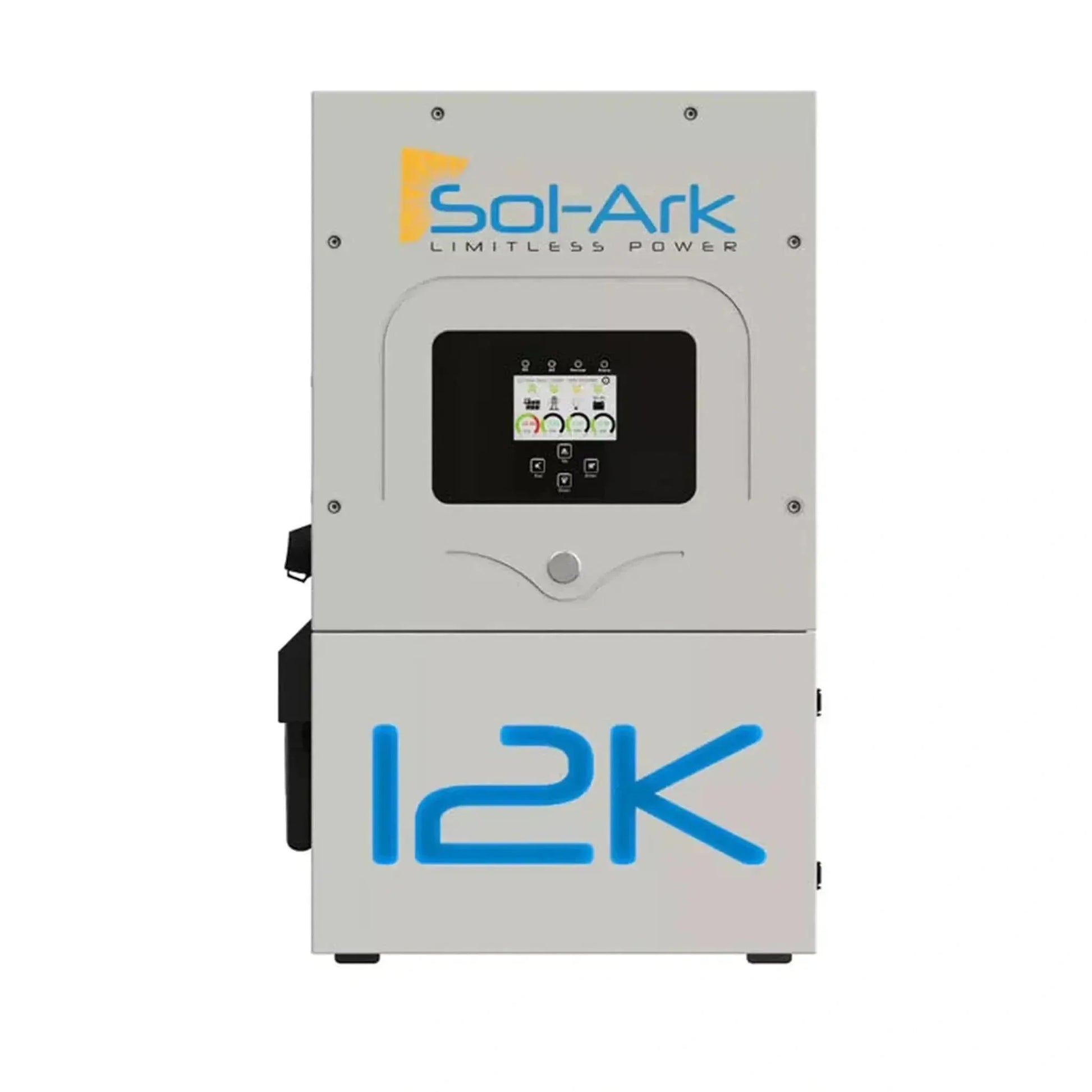

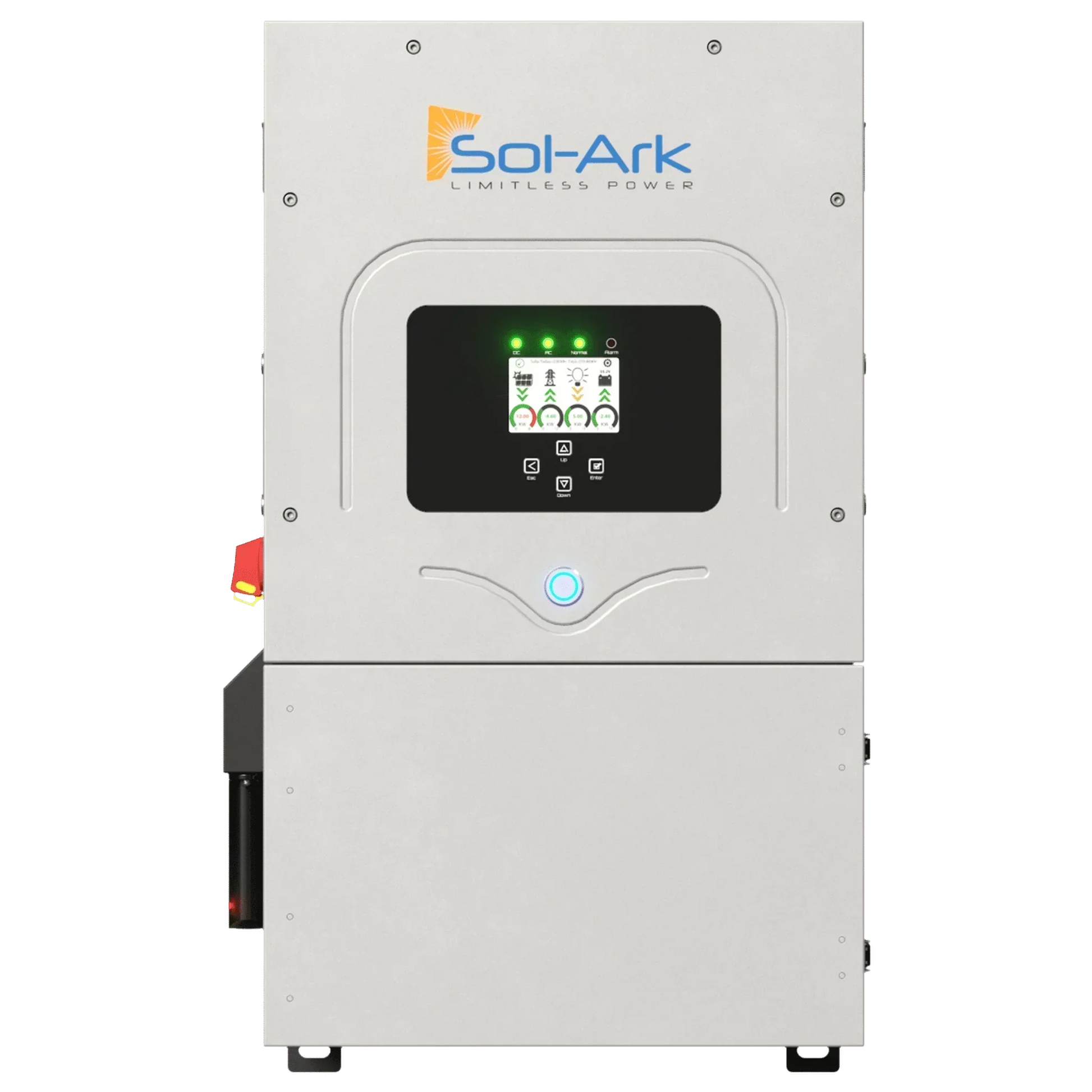

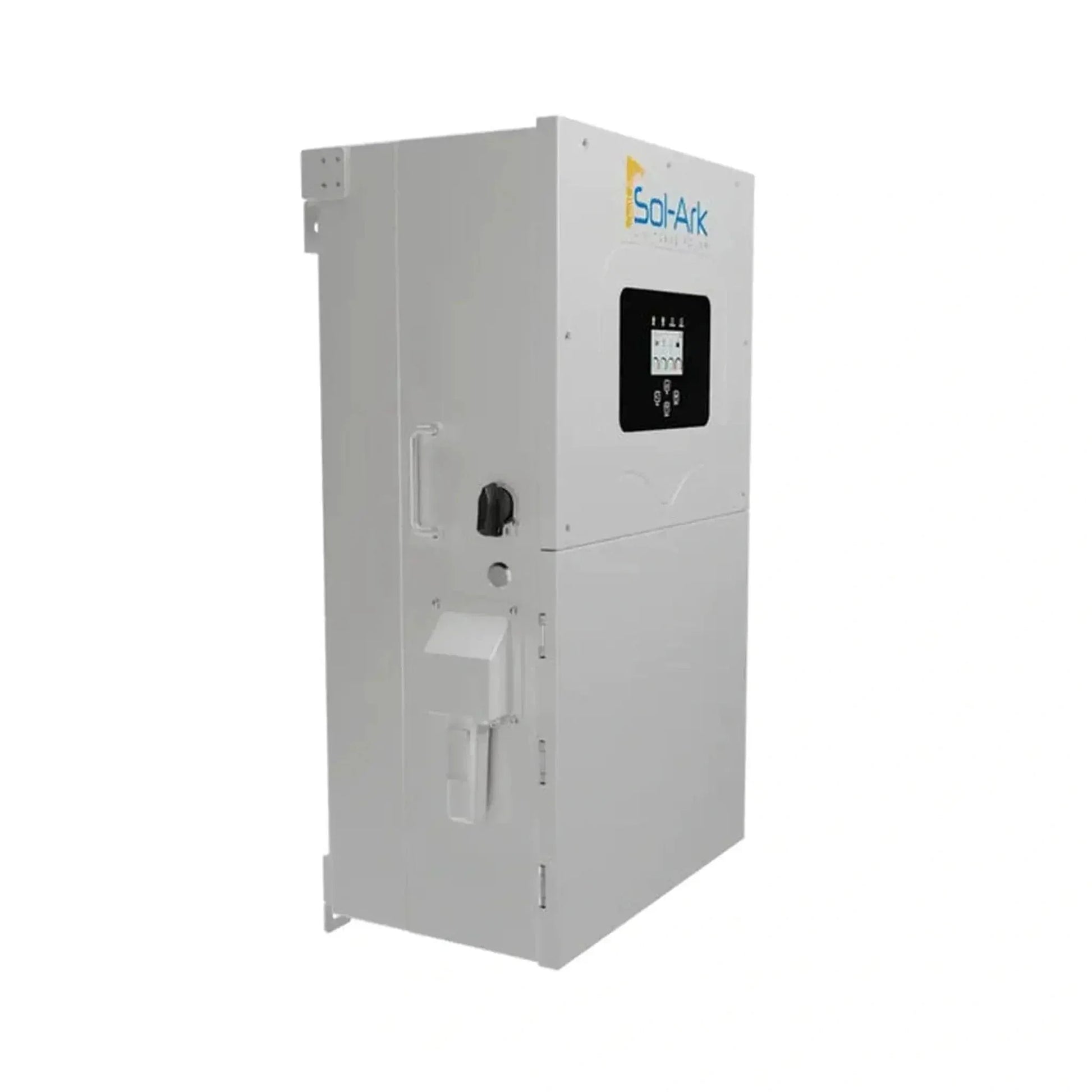

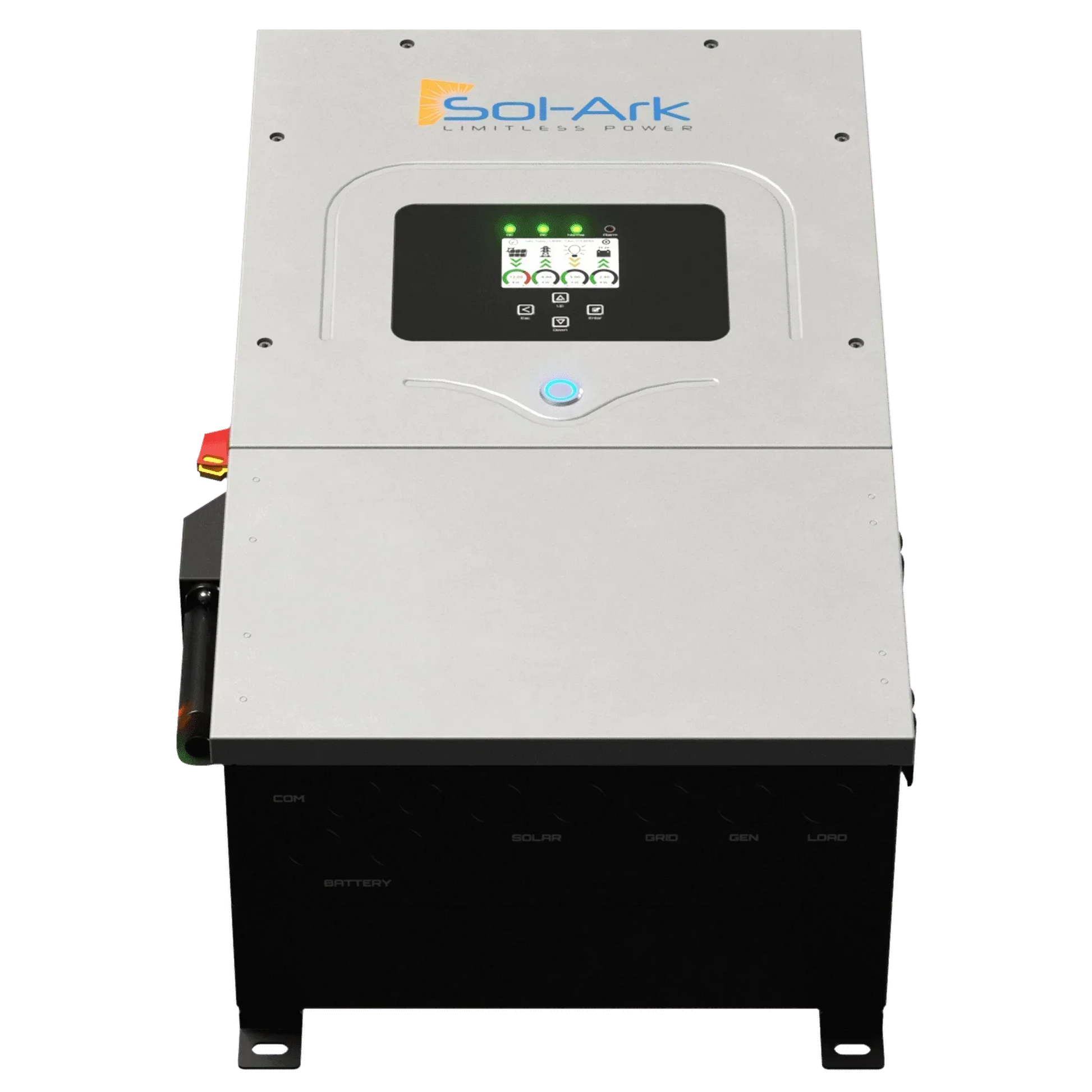

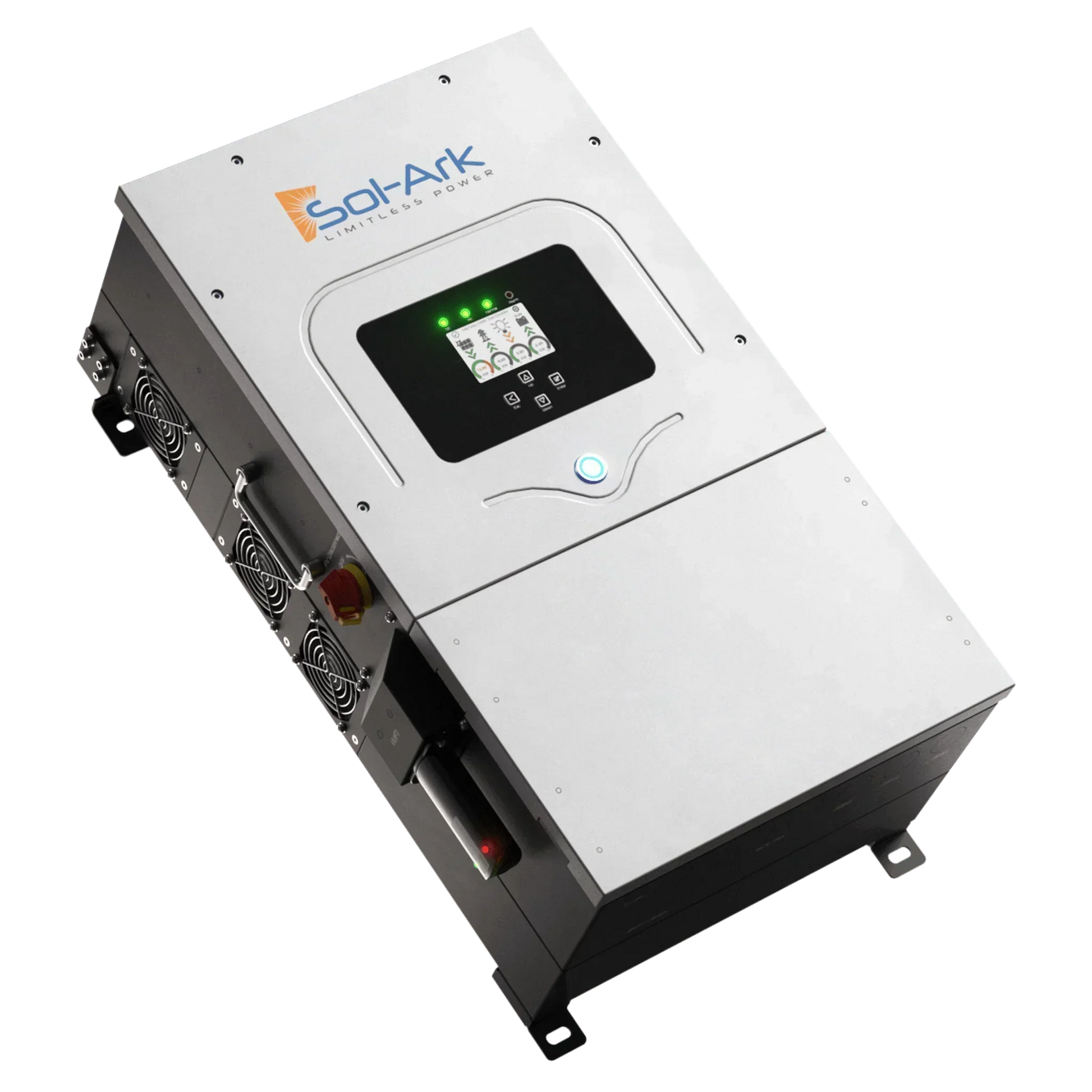

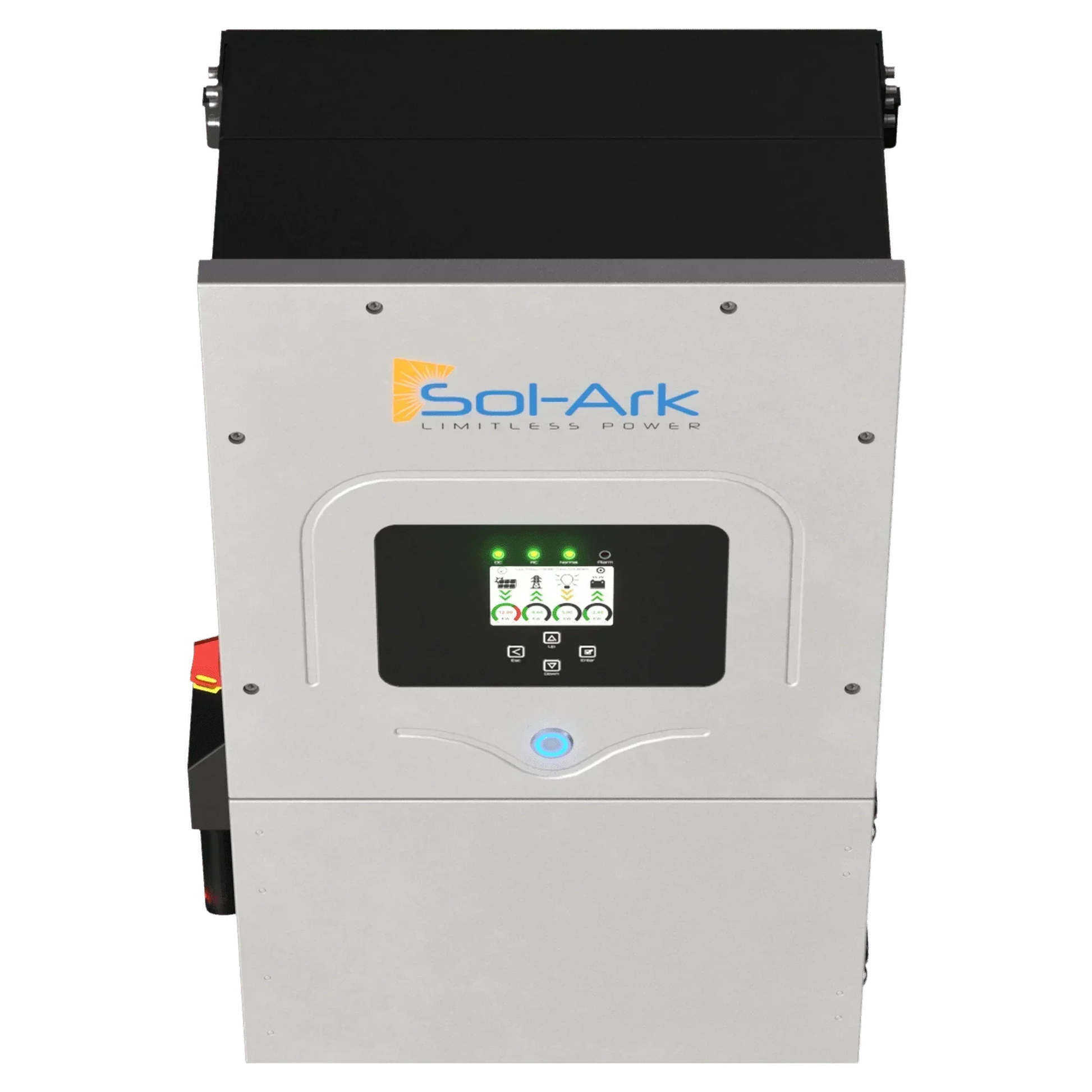

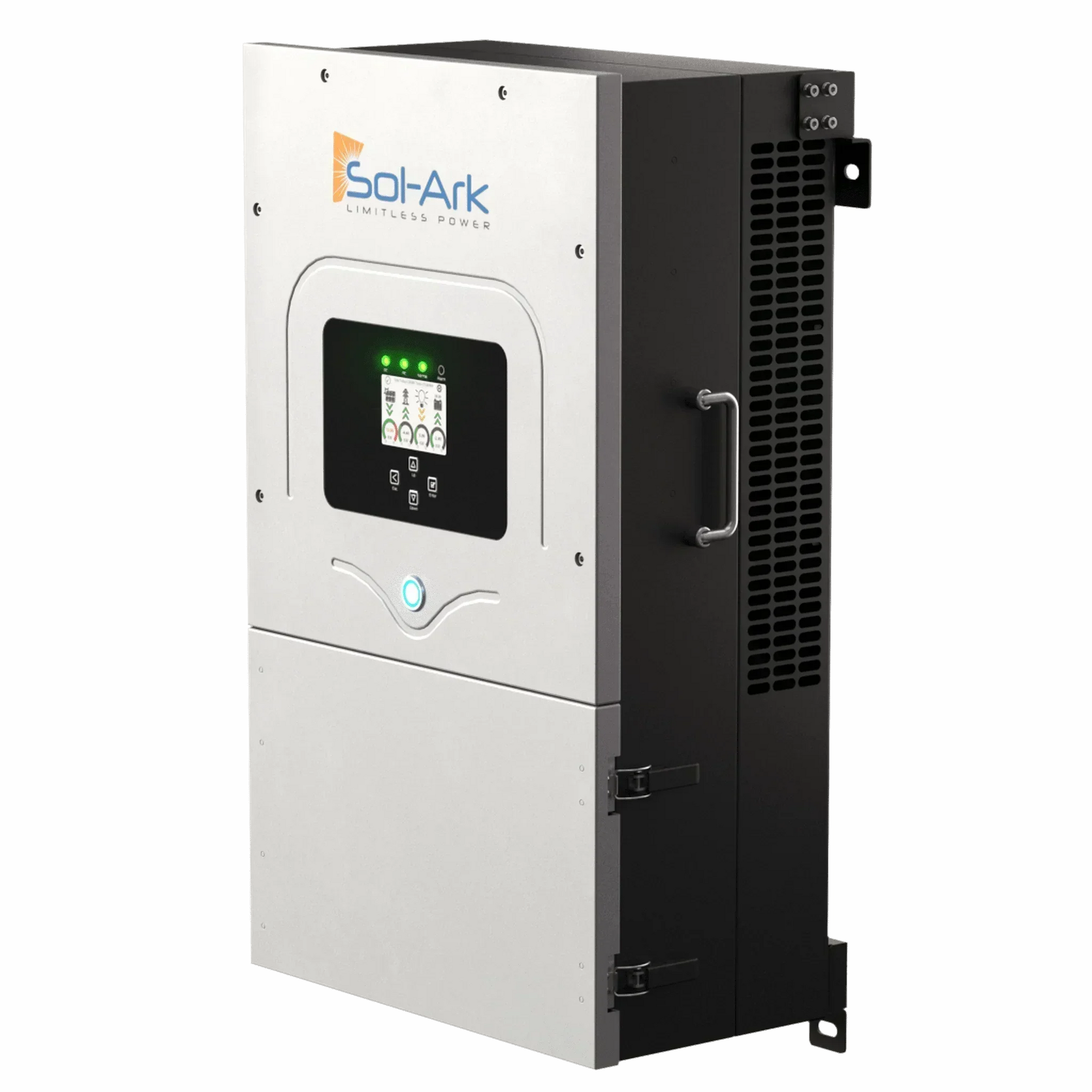

Sol-Ark 12K EMP Hardened All-In-One Pre-Wired Hybrid Solar Inverter
The Sol-Ark 12K EMP Hardened delivers a unified, all-in-one solution for off-grid and grid-tied installations. It integrates inverter power electronics, charge controllers, and a pre-wired load center into a single, compact package, ready for installation. The system supports 120V, 240V, and 208V output and is compatible with a 48V battery system, enabling versatile hybrid operation with or without batteries.
- Rated output: 12 kW continuous (12K) with multi-source handling
- AC voltages: 120/240/208 VAC
- Battery chemistry compatibility: universal 48V options (lead-acid to lithium)
- Integrated charge controller, remote monitoring display, and WiFi
- Automatic generator start for seamless back-up power
- Load center with breakers and rapid shutdown for safety
- All-in-one, pre-wired configuration minimizes external hardware
- Remote access via mobile app for status checks and adjustments
- Part of a family offered in 5K, 8K, 12K, and 15K sizes
Key performance advantages include the ability to reduce operating expenses by over 50% and improve battery efficiency by 10–15%. The system manages solar, batteries, grid, loads, and generators concurrently, and is designed to function with or without batteries. Operational modes include Grid-Tied, Meter Zero, Time-Of-Use, Smart Load, and Off-Grid applications, enabling flexible energy management and potential utility-bill optimization.
Installation, safety, and warranty
Installation is straightforward thanks to the all-in-one, pre-wired design that reduces field wiring and assembly complexity. Safety features include EMP Hardened construction, rapid shutdown, and an integrated load center with breakers. The Sol-Ark 12K is backed by a 10-year warranty and supported by exceptional customer service and remote-support capabilities.

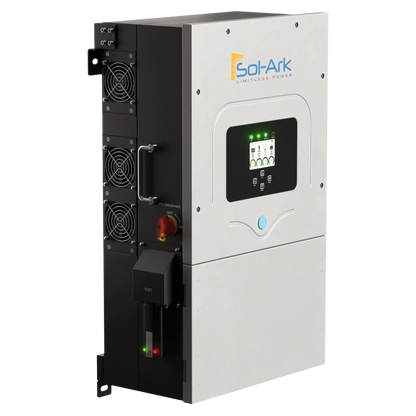

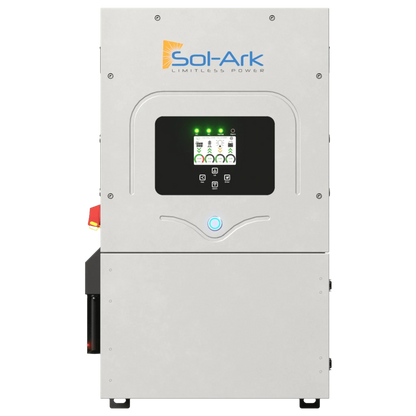

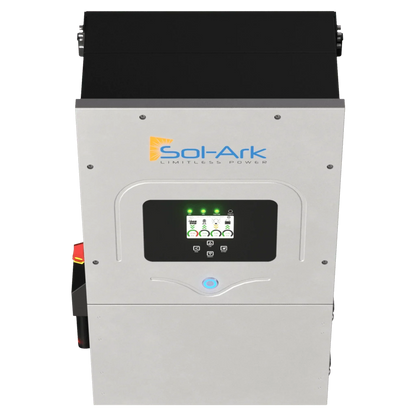

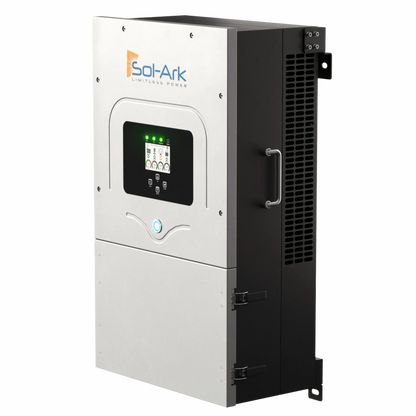

Sol-Ark 12K EMP Hardened | All-In-One Pre-Wired Hybrid Solar Inverter | 120/240/208V 48V | 10-Year Warranty
The Sol-Ark 12k emerges as a leading option among solar inverters, ideal for off-grid and grid-tied setups. This all-in-one inverter arrives ready for installation, complete with integrated charge controllers and a range of features. It's a versatile, energy-efficient, and economical choice, providing all necessary components in a single package.
Sol-Ark 12K EMP Hardened is a Powerhouse
The Sol-Ark 12K generates electricity akin to the grid, enabling it to power appliances operating on 120V, 240V, or 208V.
Sol-Ark has transformed the renewable energy industry with its integrated solar battery system, simplifying installation with a pre-wired inverter available in four sizes: 5K, 8K, 12K, and 15K. This inverter boasts various features, including a charge controller, remote monitoring display, automatic generator start, and a load center equipped with breakers, rapid shutdown, and WiFi capabilities – all neatly packaged in a single, convenient box.
Simple & Easy Installation
The Sol-Ark 12K Inverter provides everything needed for installation in a compact and efficient package.
Meanwhile, the Sol-Ark 15K delivers a self-contained, pre-wired configuration with an integrated inverter and charge controller, eliminating the necessity for external fuses, breakers, or boxes. This streamlined setup simplifies installation, requiring minimal additional hardware.
Universal Compatability
Sol-Ark inverters aren't limited to expensive battery options like certain other solar inverters. They accommodate various 48V battery types, ranging from lead-acid to lithium.
Control Your Power With Your Phone
Utilizing Sol-Ark's remote access capabilities and application, you can promptly address any system issues or adjustments without the need to be physically present on-site.
Enhanced Efficiency
This versatile hybrid inverter significantly reduces expenses by over 50% while enhancing battery efficiency by 10-15%.
Cutting-Edge Technology
This system efficiently handles power from various sources like solar panels, batteries, grid, loads, and generators concurrently. It's engineered to function seamlessly with or without batteries.
Cost-Effective
Sol-Ark sets itself apart with advanced functionalities, top-notch quality, and competitive pricing. With a range of features and a reliable warranty, Sol-Ark offers outstanding value. Combined with exceptional customer support, it's the ideal choice for those looking for premium quality at an affordable price.
SOL-ARK 12K APPLICATIONS
- Grid-Tied Mode: Send excess power to the Utility to reduce your electric bill*
- Meter Zero Mode: Zero out your electric bill without needing an additional smart meter
- Time-Of-Use Mode: Minimize grid power usage during peak cost periods using solar and batteries
- Smart Load Mode: Power high-demand off-grid or grid time-of-use loads with excess PV power when batteries are full
- Off-Grid Applications: Compatible with various battery types
- AC Coupling: Retrofits seamlessly into existing grid tie systems
- Battery Backup Applications
Features
- Two Built-In 500V Charge Controllers
- 1 – 6 PV Strings
- Battery Disconnect
- 48V Battery Input
- Auto-Generator Start
- Rapid Shutdown Signal
- Built in Arc Fault and Ground Fault detection
- Current Sensors Included
- Battery Communication
- PV Disconnect
- Wiring Knockouts an & WiFi
- 50A Breakers:
- AC In/Out, AC Load Out
- AC Gen In/Smart Load Out
- 13kw Solar input (6500 per MPPT)
Why Choose Sol-Ark?
Choose the Sol-Ark 12K for a dependable hybrid inverter that guarantees uninterrupted access to solar power, whether you're connected to the grid or off-grid. It's perfect for homeowners looking to protect against power outages and natural disasters, or those aiming to reduce their electricity bills with clean, sustainable energy. The Sol-Ark sets itself apart as the ultimate solution.
Say goodbye to expensive and inefficient inverters. The Sol-Ark ranks among the best solar power management systems available, offering comprehensive features, a top-notch warranty, and exceptional value, making it a popular choice for pre-wired hybrid inverters in today's market.
Why the Sol-Ark 12K?
Outstanding EfficiencyIndustry Leading PowerUnrivaled VersatilityUser-Friendly SimplicityAffordability and Support
