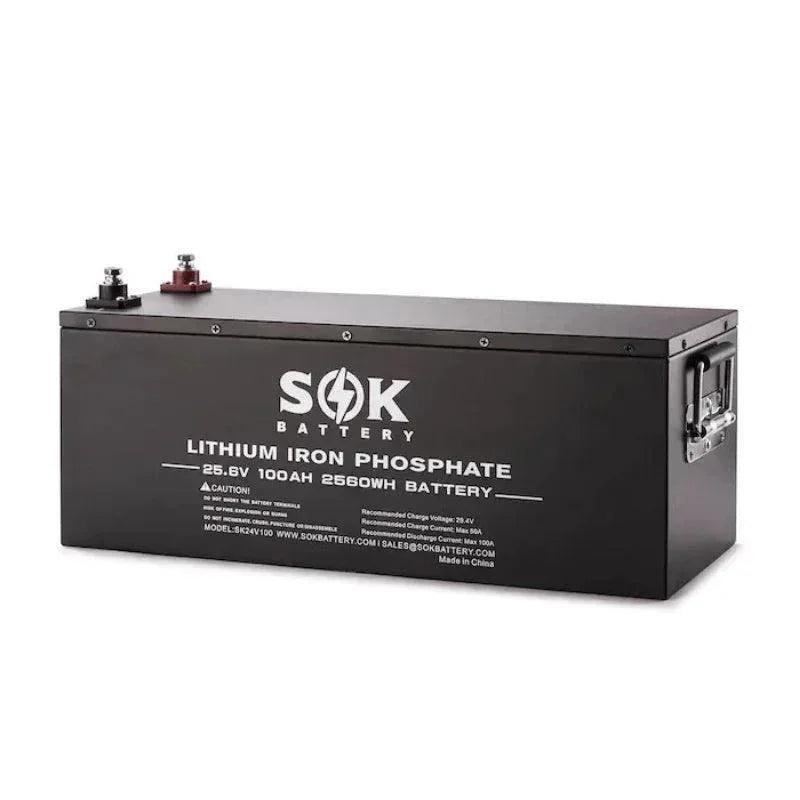

SOK 24V 100Ah LiFePO4 Battery — 2.56 kWh Solar Storage
Designed for off-grid deployments and dependable backup power, the SOK 24V 100Ah LiFePO4 Battery delivers a robust energy reservoir for RVs, remote cabins, solar microgrids, and professional power systems. With a 24V nominal output and 100Ah capacity, it provides sustained energy for demanding loads while maintaining a long cycle life.
Technical Specifications
- Capacity: 100Ah
- Nominal voltage: 24V
- Energy: 2,560 Wh / 2.56 kWh
- Weight: 48 lbs
- Dimensions: L 18.43 in × W 7.87 in × H 7.09 in
- Terminal: M8, 5/16" lugs
- Discharge: max continuous 100A
- Peak discharge: 200A (3 seconds)
- Recommended low voltage disconnect: 22.4V
- BMS discharge cut-off voltage: ~20.8V
- Reconnect voltage: >23.2V
- Charging current: recommended 20A; maximum 50A
- Charge voltage: 28.8V ~ 29.2V
- Maximum batteries in series: 2
- Discharge temperature: -4°F ~ 140°F
- Charge temperature: 32°F ~ 113°F
- Storage temperature: 23°F ~ 95°F
- Cycle life: 4,000–8,000 cycles
- Certifications: UL 1973, IEC 62619
Safety Features and Certifications
The Smart Battery Management System provides protections against overcharging, over-discharging, short circuits, and temperature extremes, ensuring safe operation across diverse environments and load profiles. Built-in safeguards and thermal monitoring help prevent damage during charging and heavy use.
Installation and Maintenance
Install on a flat, vibration-damped surface with adequate ventilation. Use secure connections with M8 or 5/16" lugs and proper torque. The unit offers a user-serviceable design to support field inspections and component checks by qualified personnel. For routine maintenance, verify BMS indicators, inspect terminals for corrosion, and keep the battery within the specified temperature range. When not in use, store within 23°F to 95°F and away from moisture. Manual: CLICK HERE • Video Review: Watch Now
SOK Battery 24V 100Ah LiFePO4 Battery | 2,560wH / 2.56kWh Lithium Solar Battery
Introducing the SOK 24V 100Ah LiFePO4 Battery, your ultimate power solution designed to deliver exceptional performance, reliability, and longevity. Whether you're navigating off-grid adventures or seeking a dependable backup power source, this battery ensures that you’re never left in the dark.
Main Advantages:
- High Capacity: With a robust capacity of 100Ah and a voltage of 24V, this battery provides long-lasting power for a variety of applications, ensuring you have the energy you need at all times.
- Durability & Longevity: Engineered to last, the SOK battery boasts an impressive lifespan of 4,000 to 8,000 cycles, making it a reliable choice for years of dependable use.
- Smart Battery Management System: Features built-in protections against overcharging, over-discharging, short circuits, and temperature extremes, ensuring the safety and efficiency of your power supply.
Why This Product is Essential:
The SOK 24V 100Ah LiFePO4 Battery is not just an investment in power; it is an essential tool for anyone who values reliability and efficiency. Its advanced technology and robust design ensure you have the energy needed for both personal and professional use, making it a must-have for your energy needs.
Specifications and Guides:
-
Features:
- Capacity: 100Ah
- Voltage: 24V
- Smart Battery Management System
- User-serviceable design
-
Charging Information:
- Recommended charge current: 20A
- Maximum charge current: 50A
- Recommended charge voltage: 28.8V ~ 29.2V
- Maximum batteries in series: 2
-
Discharge Information:
- Maximum continuous discharge current: 100A
- Peak discharge current: 200A (3 seconds)
- Recommended low voltage disconnect: 22.4V
- BMS discharge cut-off voltage: Around 20.8V
- Reconnect voltage: >23.2V
-
Size Information:
- Terminal Type: M8, 5/16 lugs
- Weight: 48 lbs
- Dimensions: L 18.43 inch, W 7.87 inch, H 7.09 inch
-
Temperature Information:
- Discharge temperature: -4°F ~ 140°F
- Charge temperature: 32°F ~ 113°F
- Recommended storage temperature: 23°F ~ 95°F
- Certifications: UL 1973, IEC 62619 for Battery cells
Why Choose SOK 24V 100Ah Battery?
Designed for performance and reliability, the SOK 24V 100Ah LiFePO4 Battery is perfect for both personal and professional use. Its advanced technology and robust build ensure that you always have the power you need, right when you need it.
Manual: CLICK HERE
Video Review: Watch Now
