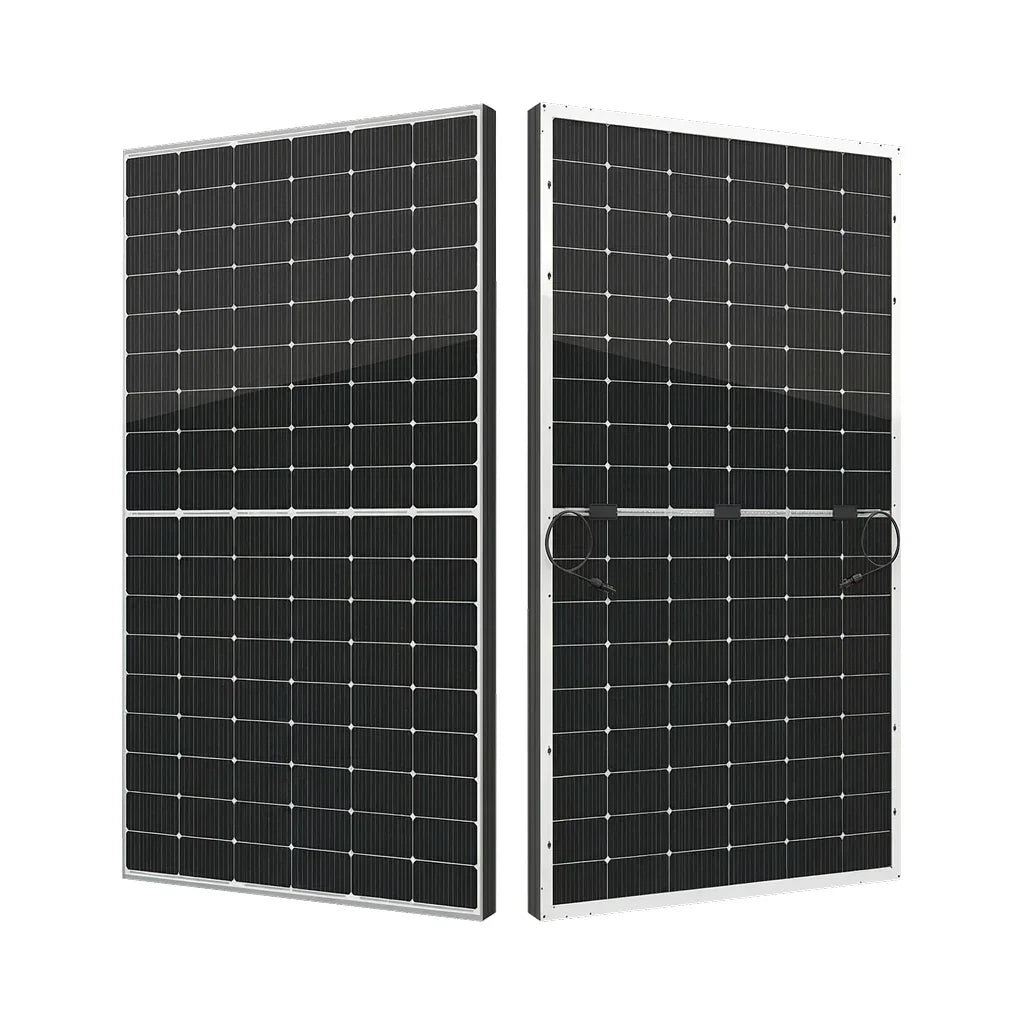

Seraphim 595W (Pallet of 36) Sable TOPCon Solar Panel SRP-595-BTA-BG
The Seraphim SRP-595-BTA-BG is a high-efficiency bifacial TOPCon solar module engineered for superior energy production, long-term durability, and enhanced bifacial performance. Built with advanced N-Type TOPCon technology and a durable glass-glass structure, this module delivers excellent efficiency and reliable performance for high-output solar installations.
Designed with 144 half-cut 182mm TOPCon cells, multi-busbar technology, and low annual degradation, the SRP-595-BTA-BG provides optimized lifetime energy yield, strong low-light performance, and enhanced environmental resilience.
Key Technology
-
N-Type TOPCon Cell Technology
Improves module efficiency, reduces degradation, and enhances long-term energy production. -
Bifacial Energy Generation
Captures reflected rear-side irradiance to increase total system energy yield. -
Glass-Glass Module Construction
Provides enhanced moisture resistance, durability, and long-term reliability. -
Multi-Busbar Technology
Improves current collection while reducing resistive losses for enhanced efficiency. -
Excellent Low-Light Performance
Maintains strong output under cloudy and low irradiance conditions. -
Superior Mechanical Strength
Rated for 5400 Pa front load and 2400 Pa rear load performance. -
Lower Annual Degradation
Only 0.4% annual degradation after first-year performance stabilization. -
Higher Bifaciality
80% ±5% bifaciality supports increased rear-side energy generation.
Best Uses
-
Ground-Mount Solar Systems
Optimized for bifacial energy gain in open-field installations. -
Commercial Rooftop Solar Arrays
Provides high energy density and strong long-term performance. -
Distributed Generation Projects
Ideal for installations focused on maximizing lifetime energy production. -
Low-Light & Harsh Environments
Designed for reliable operation under variable environmental conditions.
Warranty
- Product Warranty: 15 Years
- Performance Warranty: 30-Year Linear Power Warranty
- First-Year Output: 99%
- Annual Degradation: 0.40%
- 30-Year Output: 87.4% retained power output
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | Seraphim |
| Model | SRP-595-BTA-BG |
| Series | Sable |
| Cell Technology | N-Type TOPCon, Bifacial |
| Cell Size | 182 mm |
| Cell Configuration | 144 Half-Cells |
| Maximum Power (Pmax) | 595 W |
| Module Efficiency | 23.03% |
| Open Circuit Voltage (Voc) | 52.70 V |
| Short Circuit Current (Isc) | 14.25 A |
| Maximum Power Voltage (Vmp) | 44.00 V |
| Maximum Power Current (Imp) | 13.54 A |
| Power Tolerance | 0 ~ +4.99 W |
| Bifacial Power (BNPI) | 652 W |
| Temperature Coefficient (Pmax) | -0.29% / °C |
| Temperature Coefficient (Voc) | -0.25% / °C |
| Temperature Coefficient (Isc) | +0.046% / °C |
| Maximum System Voltage | 1500 V DC |
| Maximum Series Fuse Rating | 25 A |
| Operating Temperature | -40°C to +85°C |
| Nominal Operating Cell Temperature (NOCT) | 45 ±2°C |
| Bifaciality | 80% ±5% |
| Dimensions | 89.69 × 44.65 × 1.18 inches |
| Weight | 70.5 lb |
| Front / Back Glass | 2.0 mm AR Coating Semi-Tempered Low-Iron Glass |
| Frame | Anodized Aluminum Alloy |
| Junction Box | IP68, 3 Diodes |
| Output Cable | 4.0 mm², 250 mm (+) / 350 mm (-) |
| Mechanical Load | 5400 Pa Front / 2400 Pa Rear |
| Connector | MC4 Compatible |
| Pallet Quantity | 36 Modules |
| Container Quantity | 720 Modules (40'HQ) |
About Seraphim:
Seraphim is a globally recognized photovoltaic manufacturer specializing in advanced TOPCon solar technologies, delivering high-efficiency bifacial modules designed for long-term reliability, superior energy production, and optimized system performance.
High-Efficiency Bifacial TOPCon Performance for Modern Solar Installations
The Seraphim SRP-595-BTA-BG combines advanced N-Type TOPCon technology, durable glass-glass construction, and strong bifacial energy generation—making it an excellent solution for high-performance solar installations focused on long-term energy yield and reliability.
