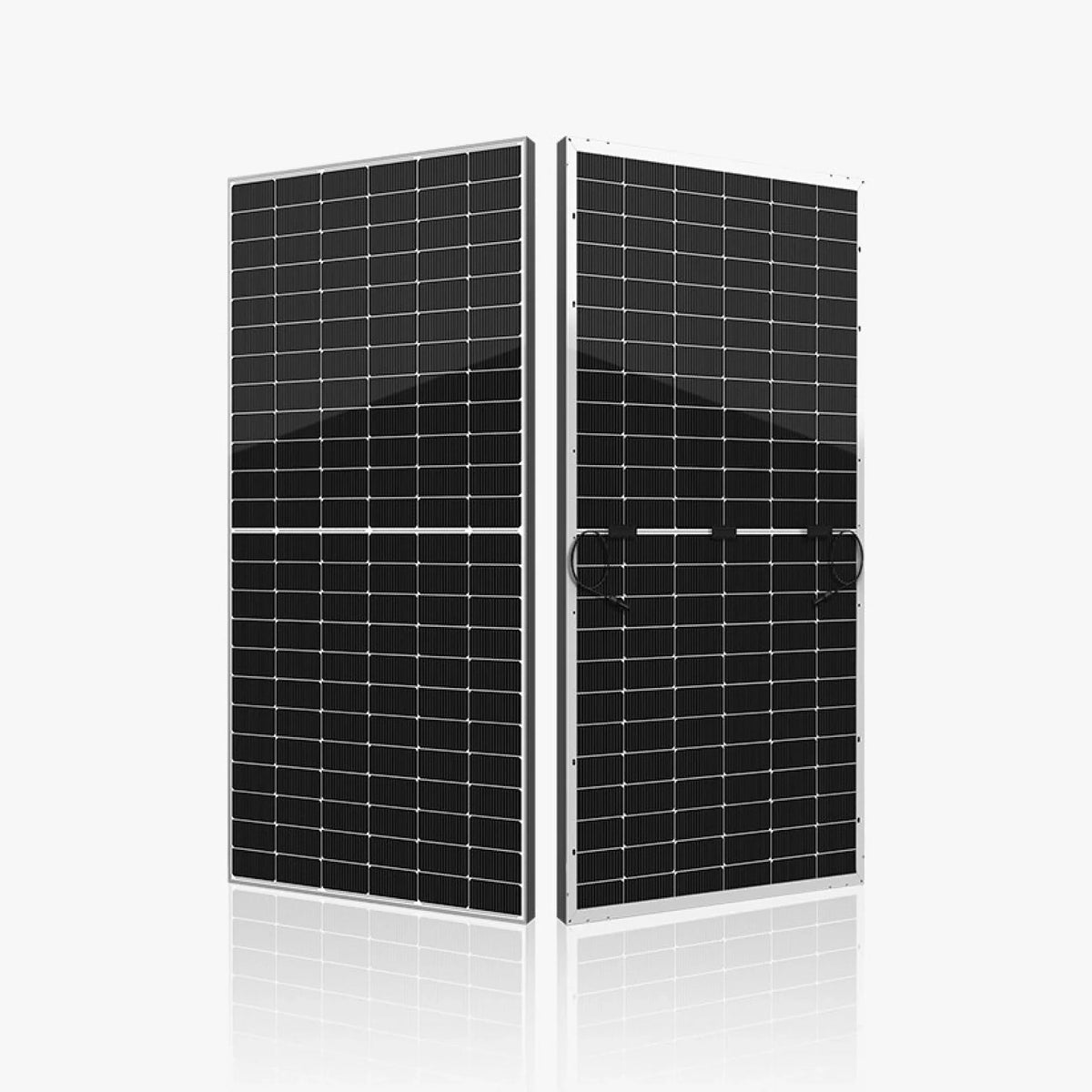

Seraphim 590W (Pallet of 36) N-type TOPCon Solar Panel SRP-590-BTA-BG
The Seraphim SRP-590-BTA-BG is a high-efficiency bifacial TOPCon module from the Sable 575–600W series. Built with 182mm N-type TOPCon cells and dual-glass construction, this 590W module delivers enhanced reliability, higher bifacial gain, lower annual degradation, and strong mechanical durability—ideal for commercial and utility-scale solar projects, it offers long-term performance and low LCOE.
Key Technology
-
N-Type TOPCon 182mm Cells
Higher efficiency, improved temperature performance, and lower annual attenuation compared to conventional PERC modules. : -
Bifacial Dual-Glass Design
Up to 80% ±5% bifaciality for additional rear-side energy gain and reduced LCOE. -
Multi-Busbar Technology
Improves current collection, reduces resistive losses, and enhances reliability. -
Low Temperature Coefficient
Pmax temperature coefficient of -0.29%/°C ensures improved output in hot climates. -
High Mechanical Strength
Rated for 5400 Pa front and 2400 Pa rear static loads.
Best Uses
-
Utility-Scale Solar Farms
High wattage and bifacial gain reduce BOS costs and improve project IRR. -
Commercial & Industrial Rooftops
Dual-glass durability and high efficiency support long-term reliability. -
Ground-Mount & Tracker Systems
Rear-side power gain maximizes energy production in reflective environments.
Warranty
- Product Warranty: 15 Years
- Performance Warranty: 30-Year Linear Power Output Warranty
- Year 1 Degradation: ≤1%
- Annual Degradation (Years 2–30): ≤0.4%
- Power Retention at Year 30: 87.4%
Product Specifications (SRP-590-BTA-BG)
| Specification | Details |
|---|---|
| Manufacturer | Seraphim |
| Series | Sable TOPCon 575–600W |
| Model | SRP-590-BTA-BG |
| Cell Type | 182mm N-Type TOPCon (144 cells) |
| Maximum Power (Pmax) | 590 W |
| Module Efficiency | 22.84% |
| Open Circuit Voltage (Voc) | 52.50 V |
| Short Circuit Current (Isc) | 14.19 A |
| Voltage at Pmax (Vmp) | 43.80 V |
| Current at Pmax (Imp) | 13.48 A |
| Power Tolerance | (0 ~ +4.99W) |
| Maximum System Voltage | 1500 V DC |
| Maximum Series Fuse Rating | 25 A |
| Pmax Temperature Coefficient | -0.29% / °C |
| Voc Temperature Coefficient | -0.25% / °C |
| Isc Temperature Coefficient | +0.046% / °C |
| Operating Temperature | -40°C to +85°C |
| NOCT | 45 ±2°C |
| Bifaciality | 80% ±5% |
| Front / Back Glass | 2.0mm AR Coating Semi-Tempered, Low Iron |
| Frame | Anodized Aluminium Alloy |
| Junction Box | IP68, 3 Diodes |
| Output Cables | 4.0mm², 250mm(+)/350mm(-) or Customized |
| Dimensions | 89.72 × 44.65 × 1.18 in |
| Weight | 70.55 lb |
| Mechanical Load | 5400 Pa Front / 2400 Pa Rear |
| Pieces per Pallet | 36 |
| Pieces per 40’ HQ | 720 |
| Certifications | UL61730, IEC61215, IEC61730, ISO9001, ISO14001, ISO45001 |
About Seraphim:
Seraphim Energy Group is a global solar module manufacturer known for high-efficiency TOPCon and bifacial technologies. With certified quality systems (ISO9001/14001/45001) and international product certifications, Seraphim modules are engineered for long-term durability, high output, and reduced BOS and LCOE across commercial and utility-scale solar installations.
High-Efficiency 590W Bifacial TOPCon Performance
The SRP-590-BTA-BG combines advanced N-type TOPCon cell technology, dual-glass durability, and strong bifacial energy gain to deliver optimized system performance and long-term reliability. It is an excellent choice for solar projects focused on maximizing energy yield and lifetime value.
