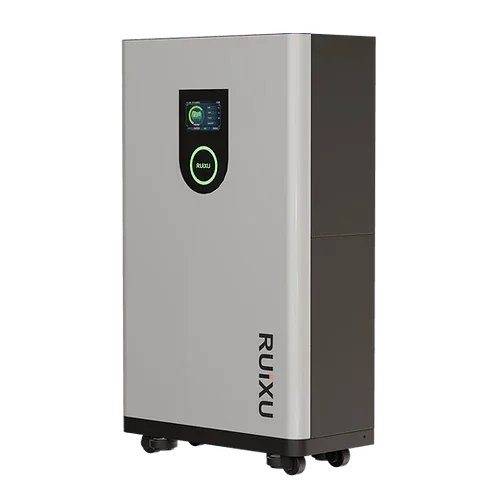

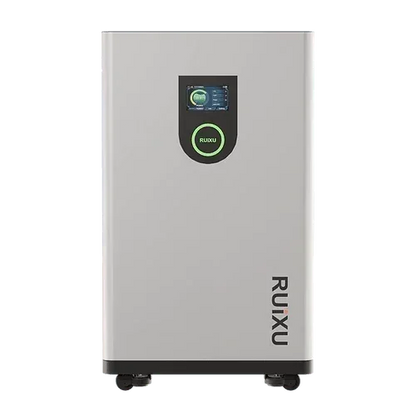

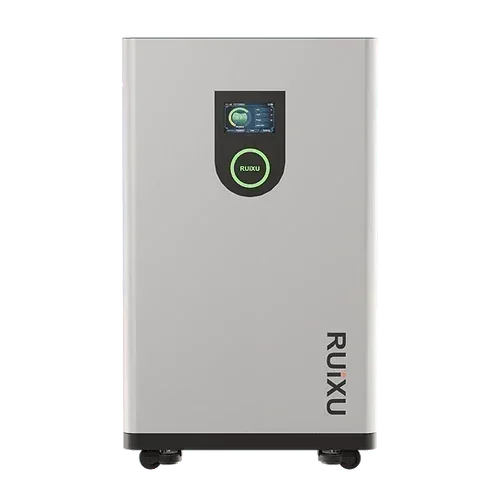

RUiXU Lithi2-16 Battery Energy Storage System (IP65 Outdoor)
Engineered for outdoor installations, the RUiXU Lithi2-16 is a Lithium Iron Phosphate energy storage system designed for residential and commercial PV applications. It supports on-grid, backup, and off-grid operation, delivering reliable power when the sun isn't shining. With a 51.2V nominal and 314Ah (approximately 16kWh) core, the module is scalable to meet growing energy needs. Self-heating ensures readiness in cold climates, while a rugged IP65 enclosure protects against dust and water ingress.
Performance and Capacity
- Nominal Voltage: 51.2V; Nominal Capacity: 314Ah (~16kWh).
- Operating Voltage Range: 44.8V–56.0V; Max Charge Current: 200A.
- Weight: 145 kg; Expandable up to 32 batteries with overall capacity up to 257 kWh (config dependent).
- Cycle Life: >9,500 cycles at 80% depth of discharge.
- Chemistry and Safety: LiFePO4 with built-in BMS for intelligent balancing and protection.

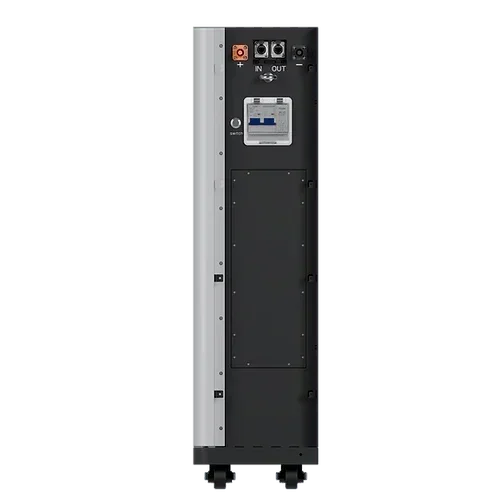

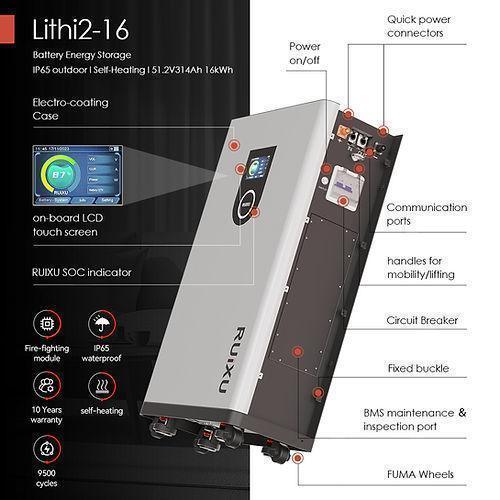

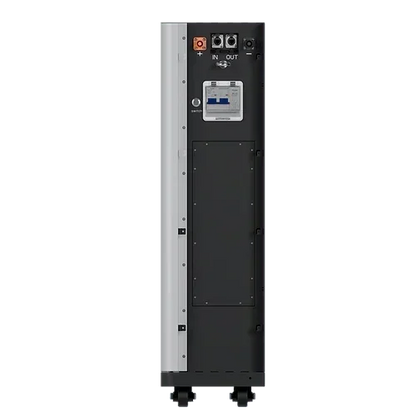

- Monitoring and Interfaces: 5-inch LCD touchscreen; quick plug connections; automatic dynamic addressing; all-pole protection; built-in pre-charge circuit.
- Durability: Electro-coated enclosure for rust prevention; outdoor-ready design.
Safety, Standards and Certifications
- Certified for on-grid, backup and off-grid use with CE, IEC62619, UN38.3, UL1973, and UL9540 pending.
Installation and Maintenance

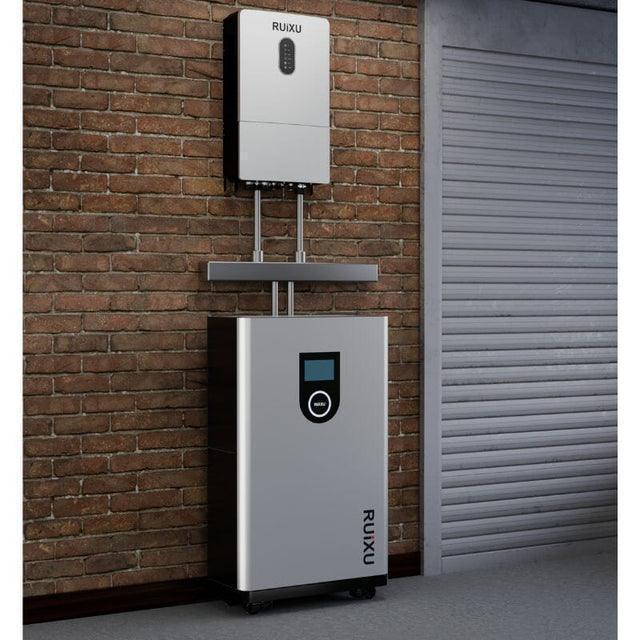

Designed for outdoor mounting, with wall-fixed securement and mobility via Fuma wheels. Quick plug connections streamline installation and maintenance, while the pre-charge circuit minimizes inrush during setup. The system supports automatic addressing for seamless integration and ongoing BMS monitoring reduces routine maintenance needs.
Warranty and Service
Warranty: 10 Years.
Spec Sheet: Click here
Manual

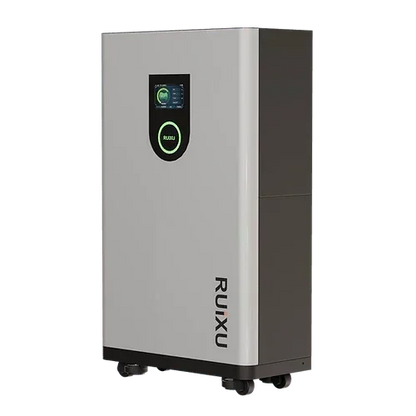

RUiXU Lithi2-16 Battery Energy Storage IP65 outdoor | Self-Heating | 51.2V / 314Ah / 16kWh Capacity
The RUiXU Lithi2-16 Battery Energy Storage System is an innovative Lithium Iron Phosphate battery designed to meet your energy needs, whether for residential or commercial applications. With a remarkable capacity of 16kWh and expandable options up to 257kWh, this battery offers unparalleled flexibility and efficiency. Ideal for use in photovoltaic systems, it seamlessly operates in on-grid, back-up, and off-grid modes, ensuring you stay powered no matter the circumstances.
Why this product is a must-have:
This battery combines high performance with exceptional safety features, making it the perfect solution for anyone looking to enhance their energy independence while reducing their carbon footprint.
Standout Qualities:
- High Efficiency: With a cycle life of over 9500 cycles at 80% depth of discharge, this battery provides reliable energy storage for years.
- Safety First: Manufactured with LiFePO4 chemistry, it meets the highest international safety and transport standards, ensuring maximum protection.
- Self-Heating Feature: This battery can maintain optimal performance even in cold temperatures, keeping it charged and ready for use.
- User-Friendly Interface: The 5-inch LCD touch screen allows for easy monitoring of battery status and intuitive adjustments to settings.
- Easy Mobility: Equipped with Fuma wheels, the battery can be easily moved, while a wall-mounted fixation keeps it secure.
- Intelligent Balancing: The built-in BMS efficiently manages cell balancing, enhancing reliability and lifespan.
- Durable Design: The electro-coated battery case provides excellent rust prevention for outdoor use.
Specifications:
- Nominal Voltage: 51.2V
- Nominal Capacity: 314Ah
- Operating Voltage Range: 44.8V~56.0V
- Max Charge Current: 200A
- Weight: 145kgs
- Warranty: 10 Years
- Certification: CE / IEC62619 / UN38.3 / UL1973 / UL9540 pending
Features:

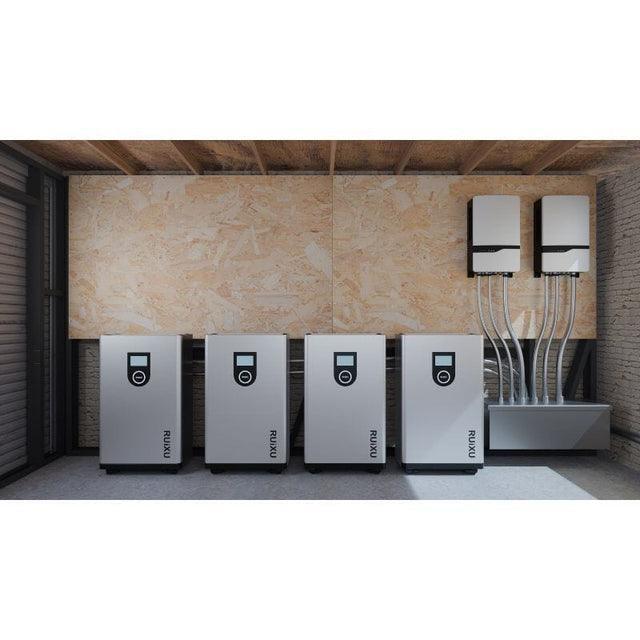

- Expandable up to 32 batteries for increased energy storage.
- Automatic dynamic addressing for seamless connectivity.
- Quick plug connections ensure easy installation and maintenance.
- All-pole protection mechanisms for enhanced safety.
- Built-in pre-charge circuit to prevent rush current during setup.
