Rubix R-Series Lithium Battery RRS-51280

Rubix R-Series Lithium Battery RRS-51280

$3,299.99 USD
$4,999.00 USD $3,299.99 USD
Sale Sold out
Shipping calculated at checkout.

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

Packing Details

Package contents: Teison Portable Pro charger, TPU cable, user manual
Package weight: Please confirm with Ampere Authority


View full details

Rubix R-Series Lithium Battery RRS-51280

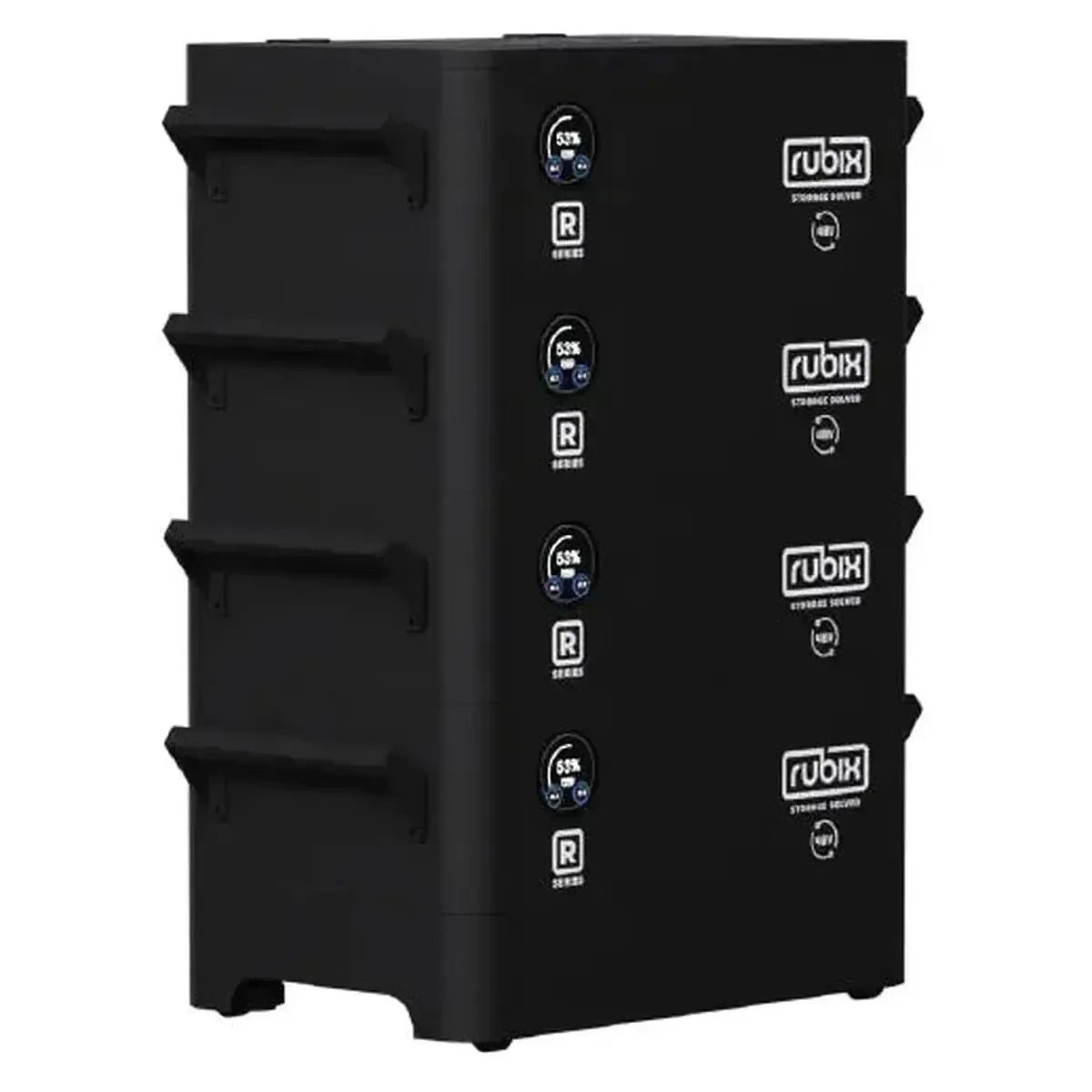

The Rubix RRS-51280 is a 51.2V, 280Ah lithium-iron phosphate battery designed for residential and commercial solar energy storage systems . It is part of the Rubix "R-Series" line, a rebrand of a battery originally manufactured by ACE Battery. The battery is known for its high capacity, modularity, and advanced technology.  Specifications
  • Capacity: 280Ah
  • Voltage: 51.2V (Nominal)
  • Energy storage: 14.336 kWh
  • Chemistry: Lithium-Iron Phosphate (LiFePO4), known for its safety and longevity.
  • Cycle life:  ≥
         6,000 cycles.
  • Communication: CAN and RS485 ports for closed-loop communication with compatible inverters.
  • Operating temperature:-20−50∘C
  • Dimensions (L x W x H): 440mm x 800mm x 219.5mm.
  • Weight: 122 kg.
Key features
  • Modular design: The battery is designed for wall, floor, rack, or stack mounting. This allows for easy system expansion to meet increased power needs.
  • Advanced battery management system (BMS): The RRS-51280 features a high-quality BMS that ensures the longevity and safety of the cells.
  • Wide compatibility: With its RS485 and CAN communication ports, the battery can integrate with many popular inverter brands.
  • Reliable performance: Rubix batteries are engineered for consistent performance even under demanding conditions, with advanced thermal management.
  • Long warranty: The manufacturer provides a 10-year warranty, which demonstrates confidence in the product's durability.
