8000W 48V-120/240VAC Solar Kit

8000W 48V-120/240VAC Solar Kit

$17,599.99 USD
$21,999.99 USD $17,599.99 USD
Sale Sold out
Shipping calculated at checkout.

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

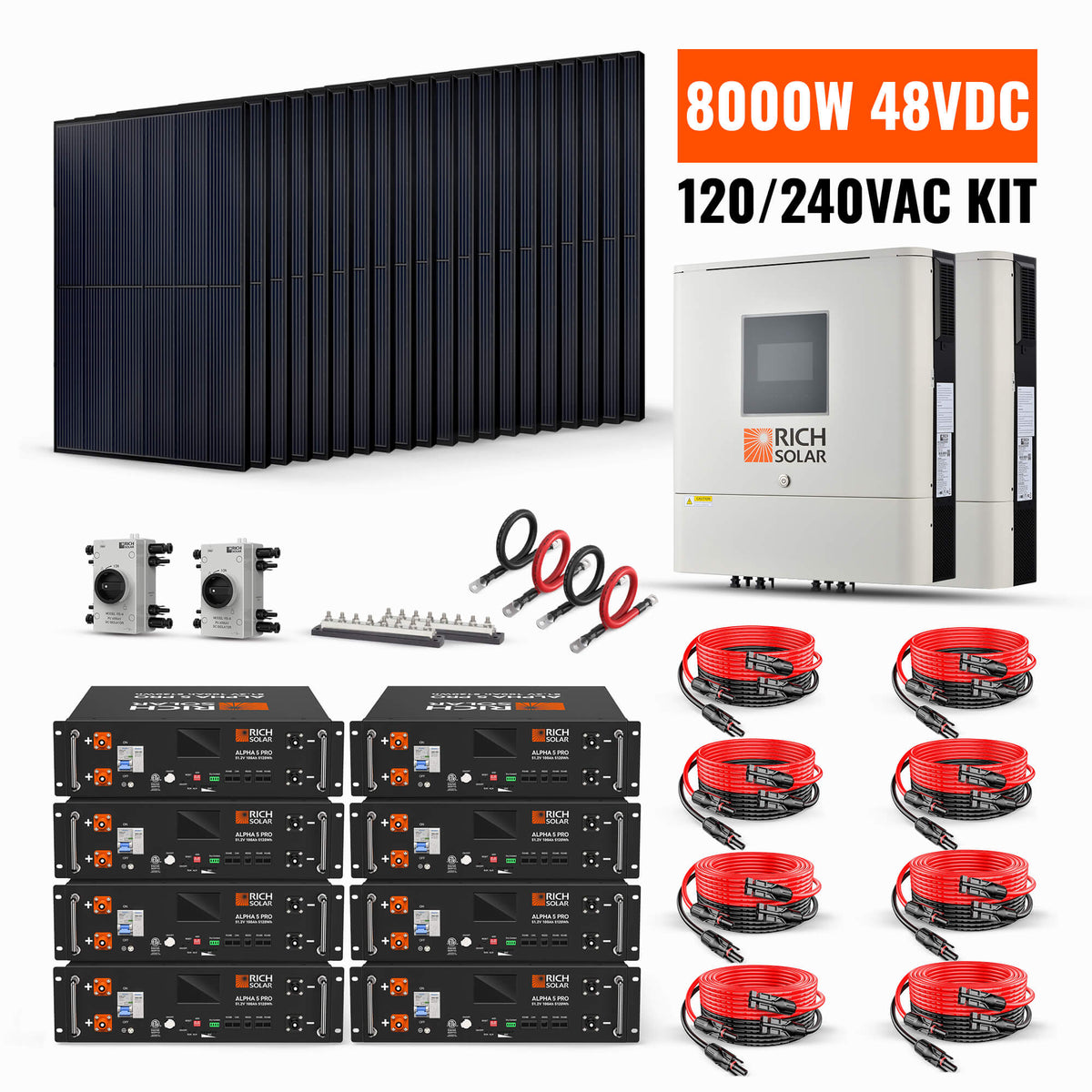

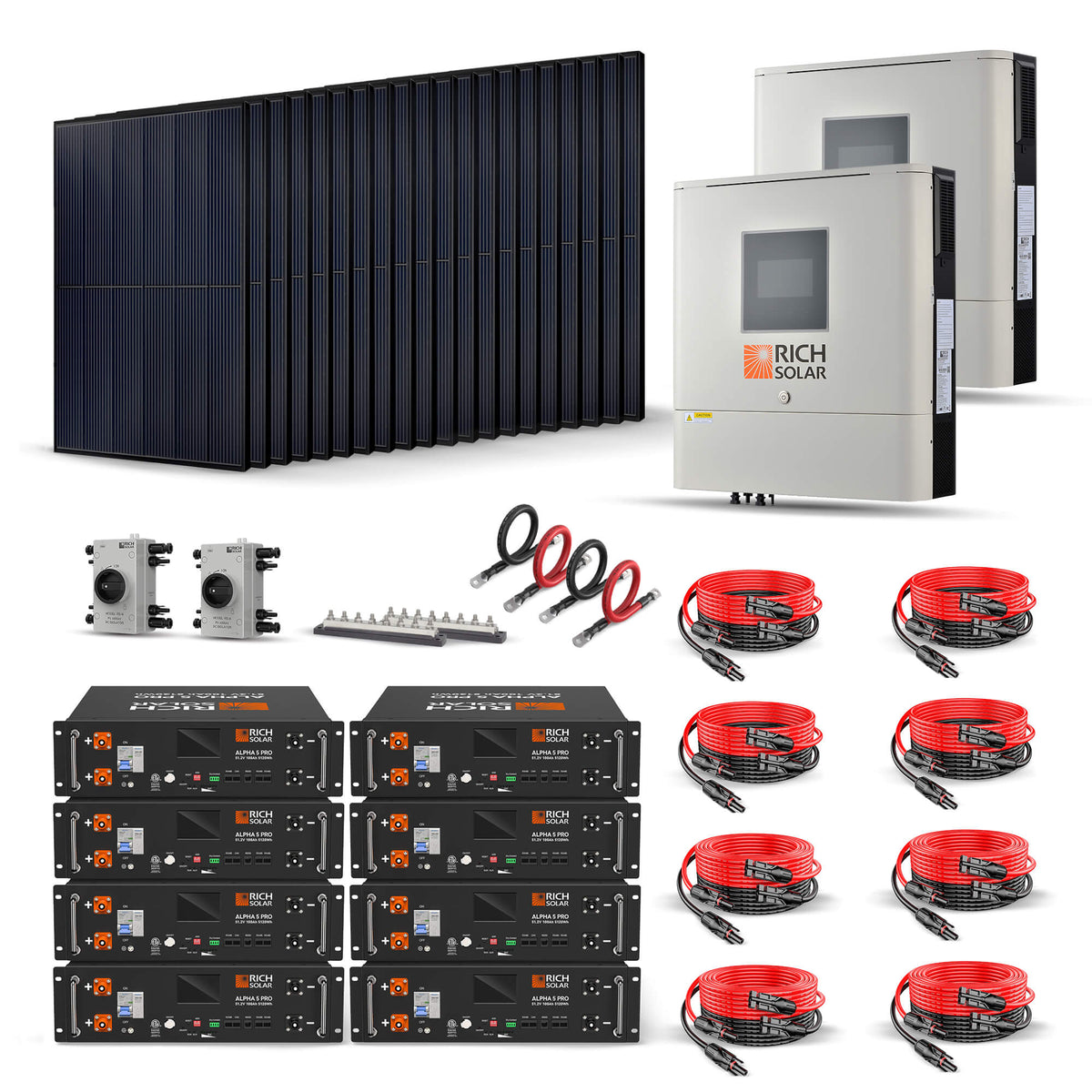

Packing Details

  • 2 x 6500W 48V Off-grid Solar Inverters (RS-H6548S)
  • 20 x MEGA 410 24V 410W Solar Panels (RS-M410)
  • 8 x ALPHA 5 PRO 51.2V 100Ah Server Rack Lithium Batteries(RS-B5121P)
  • 2 x 600 AMP Busbars
  • 4 x 10 AWG 30 ft Extension Cables (RS-30102)
  • 4 x 10 AWG 10 ft Extension Cables (RS-10102)
  • 2 x PV DC Quick Disconnect Switches (RS-i4)
  • 2 x 4/0 AWG 5 ft Battery Cables (RS-4/0A5F3)
View full details

8000W 48V-120/240VAC Solar Kit

Equipment Type and Primary Applications

Complete 48V solar power system with an 8,200W monocrystalline solar array, 40.96kWh LiFePO₄ battery bank, and 13,000W split-phase hybrid inverter system. Designed for homes, cabins, farms, workshops, commercial buildings, and whole-home backup power applications.

Performance Specifications

  • Solar array: 20 × 410W MEGA 410 monocrystalline panels; 8,200W total rated array output.
  • Energy production: approximately 29.5kWh per day under 4 peak sun hours.
  • Battery storage: 8 × 51.2V, 100Ah ALPHA 5 PRO LiFePO₄ batteries; 5,120Wh each and 40.96kWh total capacity.
  • Inverter system: 2 × 6,500W RS-H6548S hybrid inverters; 13,000W continuous and 26,000W surge output.
  • AC output: pure sine wave, 120/240V split-phase.
  • Charging: dual 120A MPPT charge controllers; supports solar, battery, utility, and generator inputs.

Safety Features and Certifications

  • Includes 2 × PV DC quick disconnect switches for solar circuit isolation.
  • Includes 2 × 600A busbars and dedicated 4/0 AWG battery cables for battery-bank connections.

Installation and Maintenance Requirements

Installation requires suitable mounting and electrical provisions for twenty solar panels, two hybrid inverters, eight server-rack batteries, PV disconnects, busbars, and battery cabling. Commissioning includes connecting the array, battery bank, AC loads, and available utility or generator inputs, followed by system configuration and operational testing. Maintain clean panel surfaces, inspect cable and terminal connections, and review disconnects and battery equipment at scheduled service intervals.

Warranty and Service Information

Warranty and service terms apply to the supplied system components and should be documented with the purchase records.

Branding/References

Included references: RS-H6548S inverters, RS-M410 panels, RS-B5121P batteries, RS-30102 and RS-10102 extension cables, RS-i4 PV disconnects, and RS-4/0A5F3 battery cables.

Differentiators

The matched system combines 40.96kWh of LiFePO₄ storage with 13,000W continuous split-phase output and dual 120A MPPT charging in one coordinated kit.
