4000W 48VDC-240VAC Solar Kit

4000W 48VDC-240VAC Solar Kit

$9,359.99 USD
$11,699.99 USD $9,359.99 USD
Sale Sold out
Shipping calculated at checkout.

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

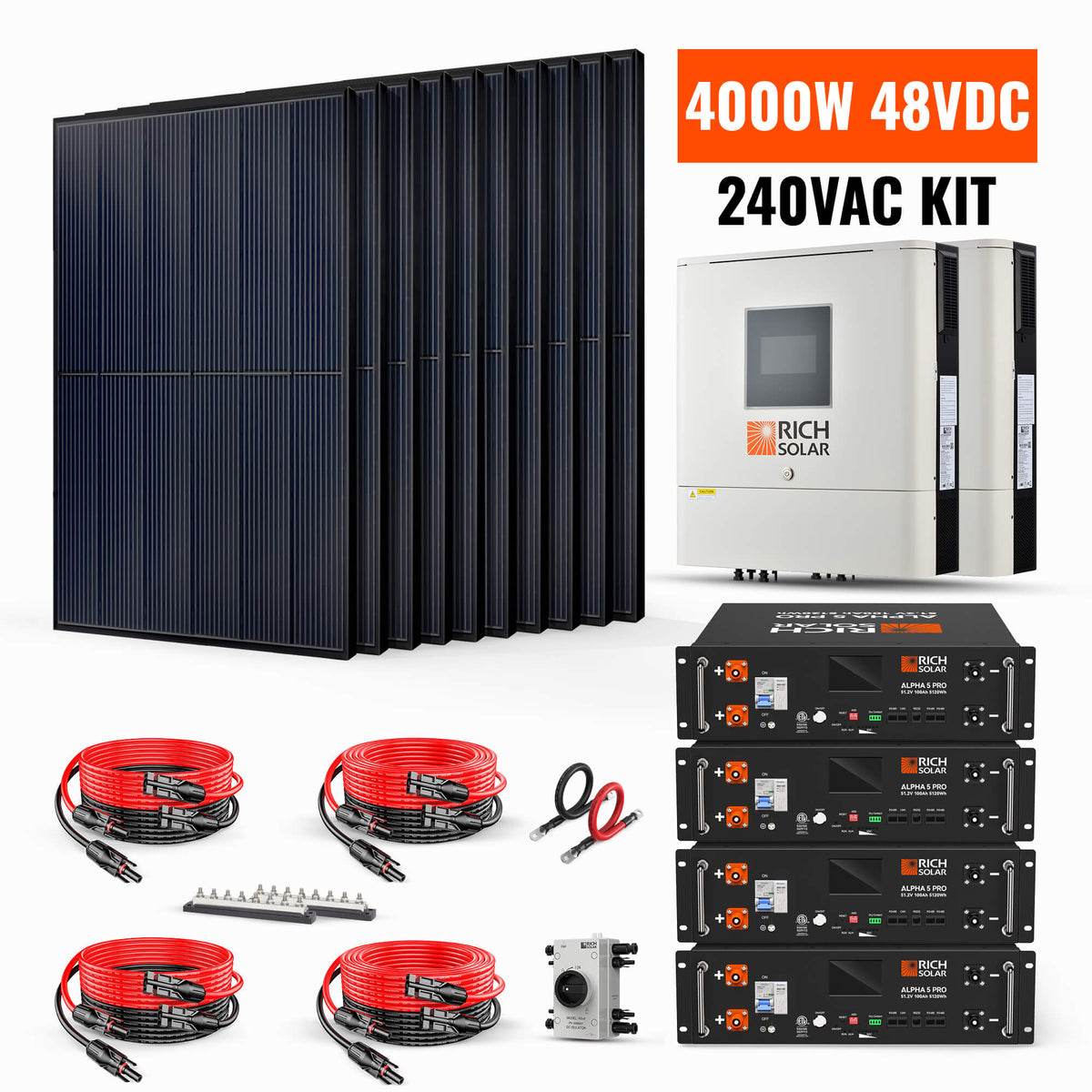

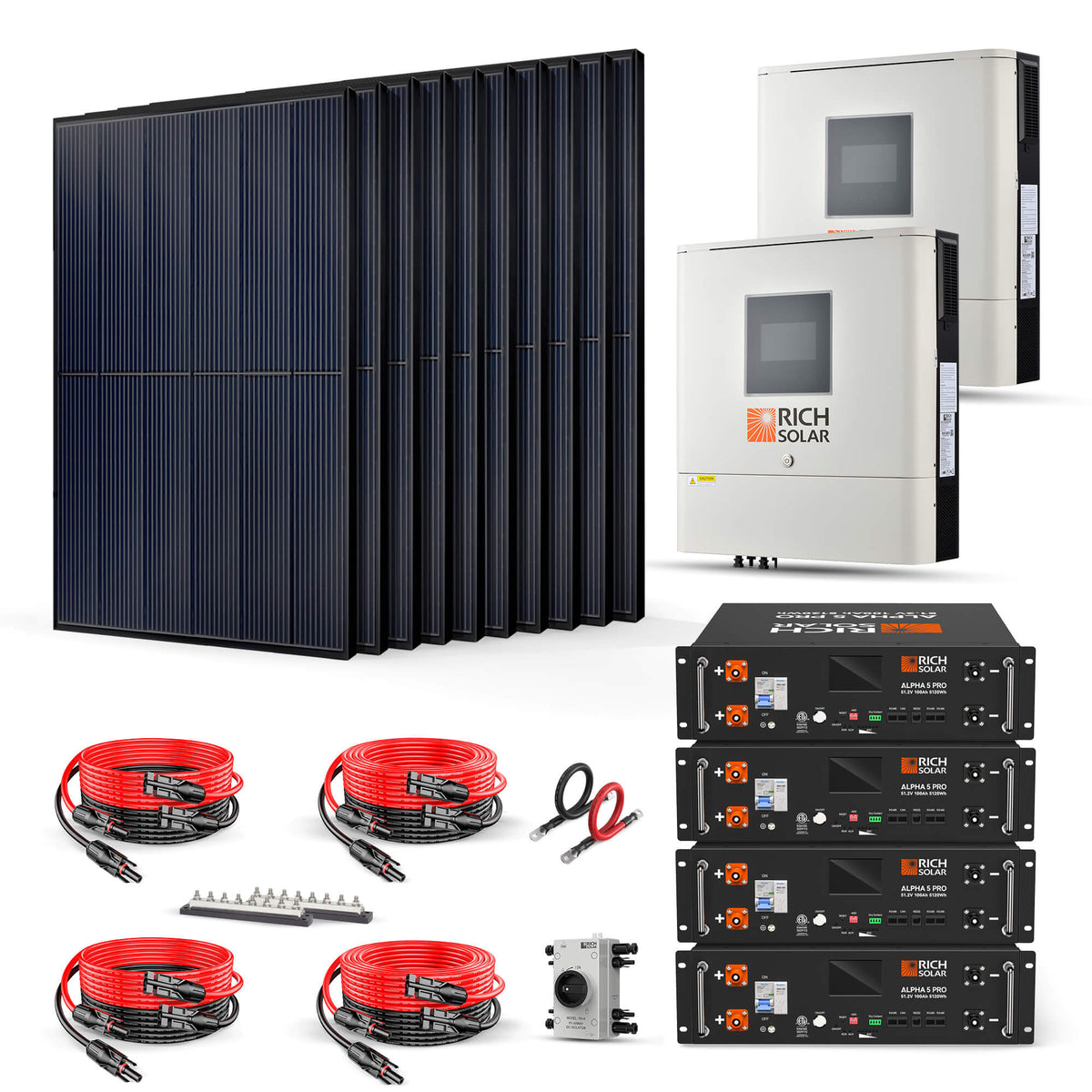

Packing Details

  • 2 x 6500W 48V Off-grid Solar Inverters (RS-H6548S)
  • 10 x MEGA 410 24V 410W Solar Panels (RS-M410)
  • 4 x ALPHA 5 PRO 51.2V 100Ah Server Rack Lithium Batteries (RS-B5121P)
  • 2 x 600 AMP Busbars
  • 2 x 10 AWG 30 ft Extension Cables (RS-30102)
  • 2 x 10 AWG 10 ft Extension Cables (RS-10102)
  • 1 x PV DC Quick Disconnect (RS-i4)
  • 1 x 4/0 AWG 5 ft Battery Cables (RS-4/0A5F3)
View full details

4000W 48VDC-240VAC Solar Kit

Equipment Type and Primary Applications

Complete 48V solar power and battery backup system combining a 4,100W solar array, 20.48kWh LiFePO₄ battery bank, and 13,000W split-phase hybrid inverter capacity. Designed for homes, cabins, farms, workshops, remote properties, and whole-home backup applications.

Performance Specifications

  • Solar array: ten MEGA 410 monocrystalline panels, 410W each; 4,100W total output.
  • Estimated solar production: approximately 14.8kWh per day under 4 peak sun hours.
  • Battery storage: four ALPHA 5 PRO batteries, each 51.2V, 100Ah, and 5,120Wh; 20.48kWh total.
  • Inverter system: two RS-H6548S hybrid inverters rated at 6,500W each.
  • Combined inverter output: 13,000W continuous and 26,000W surge, pure sine wave.
  • AC output: 120/240V split-phase.
  • Charging capability: dual 120A MPPT charge controllers.
  • Supported energy inputs: solar, battery, utility, and generator.

Safety Features and Certifications

Pure sine wave output supports AC loads requiring clean power. The kit includes two 600 AMP busbars and a PV DC quick disconnect for system interconnection and photovoltaic circuit isolation.

Installation and Maintenance Requirements

Installation requires appropriate solar, battery, AC, utility, and generator connections. Commissioning includes mounting and wiring the panels, connecting the batteries and busbars, installing the inverter pair, configuring system inputs, and testing split-phase output. Maintain panel surfaces, inspect cable connections, and review battery and inverter operation regularly.

Warranty and Service Information

Branding/References

Components include RS-H6548S inverters, RS-M410 MEGA 410 panels, RS-B5121P ALPHA 5 PRO batteries, RS-30102 and RS-10102 extension cables, RS-i4 PV DC quick disconnect, and RS-4/0A5F3 battery cable.

Differentiators

The matched system combines 20.48kWh of rack-style LiFePO₄ storage with 13,000W continuous 120/240V split-phase output and support for four energy sources.
