2500W 48VDC-120VAC Solar Kit

2500W 48VDC-120VAC Solar Kit

$6,399.99 USD
$7,999.99 USD $6,399.99 USD
Sale Sold out
Shipping calculated at checkout.

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

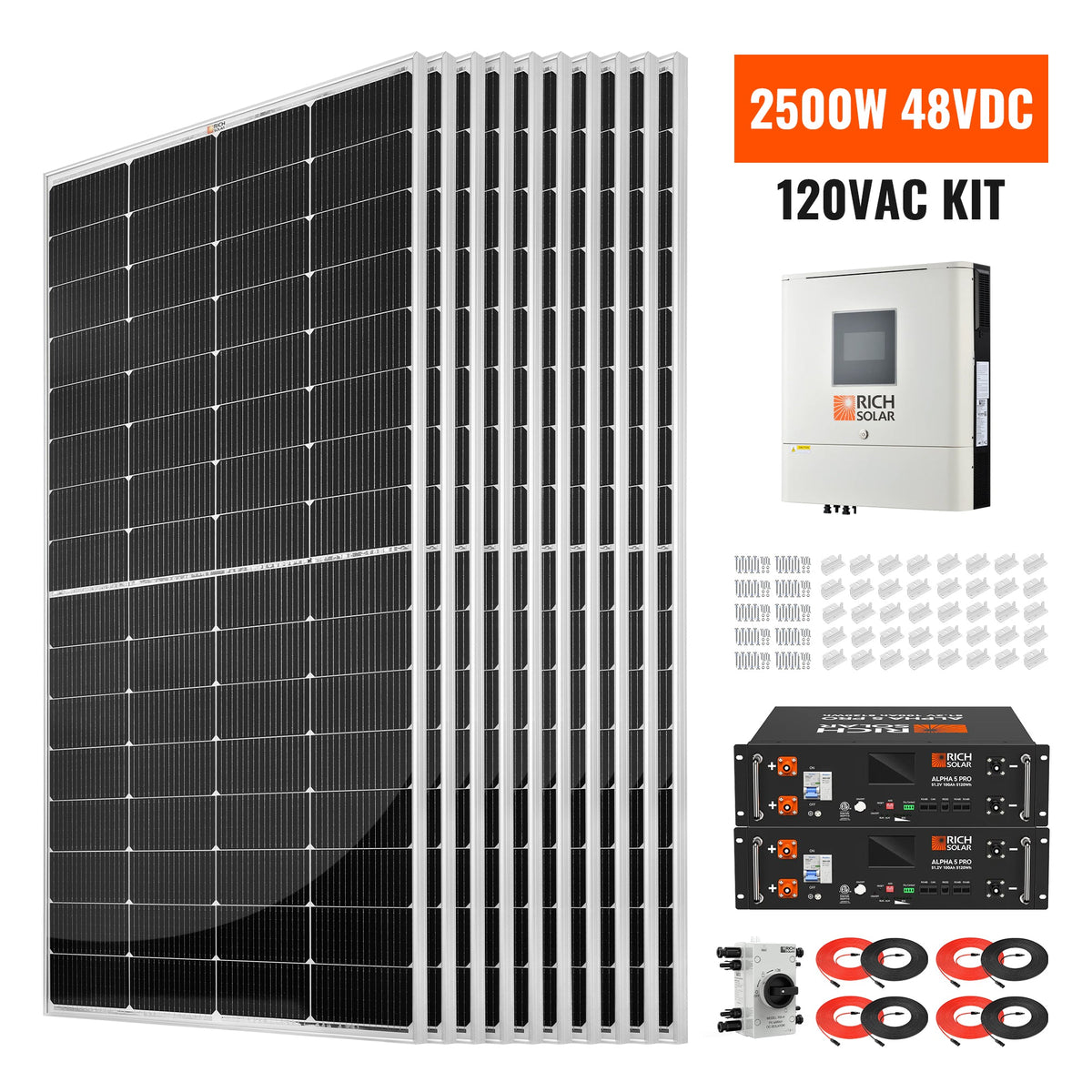

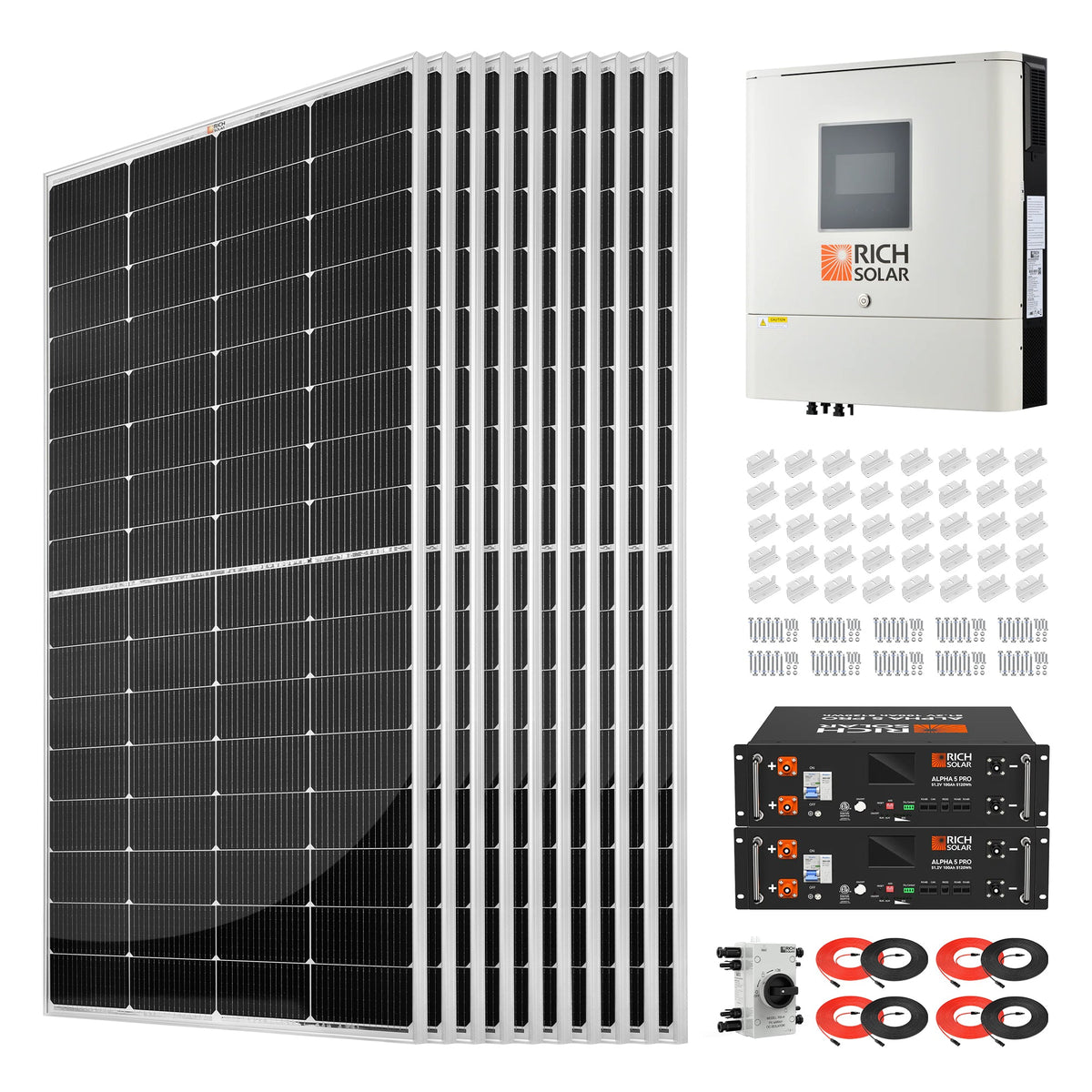

Packing Details

  • 1 x 6500W 48V Off-grid Solar Inverter (RS-H6548S)
  • 10 x MEGA 250 12V 250W Solar Panels (RS-M250)
  • 2 x ALPHA 5 PRO 51.2V 100Ah Server Rack Lithium Batteries (RS-B5121P)
  • 2 x 10 AWG 30 ft Extension Cables (RS-30102)
  • 2 x 10 AWG 10 ft Extension Cables (RS-10102)
  • 15 x Z Bracket sets (one set of 4) (RS-ZB4C)
  • 1 x PV DC Quick Disconnect (RS-i4)
View full details

2500W 48VDC-120VAC Solar Kit with 10.24kWh LiFePO₄ Storage

Equipment Type and Primary Applications

Complete off-grid solar power kit combining a 2,500W monocrystalline solar array, 10.24kWh LiFePO₄ battery bank, and 6,500W hybrid inverter for cabins, tiny homes, workshops, farms, remote properties, and backup power systems.

Performance Specifications

  • Solar array: ten 250W MEGA 250 monocrystalline panels; 2,500W total capacity.
  • Daily solar production: approximately 9.0kWh under 4 peak sun hours.
  • Battery storage: two 51.2V, 100Ah ALPHA 5 PRO server-rack lithium batteries; 5,120Wh each and 10.24kWh total.
  • Inverter output: 6,500W continuous and 13,000W surge, pure sine wave, 48VDC input and 120VAC output.
  • Charge control: integrated 120A MPPT controller.
  • System inputs: solar, battery, utility, and generator.

Safety Features and Certifications

  • Pure sine wave AC output supports equipment requiring clean power.
  • PV DC quick disconnect included for solar-array isolation.

Installation and Maintenance Requirements

The kit includes two 30ft 10 AWG extension cables, two 10ft 10 AWG extension cables, 15 Z-bracket sets, and one PV DC quick disconnect. Installation requires mounting the solar panels, connecting the PV array and batteries to the RS-H6548S inverter, and configuring available solar, battery, utility, or generator inputs. Preventive maintenance includes inspection of cable connections, panel mounting hardware, and battery and inverter connections.

Warranty and Service Information

Branding/References

Referenced components include RS-H6548S inverter, RS-M250 panels, RS-B5121P batteries, RS-30102 and RS-10102 extension cables, RS-ZB4C brackets, and RS-i4 PV disconnect.

Differentiators

The system combines a 120A MPPT charge controller with 6,500W continuous hybrid inverter output and 10.24kWh rack-mounted LiFePO₄ storage in one matched solar kit.
