200 Watt Solar Kit

200 Watt Solar Kit

$439.99 USD
$549.99 USD $439.99 USD
Sale Sold out
Shipping calculated at checkout.

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

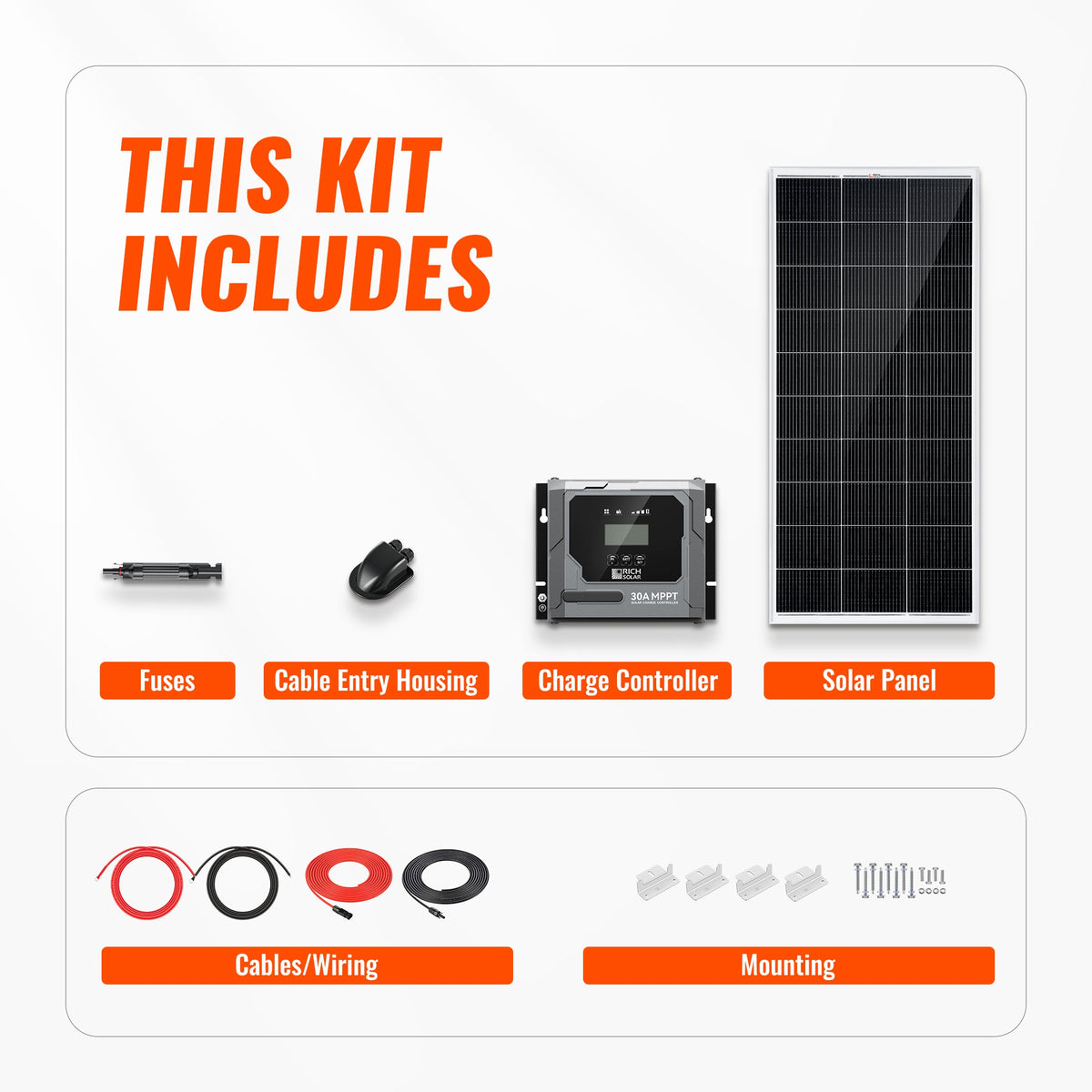

Packing Details

  • 1 x 200 Watt Monocrystalline Solar Panel (RS-M200)
  • 1 x Bravo 30A MPPT Charge Controller (RS-MPPT30PB)
  • 1 x Mounting Z Brackets (one set of 4) (RS-ZB4C)
  • 1 x Cable Entry Housing (RS-C2B)
  • 1 x 15A Inline Fuse Holder with Fuse (RS-SC15F)
  • 1 x 30 ft 10 AWG Solar Cable Set (Panel to Controller) (RS-30101)
  • 1 x 10 ft 10 AWG Battery Cable Set (Controller to Battery) (RS-1010)
View full details

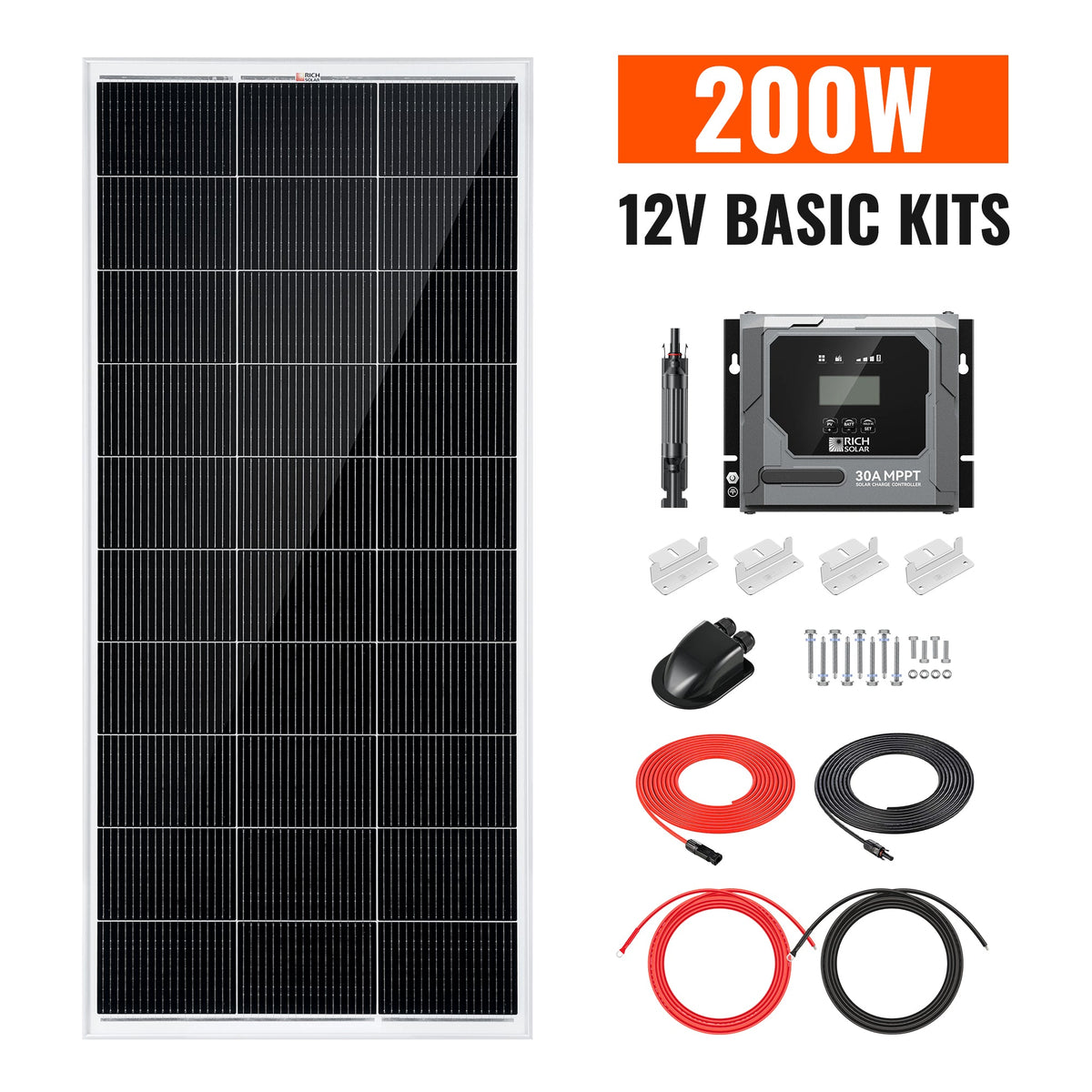

200 Watt Solar Kit

Equipment Type and Primary Applications

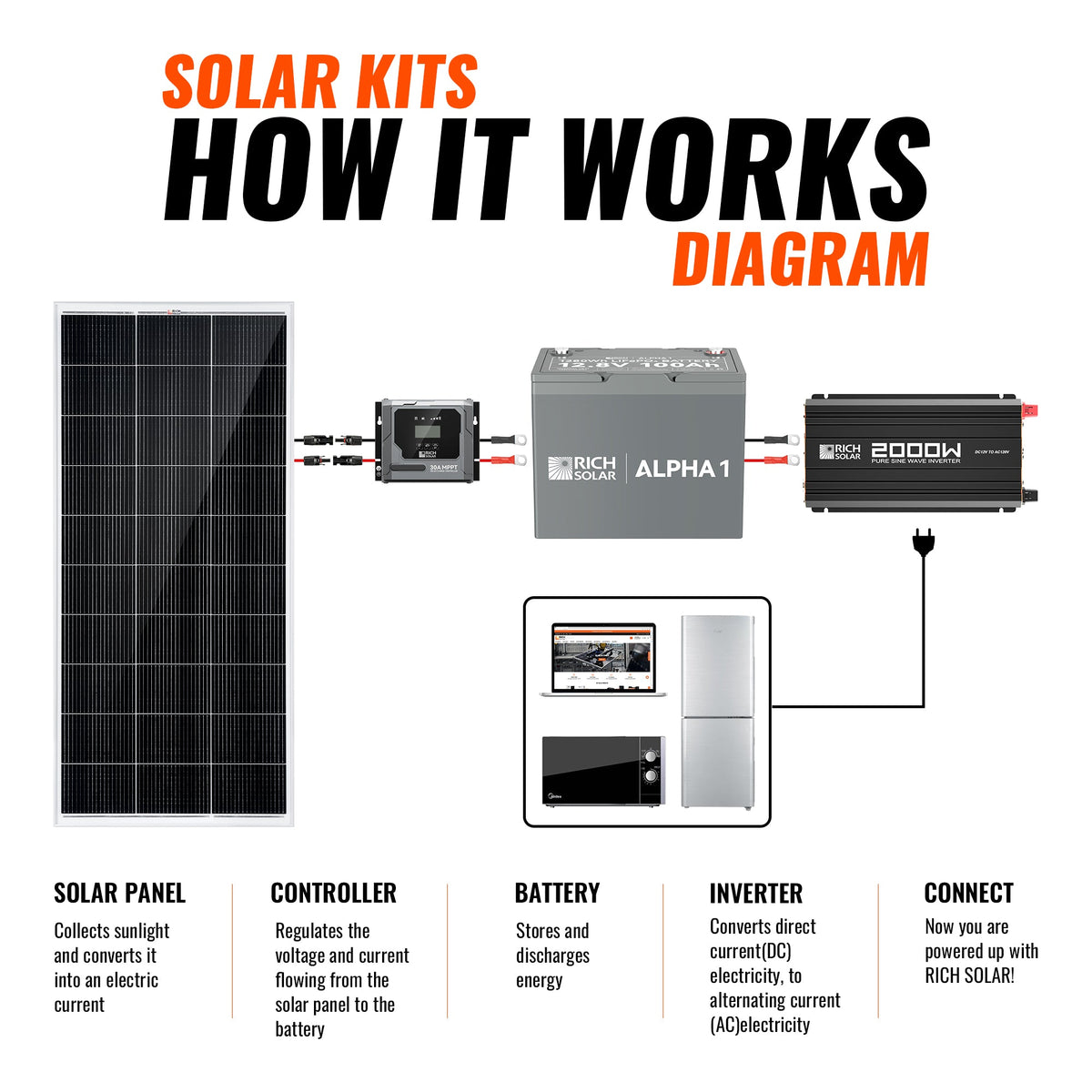

200-watt monocrystalline solar charging kit for compatible 12V battery systems. Designed for RVs, trailers, boats, cabins, and other small off-grid solar charging applications. The complete package combines a solar panel, MPPT charge controller, mounting hardware, cable assemblies, cable entry housing, and inline fuse protection.

Performance Specifications

  • Solar array: 200 W nominal output from one monocrystalline panel.
  • Panel voltage: 12 V nominal, for charging compatible 12V battery systems.
  • Estimated daily energy: approximately 0.7 kWh under 4 peak sun hours.
  • Charge controller: 30 A Bravo MPPT controller.
  • MPPT tracking efficiency: up to 99.5%.
  • Peak conversion efficiency: 98%.
  • Solar cable: 30 ft, 10 AWG panel-to-controller cable set.
  • Battery cable: 10 ft, 10 AWG controller-to-battery cable set.

Safety Features and Certifications

The kit includes a 15 A inline fuse holder with fuse for circuit protection, plus a cable entry housing for routing the solar cable through an installation surface. Certification marks and listed compliance standards are not specified.

Installation and Maintenance Requirements

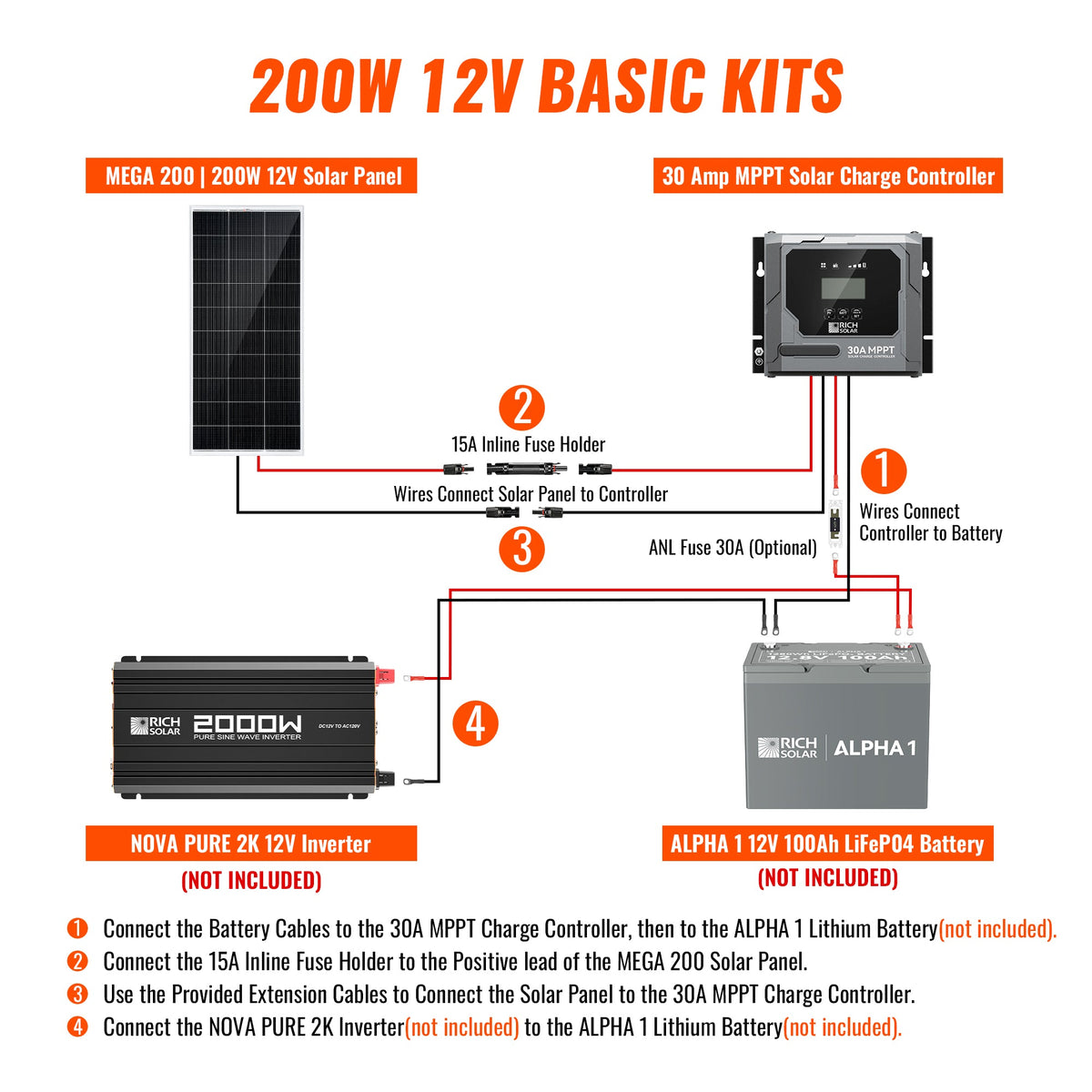

Installation requires a compatible 12V battery system and suitable mounting surfaces for the supplied Z brackets. Commissioning consists of mounting the RS-M200 panel, routing cables through the RS-C2B housing, connecting the panel to the controller, and connecting the controller to the battery using the included cable sets. Maintenance intervals are not specified.

Warranty and Service Information

Branding/References

Component references: RS-M200 solar panel, RS-MPPT30PB Bravo 30A MPPT charge controller, RS-ZB4C mounting Z brackets, RS-C2B cable entry housing, RS-SC15F fuse holder, RS-30101 solar cable set, and RS-1010 battery cable set.

Differentiators

The 30A MPPT controller combines up to 99.5% tracking efficiency with 98% peak conversion efficiency to maximize energy transfer from the 200W array.
