1600 Watt Solar Kit

1600 Watt Solar Kit

$1,919.99 USD
$2,399.99 USD $1,919.99 USD
Sale Sold out
Shipping calculated at checkout.

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

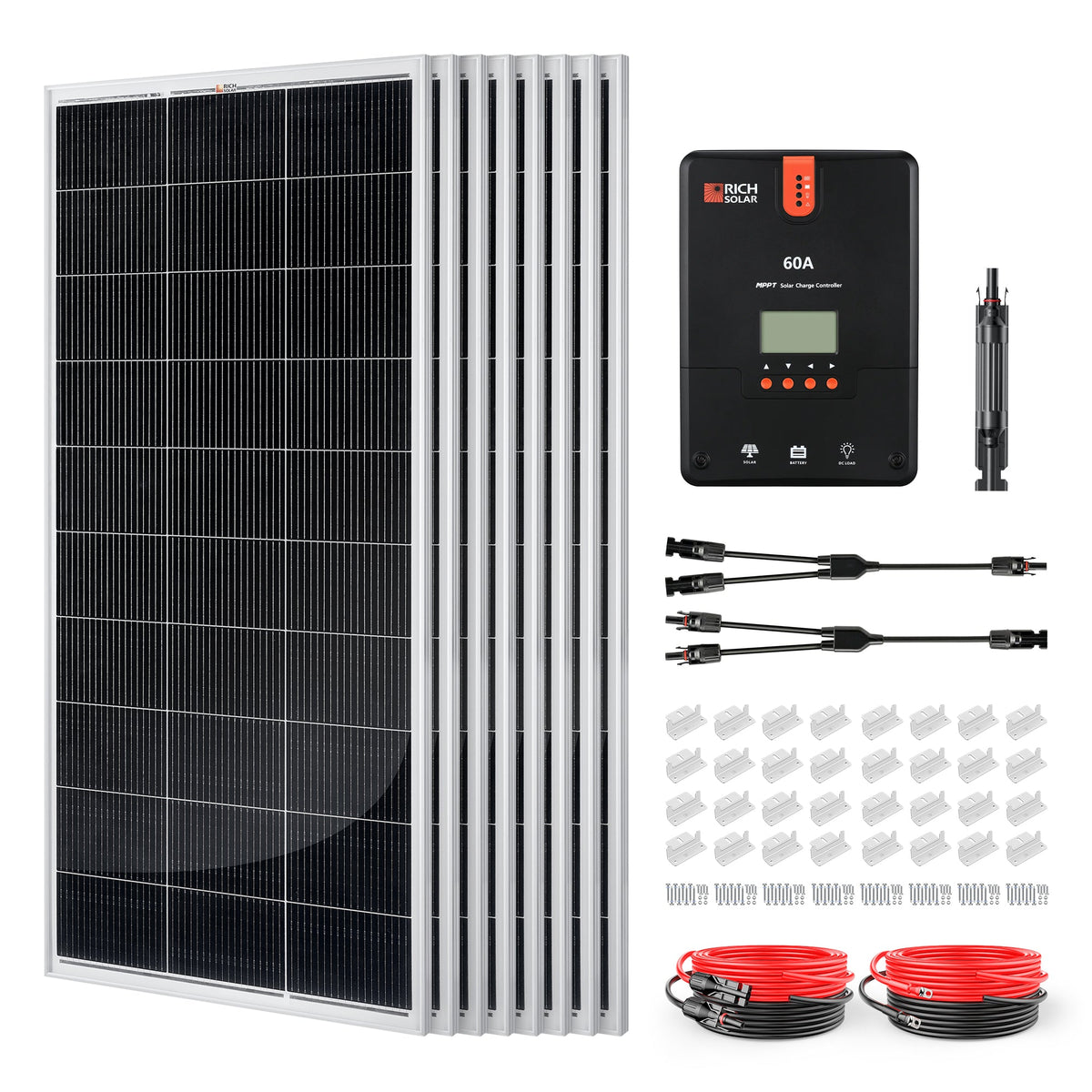

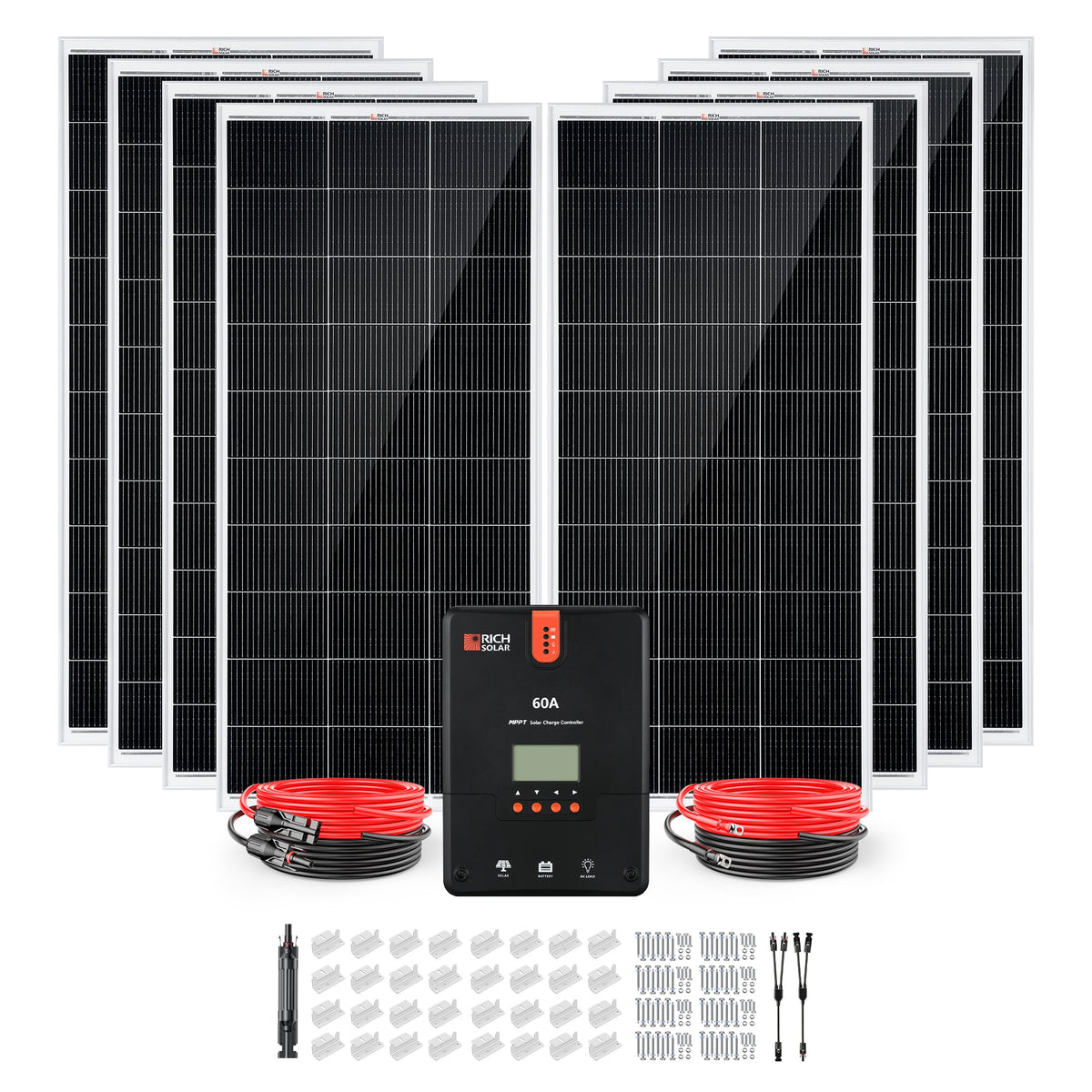

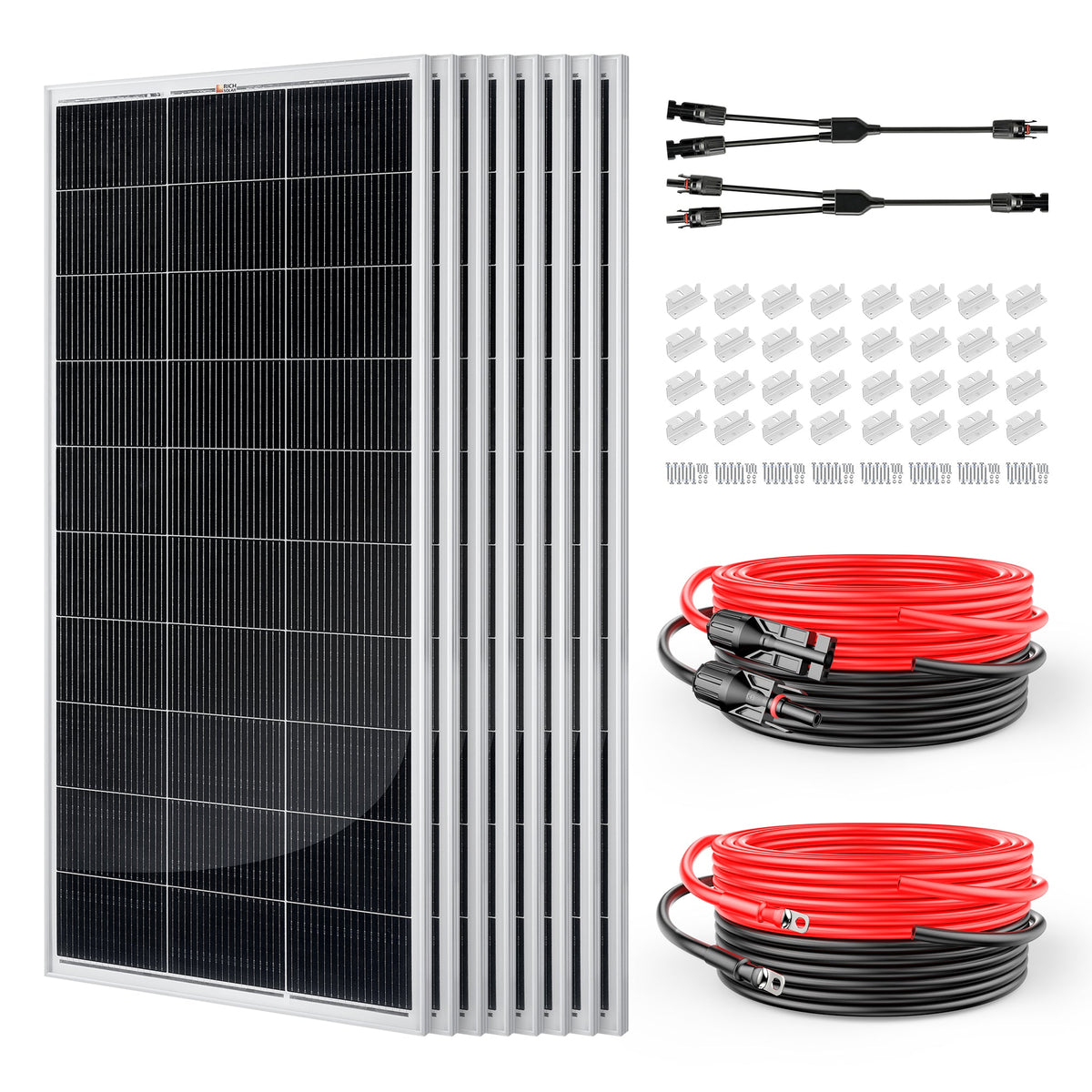

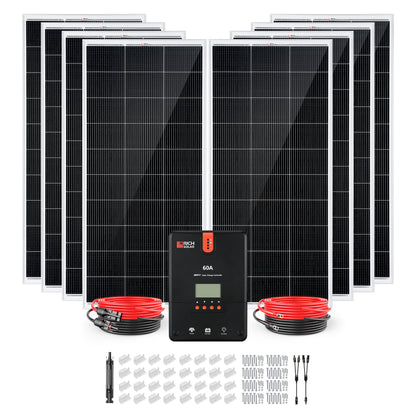

Packing Details

  • 8 x 200 Watt Monocrystalline Solar Panels (RS-M200)
  • 1 x 60A MPPT Solar Charge Controller (RS-MPPT60)
  • 1 x 20 ft 10 AWG Solar Cable (Red), connects the solar panel to the controller (RS-20101)
  • 1 x 20 ft 10 AWG Solar Cable (Black), connects the solar panel to the controller (RS-20101)
  • 1 x 10 ft 8 AWG Battery Cable (Red), connects the controller to the battery (RS-810)
  • 1 x 10 ft 8 AWG Battery Cable (Black), connects the controller to the battery (RS-810)
  • 8 x Mounting Z Bracket sets (one set of 4) (RS-ZB4C)
  • 1 x 30A Inline Fuse Holder with Fuse (RS-SC30F)
  • 1 x Y Branch Parallel Adapter (RS-T2)
View full details

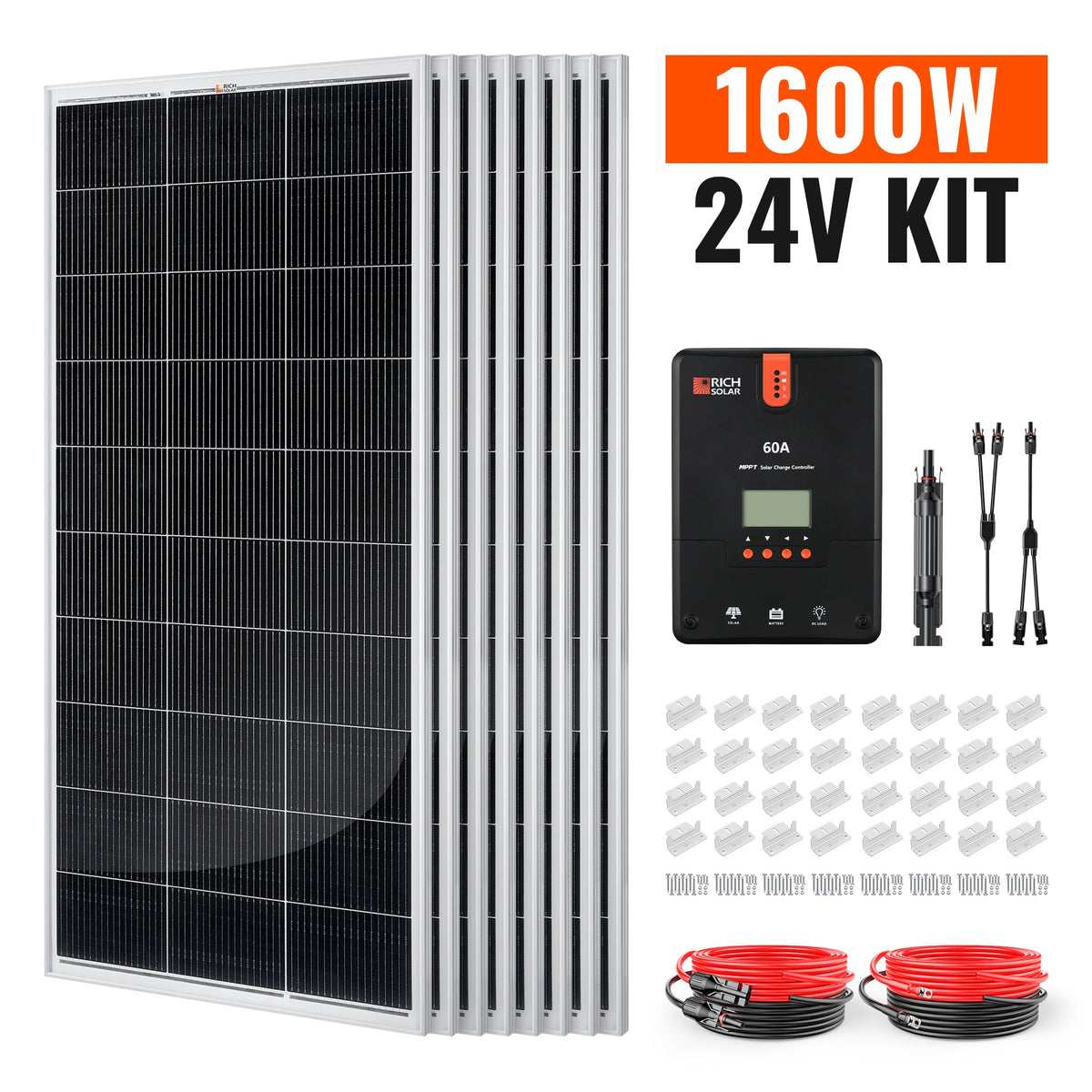

1600 Watt Solar Kit

Equipment Type and Primary Applications

The 1600 Watt Solar Kit is a 24V solar charging system for compatible battery banks. It combines eight 200W monocrystalline solar panels with a 60A MPPT charge controller and installation accessories for off-grid battery charging in RVs, cabins, trailers, boats, and similar applications.

Performance Specifications

  • Solar array: 1600W total, consisting of 8 × 200W monocrystalline panels.
  • Daily energy production: approximately 5.8kWh under 4 peak sun hours.
  • System voltage: 24V solar charging system.
  • Charge controller: 60A MPPT, with up to 99% tracking efficiency and 98% peak conversion efficiency.
  • Solar cables: 20ft, 10 AWG, red and black, for panel-to-controller connections.
  • Battery cables: 10ft, 8 AWG, red and black, for controller-to-battery connections.

Safety Features and Certifications

  • Includes a 30A inline fuse holder with fuse for solar circuit protection.
  • Certification marks and compliance standards are not specified.

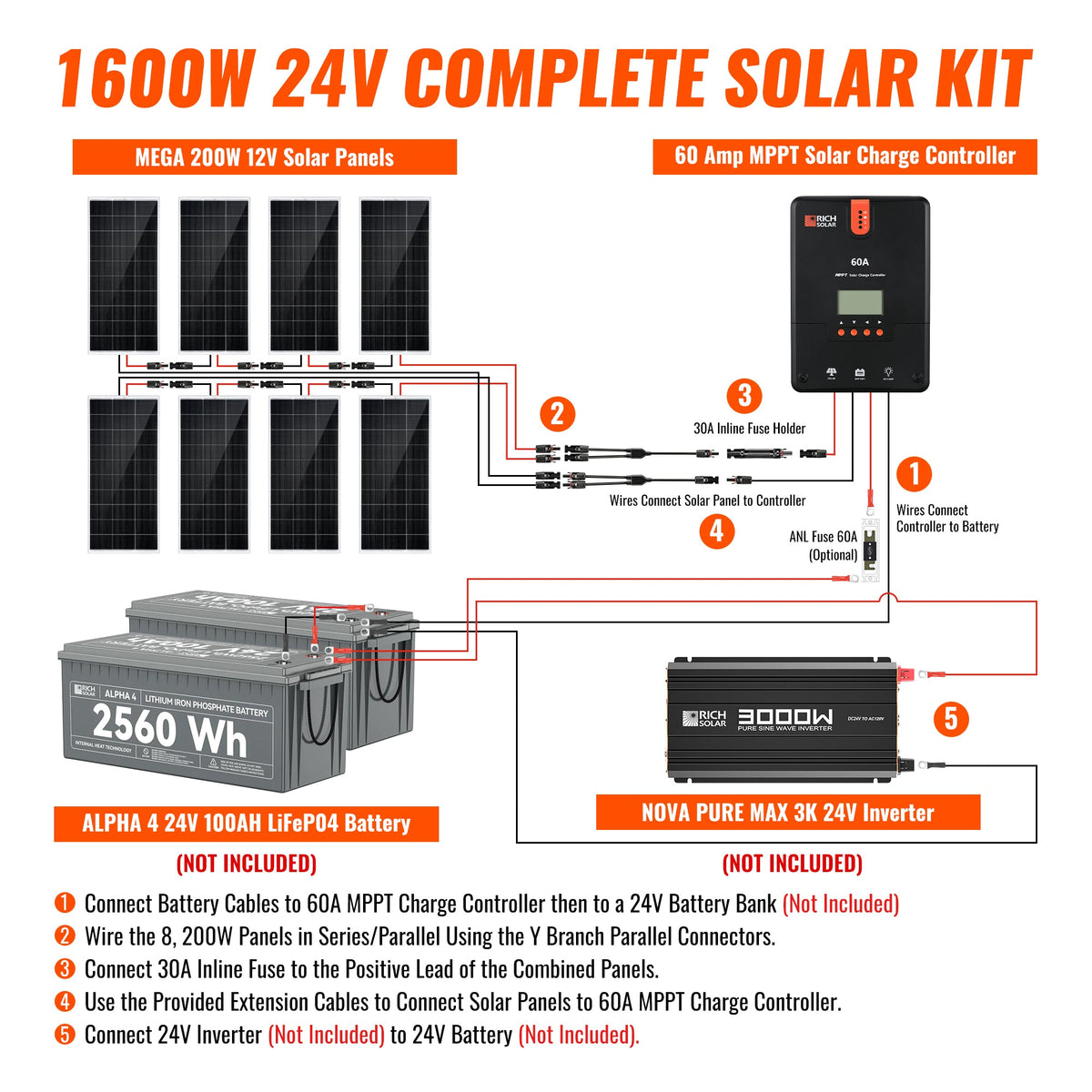

Installation and Maintenance Requirements

  • Requires compatible 24V battery storage and installation space for eight solar panels.
  • Use the included 10 AWG solar cables between the array and controller and 8 AWG battery cables between the controller and battery.
  • Includes eight mounting Z-bracket sets and one Y-branch parallel adapter.
  • Inspect panel mounting, cable connections, fuse condition, and controller operation during routine system maintenance.

Warranty and Service Information

Branding/References

  • Panel model: RS-M200.
  • Charge controller model: RS-MPPT60.
  • Accessory references: RS-20101, RS-810, RS-ZB4C, RS-SC30F, and RS-T2.

Differentiators

The 60A MPPT controller combines up to 99% tracking efficiency with 98% peak conversion efficiency, providing a matched charging platform for the 1600W solar array and 24V battery system.
