1600 Watt 24V Complete Solar Kit

1600 Watt 24V Complete Solar Kit

$3,999.99 USD
$4,999.99 USD $3,999.99 USD
Sale Sold out
Shipping calculated at checkout.

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

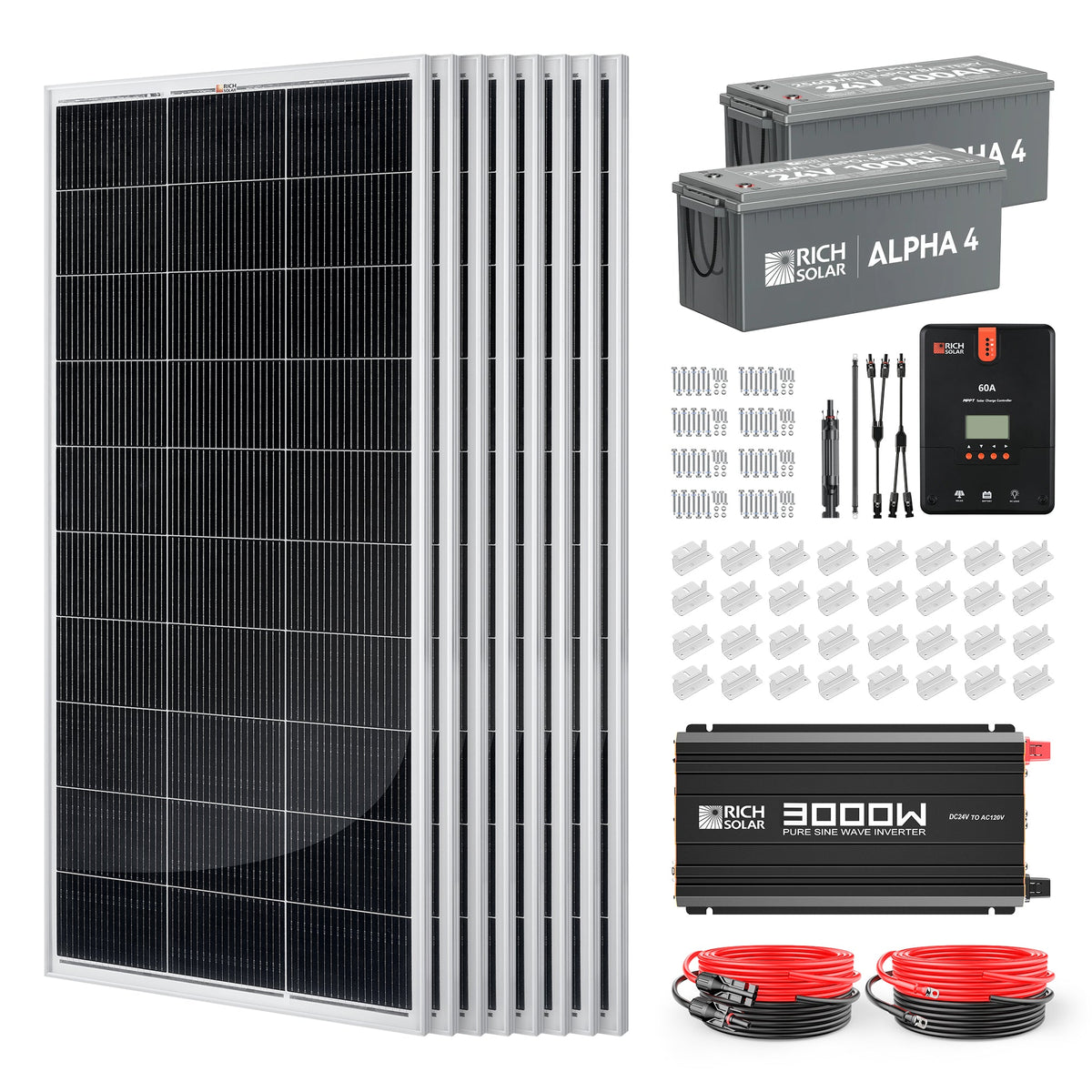

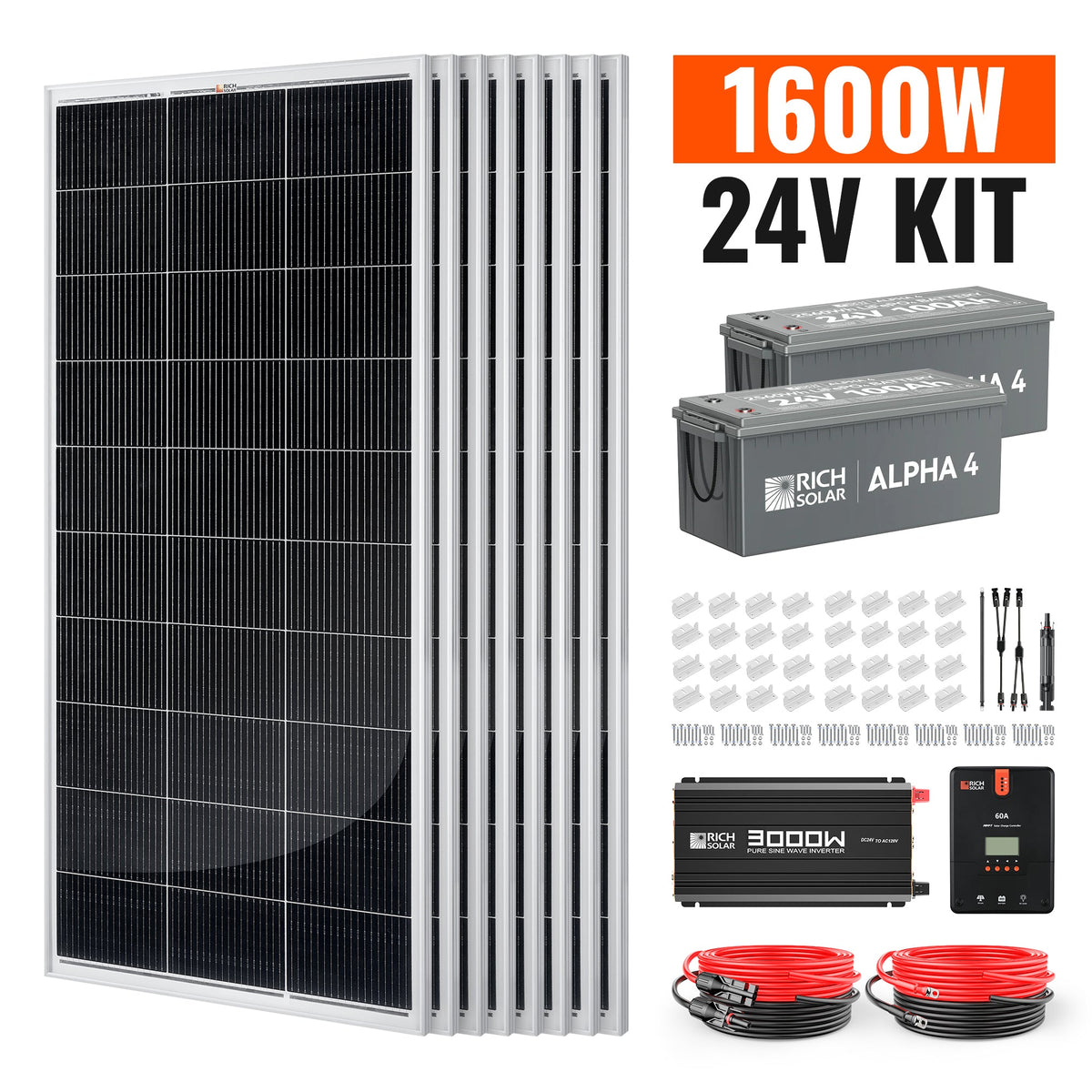

Packing Details

  • 8 x MEGA 200W 12V Panels (RS-M200)
  • 2 x ALPHA 4 Lithium Batteries (RS-B241S)
  • 1 x 3000W 24V Inverter (RS-V3P24)
  • 1 x 60A MPPT Charge Controller (RS-MPPT60)
  • 8 x Z Bracket sets (one set of 4) (RS-ZB4C)
  • 1 x 30A Inline Fuse Holder (RS-SC30F)
  • 1 x Y Branch Parallel Adapter (RS-Y2)
  • 1 x 2 AWG 1 ft Inverter Battery Cable Red (RS-C21R)
  • 1 x 2 AWG 1 ft Inverter Battery Cable Black (RS-C21B)
  • 1 x 30 ft 10 AWG Solar Cable Set (Panel to Controller) (RS-30101)
  • 1 x 10 ft 8 AWG Solar Cable Set (Controller to Battery) (RS-810)
  • 1 x 8 ft 4 AWG Battery Cable Set (RS-C48R & RS-C48B)
View full details

1600 Watt 24V Complete Solar Kit

Equipment Type and Primary Applications

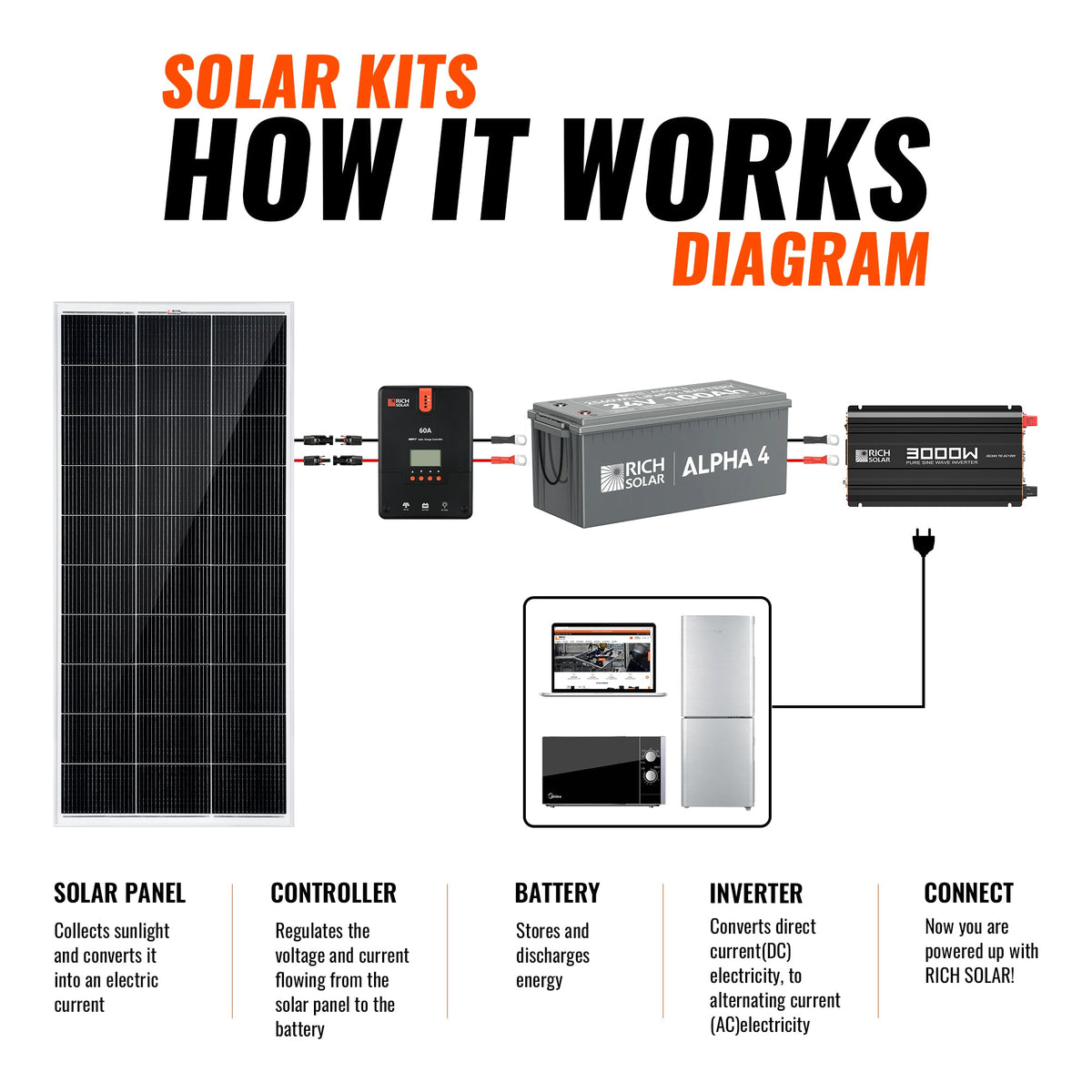

Complete 24V off-grid solar power kit combining a 1,600W monocrystalline solar array, 5.12kWh LiFePO₄ battery bank, 3,000W pure sine wave inverter, and 60A MPPT charge controller. Designed for RVs, cabins, tiny homes, trailers, compatible 24V equipment, and off-grid backup power installations.

Performance Specifications

  • Solar array: eight 200W MEGA 12V monocrystalline panels; approximately 5.8kWh daily production under four peak sun hours.
  • Battery storage: two ALPHA 4 24V 100Ah LiFePO₄ batteries, rated at 2,560Wh each; 5.12kWh combined capacity.
  • Inverter output: 3,000W continuous, 6,000W surge, 24V DC input, pure sine wave AC output.
  • Charge controller: 60A MPPT with up to 99% tracking efficiency.

Safety Features and Certifications

  • 30A inline fuse holder included for circuit protection.
  • Pure sine wave output supports compatible AC equipment.

Installation and Maintenance Requirements

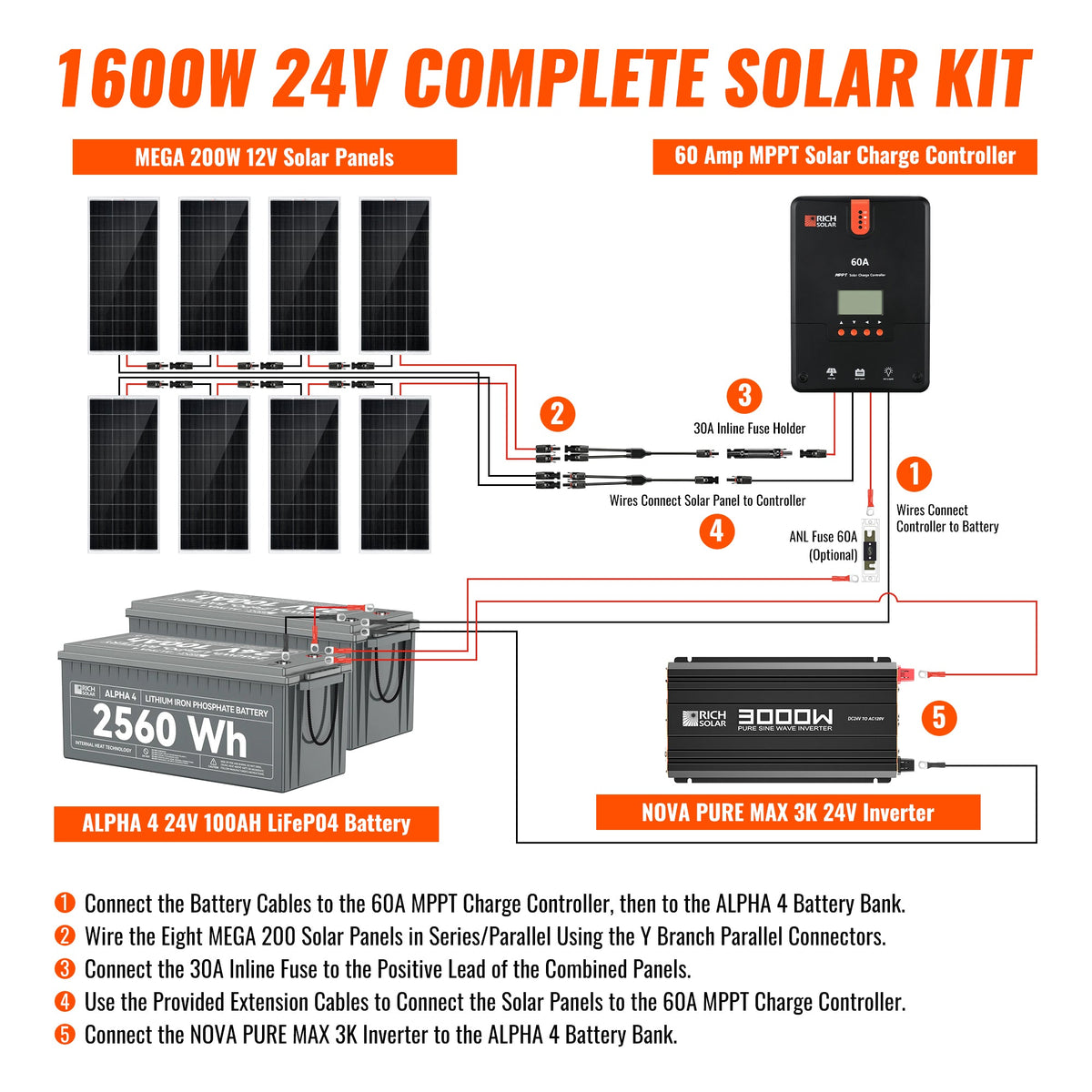

Installation requires a suitable 24V off-grid configuration, secure panel mounting locations, and access for battery, controller, and inverter connections. The kit includes eight Z-bracket sets, panel-to-controller solar cable, controller-to-battery cable, battery cables, an inverter cable pair, and a Y-branch parallel adapter. Inspect cable connections, panel mounts, fuse protection, and battery connections as part of routine system maintenance.

Warranty and Service Information

Branding/References

Included component references: MEGA 200W panel RS-M200; ALPHA 4 battery RS-B241S; 3,000W inverter RS-V3P24; 60A MPPT controller RS-MPPT60; accessory references RS-ZB4C, RS-SC30F, RS-Y2, RS-C21R, RS-C21B, RS-30101, RS-810, RS-C48R, and RS-C48B.

Differentiators

The system combines a 5.12kWh LiFePO₄ battery bank with a 3,000W/6,000W pure sine wave inverter and 99% MPPT tracking in one matched 24V kit.
