• 1250W 48VDC-120VAC Solar Kit
  • 1250W 48VDC-120VAC Solar Kit
1 2

1250W 48VDC-120VAC Solar Kit

1250W 48VDC-120VAC Solar Kit

$3,999.99 USD
$4,999.99 USD $3,999.99 USD
Sale Sold out
Shipping calculated at checkout.

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

Packing Details

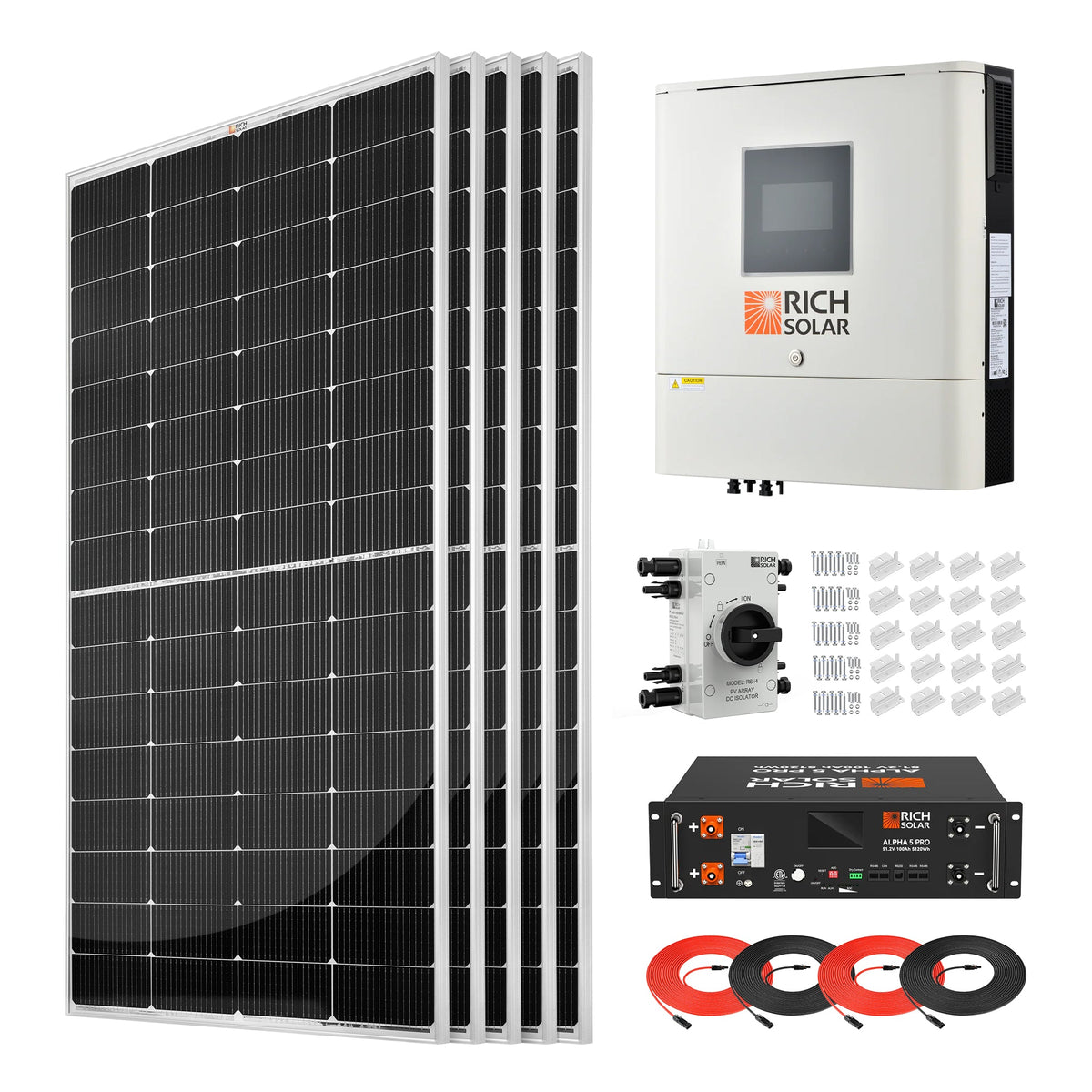

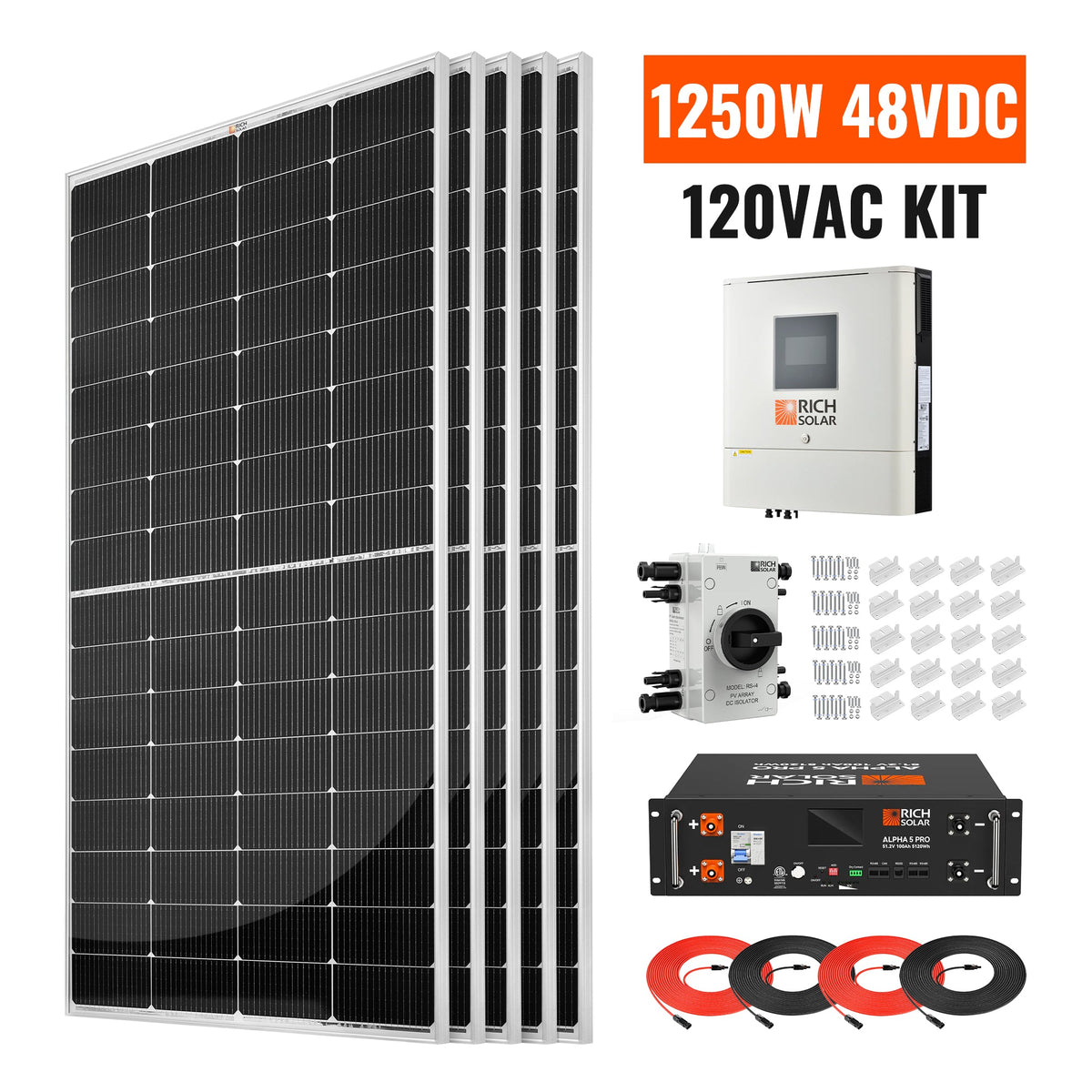

  • 1 x 6500W 48V Off-grid Solar Inverter (RS-H6548S)
  • 5 x MEGA 250 12V 250W solar Panels (RS-M250)
  • 1 x ALPHA 5 PRO 51.2V 100Ah Server Rack Lithium Battery (RS-B5121P)
  • 1 x 10 AWG 30 ft Extension Cable (RS-30102)
  • 1 x 10 AWG 10 ft Extension Cable (RS-10102)
  • 8 x Z-Bracket Sets (one set of 4) (RS-ZB4C)
  • 1 x PV DC Quick Disconnect (RS-i4)
View full details

1250W 48VDC-120VAC Solar Kit

Equipment Type and Primary Applications

Complete off-grid solar power kit combining a 1,250W monocrystalline solar array, 5.12kWh LiFePO₄ battery, and 6,500W hybrid inverter for cabins, tiny homes, workshops, barns, remote properties, and backup power applications.

Performance Specifications

  • Solar array: 1,250W total, consisting of five 250W MEGA 250 monocrystalline panels.
  • Estimated solar production: approximately 4.5kWh per day under four peak sun hours.
  • Battery storage: 5.12kWh LiFePO₄, rated at 51.2V and 100Ah.
  • Inverter output: 6,500W continuous and 13,000W surge, with 120VAC pure sine wave output.
  • Hybrid inverter inputs: solar, battery, utility, and generator.
  • Charge control: integrated 120A MPPT charge controller.

Safety Features and Certifications

  • Pure sine wave inverter output supports standard 120VAC loads.
  • LiFePO₄ battery chemistry provides rechargeable energy storage for day and night operation.
  • Included PV DC quick disconnect supports separation of the photovoltaic connection during service.

Installation and Maintenance Requirements

  • Install five solar panels using the included eight Z-bracket sets, with photovoltaic connections made using the supplied extension cables and quick disconnect.
  • System commissioning requires connection of the solar array, battery, and selected utility or generator inputs to the RS-H6548S inverter.
  • Inspect panel surfaces, cable connections, mounting hardware, and battery connections as part of routine preventive maintenance.

Warranty and Service Information

Branding/References

Renogy components: RS-H6548S inverter, RS-M250 solar panels, RS-B5121P ALPHA 5 PRO battery, RS-30102 and RS-10102 extension cables, RS-ZB4C Z-bracket sets, and RS-i4 PV DC quick disconnect.

Differentiators

The RS-H6548S combines 6,500W continuous output, 13,000W surge capacity, and a built-in 120A MPPT controller while accepting solar, battery, utility, and generator inputs in one matched system.
