1200 Watt Solar Kit

1200 Watt Solar Kit

$1,519.99 USD
$1,899.99 USD $1,519.99 USD
Sale Sold out
Shipping calculated at checkout.

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

Packing Details

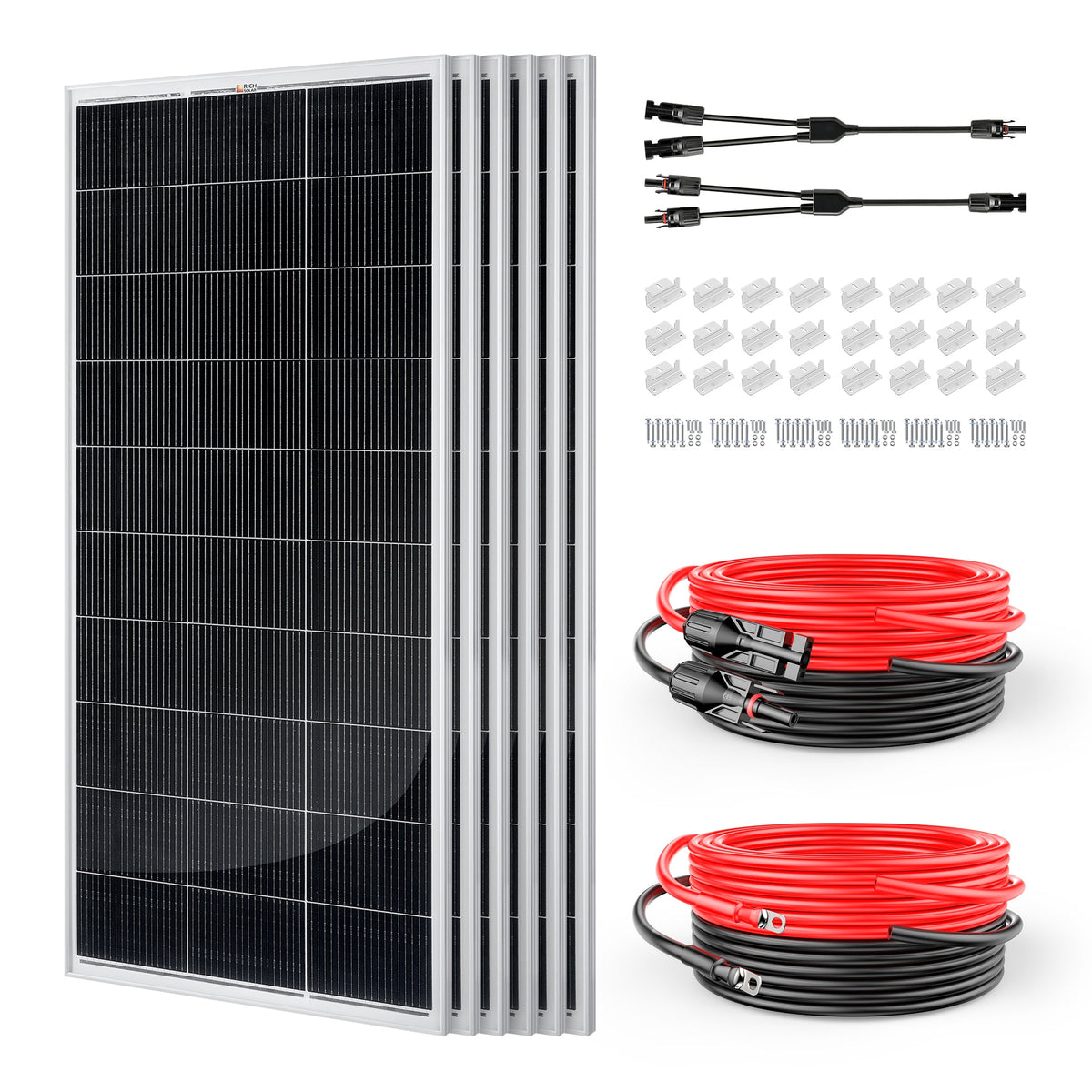

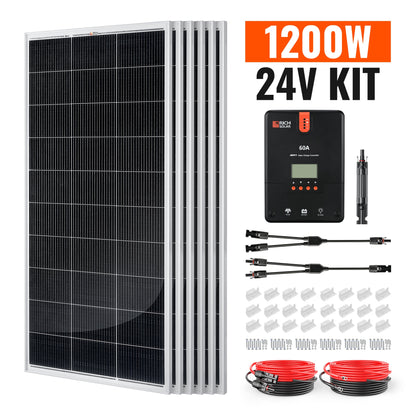

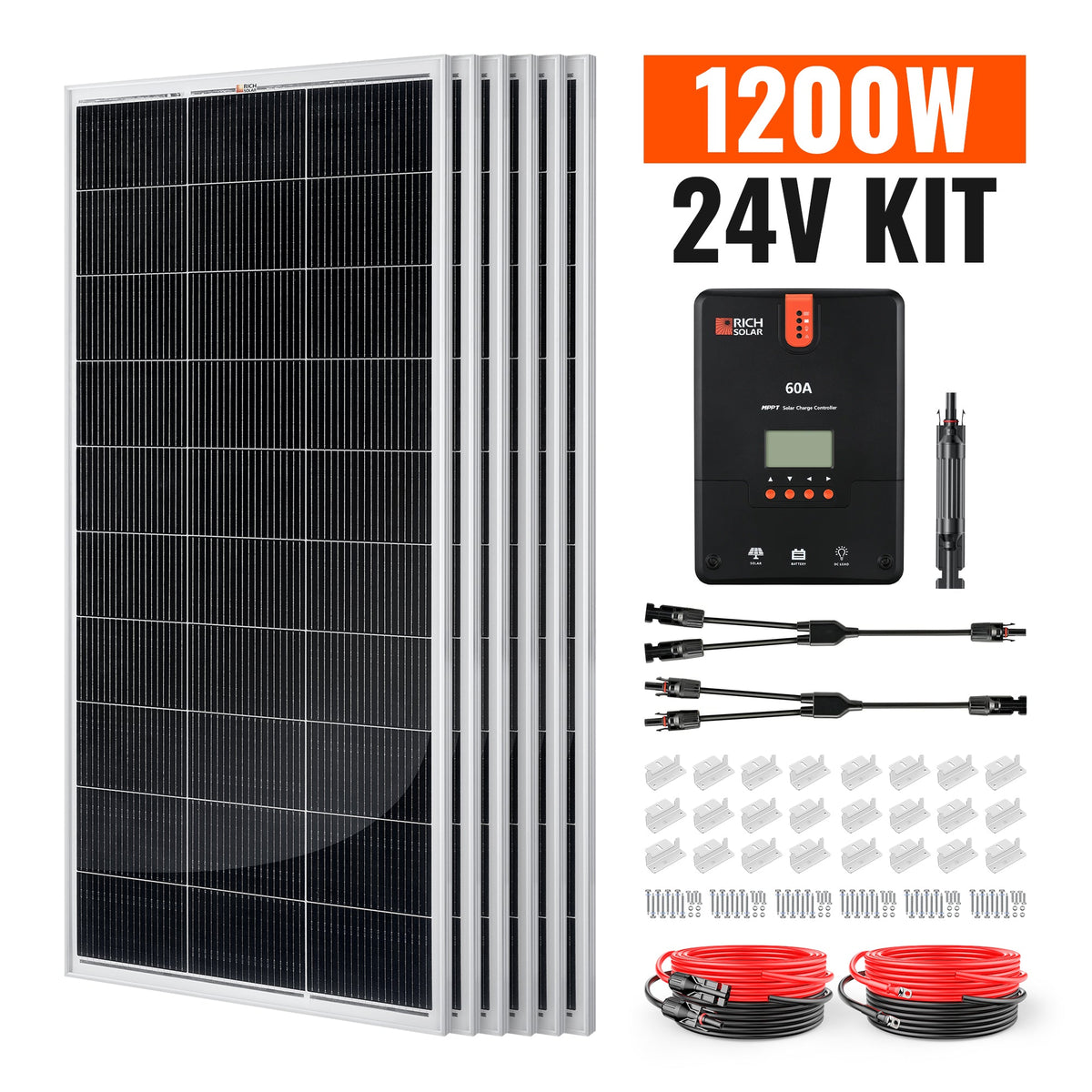

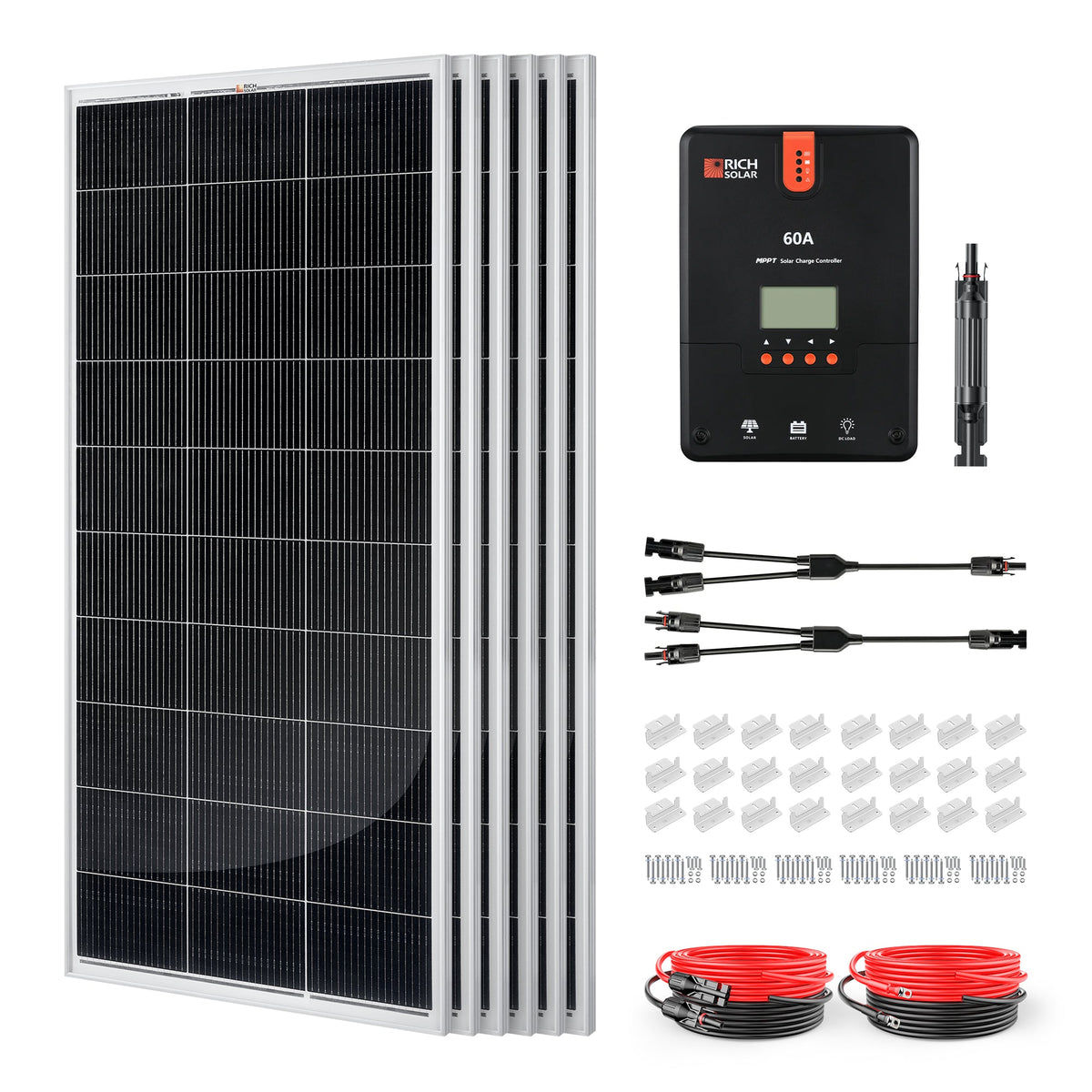

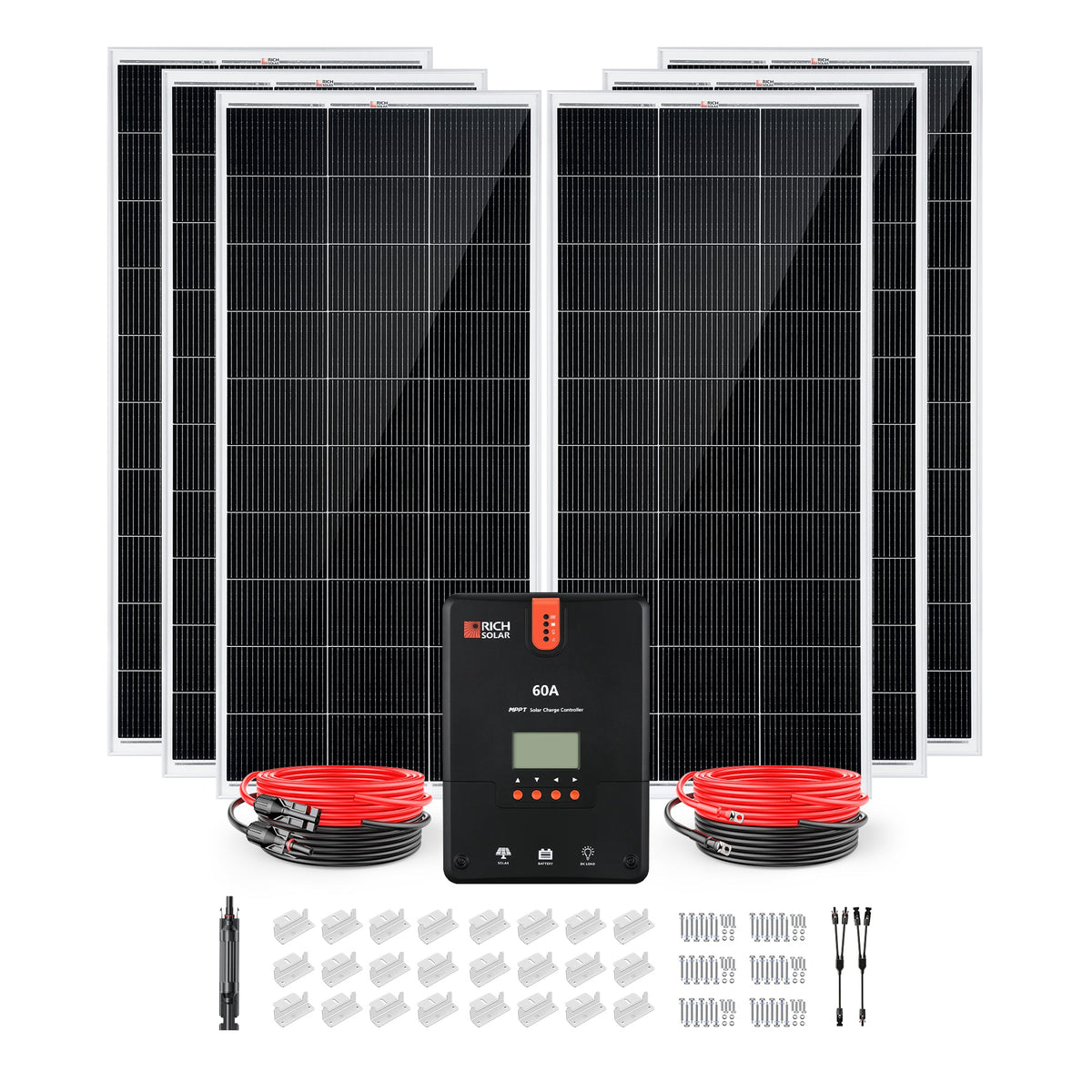

  • 6 x 200 Watt Monocrystalline Solar Panels (RS-M200)
  • 1 x 60A MPPT Solar Charge Controller (RS-MPPT60)
  • 1 x 20 ft 10 AWG Solar Cable (Red), connects the solar panel to the controller (RS-20101)
  • 1 x 20 ft 10 AWG Solar Cable (Black), connects the solar panel to the controller (RS-20101)
  • 1 x 10 ft 8 AWG Battery Cable (Red), connects the controller to the battery (RS-810)
  • 1 x 10 ft 8 AWG Battery Cable (Black), connects the controller to the battery (RS-810)
  • 6 x Mounting Z Bracket sets (one set of 4) (RS-ZB4C)
  • 1 x 30A Inline Fuse Holder with Fuse (RS-SC30F)
  • 1 x Y Branch Parallel Adapters (RS-Y2)
View full details

1200 Watt Solar Kit

Equipment Type and Primary Applications

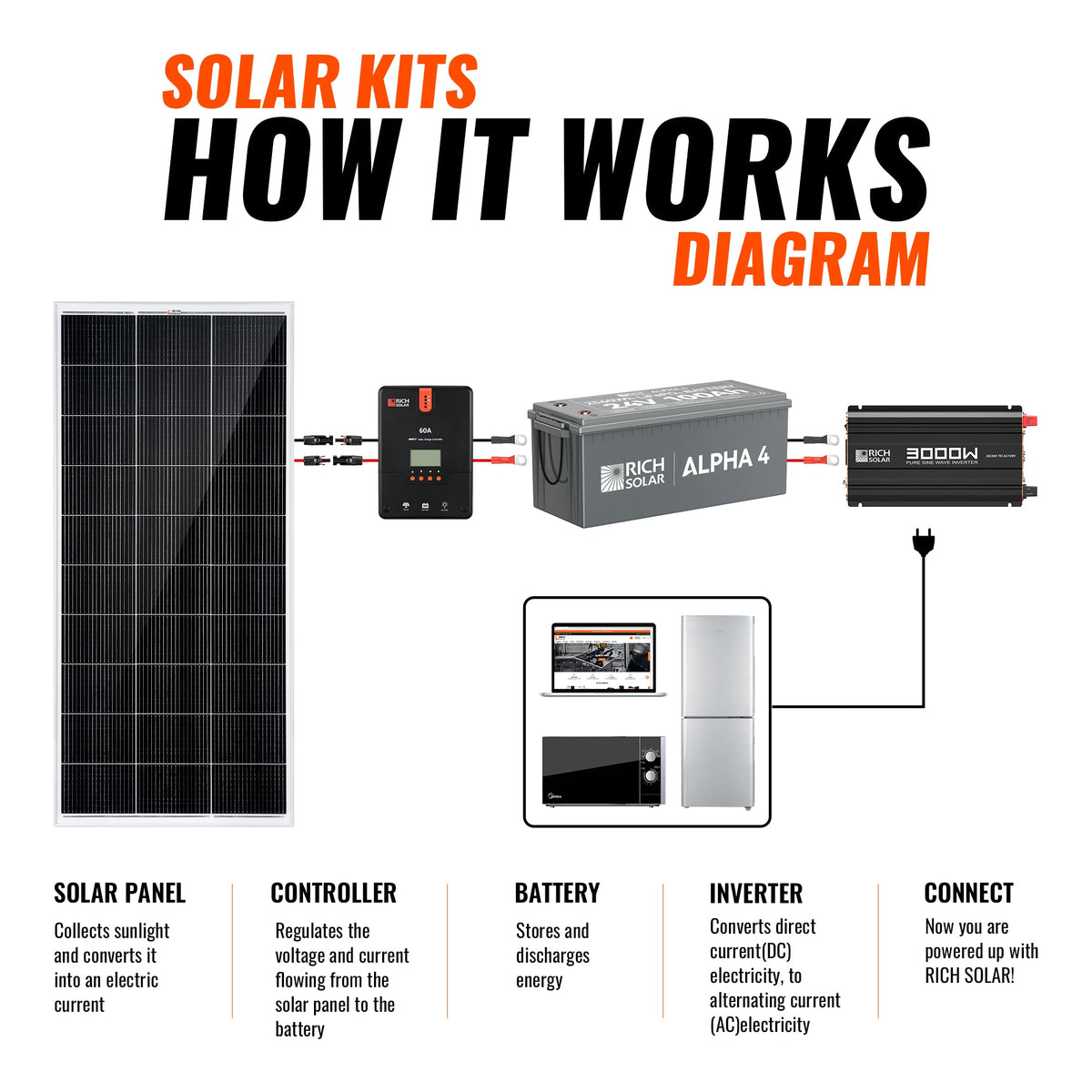

The 1200 Watt Solar Kit combines six 200W monocrystalline solar panels with a 60A MPPT charge controller for 24V battery charging. It is designed for off-grid solar charging systems in RVs, cabins, trailers, boats, and similar mobile or remote installations.

Performance Specifications

  • Solar array output: 1200W total from six 200W panels.
  • Estimated daily energy production: approximately 4.3kWh under 4 peak sun hours.
  • System voltage: 24V solar charging system for compatible battery banks.
  • Charge controller rating: 60A MPPT.
  • MPPT tracking efficiency: up to 99%.
  • Peak conversion efficiency: 98%.

Safety Features and Certifications

  • Includes a 30A inline fuse holder with fuse for the solar charging circuit.
  • Certification marks and standards are not specified for this product.

Installation and Maintenance Requirements

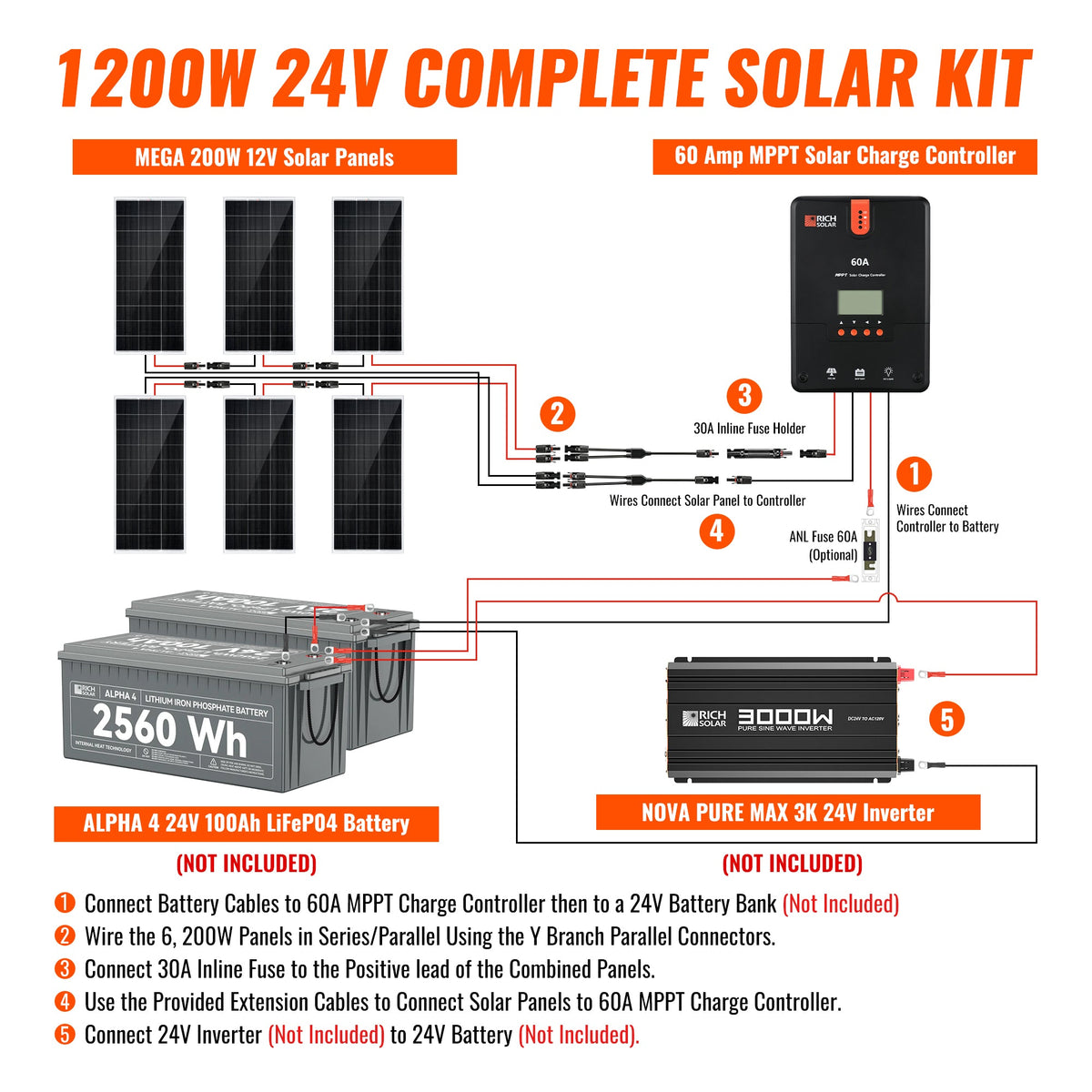

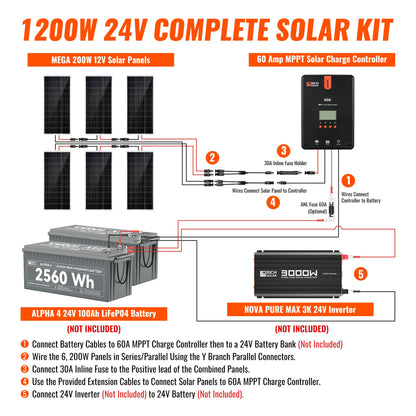

Installation requires a compatible 24V battery bank and suitable mounting surfaces. The kit includes six mounting Z-bracket sets, a 20-foot 10 AWG red solar cable, a 20-foot 10 AWG black solar cable, a 10-foot 8 AWG red battery cable, and a 10-foot 8 AWG black battery cable. The supplied solar cables connect the panels to the controller; battery cables connect the controller to the battery. Y-branch parallel adapters support panel interconnection. Keep panel surfaces, cable connections, and mounting hardware clean and secure during routine system checks.

Warranty and Service Information

Branding/References

  • Panel model: RS-M200.
  • Charge controller model: RS-MPPT60.
  • Cable references: RS-20101 and RS-810.
  • Accessory references: RS-ZB4C, RS-SC30F, and RS-Y2.

Differentiators

The kit pairs a 1200W monocrystalline array with a 60A MPPT controller rated for up to 99% tracking efficiency and 98% peak conversion efficiency, providing a matched solar charging package for 24V battery systems.
