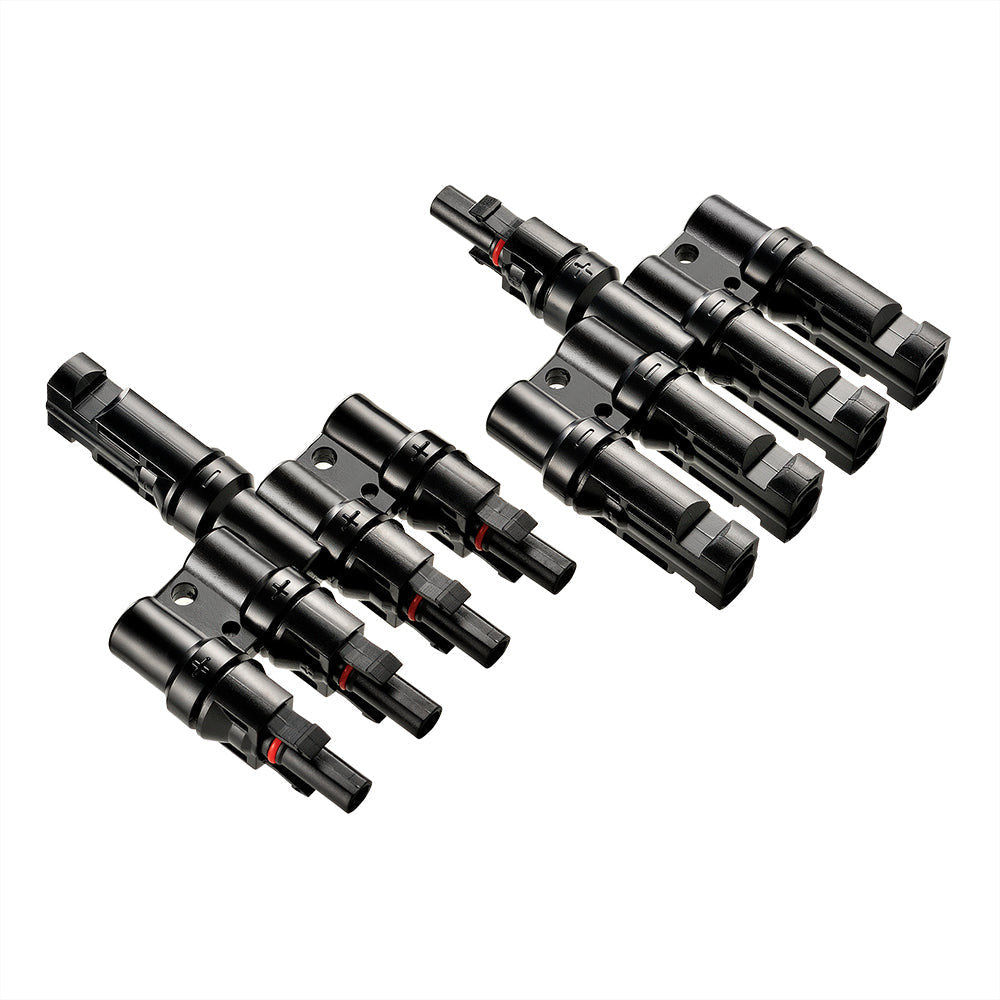

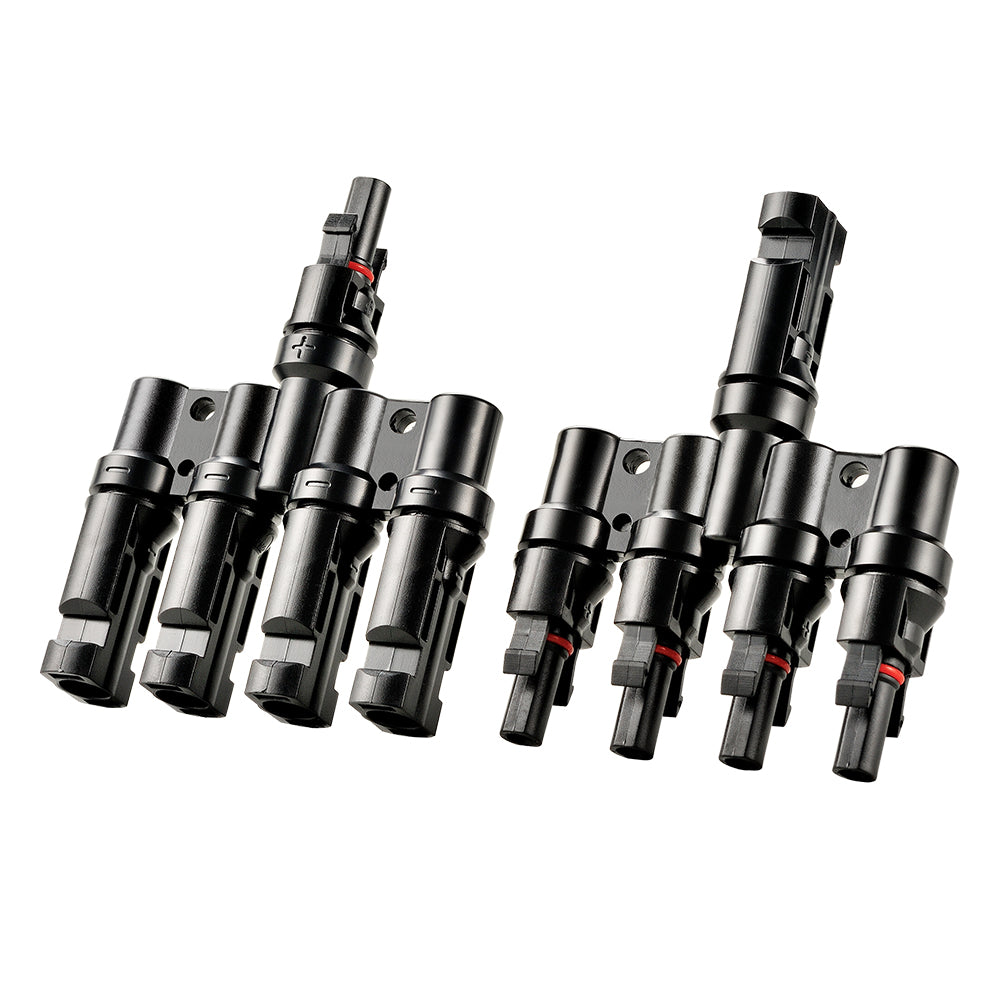

Y branch parrallel connectors 4 to 1

Y branch parrallel connectors 4 to 1

$14.39 USD
$17.99 USD $14.39 USD
Sale Sold out
Shipping calculated at checkout.

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

Packing Details

View full details

Y Branch Parallel Connectors 4 to 1

Equipment Type and Primary Applications

The Y branch parallel connector 4 to 1 combines four solar panels in a parallel connection for solar and outdoor electrical applications. Its plug-and-play design supports quick installation without extra tools, making it suitable for photovoltaic wiring arrangements that require multiple panel connections through one connector assembly.

Performance Specifications

  • Connection configuration: 4-to-1 parallel solar panel connection
  • Rated current: 30 A
  • Maximum voltage: 1,000 VDC
  • Compatible wire range: 10 AWG and 12 AWG
  • Contact material: Tinned copper
  • Insulation materials: PPO and PA
  • Operating temperature: -40°F to +194°F
  • Water and dust protection: IP67
  • Package dimensions: 7 × 8 in
  • Gross weight: 1 lb

Safety Features and Certifications

  • IP67-rated construction provides waterproof and dustproof protection for outdoor use.
  • Safety Class II design.
  • Low contact resistance supports an efficient, reliable electrical connection.

Installation and Maintenance Requirements

Connect compatible 10 AWG or 12 AWG solar wiring using the plug-and-play interface; extra installation tools are not required. Confirm that the connected circuit remains within the 30 A rated current and 1,000 VDC maximum voltage. Inspect the connector, cable interfaces, insulation, and seals during system service for damage, contamination, or compromised protection.

Warranty and Service Information

Branding/References

Product reference: Y branch parrallel connectors 4 to 1.

Differentiators

The 4-to-1 parallel format connects four solar panels through one compact connector assembly, while IP67 protection, tinned copper contacts, and a -40°F to +194°F operating range support demanding outdoor installations.
