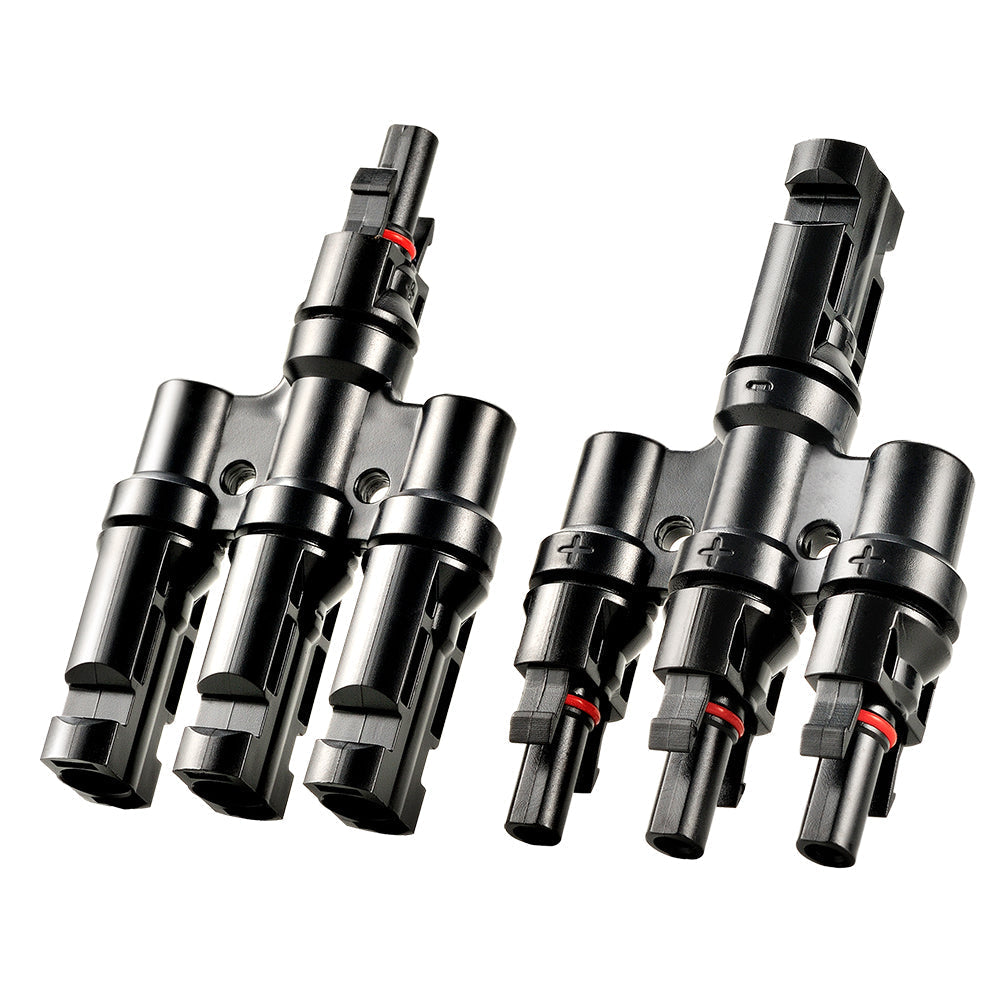

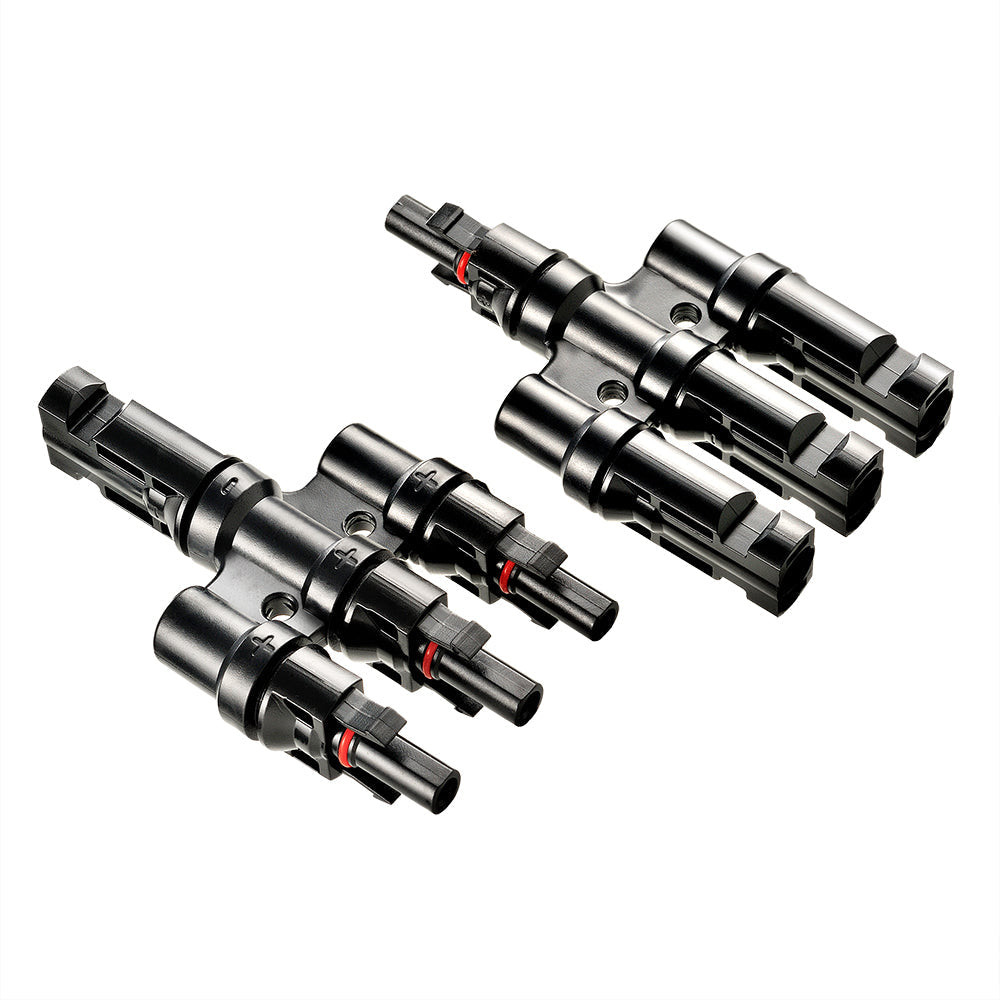

Y branch parrallel connectors 3 to 1

Y branch parrallel connectors 3 to 1

$12.79 USD
$15.99 USD $12.79 USD
Sale Sold out
Shipping calculated at checkout.

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

Packing Details

View full details

Y-Branch 3-to-1 Parallel Solar Connectors

Equipment Type: Solar panel Y-branch parallel connector set. Primary Applications: Connecting three solar panels in parallel within outdoor photovoltaic and solar power installations.

Performance Specifications

  • Parallel connection: 3 solar panels to 1 combined connection
  • Rated current: 30 A
  • Maximum voltage: 1,000 VDC
  • Compatible wire range: 10 AWG and 12 AWG
  • Operating temperature: -40°F to +194°F
  • Ingress protection: IP67 for waterproof and dustproof protection
  • Contact resistance: Low-resistance connection design for efficient current transfer
  • Insulation material: PPO + PA
  • Contact material: Tinned copper
  • Package dimensions: 5 × 8 in; gross weight: 1 lb

Safety Features and Certifications

  • Safety Class II construction
  • IP67-rated housing for outdoor exposure, water resistance, and dust protection
  • Insulated connector body with tinned copper contacts
  • Electrical rating: 30 A maximum at 1,000 VDC

Installation and Maintenance Requirements

  • Use with compatible 10 AWG or 12 AWG solar wiring and DC photovoltaic circuits.
  • Plug-and-play installation requires no extra tools.
  • Connect three solar panels in parallel through the Y-branch connectors.
  • Before operation, ensure compatible connectors are fully engaged and the circuit remains within the 30 A and 1,000 VDC ratings.
  • Maintain by checking connector engagement, cable condition, and visible contamination during routine system inspections.

Warranty and Service Information

Warranty period, coverage, service terms, and response times are not specified for this product.

Branding/References

Product reference: Y branch parallel connectors 3 to 1. Manufacturer and model number are not specified.

Differentiators

The connector combines a three-panel parallel branch configuration with IP67 protection, a -40°F to +194°F operating range, and compatibility with both 10 AWG and 12 AWG solar cable.
