• Y branch parrallel connectors 2 to 1
  • Y branch parrallel connectors 2 to 1
1 2

Y branch parrallel connectors 2 to 1

Y branch parrallel connectors 2 to 1

$10.39 USD
$12.99 USD $10.39 USD
Sale Sold out
Shipping calculated at checkout.

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

Packing Details

View full details

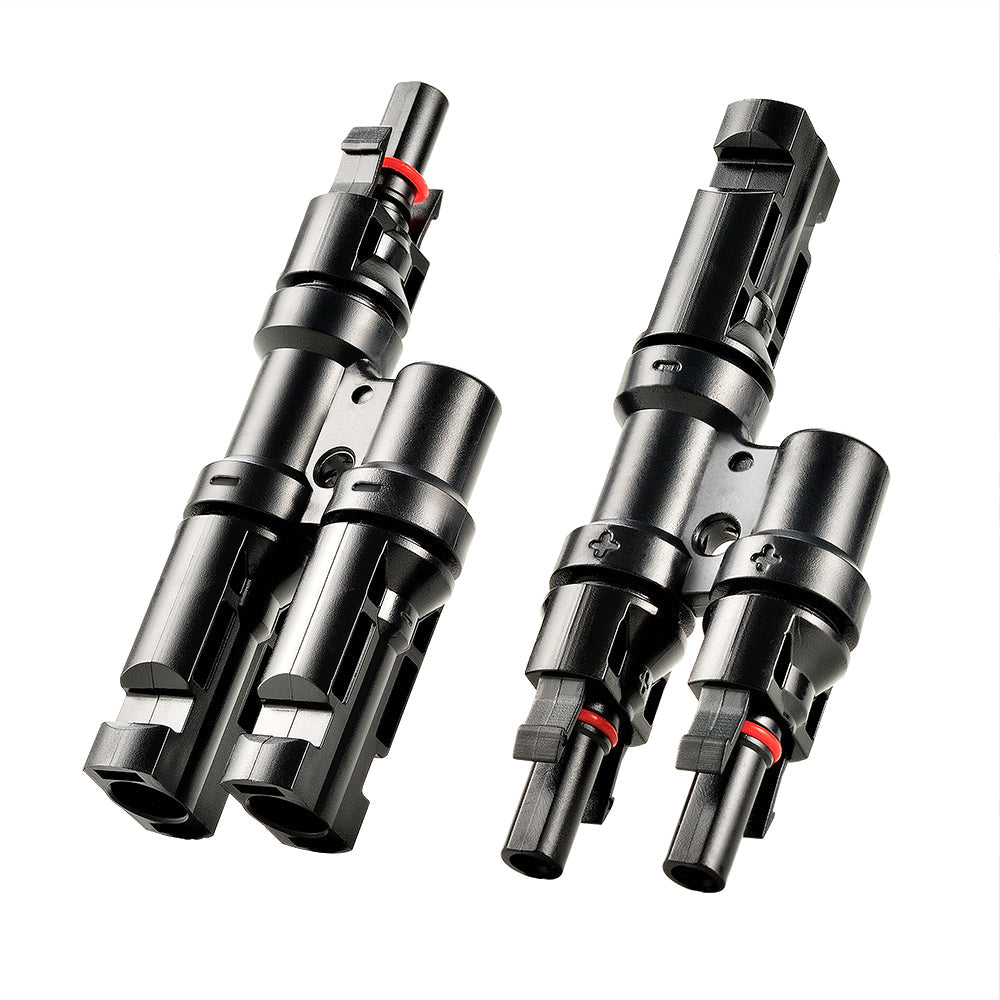

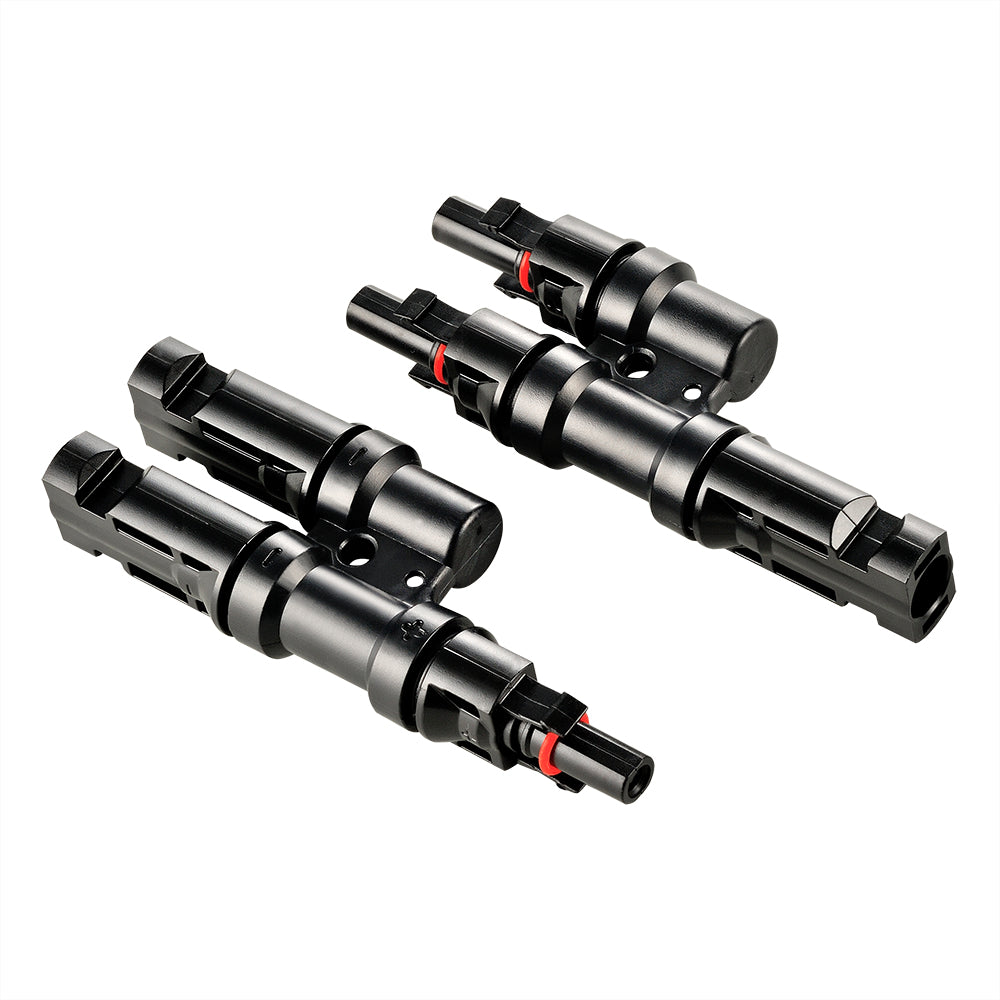

Y Branch Parallel Connectors 2 to 1

Equipment Type and Primary Applications

The Y branch parallel connector combines two solar panel connections into one parallel output for photovoltaic and outdoor electrical installations. Its plug-and-play design supports quick connection without extra tools, making it suitable for solar panel wiring where two circuits must be joined in parallel.

Performance Specifications

  • Connection format: 2-to-1 parallel solar connector
  • Rated current: 30 A
  • Maximum voltage: 1,000 VDC
  • Supported wire range: 10 AWG and 12 AWG
  • Contact material: Tinned copper
  • Insulation material: PPO + PA
  • Contact performance: Low contact resistance for efficient electrical transfer
  • Operating temperature: -40°F to +194°F
  • Ingress protection: IP67 waterproof and dustproof construction
  • Package dimensions: 4 × 8 in; gross weight: 1 lb

Safety Features and Certifications

  • Safety Class II construction
  • IP67 protection helps shield the connection from water and dust during outdoor use
  • Electrical limits: 30 A rated current and 1,000 VDC maximum voltage

Installation and Maintenance Requirements

Use compatible 10 AWG or 12 AWG conductors. Connect the two solar panel leads to the branch inputs and route the combined output through the solar circuit. The tool-free plug-and-play format supports straightforward installation. Before energizing, confirm that each connector is fully seated and the cable connection is secure. Inspect the housing, contacts, and cable entries for damage, contamination, or looseness during system servicing.

Warranty and Service Information

Branding/References

Product reference: Y branch parrallel connectors 2 to 1.

Differentiators

This connector combines 30 A current handling, 1,000 VDC maximum voltage, IP67 outdoor protection, and a -40°F to +194°F operating range in a compact 2-to-1 parallel connection format.
