Y branch parrallel adapters 4 to 1

Y branch parrallel adapters 4 to 1

$14.39 USD
$17.99 USD $14.39 USD
Sale Sold out
Shipping calculated at checkout.

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

Packing Details

View full details

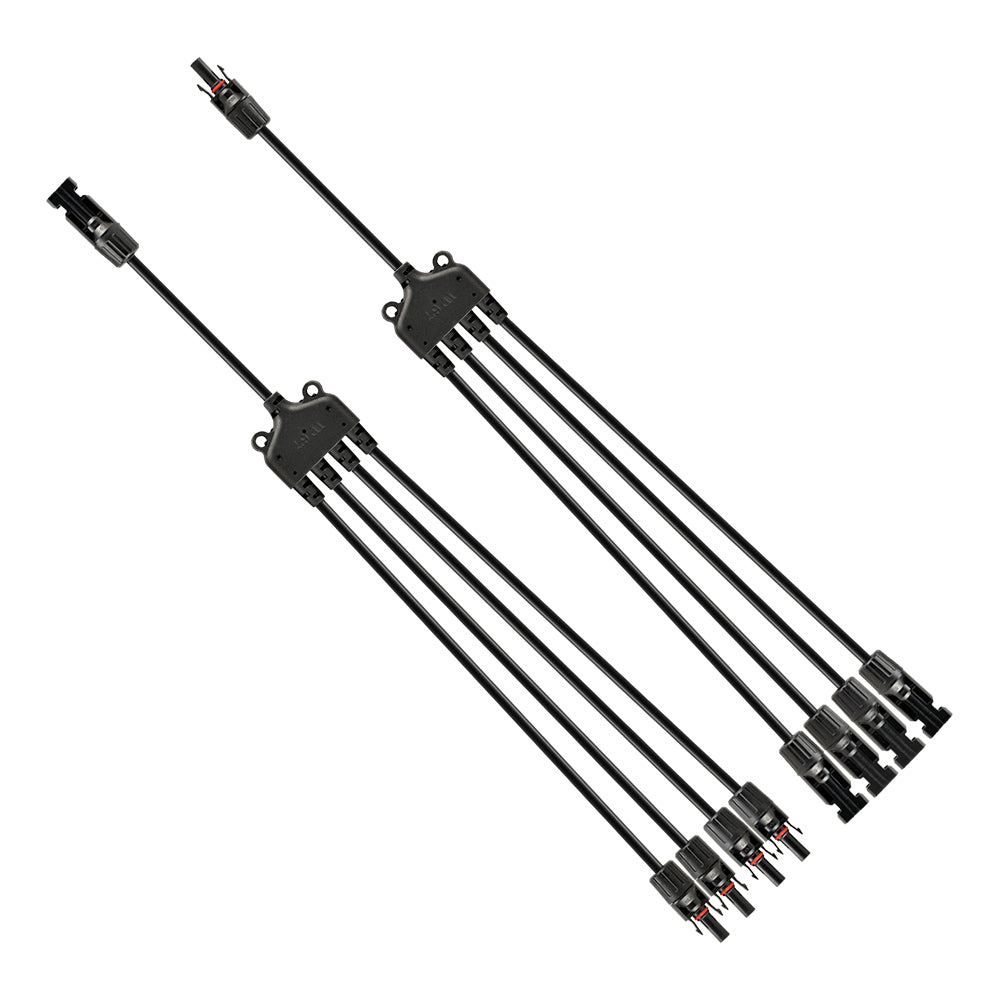

Equipment Type and Primary Applications: 4-to-1 Y-Branch Parallel Solar Adapter

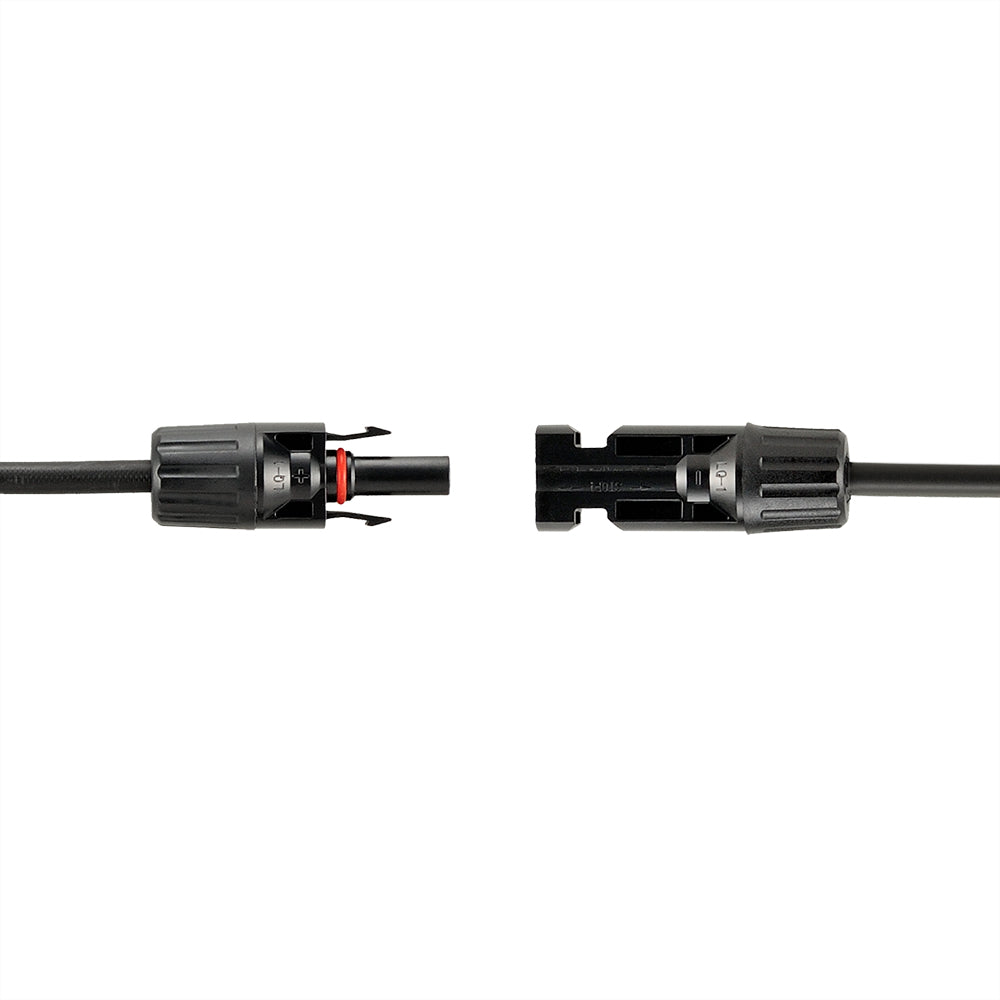

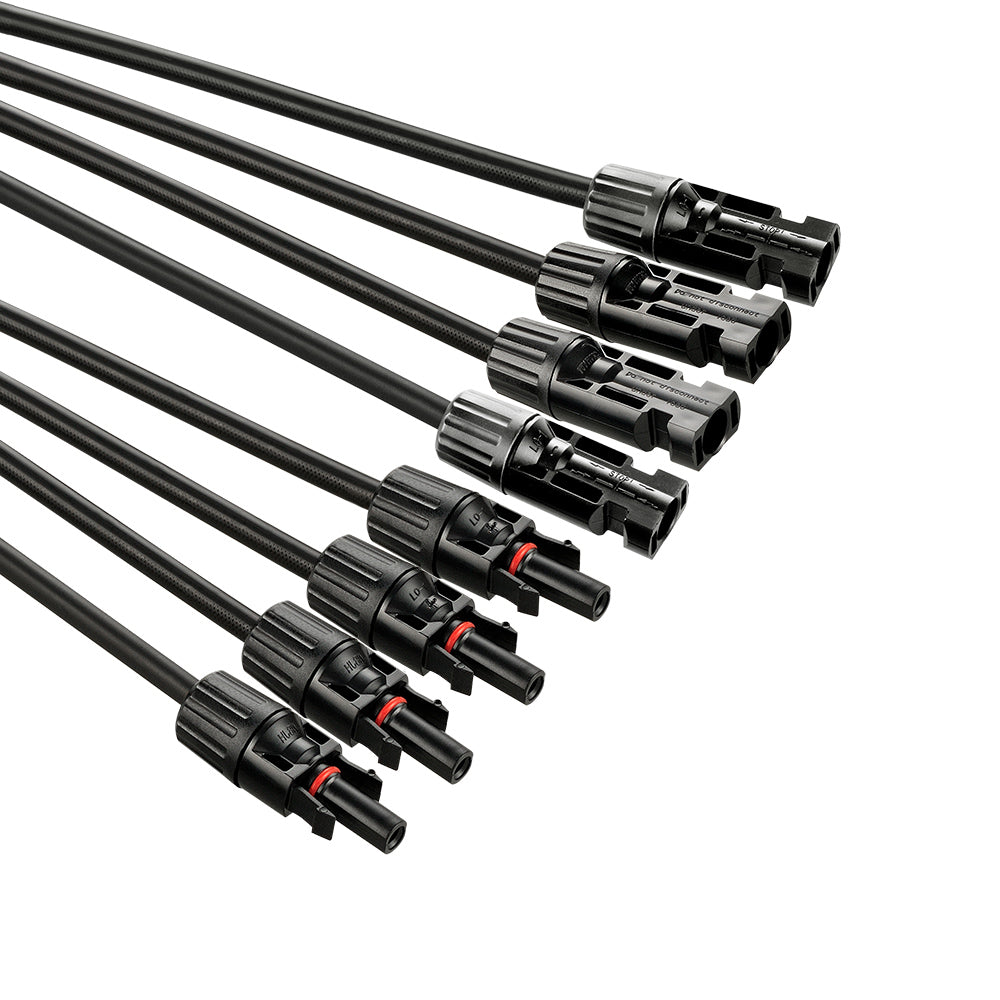

This 4-to-1 parallel adapter connects two solar panels in parallel to a single output, simplifying solar array wiring for RVs, campers, off-grid systems, and portable solar installations. It uses standard solar connectors with MC4 compatibility and supports quick connection or removal without special tools.

Performance Specifications

  • Adapter type: 4-to-1 parallel adapter
  • Rated current: 20 A
  • Maximum voltage: 1,000 V DC
  • Protection rating: IP67 for resistance to water, dust, and outdoor exposure
  • Compatible wire size: 12 AWG
  • Contact material: tin-plated copper
  • Insulation materials: TPE / PPO
  • Operating temperature: -40°F to 194°F

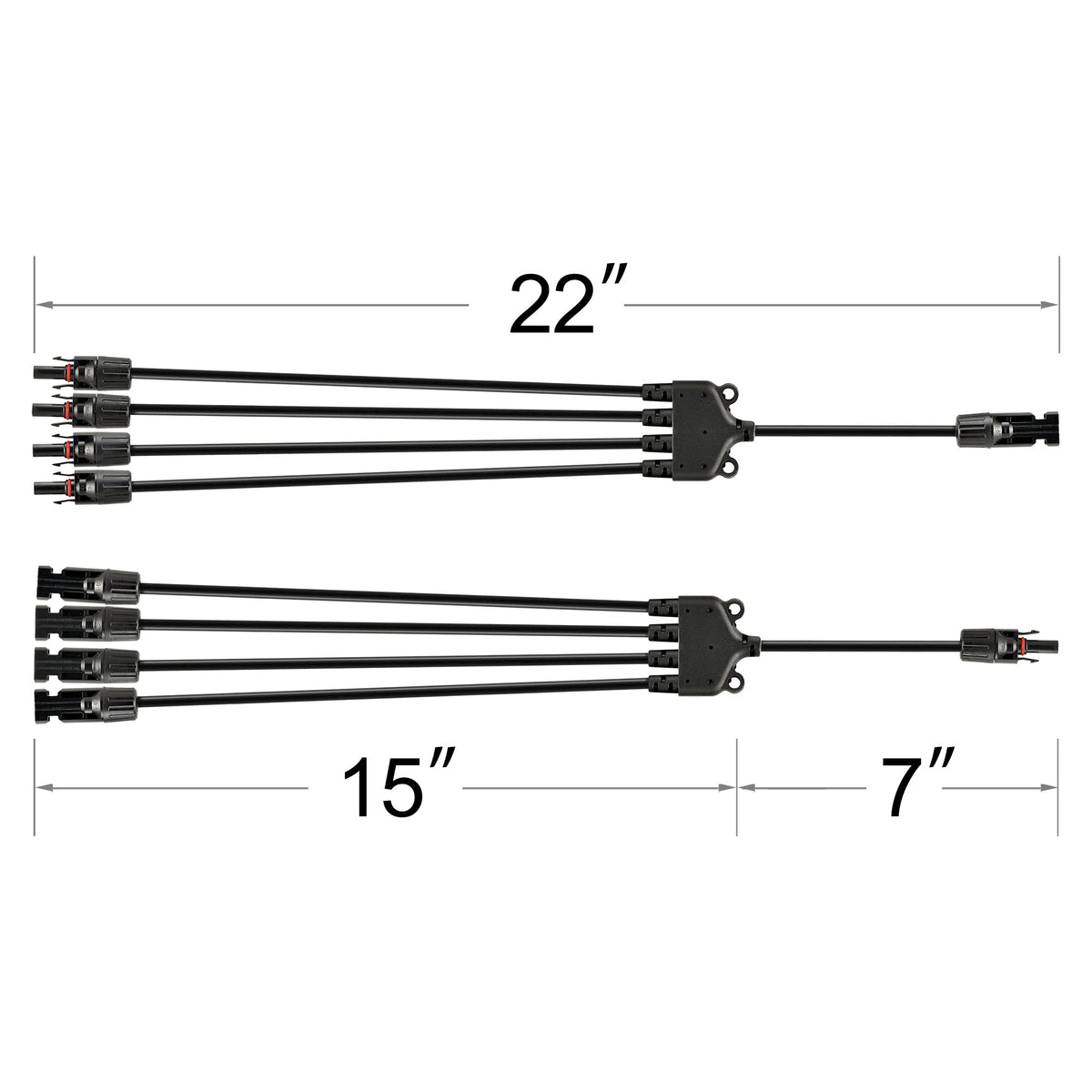

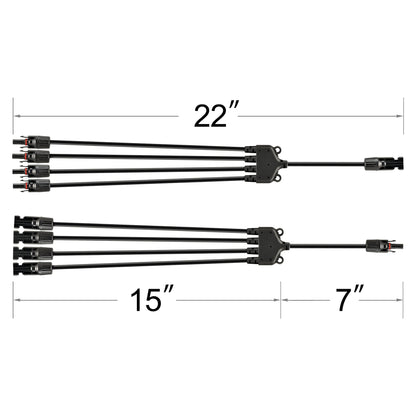

  • Package dimensions: 6 × 25 in
  • Gross weight: 1 lb

Safety Features and Certifications

The adapter uses durable insulation, tin-plated copper conductors, and a sealed IP67 housing for outdoor solar applications. Safety Class II construction is specified. The supplied product details identify no additional certification marks or standards.

Installation and Maintenance Requirements

Installation requires compatible standard solar connectors and 12 AWG wiring. The plug-and-play design supports tool-free connection and removal. Use the adapter within its 20 A rated current, 1,000 V DC maximum voltage, and -40°F to 194°F operating range. Maintain the connector assembly by keeping mating contacts and the weatherproof enclosure clean and intact.

Warranty and Service Information

Branding/References

Differentiators

Its combination of 4-to-1 parallel configuration, MC4-compatible connectors, 1,000 V DC maximum voltage, and IP67 weather protection provides a compact connection solution for portable and permanent outdoor solar wiring.
