Y branch parrallel adapters 3 to 1

Y branch parrallel adapters 3 to 1

$12.79 USD
$15.99 USD $12.79 USD
Sale Sold out
Shipping calculated at checkout.

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

Packing Details

View full details

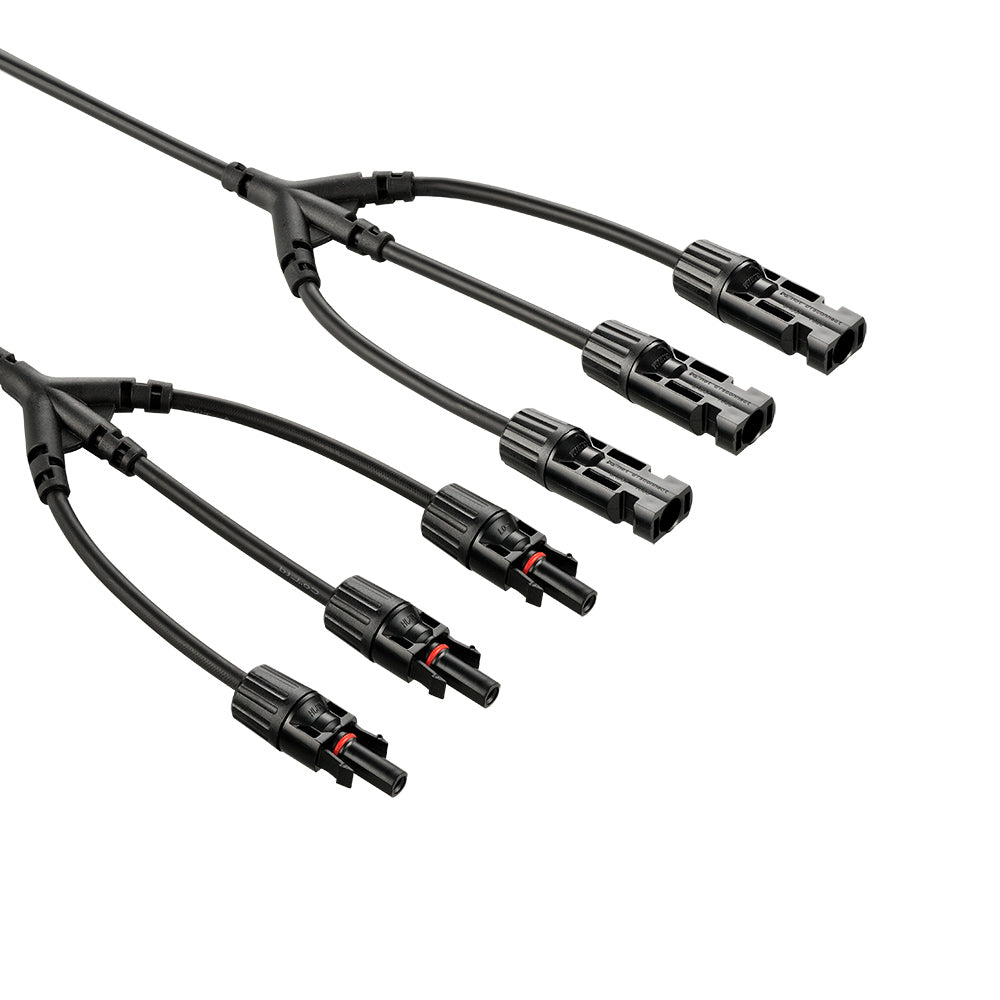

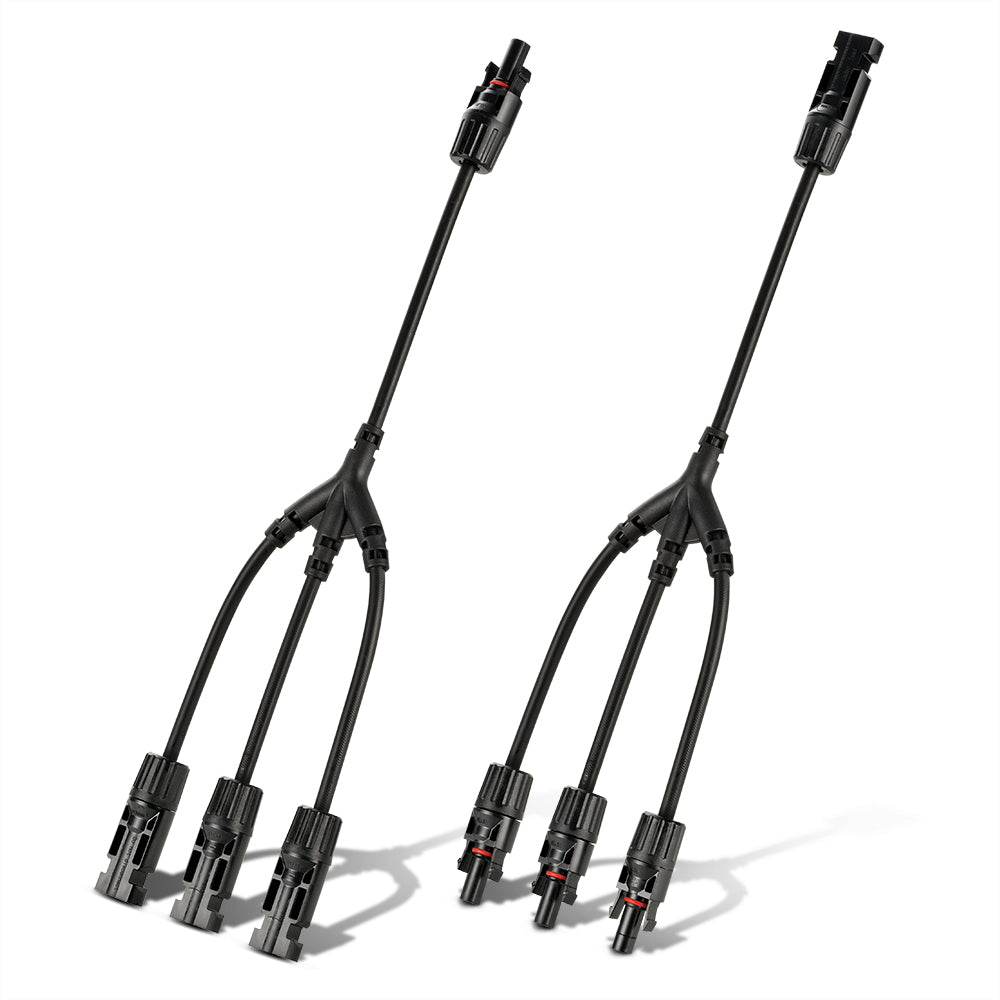

Y Branch Parallel Adapters 3 to 1

Equipment Type and Primary Applications

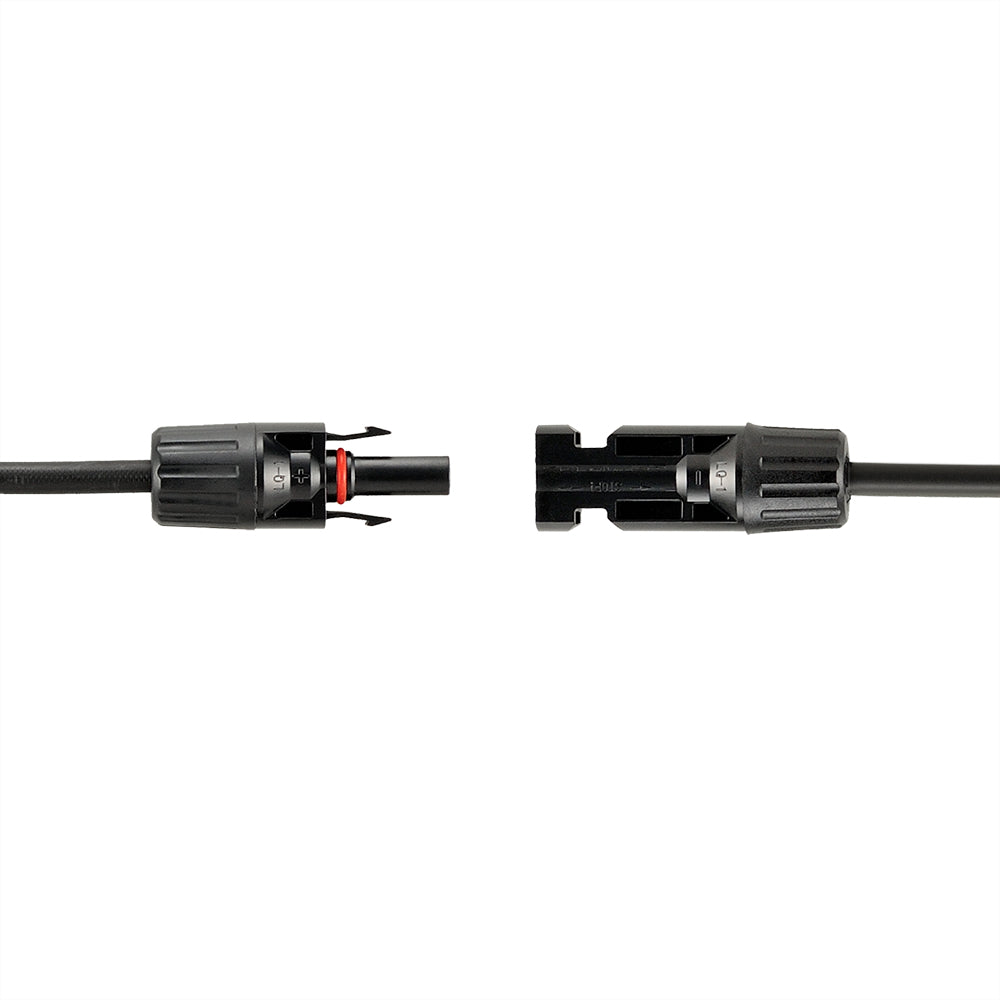

The Y branch parallel adapter connects two solar panels in parallel to a single output, simplifying solar wiring for RVs, campers, off-grid systems, and portable solar installations. Its MC4-compatible connectors support use with standard solar connectors for quick panel integration without special tools.

Performance Specifications

  • Adapter type: 3-to-1 parallel adapter
  • Rated current: 20 A
  • Maximum voltage: 1,000 V DC
  • Compatible wire size: 12 AWG
  • Contact material: tin-plated copper
  • Insulation material: TPE / PPO
  • Operating temperature: -40°F to 194°F
  • Protection rating: IP67 for resistance to water, dust, and outdoor conditions

Safety Features and Certifications

  • Safety Class II construction
  • IP67 weatherproof housing for outdoor solar applications
  • Durable insulation and tin-plated copper contacts support dependable electrical connections

Installation and Maintenance Requirements

Use with compatible standard solar connectors and 12 AWG wiring. Connect the adapter to the solar panel leads by hand, without special tools, and remove it using the same plug-and-play method. Maintain the connection by keeping connector interfaces clean and checking the insulation, contacts, and housing for visible damage before use.

Warranty and Service Information

Branding/References

Product reference: Y branch parrallel adapters 3 to 1. Connector reference: MC4 compatible.

Differentiators

This adapter combines a 3-to-1 parallel configuration with 1,000 V DC maximum voltage, 20 A rated current, IP67 weather protection, and a wide -40°F to 194°F operating range for demanding portable and off-grid solar installations.
