Y branch parrallel adapters 2 to 1

Y branch parrallel adapters 2 to 1

$11.19 USD
$13.99 USD $11.19 USD
Sale Sold out
Shipping calculated at checkout.

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

Packing Details

View full details

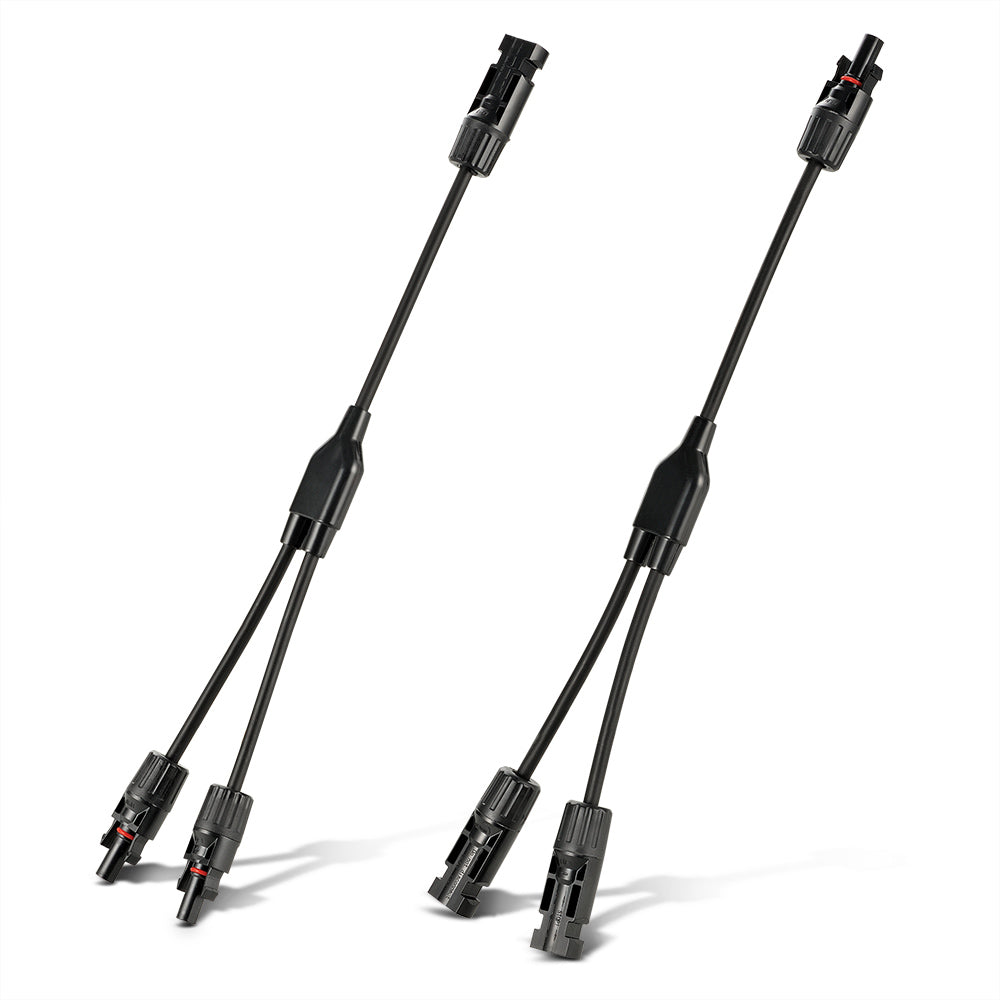

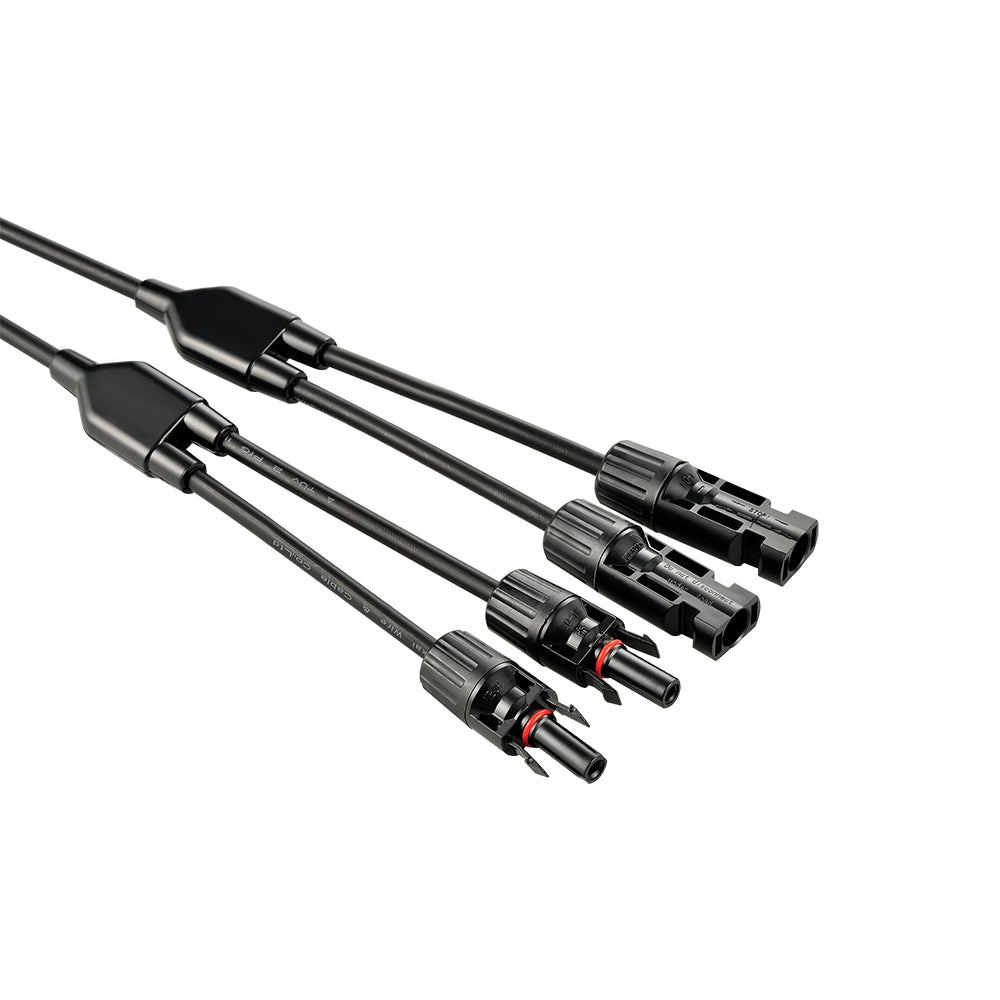

Y Branch 2-to-1 Parallel Solar Panel Adapter

Equipment Type: 2-to-1 solar panel parallel adapter. Primary Applications: Connects two solar panels in parallel to a single output for RVs, campers, off-grid systems, and portable solar installations.

Performance Specifications

  • Rated current: 20 A
  • Maximum voltage: 1,000 V DC
  • Compatible wire size: 12 AWG
  • Contact material: tin-plated copper
  • Insulation materials: TPE and PPO
  • Operating temperature: -40°F to 194°F
  • Protection rating: IP67 for resistance to water, dust, and outdoor conditions

Safety Features and Certifications

  • Safety Class II design
  • IP67 protection rating for outdoor exposure
  • Insulated construction with tin-plated copper contacts

Installation and Maintenance Requirements

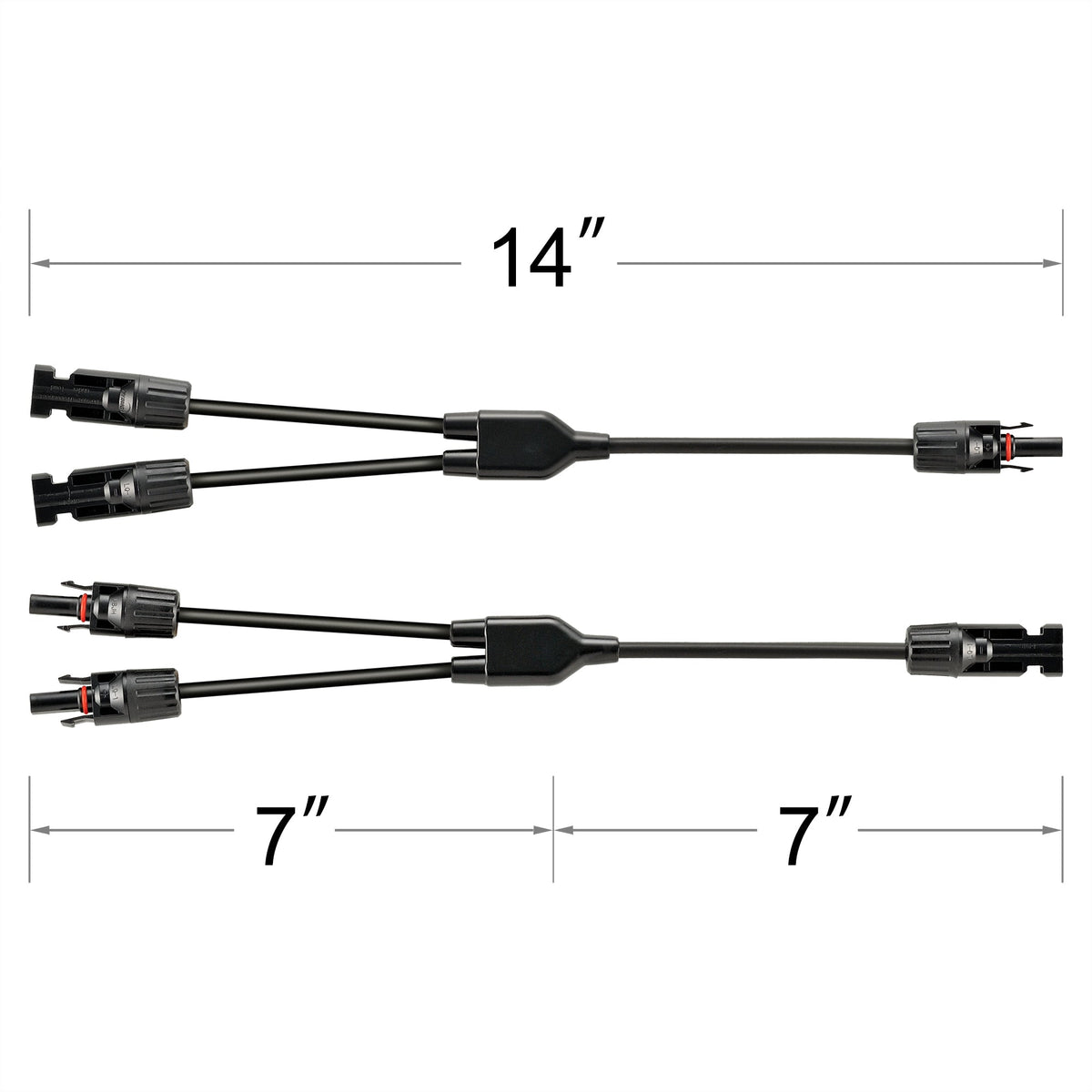

The adapter uses standard solar connectors and is MC4 compatible. Connect two compatible solar panels to the parallel inputs and use the single output connection for the solar system. Plug-and-play construction supports quick installation and removal without special tools. The adapter is suitable for outdoor solar equipment operating within the stated temperature range. Package dimensions are 6 × 21 in, with a gross weight of 1 lb.

Warranty and Service Information

Branding/References

Product reference: Y branch 2-to-1 parallel adapter.

Differentiators

This adapter combines two solar panel connections into one output while supporting up to 20 A and 1,000 V DC. Its MC4-compatible interface, IP67 protection, TPE/PPO insulation, and tin-plated copper conductors provide a tool-free connection solution for portable and fixed outdoor solar configurations.
