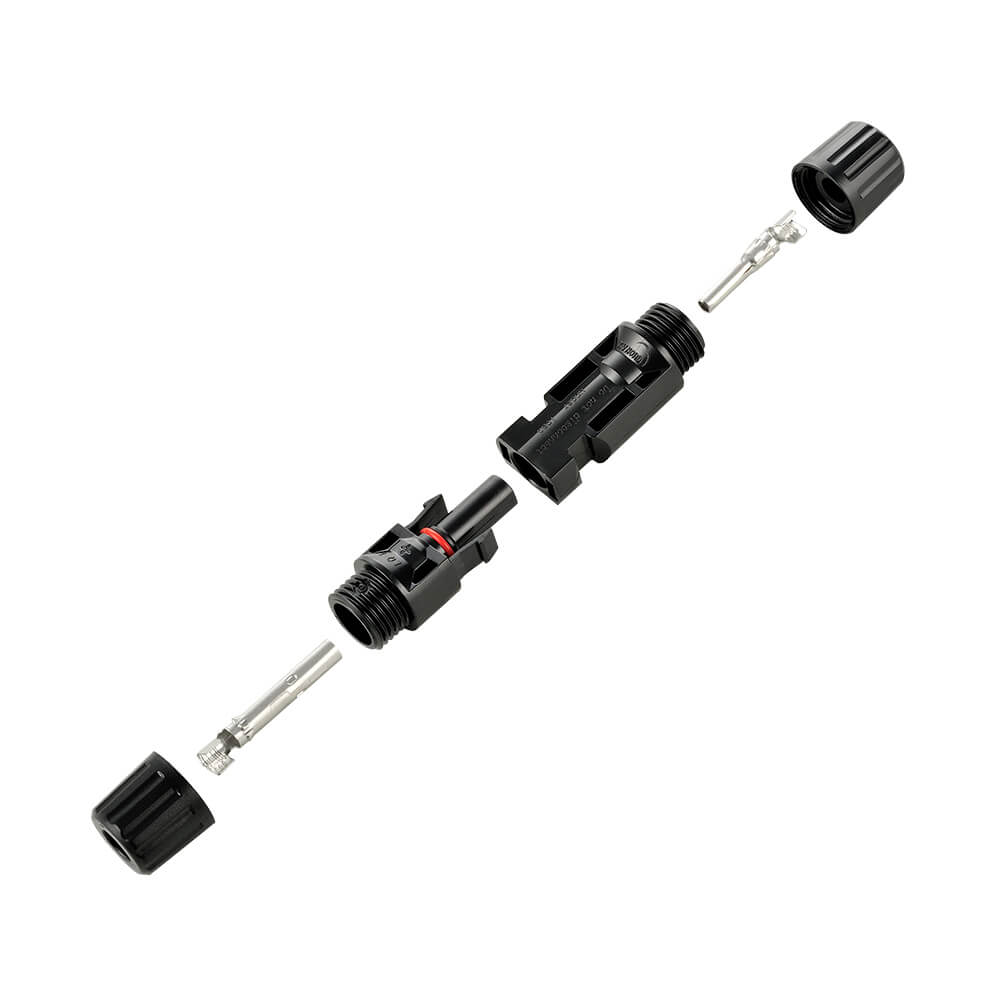

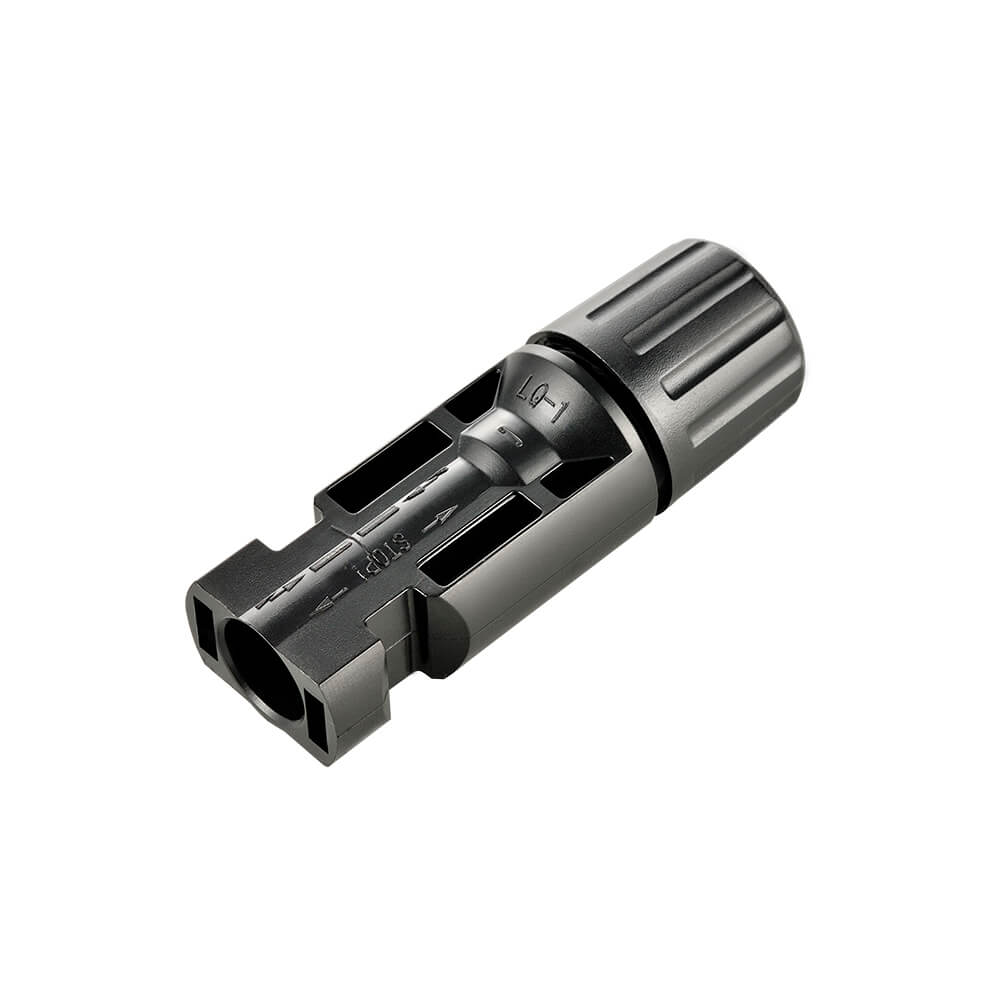

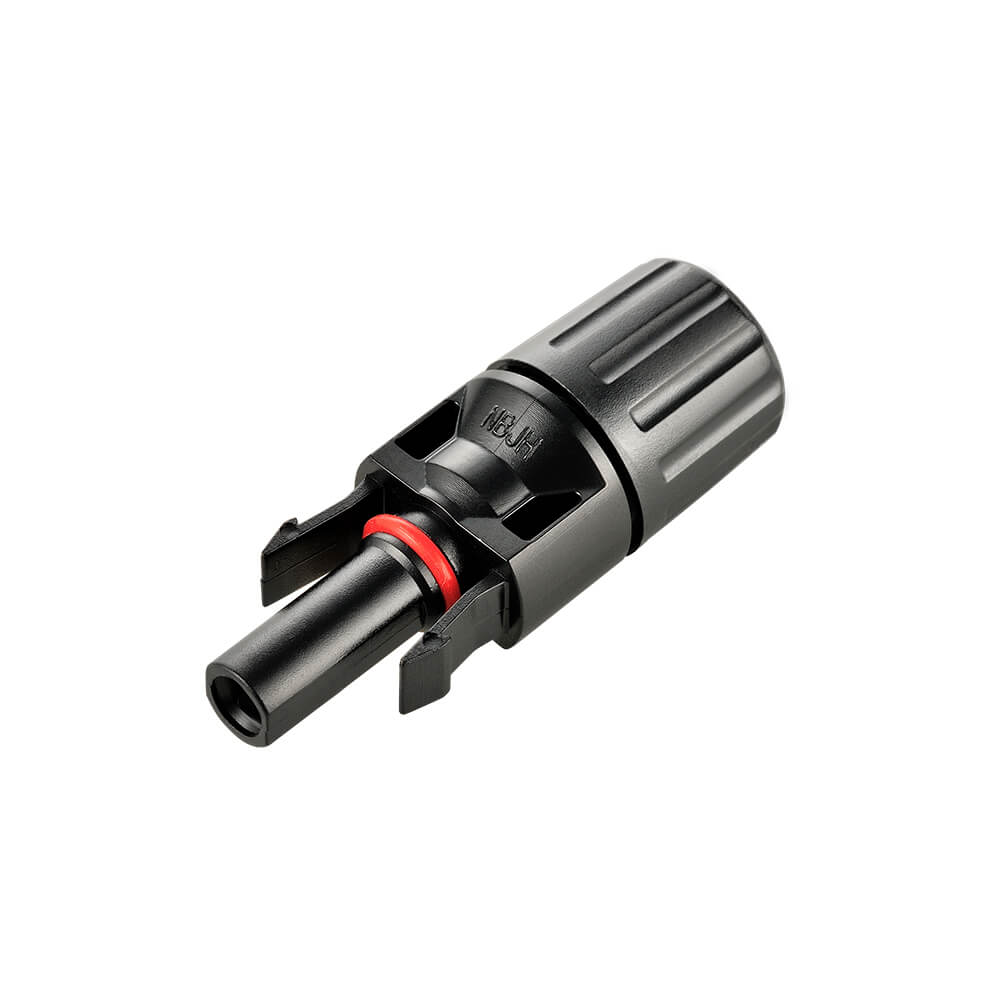

Solar Connectors – 30A, 1000V DC, IP67
Equipment Type and Primary Applications

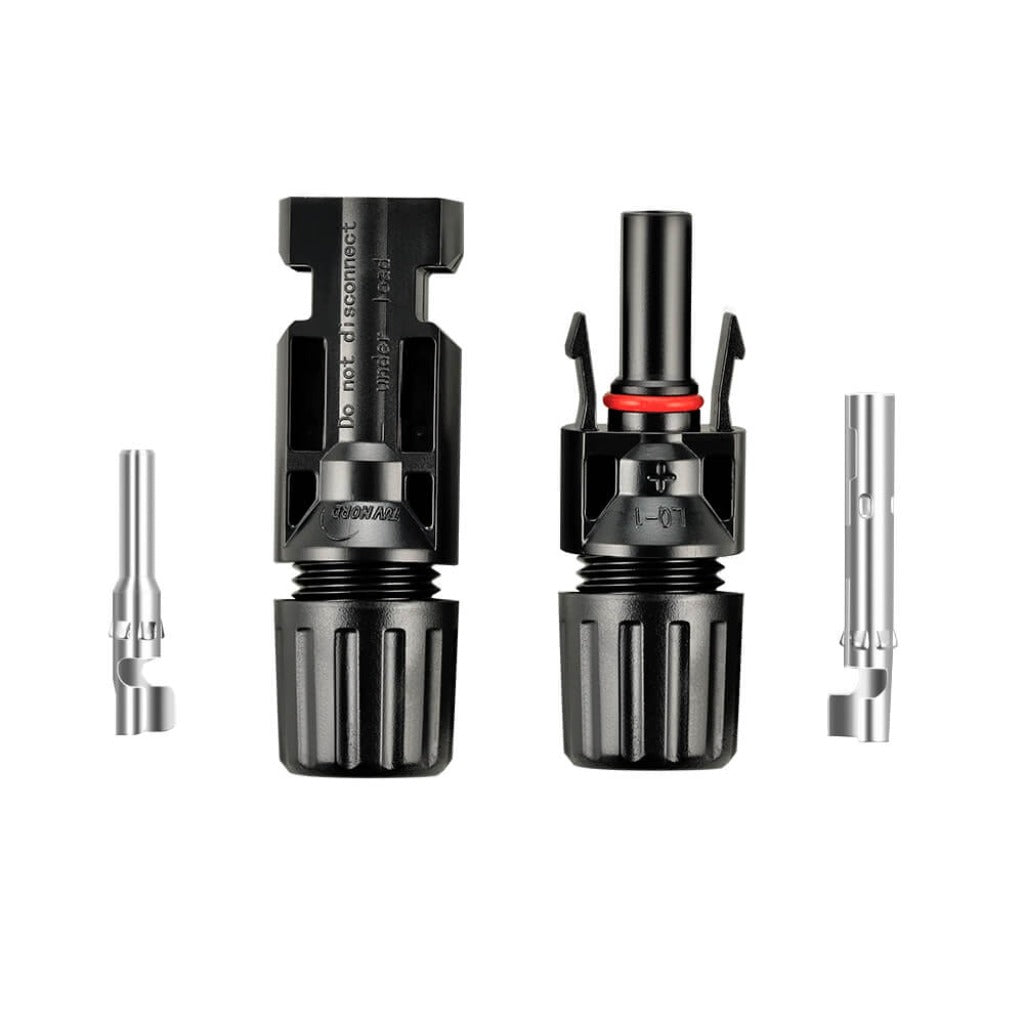

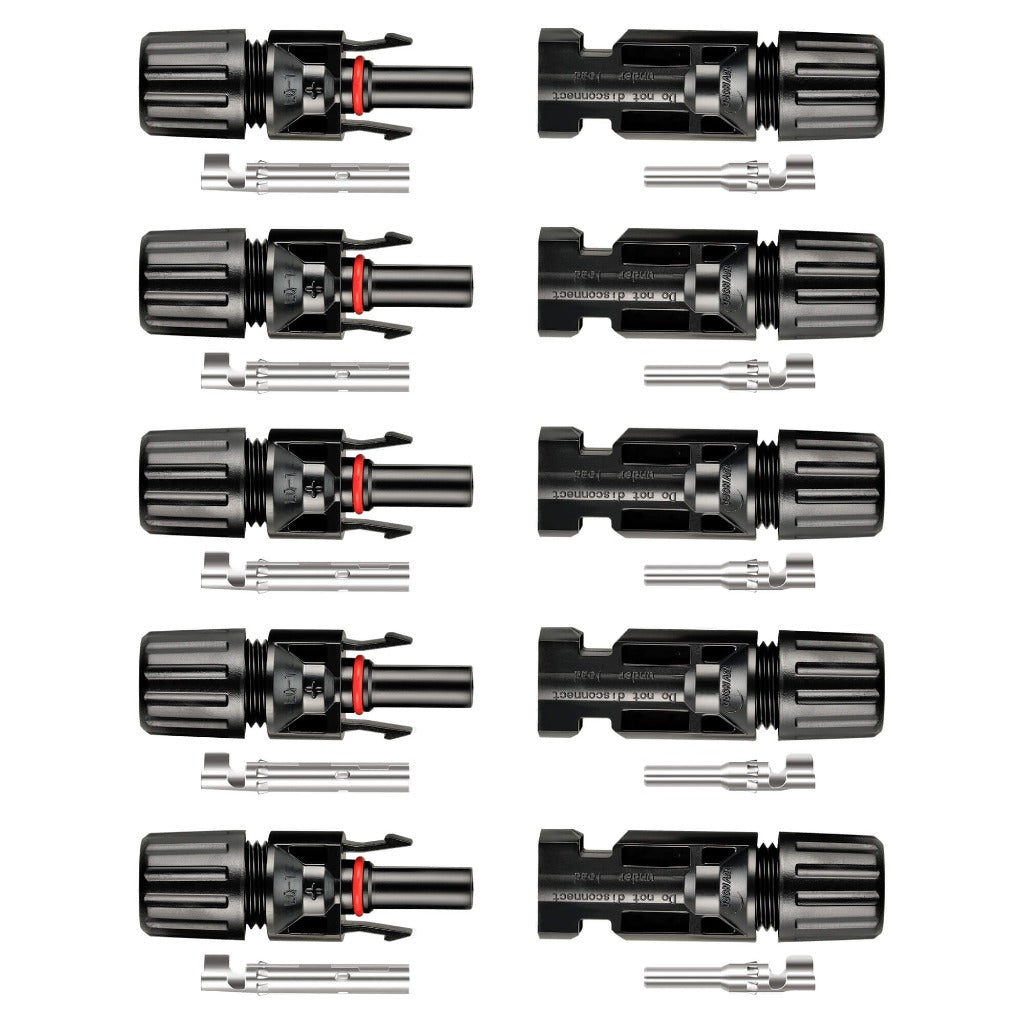

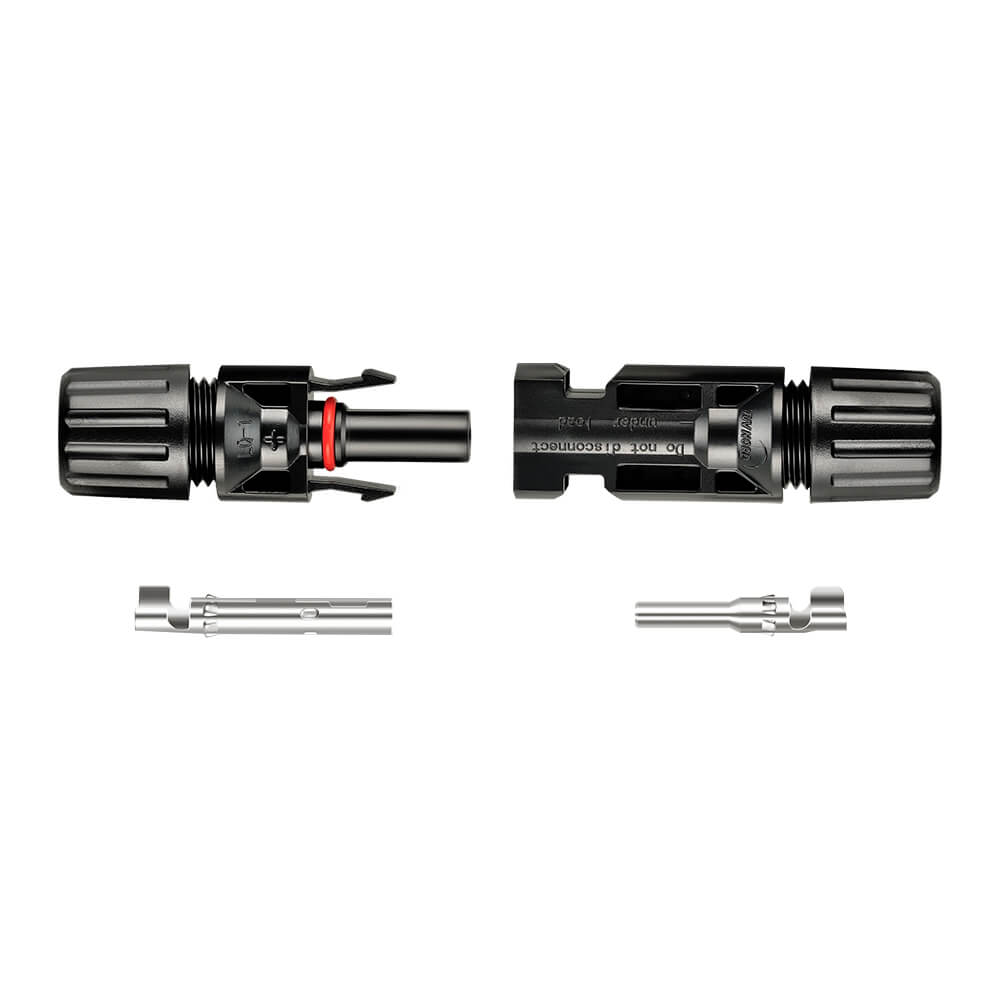

Photovoltaic cable connectors for creating secure electrical connections between solar panels, extension cables, RV solar systems, and off-grid installations. Each package includes five female connectors and five male connectors. The connectors are compatible with standard MC4-compatible solar connector systems.
Performance Specifications
- Rated current: 30A
- Maximum voltage: 1000V DC
- Protection rating: IP67
- Compatible wire sizes: 10AWG and 12AWG
- Contact material: tin-plated copper
- Insulation material: PA/PC
- Operating temperature: -40°F to 194°F
- Package dimensions: 4 × 8 in
- Gross weight: 1 lb
The IP67 enclosure helps protect the connection against water, dust, and demanding outdoor conditions during photovoltaic system use.
Safety Features and Certifications
- IP67-rated weather protection for outdoor solar applications
- Insulated PA/PC housing and tin-plated copper contacts
- Rated for electrical systems up to 30A and 1000V DC
Installation and Maintenance Requirements
Use with compatible 10AWG or 12AWG solar cable. Tool-free assembly and disconnection support fast installation without special tools. Maintain secure, clean connections and inspect the connector housing and contacts during system servicing.
Warranty and Service Information
Branding/References
Product type: Solar Connectors. Compatibility reference: MC4 compatible.
Differentiators
The connector set combines 30A and 1000V DC electrical ratings with IP67 weather protection, tool-free installation, and compatibility with two common solar wire sizes.
