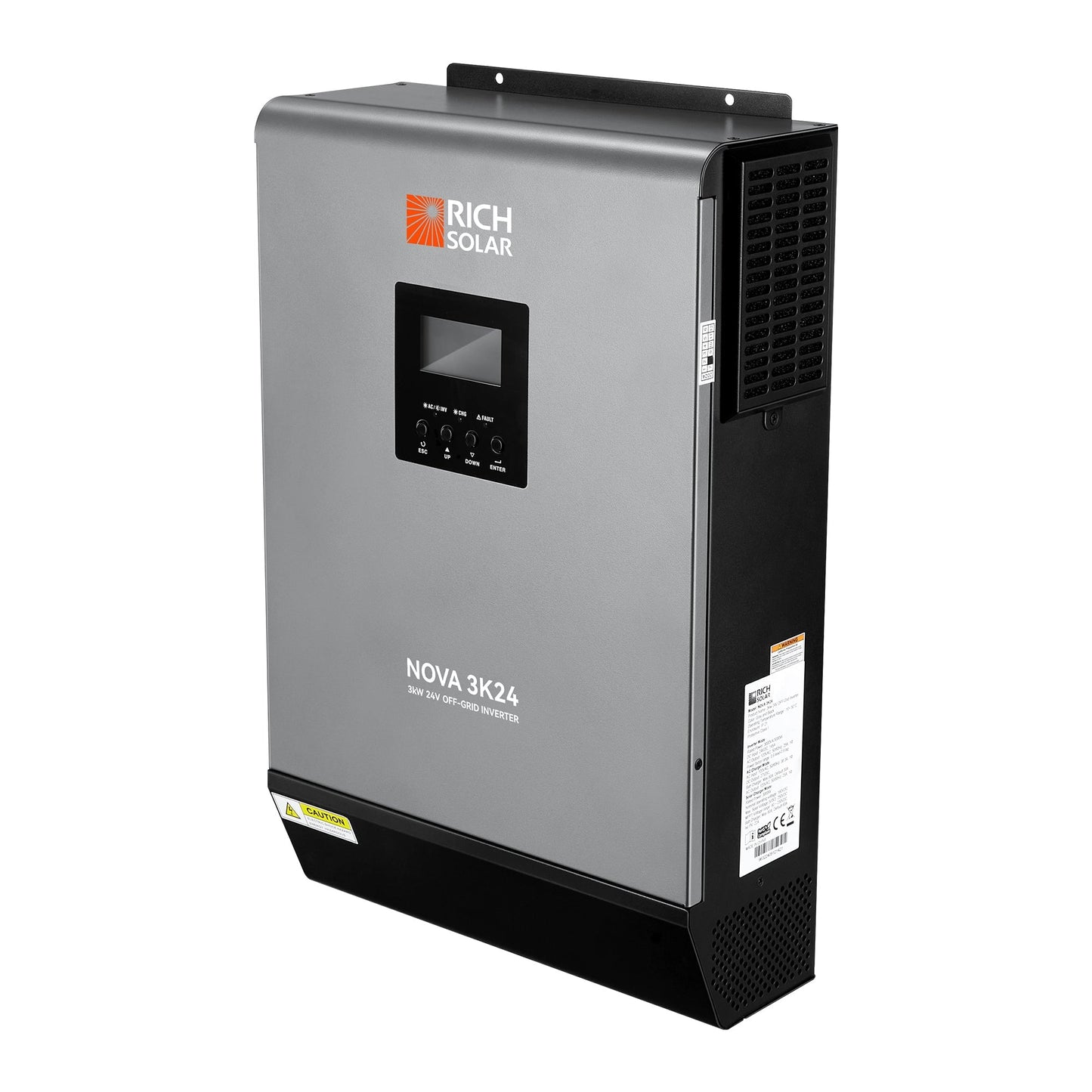

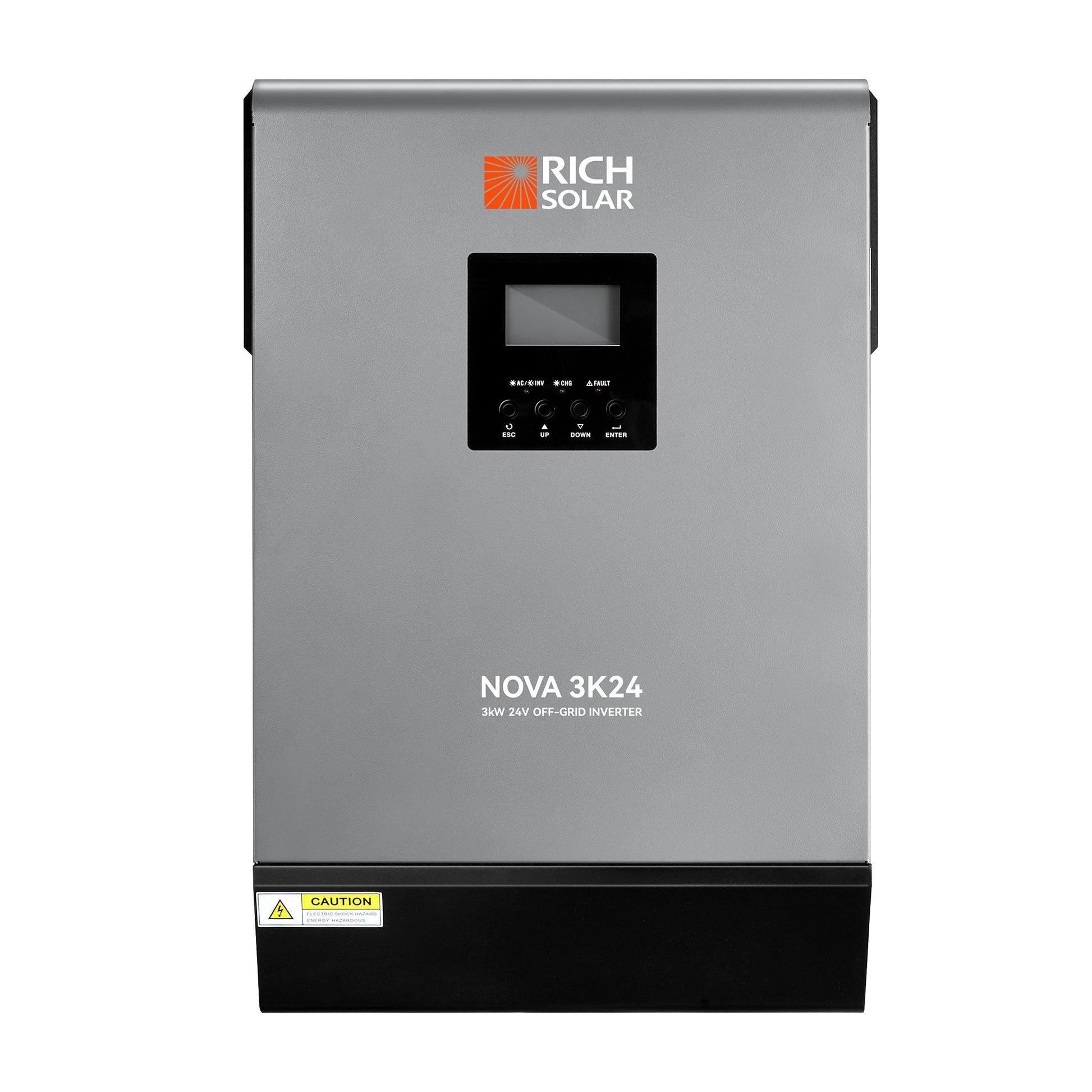

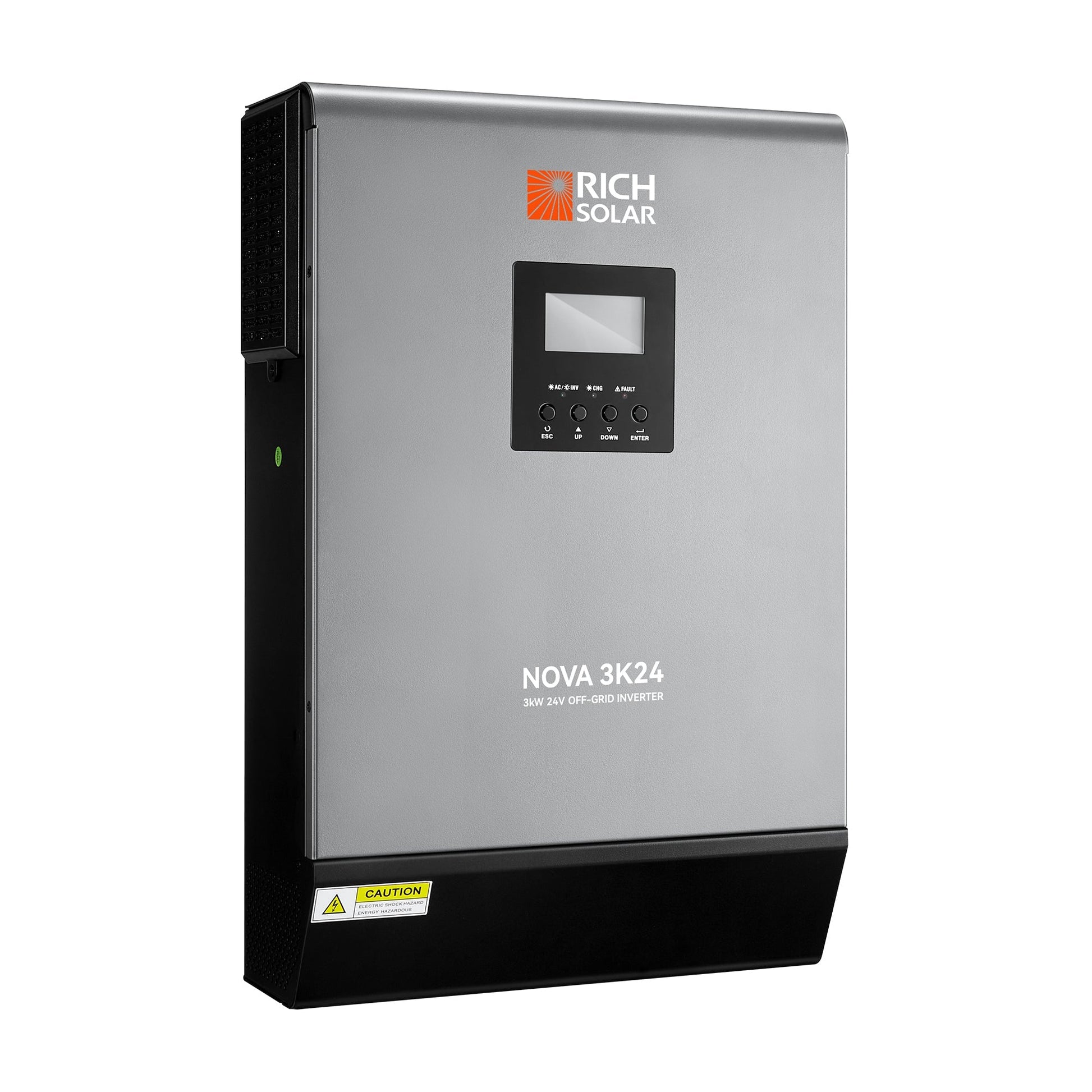

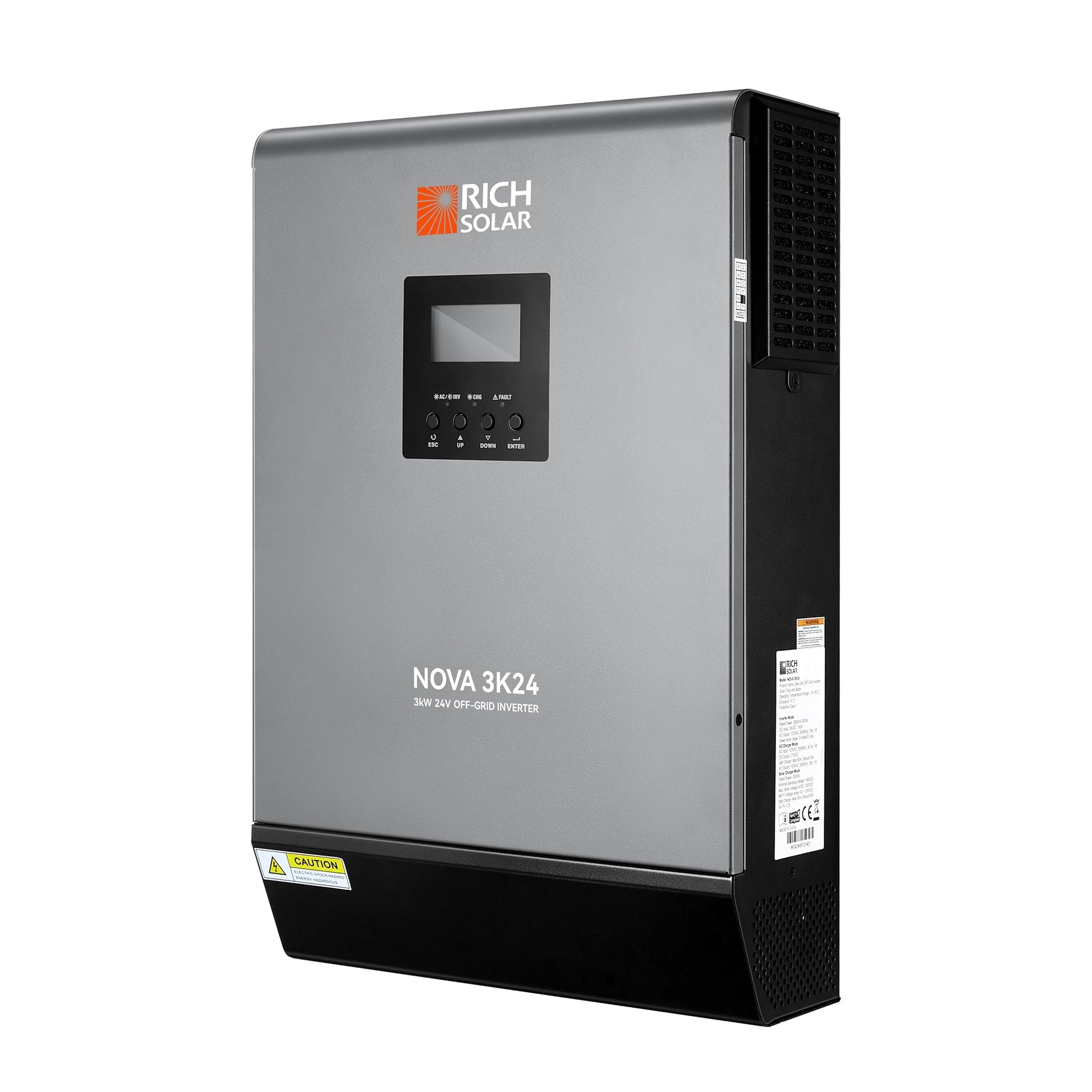

Rich Solar NOVA MAX 3K | 3000W 24V Hybrid Inverter

The Rich Solar NOVA MAX 3K is a 3000 W, 24 V off-grid hybrid solar inverter engineered for mobile and remote power needs. It delivers pure sine wave AC suitable for sensitive electronics on RVs, trailers, campers, vans, trucks, overlanders, and boats, while integrating solar charging and battery management in a single enclosure.

Featuring a built-in MPPT solar charge controller and a configurable LCD interface, the NOVA 3K optimizes battery performance while prioritizing AC or solar input according to your setup. It supports mains or generator power, auto-restarts when AC returns, and provides protection against overload, temperature, and short circuits.

Key specifications

• Model: NOVA 3K24
• Rated Output Power: 3 KVA / 3 KW
• Output Voltage: 120 VAC ±5%
• Output Frequency: 60 Hz / 50 Hz
• Peak Efficiency: 91%
• Surge Capacity: 2× rated power for 5 s
• Nominal DC Voltage: 24 VDC
• Solar Input: Max PV Open-Circuit Voltage 250 VDC
• MPPT Voltage Range: 90–230 VDC
• Max Input Current: 18 A
• Dimensions (D×W×H): 5.6 × 12.1 × 18.8 in
• Net Weight: 26.5 lb (12 kg)

Key features

• Pure Sine Wave output
• Built-in MPPT solar charge controller

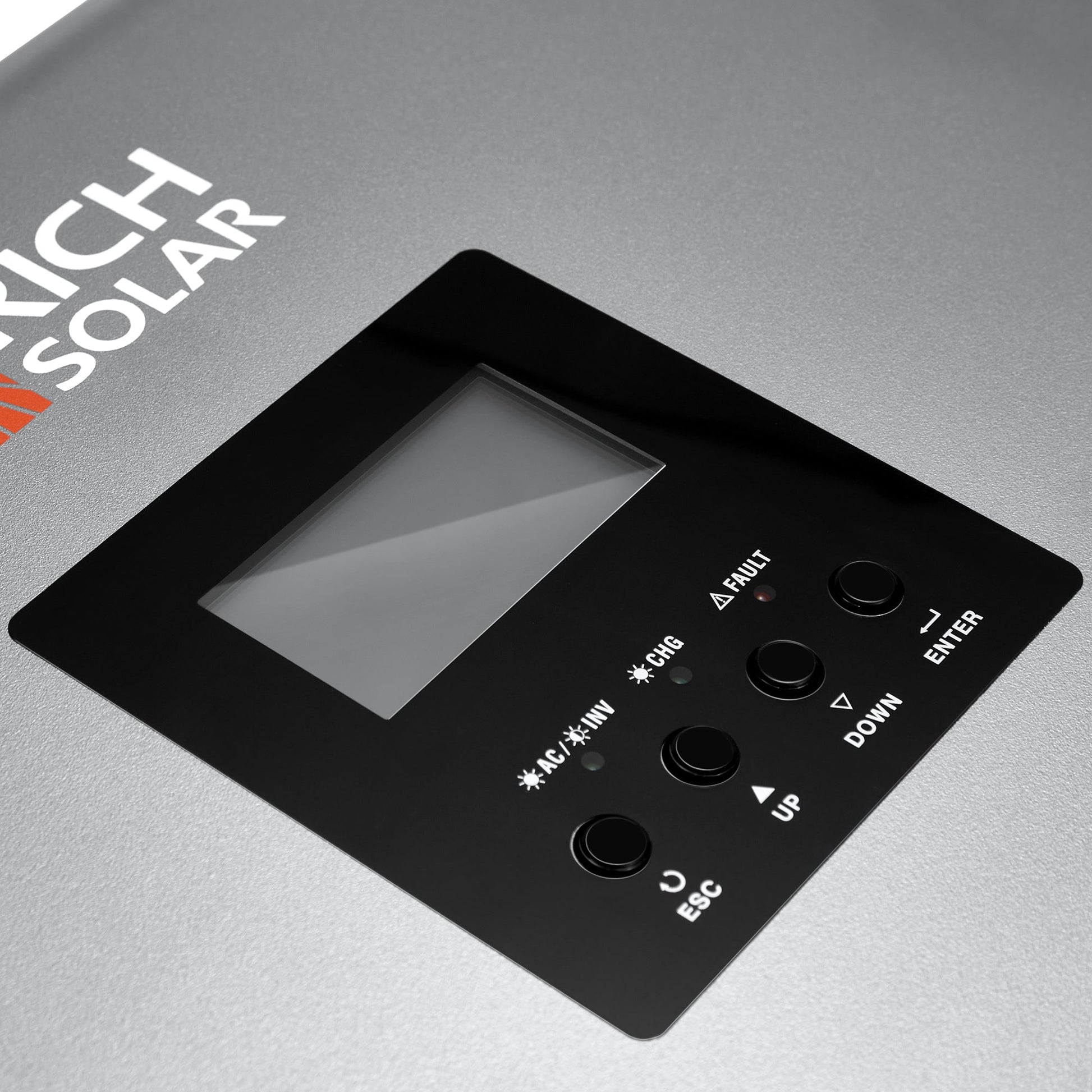

• LCD-based configurability: input voltage range, charging current, and AC/Solar priority
• Mains or generator compatibility
• Auto restart after AC recovery
• Overload, over-temperature, and short-circuit protection
• Smart battery charger design for optimized battery health
• Cold start capability for challenging conditions

Applications and benefits

Ideal for mobile power systems where reliable 120 VAC power is needed away from shore power. Use in recreational vehicles, trailers, camper vans, pickup trucks, overland expeditions, and marine vessels to simplify power management while leveraging solar input for extended off-grid operation.

Installation and maintenance

Installation and maintenance details are provided in the user manual. The unit is designed for ventilated mounting and requires a suitable 24 V battery bank and appropriate AC distribution. Refer to the manual for wiring guidelines, safety precautions, and routine inspection intervals.

NOVA MAX 3K | 3000 Watt (3kW) 24 Volt Off-Grid Hybrid Solar Inverter | Powerful 3000W 24V Hybrid Inverter for RVs, Trailers, Campers, Vans, Trucks, Overlanders, Boats | #1 Ranked 24V Hybrid Inverter

FEATURES

• Pure Sine Wave Inverter
• Built-in MPPT solar charge controller
• Configurable input voltage range for home appliances and
  personal computers via LCD setting
• Configurable battery charging current based on applications via
  LCD setting
• Configurable AC/Solar Charger priority via LCD setting
• Compatible to mains voltage or generator power
• Auto restart while AC is recovering
• Overload / Over temperature / short circuit protection
• Smart battery charger design for optimized battery performance
• Cold start function

SPECIFICATIONS

INVERTER

Model: NOVA 3K24
Rated Output Power: 3KVA / 3KW
Output Voltage Waveform: Pure Sine Wave
Output Voltage Regulation: 120 VAC±5%
Output Frequency: 60Hz / 50Hz
Peak Efficiency: 91%
Surge Capacity: 2* rated power for 5s
Nominal DC Voltage: 24 VDC

SOLAR INPUT

Max. PV Array Open Circuit Voltage: 250 VDC
PV Array MPPT Voltage Range: 90 VDC~230 VDC
Max. Input Current: 18A

PHYSICAL

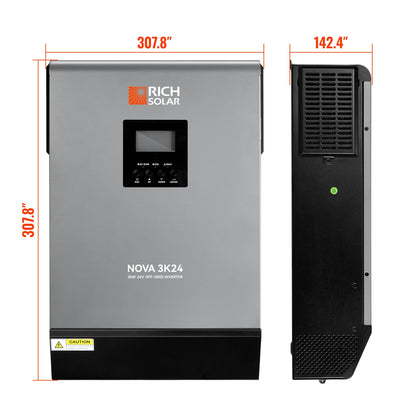

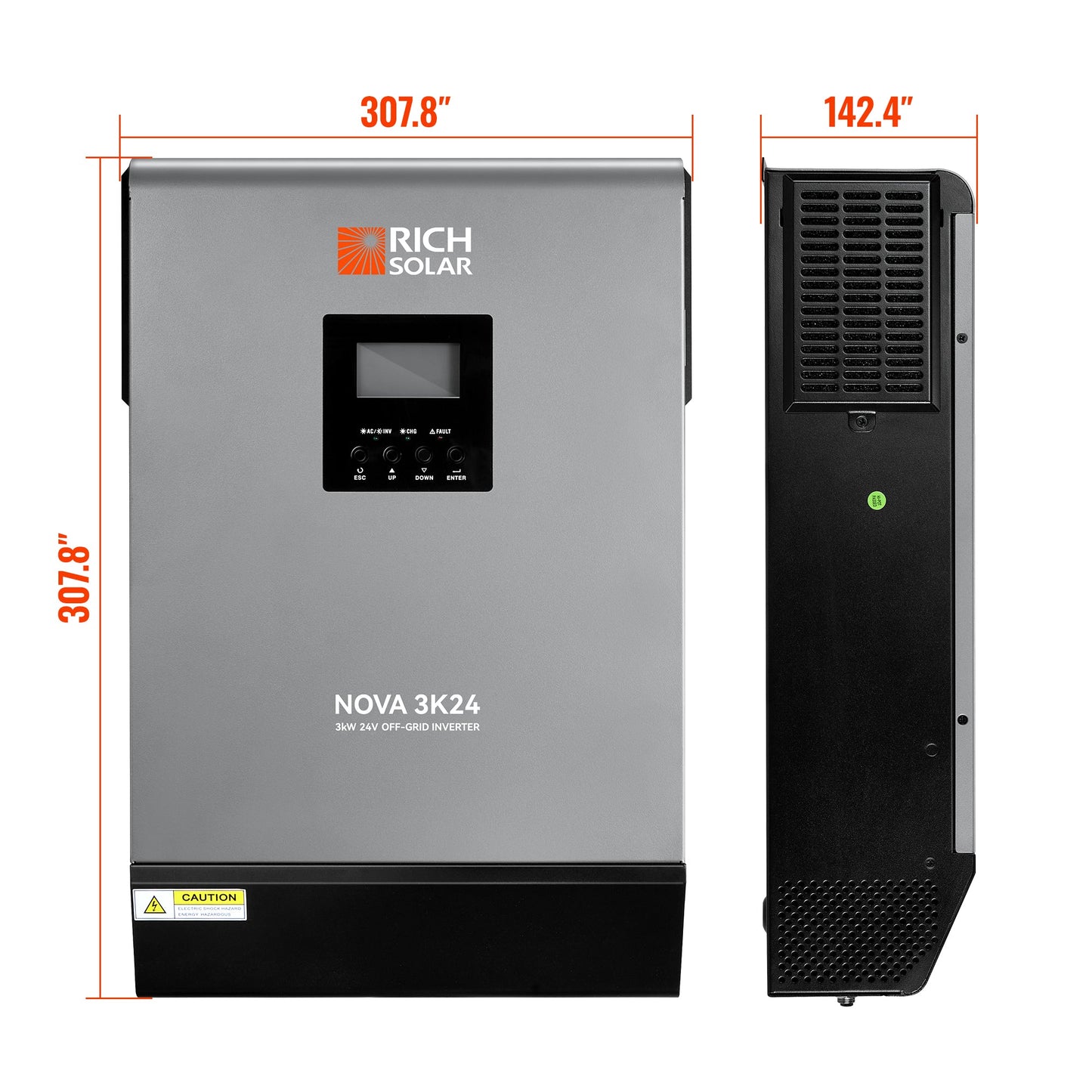

Dimension (D*W*H): 5.6*12.1*18.8in (142.4*307.8*477.6mm)
Net Weight: 26.5lb (12kg)
