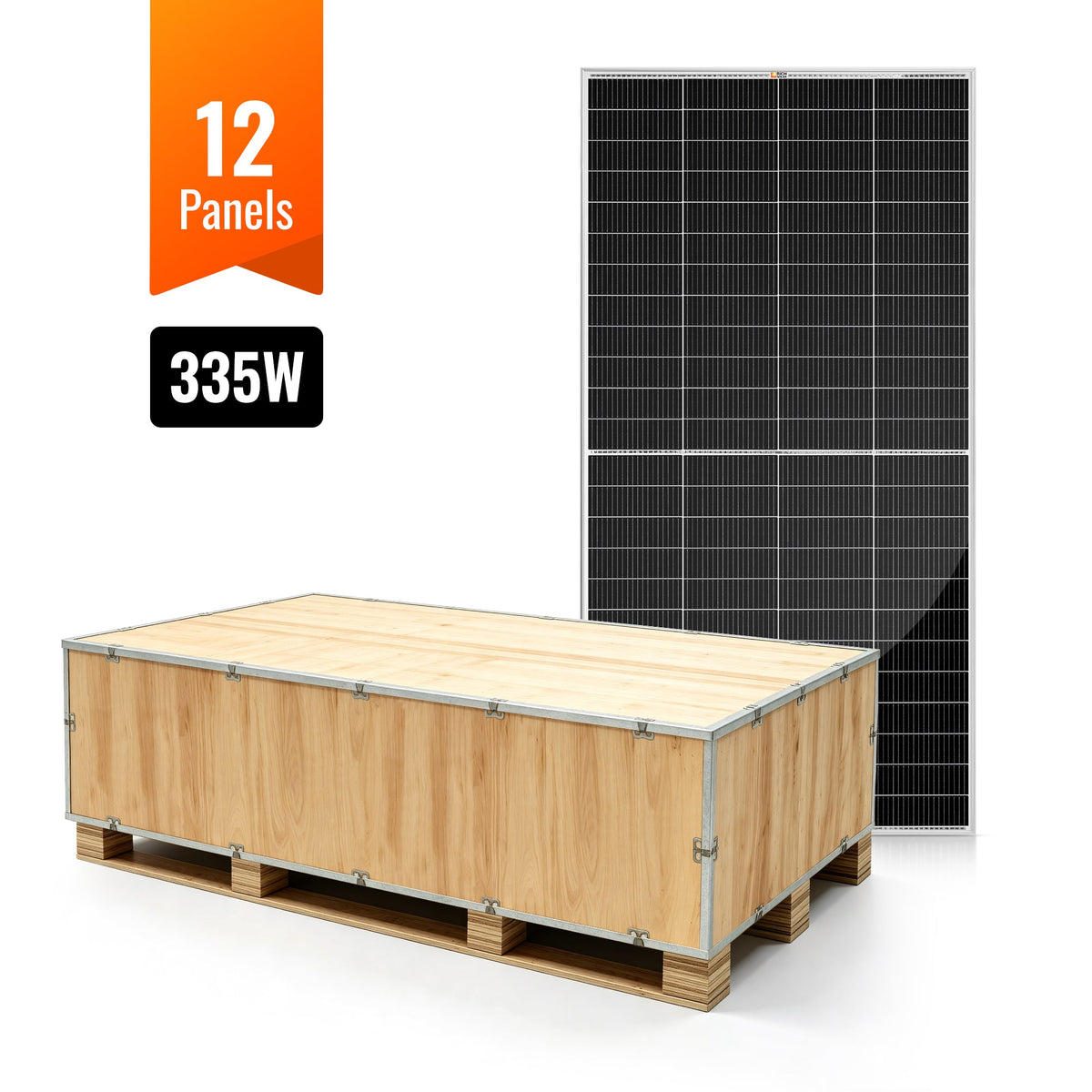

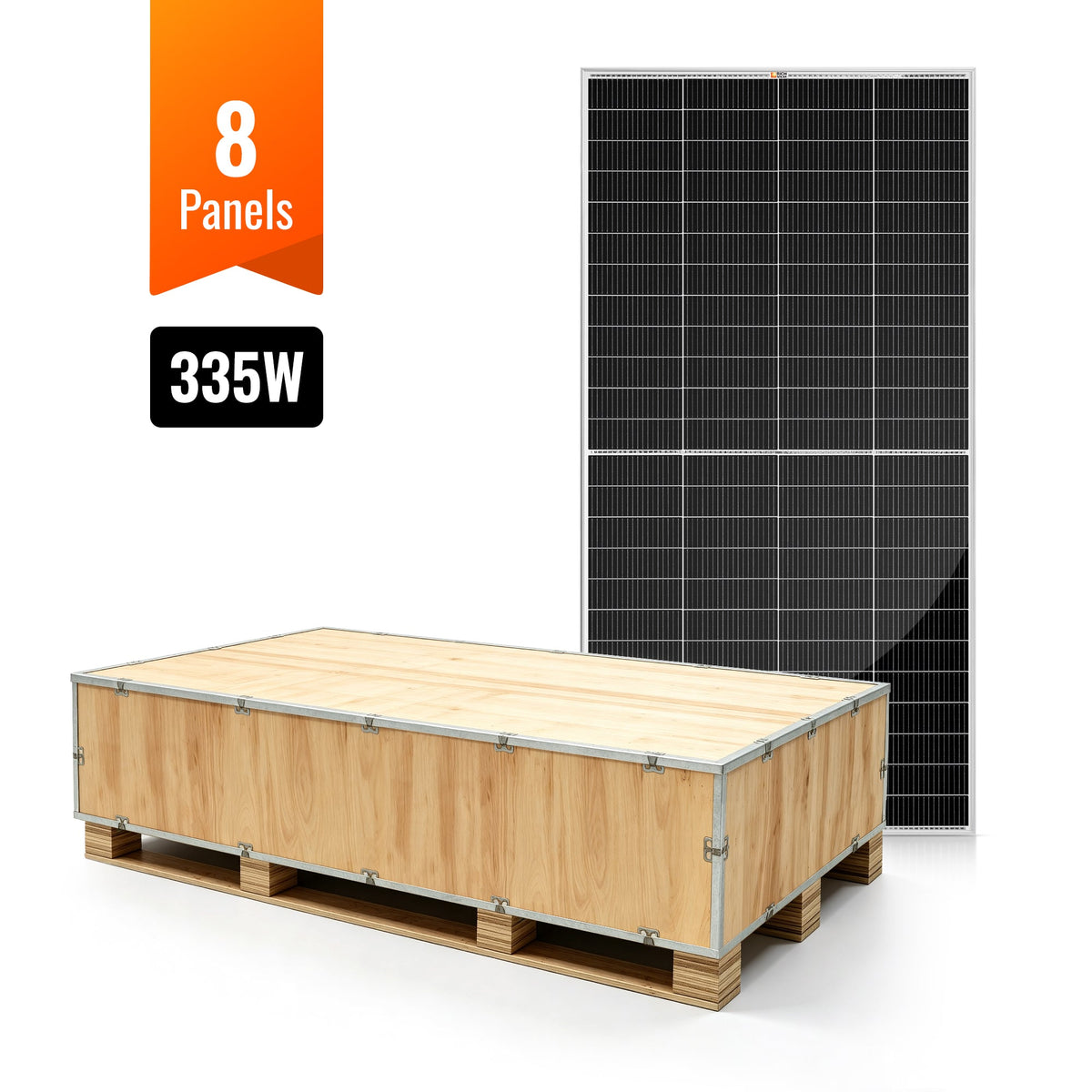

Rich Solar Mega 335 Pro 335 Watt 24 Volt Solar Power Panel

$1,839.99 USD

~~$2,299.99 USD~~ $1,839.99 USD

Sale Sold out

Shipping calculated at checkout.

Panels 8 Panels 10 Panels 12 Panels

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

Packing Details

For any other quantities, please call our sales team at 1-800-831-9889 or email us at sales@richsolar.com.

View full details

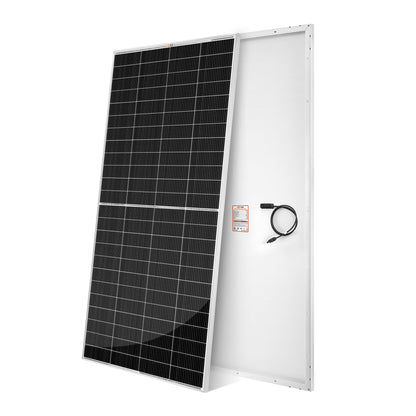

Rich Solar MEGA 335 PRO 335W N-Type TOPCon Solar Panel

Equipment Type and Primary Applications

The Rich Solar MEGA 335 PRO is a 335W monocrystalline photovoltaic module for residential, commercial, and agricultural solar power generation. It supports grid-tied inverter systems and off-grid installations charging 12V battery banks, with series or parallel array configuration for system design flexibility.

Performance Specifications

Rated peak power: 335W, with a factory tolerance of ±3W.
Maximum power voltage/current: 38.2V Vmp and 8.77A Imp.
Open-circuit voltage: 47.6V Voc; short-circuit current: 9.19A Isc.
Maximum system voltage: 1500VDC; maximum series fuse rating: 20A.
Operating temperature: -40°F to 185°F.
Dimensions and weight: 69.3 x 34.6 x 1.2 inches; 39.3 lb.
Electrical connections: 3-foot lead pairs, IP67-rated junction box, and waterproof inline connectors.

Safety Features and Certifications

UL Listed for grid-tied and stand-alone photovoltaic applications.
Integrated passive bypass diodes reduce reverse-current hotspot risk.
Sealed junction box and waterproof inline connectors support protected outdoor electrical connections.

Installation and Maintenance Requirements

Pre-drilled rail mounting holes fit standard Z-brackets, ground tracks, and tilt frames. Before commissioning, verify string polarity, secure all wire terminations, and follow applicable local electrical codes. Perform semi-annual maintenance by inspecting connector integrity, checking junction-box gaskets for moisture ingress, and rinsing the AR-coated glass.

Warranty and Service Information

Coverage includes a 25-year limited power output guarantee and 10-year material and workmanship coverage. Warranty claims require validated serial numbers submitted through authorized distribution channels.

Branding/References

Manufacturer: Rich Solar
Model: MEGA 335 PRO
References: Manufacturer technical datasheet and regulatory certification listings.

Differentiators

N-Type TOPCon cell architecture eliminates boron-oxygen impurity degradation and provides higher low-light current generation with extended thermal stability compared with conventional silicon modules.
