MEGA 100 SLIM | 100 Watt Slim Solar Panel | Compact 12V Off-Grid Narrow Solar Panel for Vans, Overlanders, Boats | 25-Year Output Warranty | UL Certified

MEGA 100 SLIM | 100 Watt Slim Solar Panel | Compact 12V Off-Grid Narrow Solar Panel for Vans, Overlanders, Boats | 25-Year Output Warranty | UL Certified

$103.99 USD
$129.99 USD $103.99 USD
Sale Sold out
Shipping calculated at checkout.
Style

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

Packing Details

View full details

Equipment Type and Primary Applications

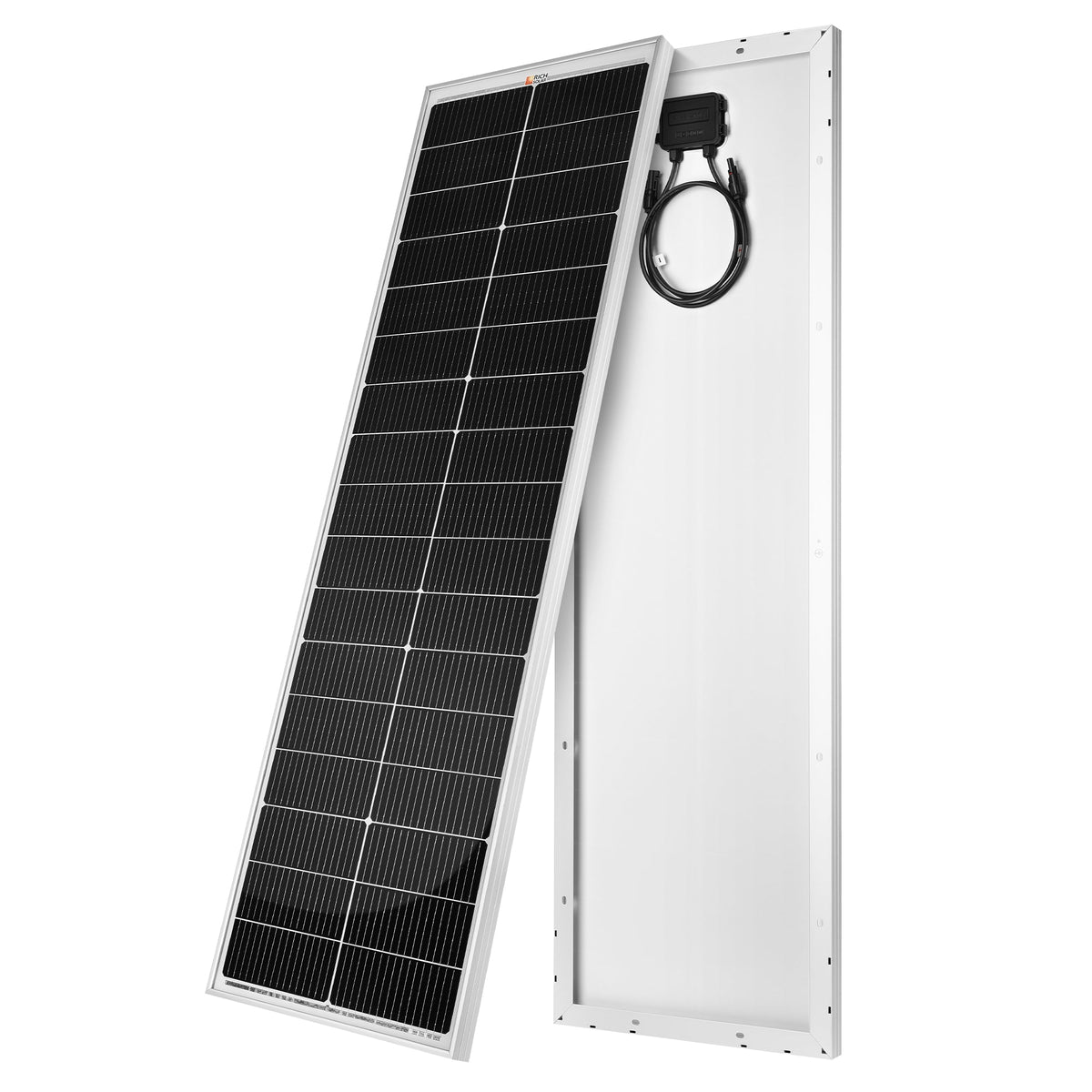

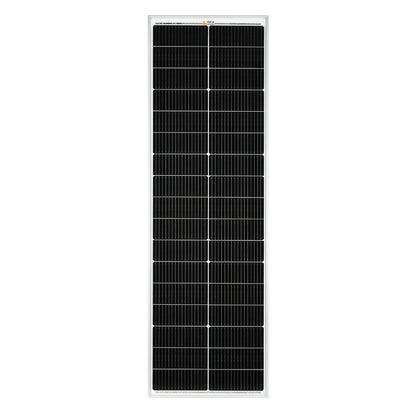

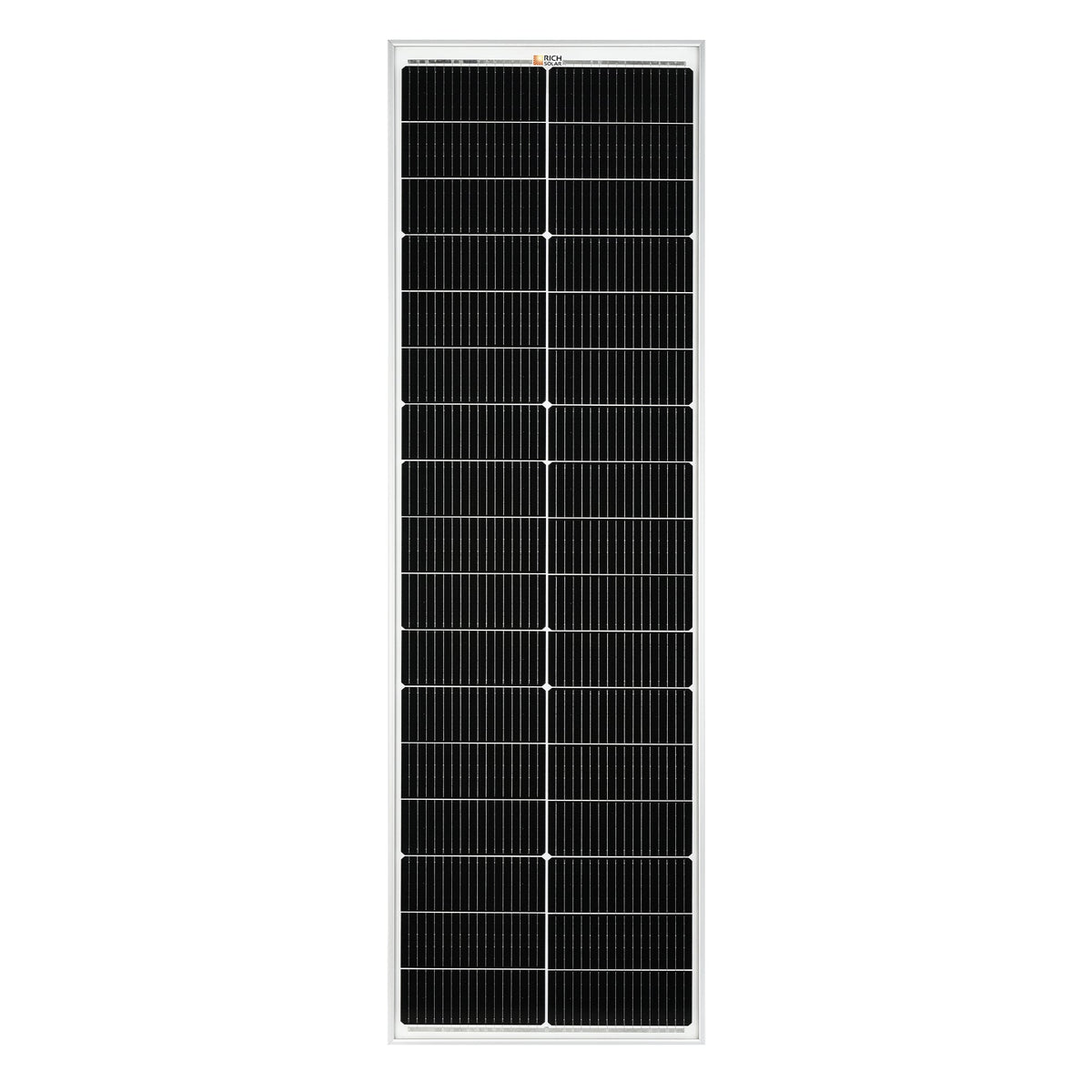

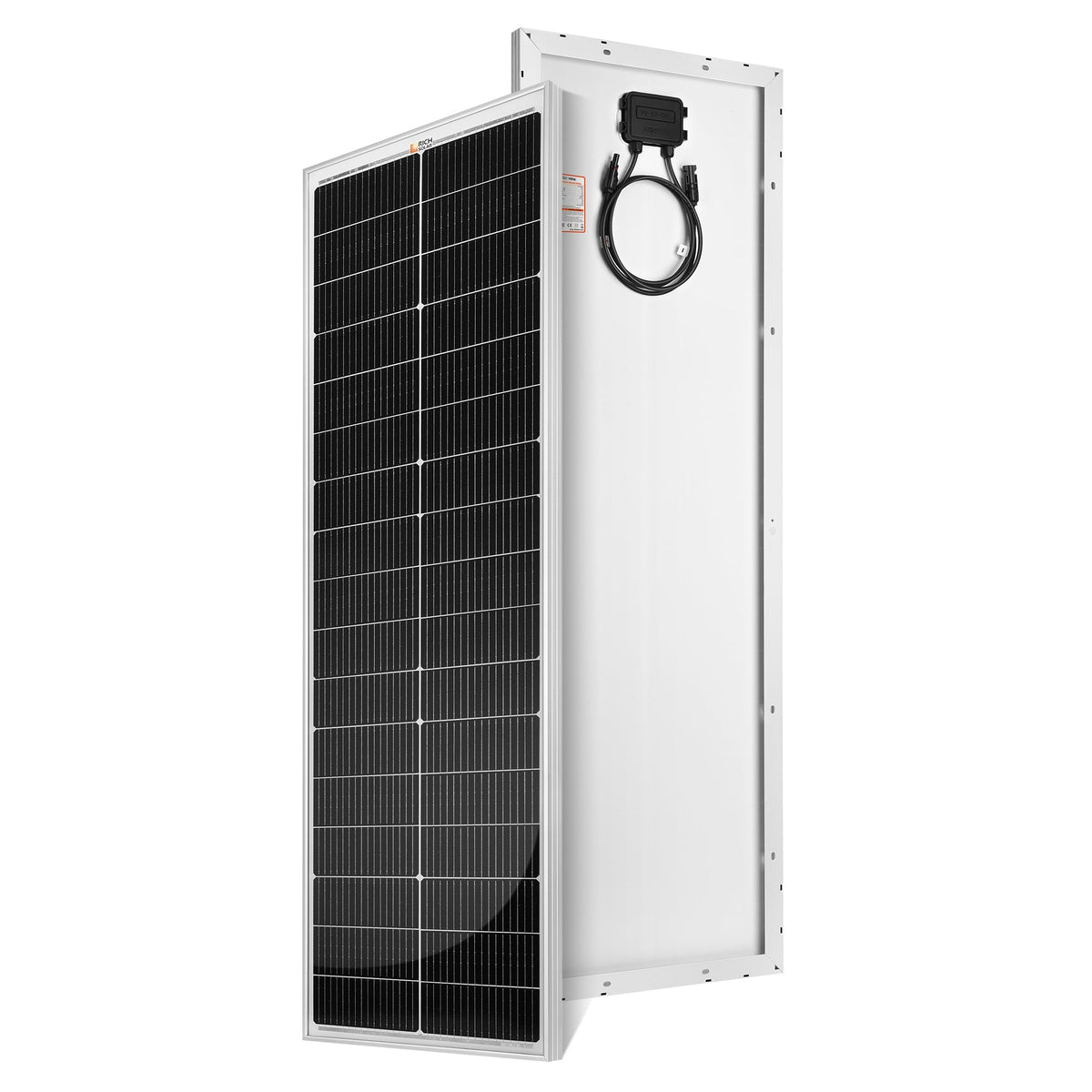

MEGA 100 SLIM is a 100W, 12V off-grid solar panel measuring 50.0 x 15.8 x 1.2 in and weighing 12.4 lb. Its narrow profile is designed for RVs, vans, truck campers, boats, and other space-constrained solar installations. The panel is compatible with on-grid and off-grid inverters.

Performance Specifications

  • Maximum power: 100W; power tolerance: 0 to +5W

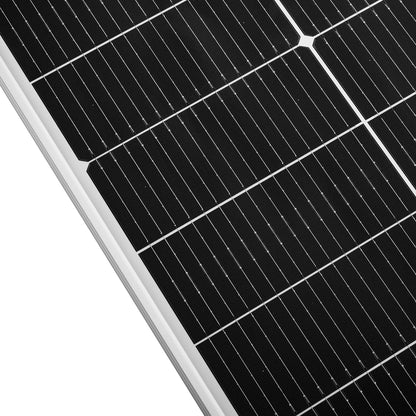

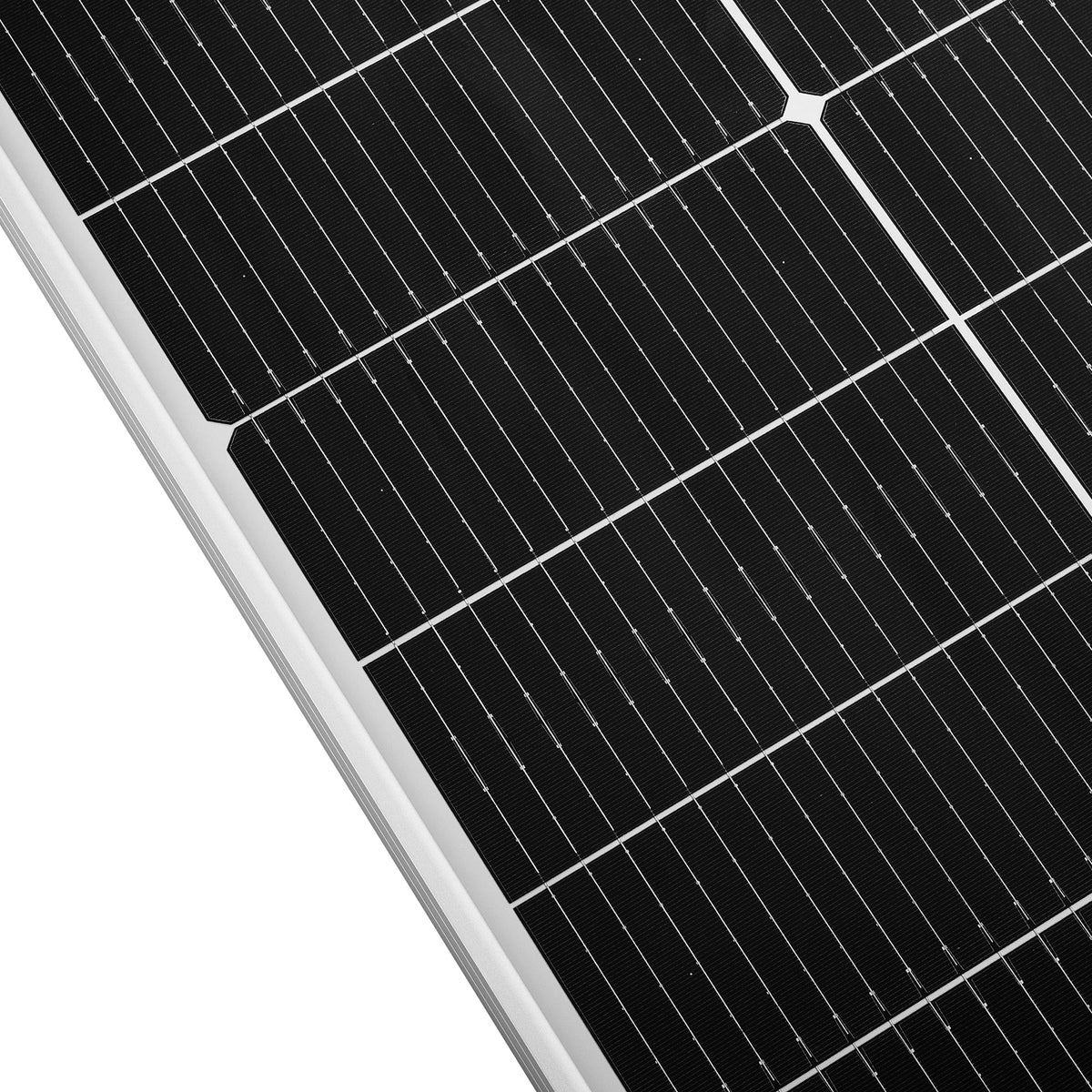

  • Cell technology: 16-busbar N-Type TOPCon; 34-cell configuration; efficiency up to 25.1%
  • Operating electrical values: Vmp 19.6V, Imp 5.1A, Voc 23.6V, Isc 5.38A
  • Maximum system voltage: 1000VDC; maximum series fuse rating: 15A

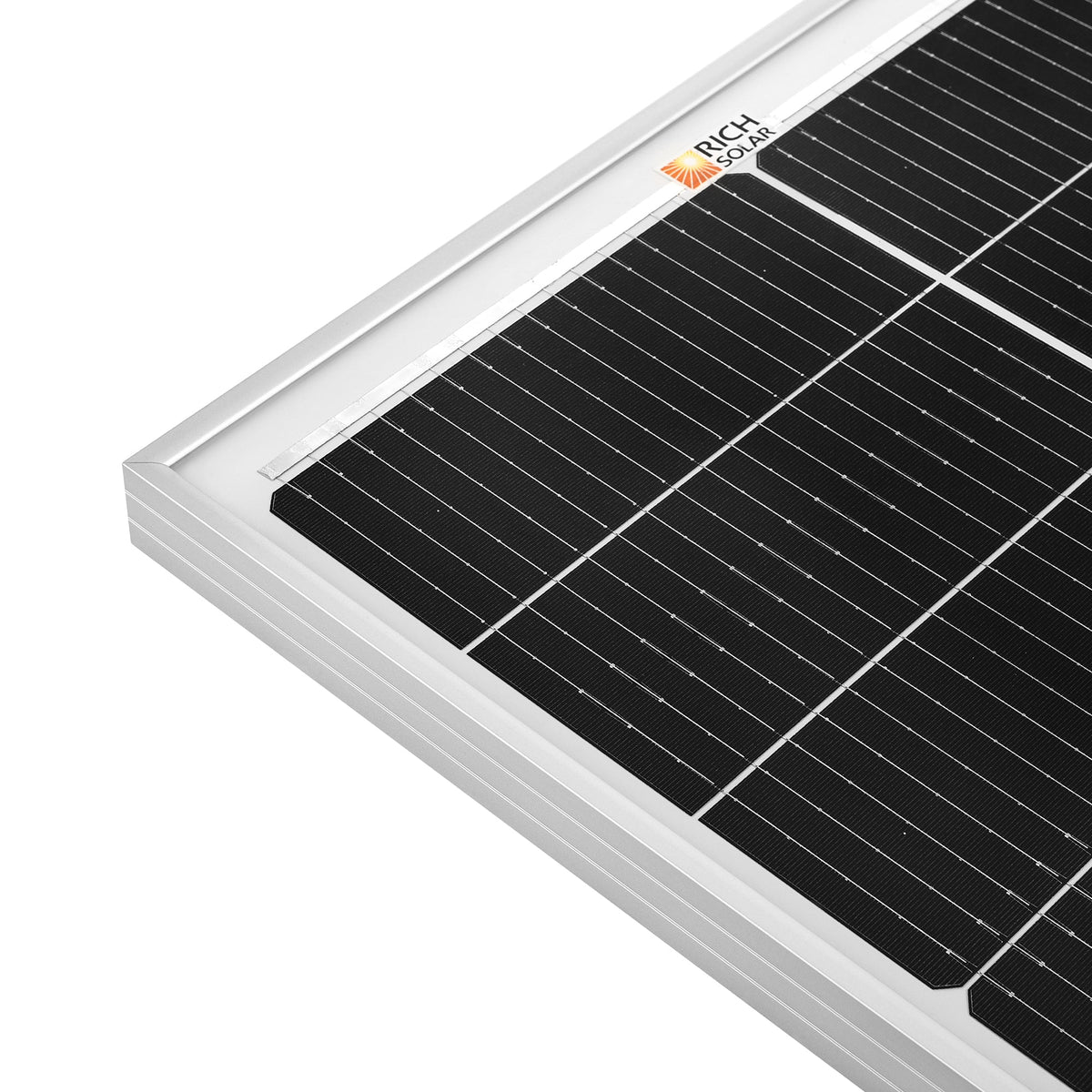

  • Construction: 3.2 mm AR-coated tempered glass with anodized aluminum frame
  • Mechanical ratings: 5400 Pa snow load and 2400 Pa wind load
  • Designed for low-light performance during cloudy conditions and dawn or dusk; tested for UV exposure, thermal cycling, and humidity freeze

Safety Features and Certifications

  • PID-resistant design and 100% EL inspection for microcrack detection

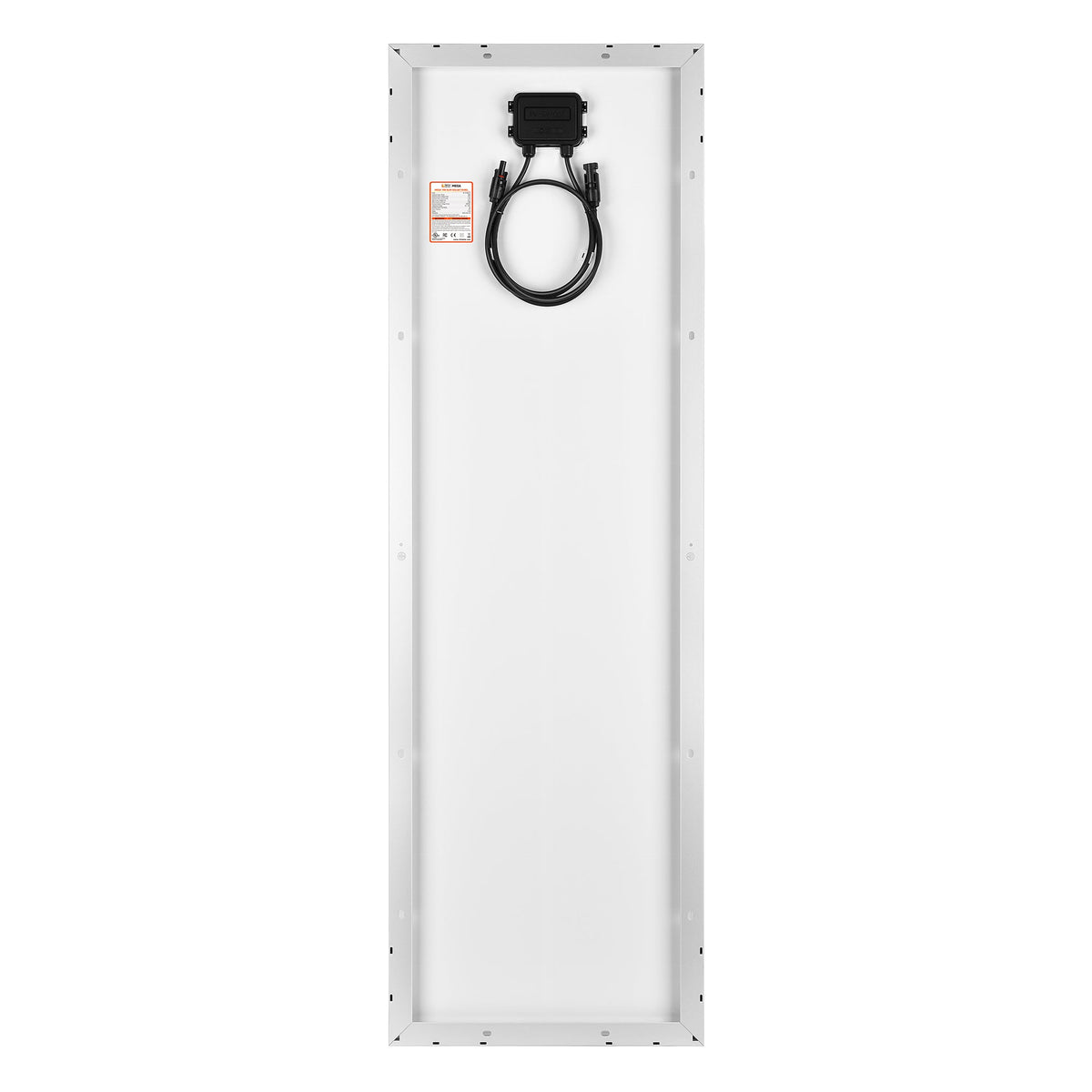

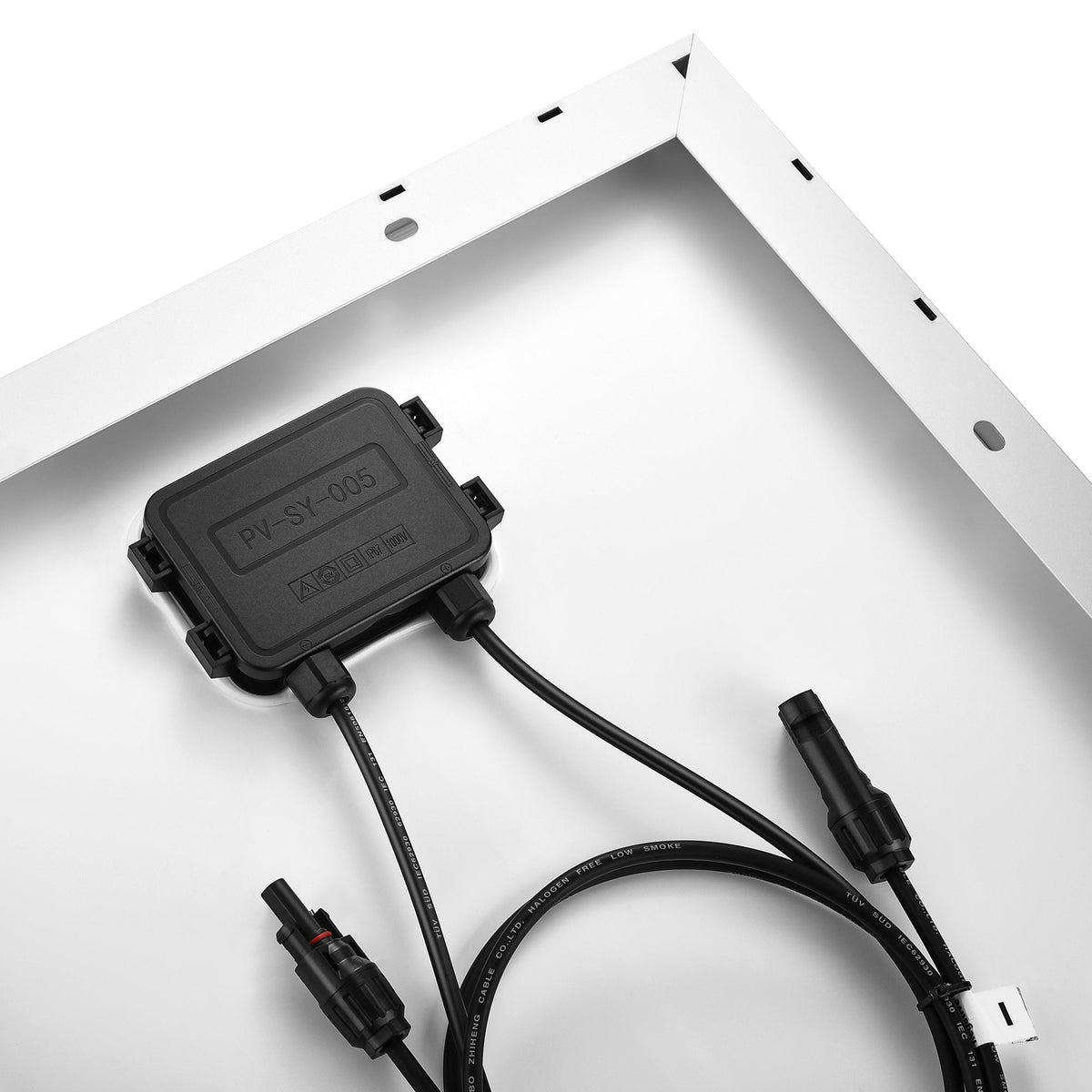

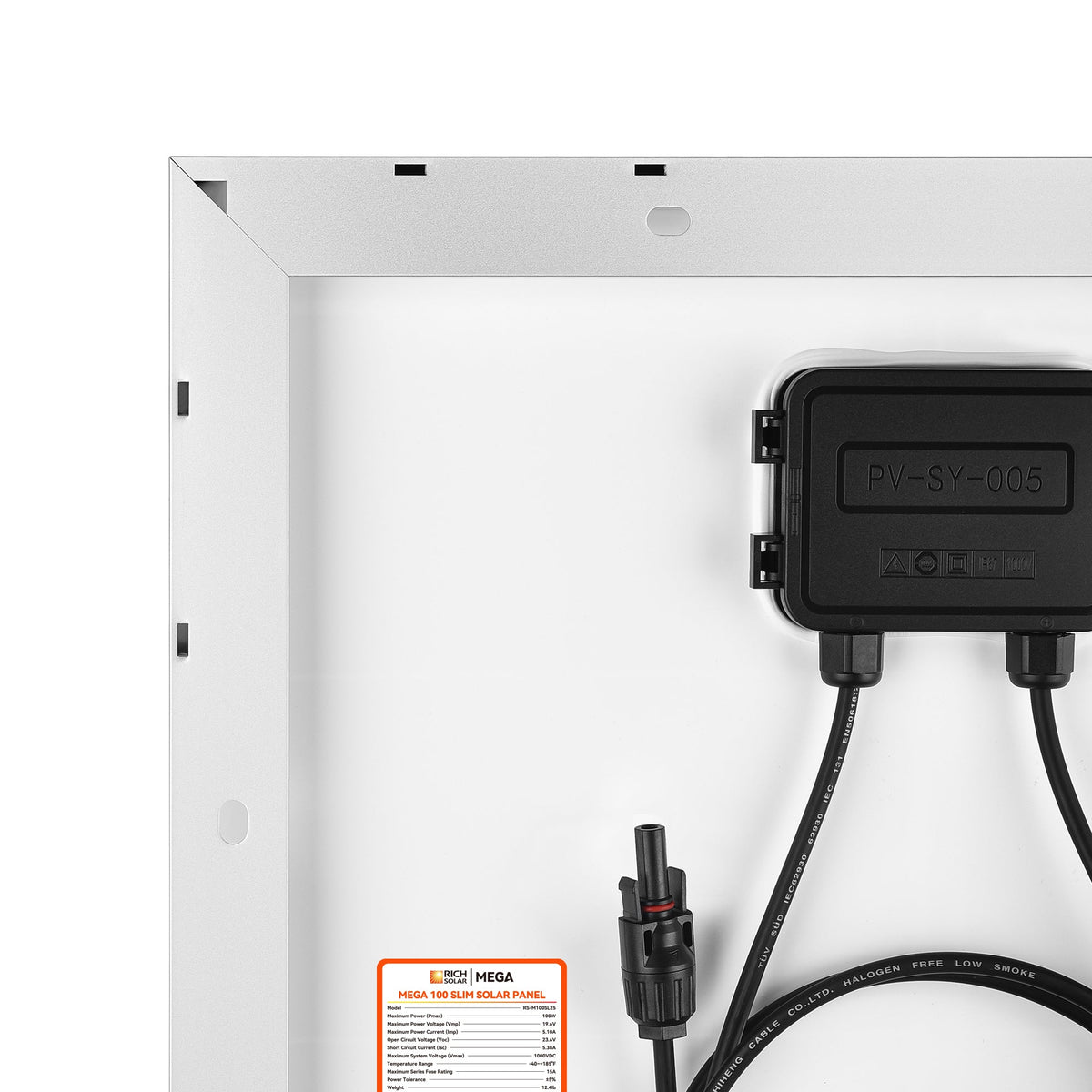

  • IP67-rated waterproof junction box and solar connectors
  • Certified to UL 61730, IEC 61215, and CSA C22.2 standards; UL Certified

Installation and Maintenance Requirements

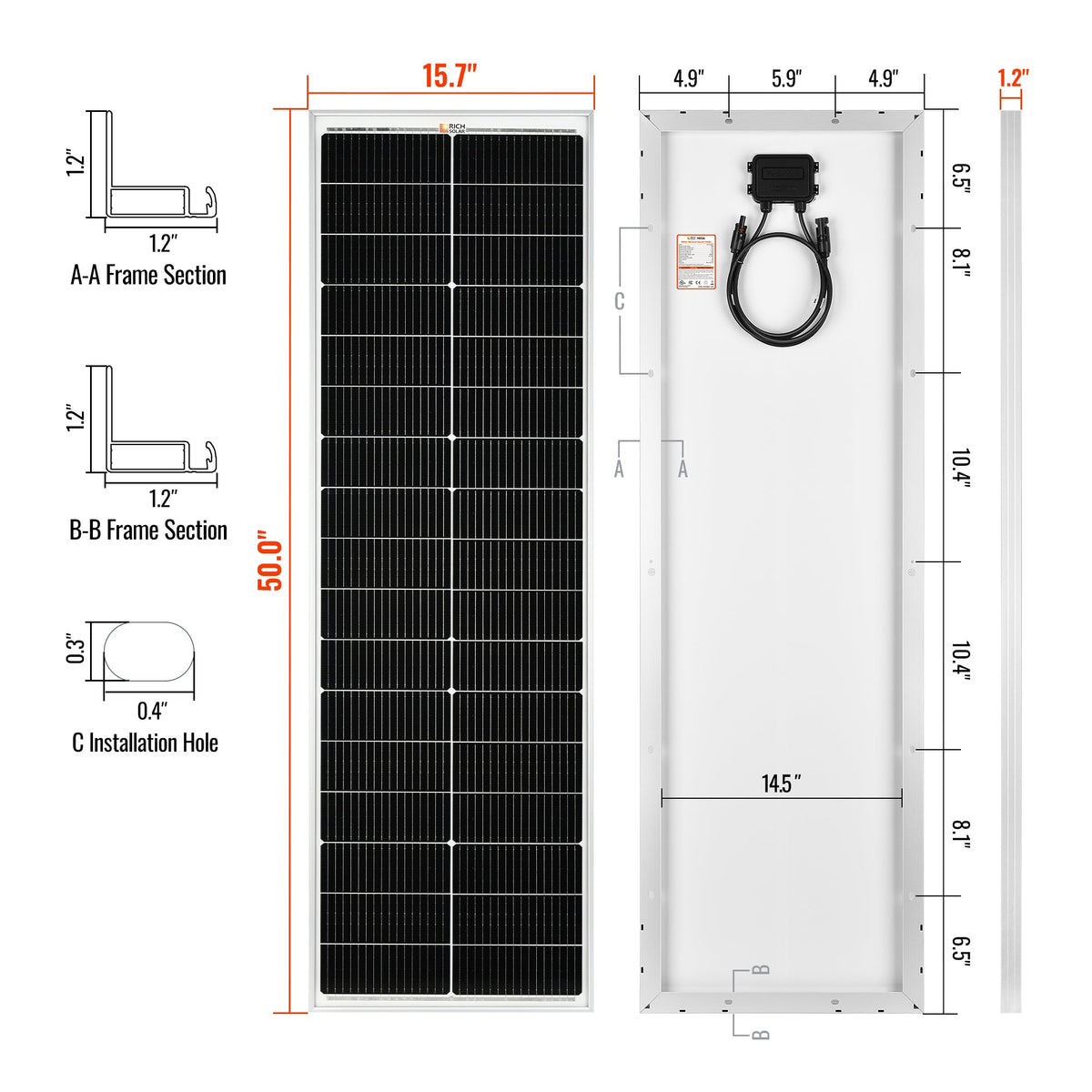

Use the 12 pre-drilled mounting holes with Z brackets, tilt mounts, pole mounts, or ground-mount hardware. Connect the included MC4 leads to compatible system components and inverter equipment. Panel leads are 12 AWG and 3 ft each. Installation space must accommodate the 50.0 x 15.8 in panel footprint.

Warranty and Service Information

  • 25-year output warranty
  • 10-year workmanship warranty

Branding/References

Brand and model: MEGA 100 SLIM. Technical references include UL 61730, IEC 61215, and CSA C22.2 certifications.

Differentiators

The compact 34-cell panel combines N-Type TOPCon technology, up to 25.1% efficiency, 0 to +5W power tolerance, and a slim 1.2 in profile for narrow roof areas where standard solar panels may not fit.
