Inline Fuse Holder

$12.79 USD

~~$15.99 USD~~ $12.79 USD

Sale Sold out

Shipping calculated at checkout.

Option 10A 15A 20A 30A

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

Packing Details

View full details

Equipment Type and Primary Applications

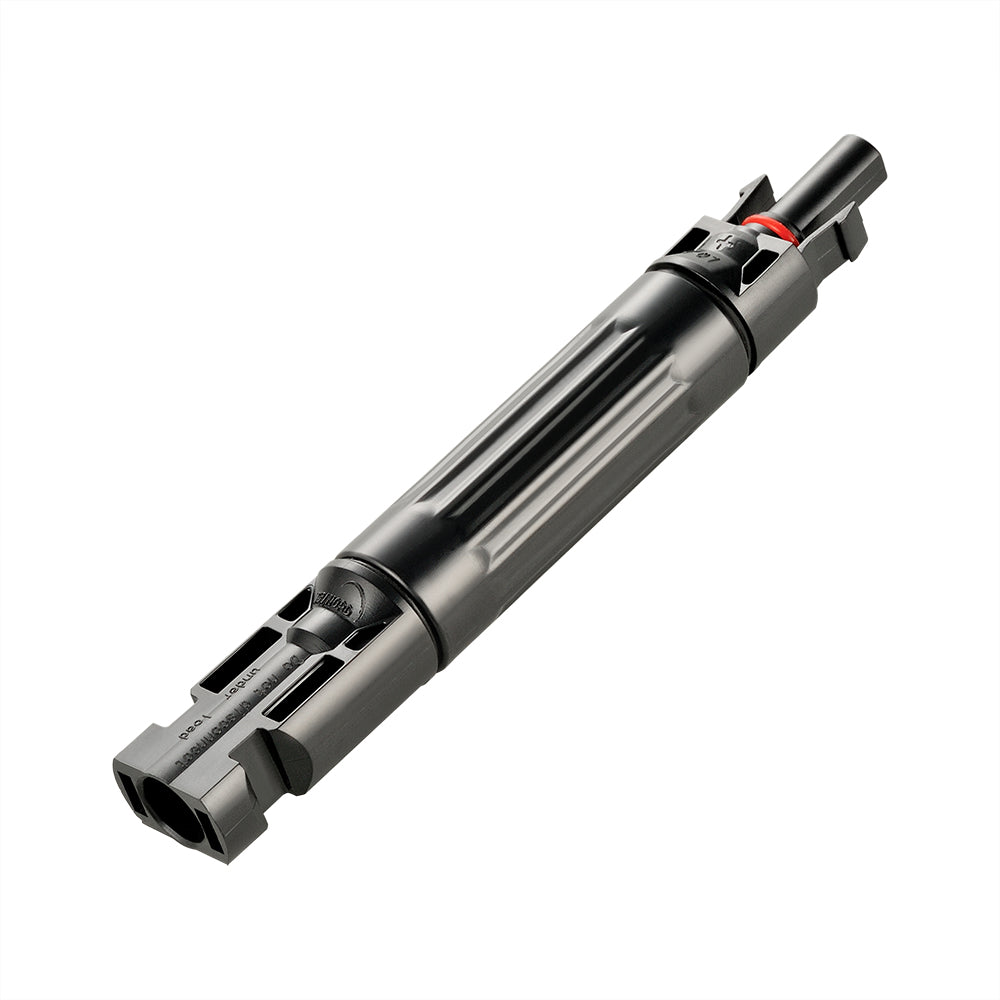

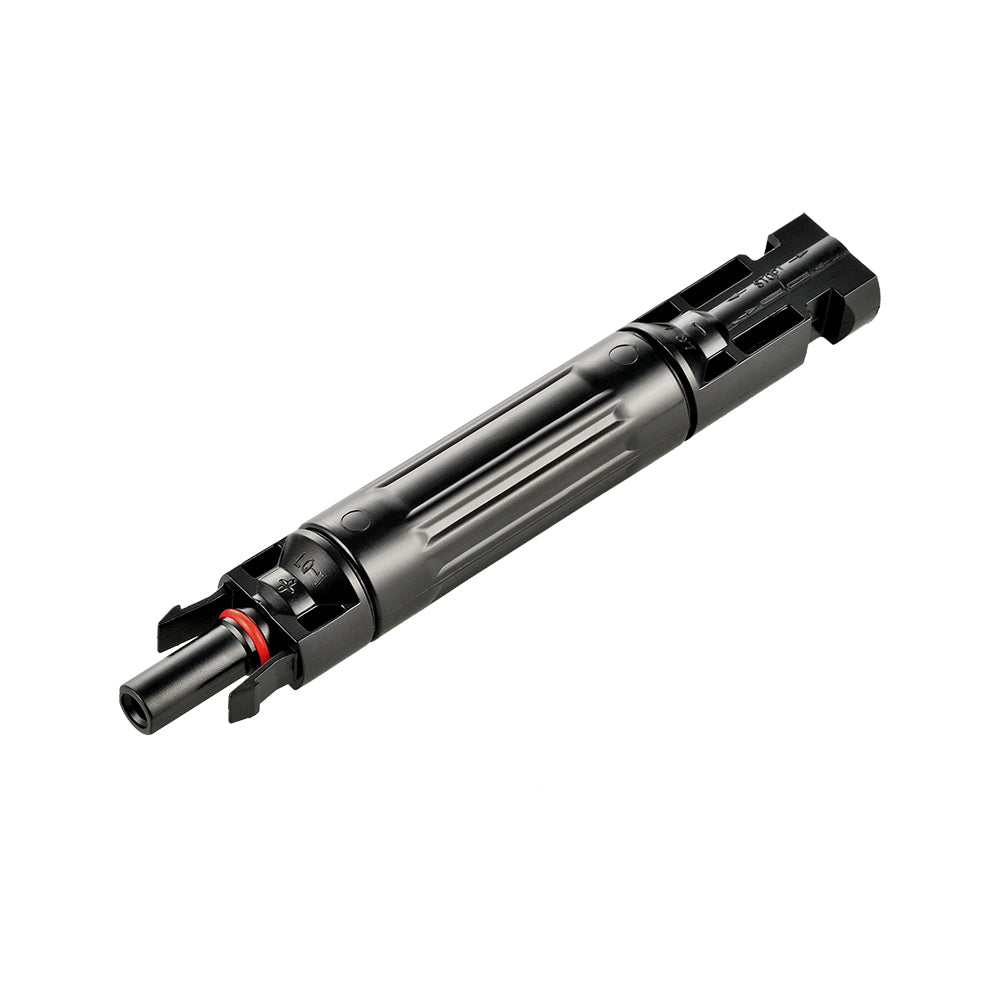

This inline fuse holder provides single-circuit overcurrent and short-circuit protection for solar power circuits. It connects directly between compatible solar panels, extension cables, and other photovoltaic wiring without cutting or splicing conductors. The sealed holder is designed for outdoor solar installations and accepts a replaceable 10A, 15A, 20A, or 30A fuse.

Performance Specifications

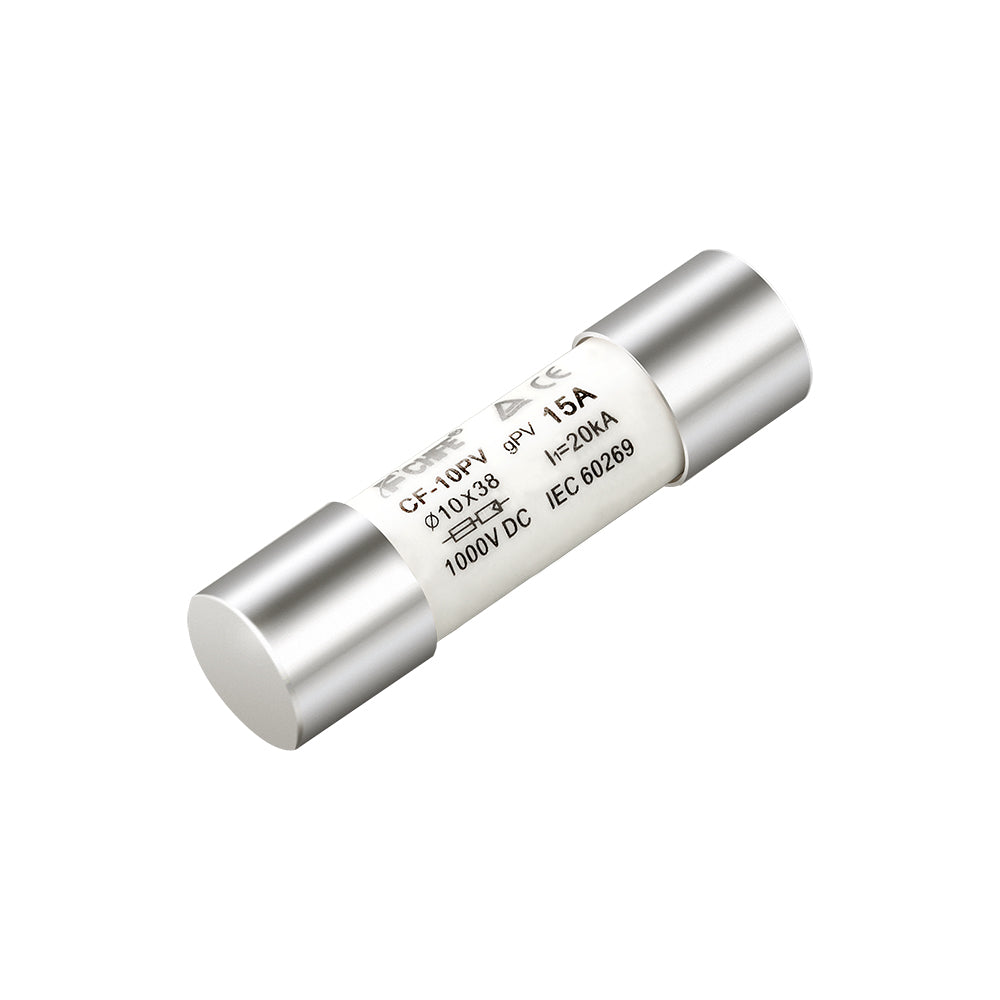

Rated current: 10A, 15A, 20A, or 30A
Rated voltage: 1000V DC
Protection ratings: IP2X and IP67
Operating temperature: -40°F to 257°F
Contact resistance: 1mΩ
Insertion force: ≤50N; withdrawal force: ≥50N
Test voltage: 6000V AC, 50Hz, 1 minute
Contact material: silver-plated copper; insulation material: PPO
Safety class: II; overvoltage category: CAT III

Safety Features and Certifications

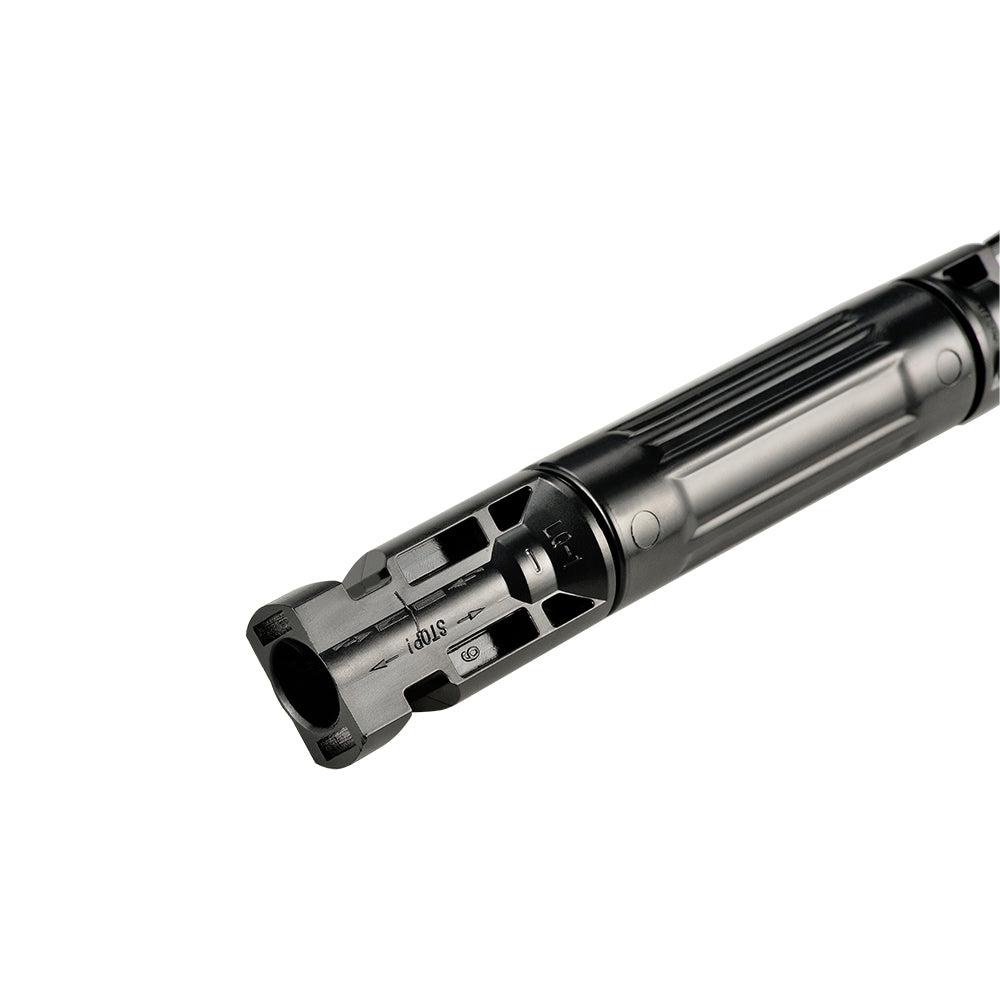

The holder uses a sealed design, auto-locking solar connectors, and flame-rated UL94 V-0 insulation. Its replaceable fuse protects one solar circuit against overcurrent and short circuits. The product is specified with CAT III overvoltage protection and Safety Class II construction.

Installation and Maintenance Requirements

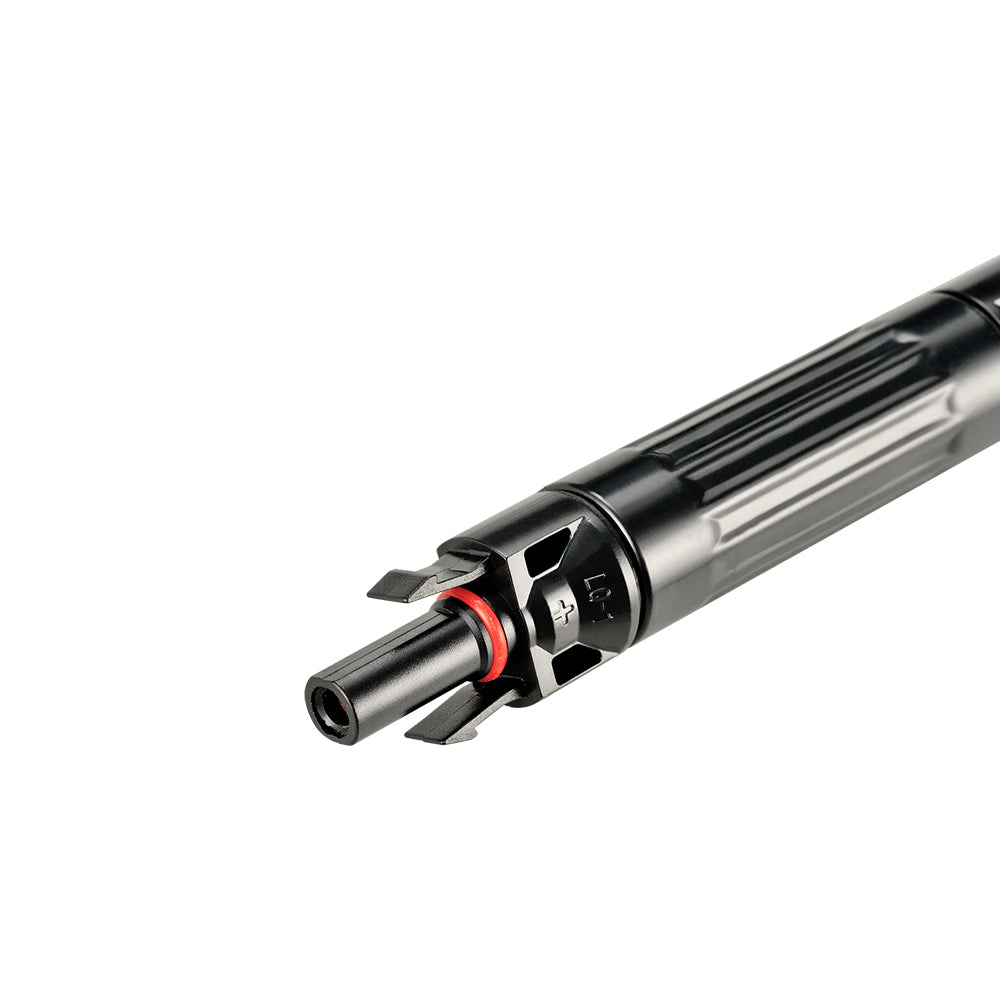

Installation uses standard MC4-compatible solar connectors for plug-and-play connection to solar panels and extension cables. No wire cutting or splicing is required. Maintenance consists of replacing the fuse with the selected 10A, 15A, 20A, or 30A rating when circuit protection operates.

Warranty and Service Information

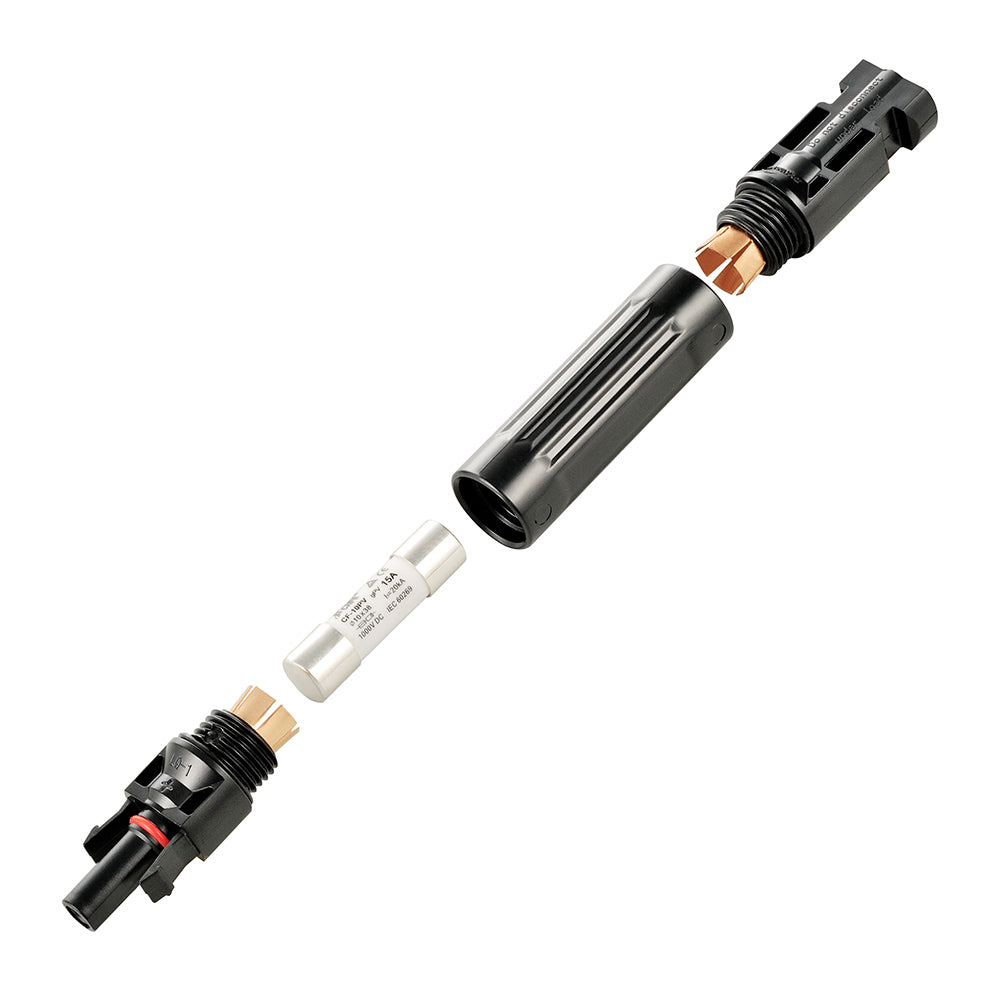

The replaceable-fuse design supports field service by allowing the protective fuse to be changed without replacing the holder.

Branding/References

Product: Inline Fuse Holder. Connector reference: MC4-compatible solar connector.

Differentiators

Its combination of 1000V DC rating, IP67 sealed construction, auto-locking connectors, and replaceable single-circuit fuse enables direct outdoor photovoltaic protection without cable splicing.
